VC-Dot 1 is a lightweight string of individually controllable, bright Dots useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort. Fully customizable and controllable via the award-winning P3 System Controller? family and/or DMX512, it is a perfect solution for integrating LED video technology into fa?ades, stage designs, ceilings or any other structure, indoors or out.

Mapping video onto VC-Dots goes quickly and intuitively via the P3 System Controller. No need for complex setups and time-consuming addressing. VC-Dot 1 contains one LED and is available in an RGB color mixing version.

■概要
・Creative LED Video element for building and stage integration
・Customizable pixel-pitch
・Bright and fully calibrated for optimal consistency

■特徴
・Flexible string-based direct-view LED lighting
・Perfect for fa?ade or stage integration
・Individually controllable VC-dots
・Up to 100 VC-dots per string
・Customizable VC-dot pixel pitch and string length
・Calibrated brightness and colors for each VC-Dot
・P3 and RDM/DMX controllable
・Intuitive mapping and addressing via P3 System Controller family
・Efficient and long-lasting
・IP67 rated for permanent outdoor or indoor use
・Simple infrastructure via VC-Feeder and P3 PowerPort

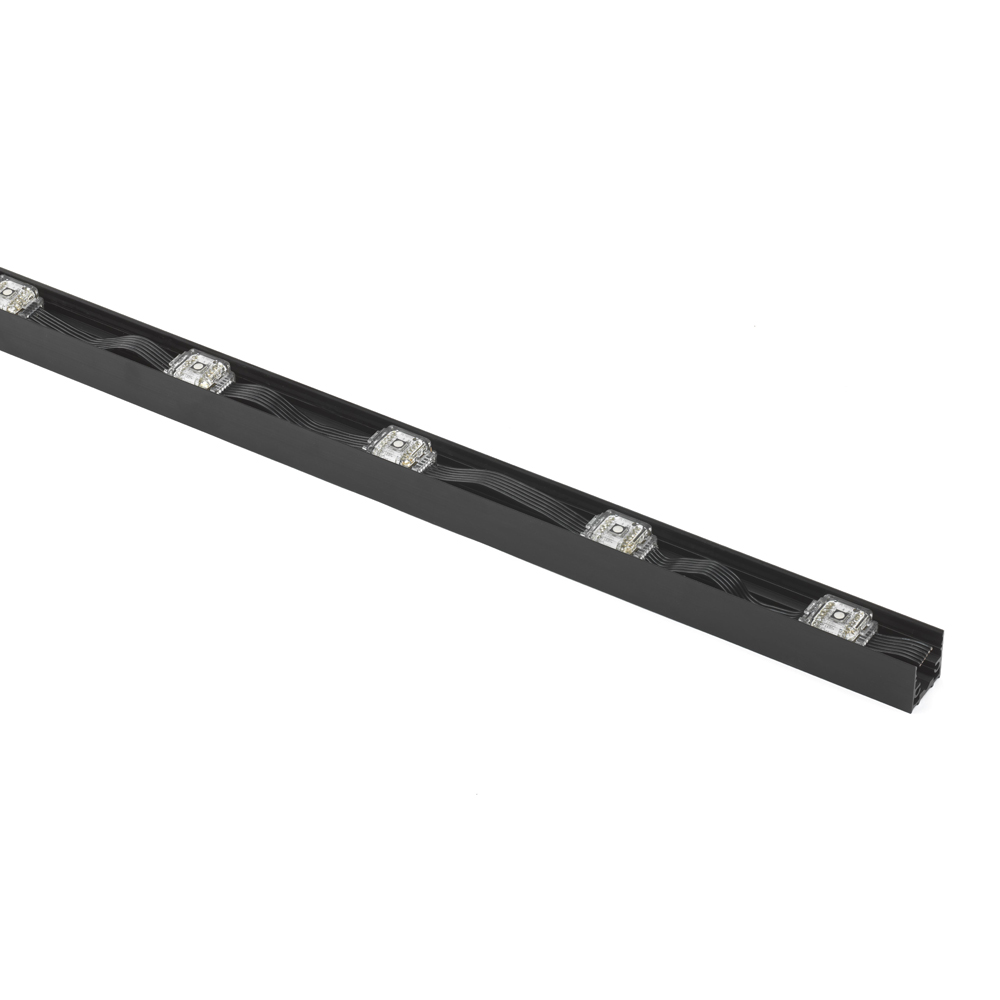

・Great number of mounting options using clips, brackets or profiles

■■仕様
■PHYSICAL
・Pixel dimensions: 28 x 23 x 11 mm
・Pixel dimensions with dome: 28 mm x 23 mm x 20 mm
・Weight: 1.3 kg for 100 Dots, 100 mm spacing, with 2 m lead-in cable and connector
・Maximum number of pixels per string: 100
・Standard pixel spacing (pitch): 100 mm
・Minimum pixel spacing (pitch): 100 mm
・Maximum pixel spacing (pitch): 1000 mm
・Standard lead-in cable length: 2000 mm
・Maximum lead-in cable length: 5000 mm
・One pixel = one Dot

■CONTROL AND PROGRAMMING
・Control options: Martin? P3 System controller and/or DMX
・Control modes: Calibrated and raw
・Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
・Setting and addressing: P3 System Controller or RDM-compliant controller
・DMX channels: 3 per RGB Dot, string or group
・Color and intensity calibration: Dot-level
・DMX compliance: USITT DMX512-A
・RDM compliance: ANSI/ESTA E1.20

■OPTICS
・Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
・LED manufacturer: Cree
 *Figure obtained under manufacturer´s test conditions.

■PHOTOMETRIC DATA
・Light source : One RGB LED
・Viewing angle: 127° x 127°
・Viewing angle with dome: 180° x 180°
・Luminous intensity, RGB, calibrated mode: 2 cd
・Luminous intensity, RGB, raw mode: 2.5 cd
・Total output, RGB, calibrated mode: 5.4 lm
・Red output, RGB, calibrated mode: 1.5 lm
・Green output, RGB, calibrated mode: 3.6 lm
・Blue output, RGB, calibrated mode: 0.4 lm

■CONSTRUCTION
・Dot: Clear polycarbonate, clear silicone filled

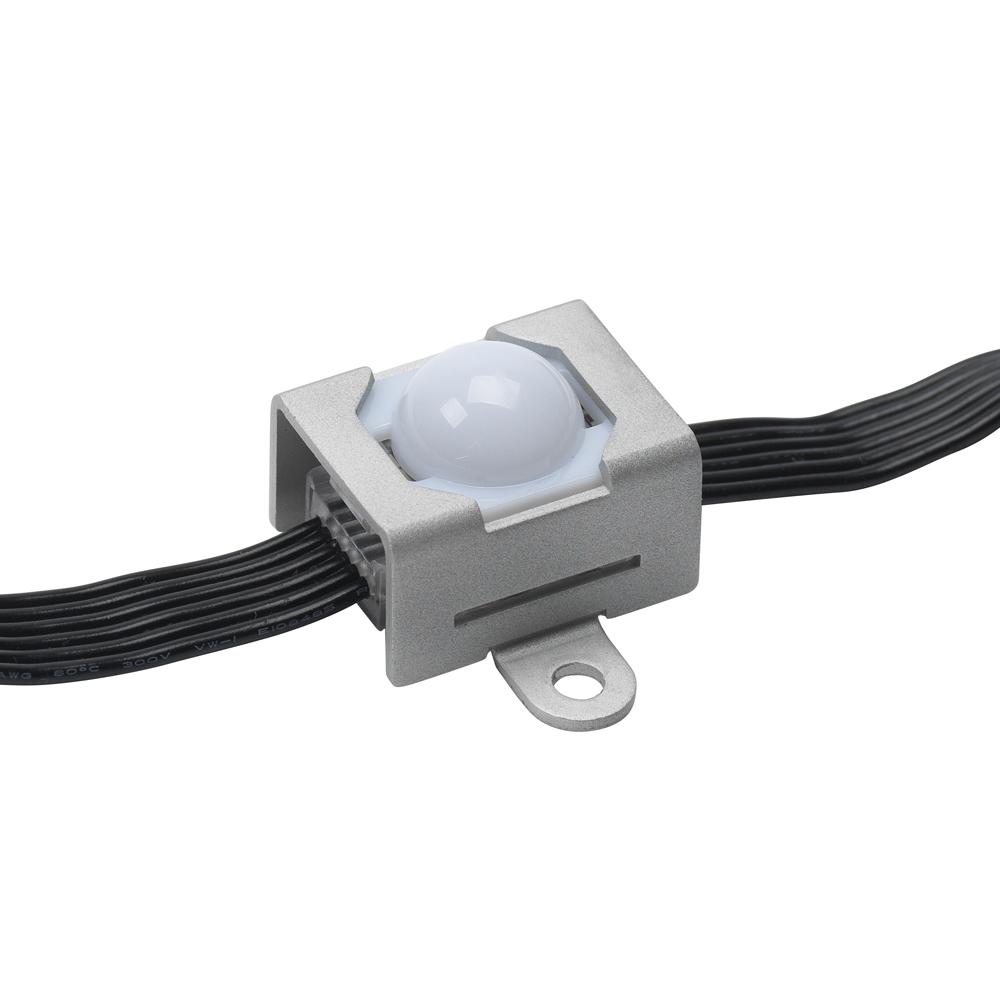

・Diffuser dome: White translucent polycarbonate
・Mounting clip: White polycarbonate
・Interconnecting cable: 6 x 20 AWG, black
・Minimum cable bend radius: 26 mm (1.1 in.)
・Protection rating: IP67
・RoHS compliant

■INSTALLATION
・Orientation: Any

■CONNECTIONS
・Power & data input to VC-Dot string from VC-Feeder?: Custom 8-pin connector, IP67-rated

■ELECTRICAL
・Operating voltage: 15 VDC
・Power and data converter: Martin VC-Feeder?
・Peak power consumption (at full intensity, full white): 0.95 W per Dot
・Typical power consumption (with typical video content): 0.32 W per Dot
・Figures for typical video content are indicative only and will vary.

■データシート
https://adn.harmanpro.com/site_elements/resources/15612_1547057280/Martin_VC-Dot%201_SpecSheet%28A4%29_original.pdf

■マニュアル
https://adn.harmanpro.com/site_elements/executables/6972_1526700398/35000264d_UM_VC-Dots_EN_D_original.pdf

■P3 Live Preview and Flexible Video Mapping?P3 lifehack#3(動画)
https://www.youtube.com/watch?v=mi7Jz4-MX7g&feature=emb_logo

■Complicated Mapping Made Easy with P3?P3 lifehack#4(動画)
https://www.youtube.com/watch?v=NnmwCRhHYsM&feature=emb_logo

■P3 Directly from Green Hippo Media Server?P3 lifehack#5(動画)
https://www.youtube.com/watch?v=DrH-qFU1xyA&feature=emb_logo

■Mixing P3 Video and DMX for Creative Control?P3 lifehack#6(動画)
https://www.youtube.com/watch?v=NboppT71lo4&feature=emb_logo

■メーカーサイト
https://www.martin.com/en-US/products/vc-dot-1
