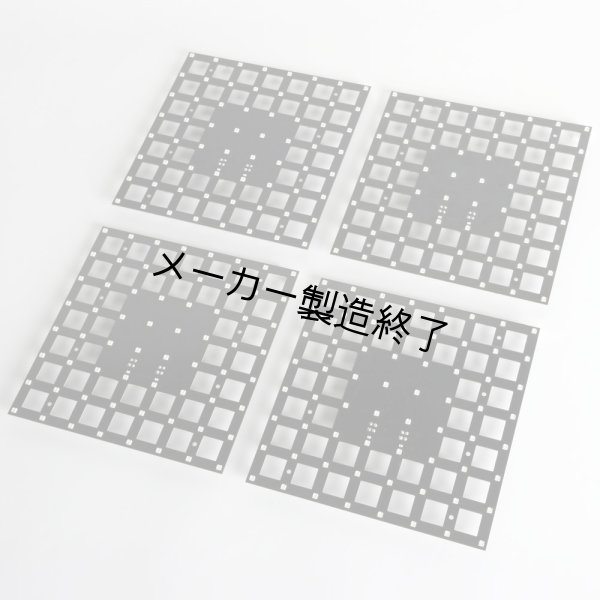

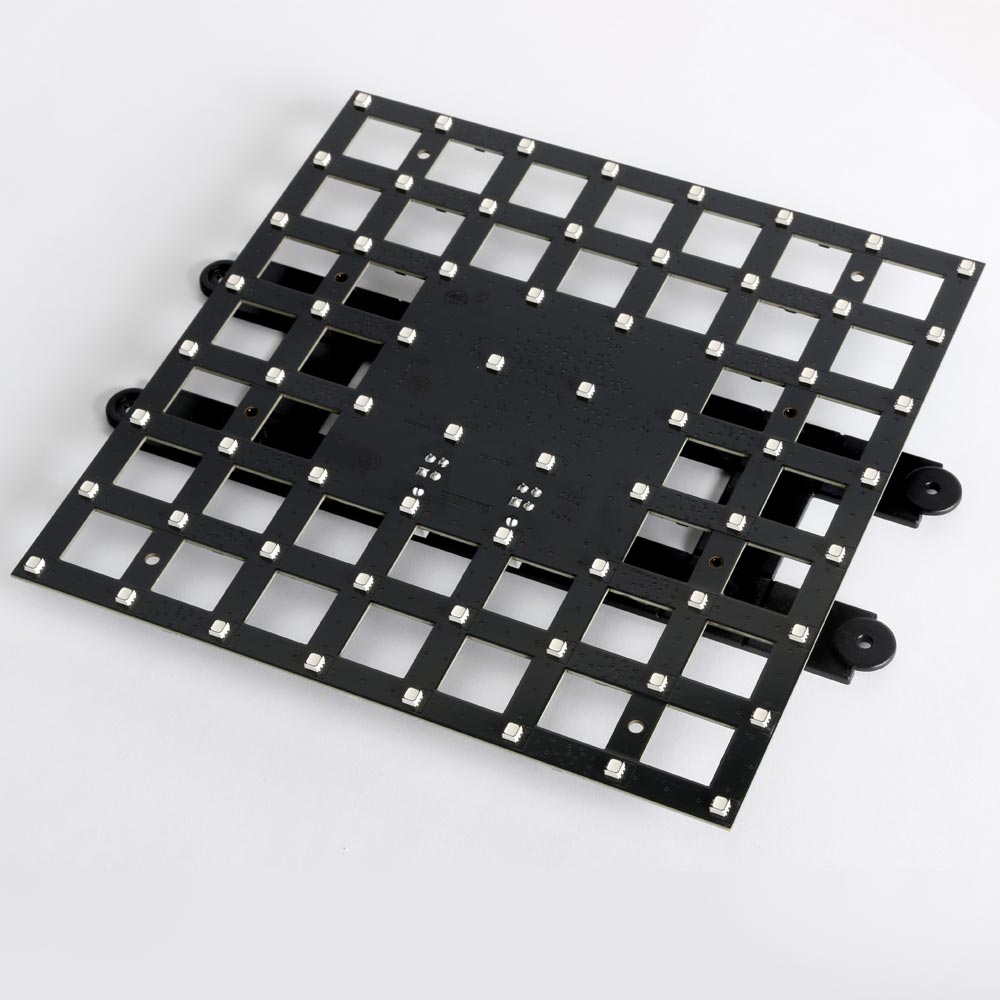

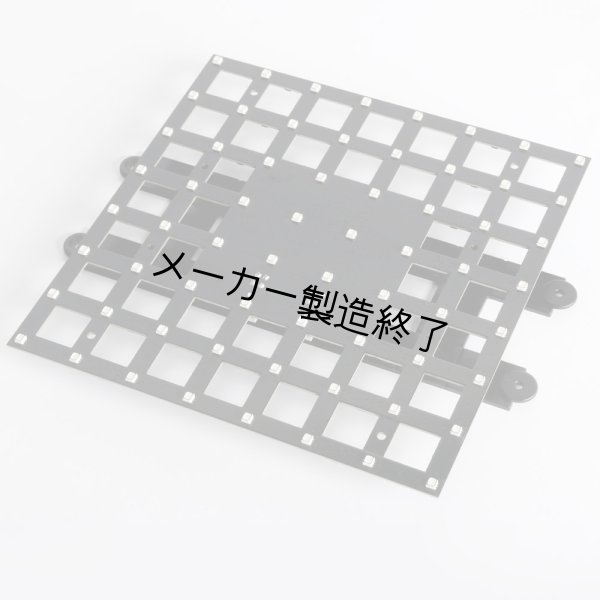

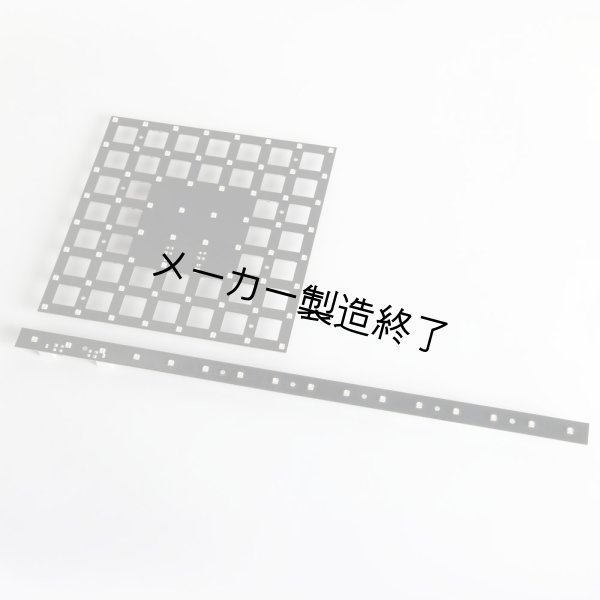

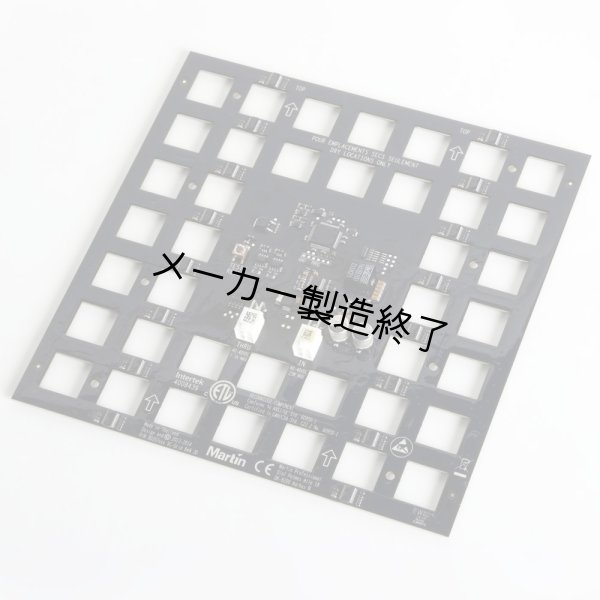

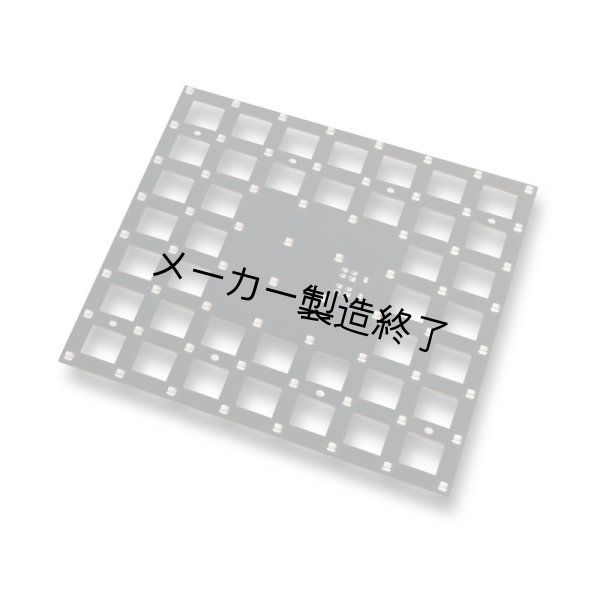

Martin VC-Grid 30 [新品]

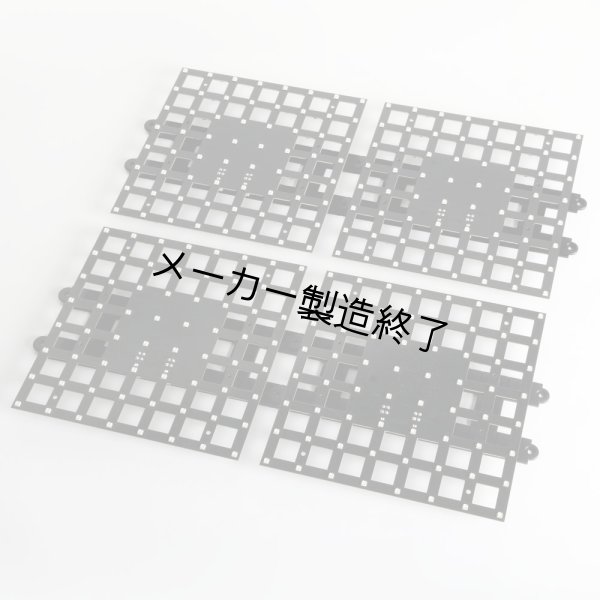

The VC-Grid 30 is a small, 240 x 240 mm LED video module with a 30 mm pixel pitch. Useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort, the VC-Grid’s compact size makes it extremely suitable for integration into stage designs, set elements, creative ceilings, lobbies and much more. Used with or without a front diffuser, multiple VC-Grids can be combined in a countless variety of ways for ultimate design freedom. A combined power/data cable allows VC-Grids to be daisy-chained for easy setup and less cabling.

・Wide range of pixel pitches to suit every application
・Easy cabling, mapping and configuration
・Bright and fully calibrated for optimal consistency

・64 individually controllable pixels
・30 mm pixel pitch
・2750 nits of brightness
・High-quality 16-bit per color image processing technology
・Pixel-level brightness and color calibration for optimal image quality
・P3/DMX controllable (automatic protocol detection)
・Intuitive mapping and addressing via P3 System Controller
・Combined power/data input (single cable for power and data input)
・Combined power/data thru (to daisy-chain up to 12 VC-Grid 30s)
・Supported by integrated power and data processor (P3 PowerPort 1500) and simple cabling system

・Length: 240 mm *
・Width: 240 mm *
・Height: 15 mm
・Weight: 157 g
 *Including 20 mm board-to-board gap

・Control options: Martin P3 System Controller™ via Martin P3 PowerPort 1500™ and/or DMX
・Control modes: Pixel and module
・Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
・Protocol detection: Automatic
・Setting and addressing: P3 System Controller or RDM-compliant controller
・DMX channels (RGB): 192 (pixel mode) or 3 (module mode)
・Color and intensity calibration: Pixel-level
・DMX compliance: USITT DMX512-A
・RDM compliance: ANSI/ESTA E1.20
・Firmware update: Via P3 System Controller

・Device status: Multi-color visual indication
・Device test and reset: Pushbutton to call up local test patterns and reset device

・Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
 *Figure obtained under manufacturer's test conditions.

・Pixels: 64 per module
・Luminous intensity, calibrated mode: 2750 Nit
・Viewing angle: 120° x 120°
・Preliminary data, figures are approximate
・Color Resolution: 16 bits per color (48 bit per pixel)
・Color Temperature Control: 2000K-11000K
・Synchronization: System-wide
・Frame Rate: Up to 75 frames/sec
・Brightness Control: 0-100% (at full color resolution)
・Gamma Correction: Fully controllable
・Gamma Control: Fully controllable
・Color Gamut Control: Fully controllable
・LED aging correction: Built-in

・Base: Black FR4 circuit board
・Transparency through module (unmasked area): 44%
・Protection rating: IP20
・RoHS compliant

・Mounting: Mounting holes in module
・Orientation: Any
・Maximum number of VC-Grid™ 8x8 30 modules per daisy-chain: 12

・Power & data input: 4-pin Molex connector
・Power & data thru: 4-pin Molex connector

・Nominal input voltage: 48 VDC from Martin P3 PowerPort 1500™ or external PSU
・Peak power consumption (at full intensity, full white): 30 W
・Typical power consumption (with typical video content): 10 W
・Figures for typical video content are indicative only and will vary.

・Cooling: Convection
・Maximum ambient temperature (Ta max.): 45° C
・Minimum ambient temperature (Ta min.): -20° C
・Peak heat dissipation (calculated, at full intensity, full white): 105 BTU/hr.
・Typical heat dissipation (calculated, with typical video content): 35 BTU/hr.
・Figures for typical video content are indicative only and will vary.
