Martin VC-Grid [新品]

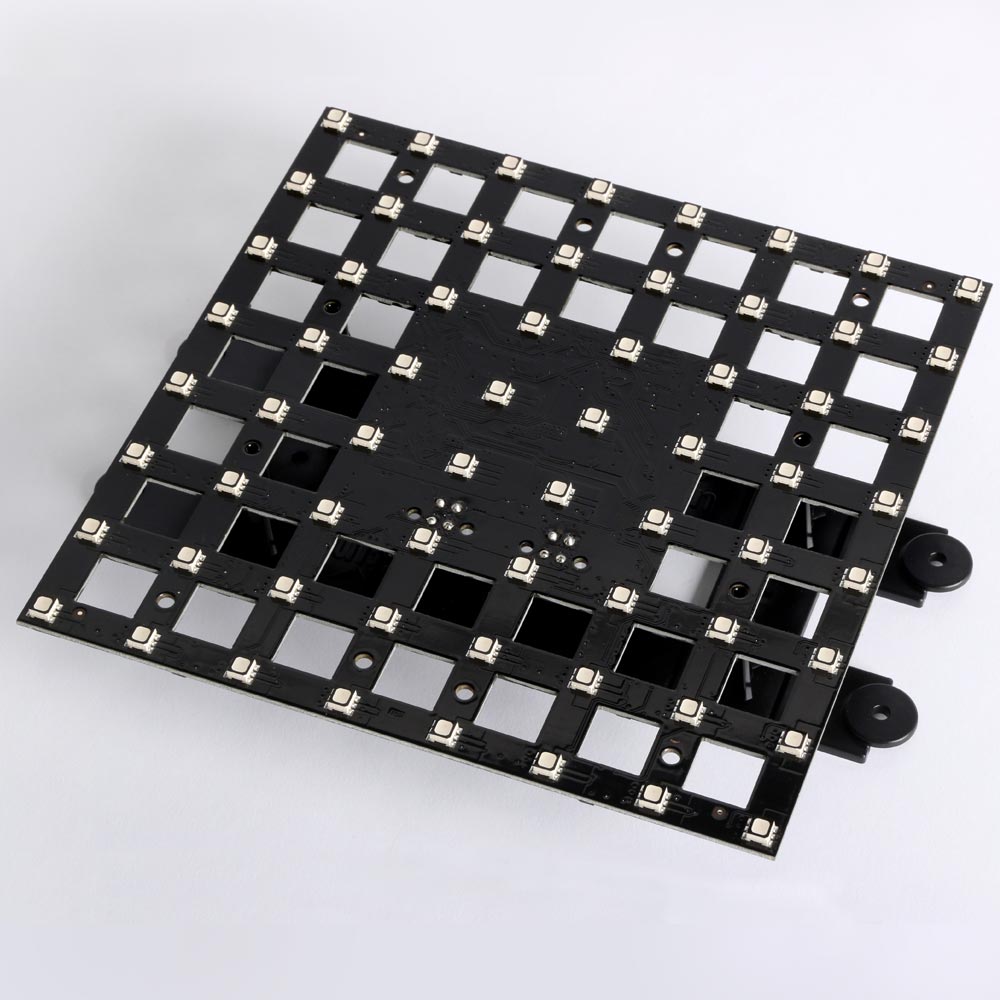

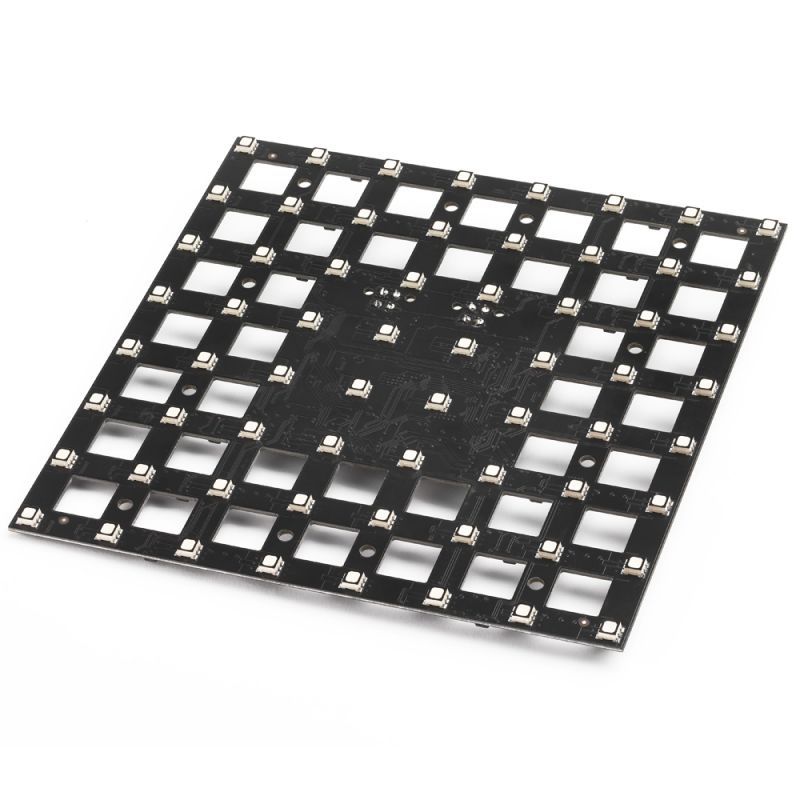

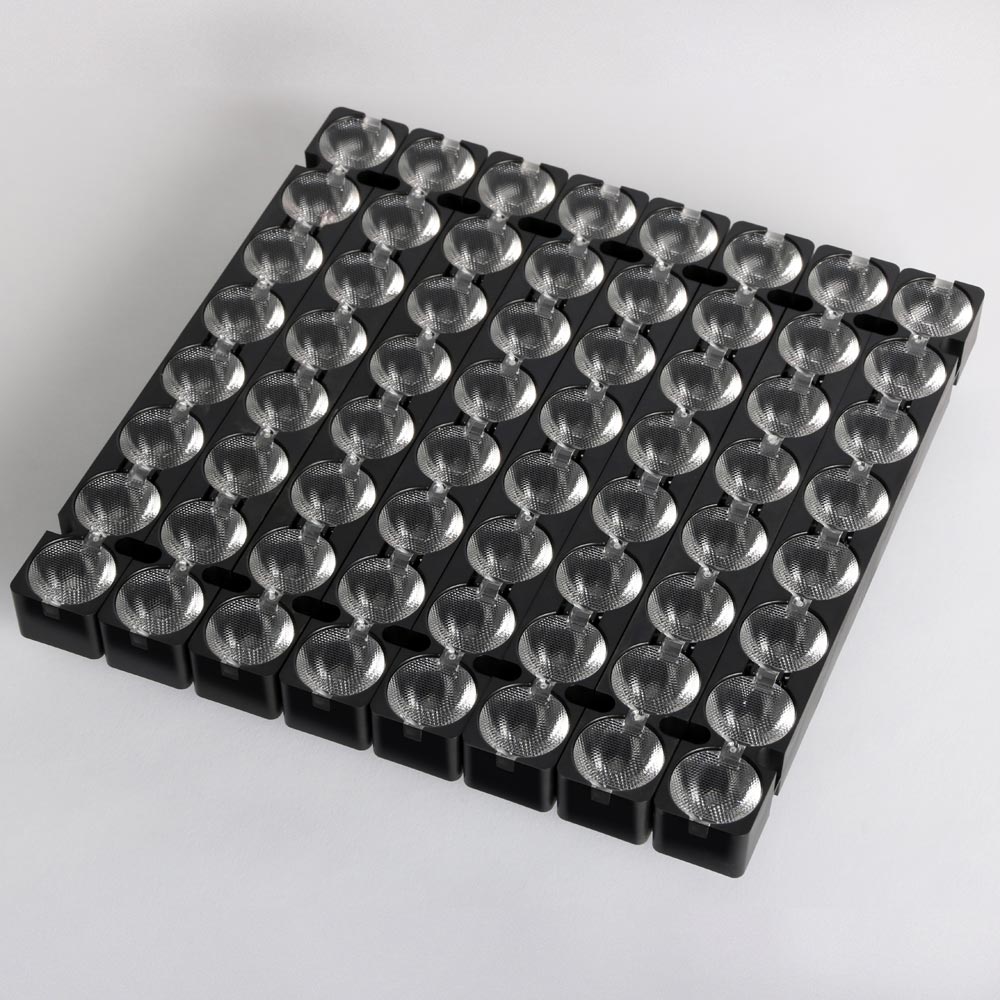

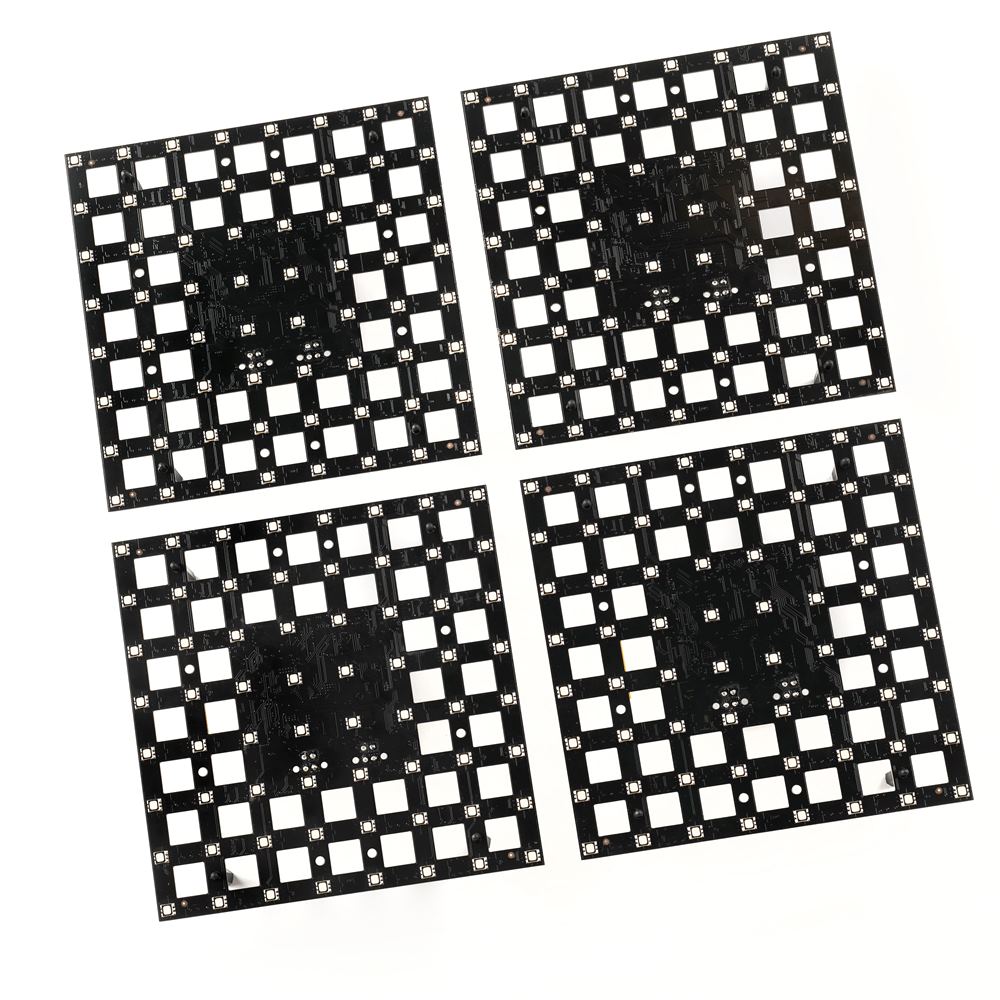

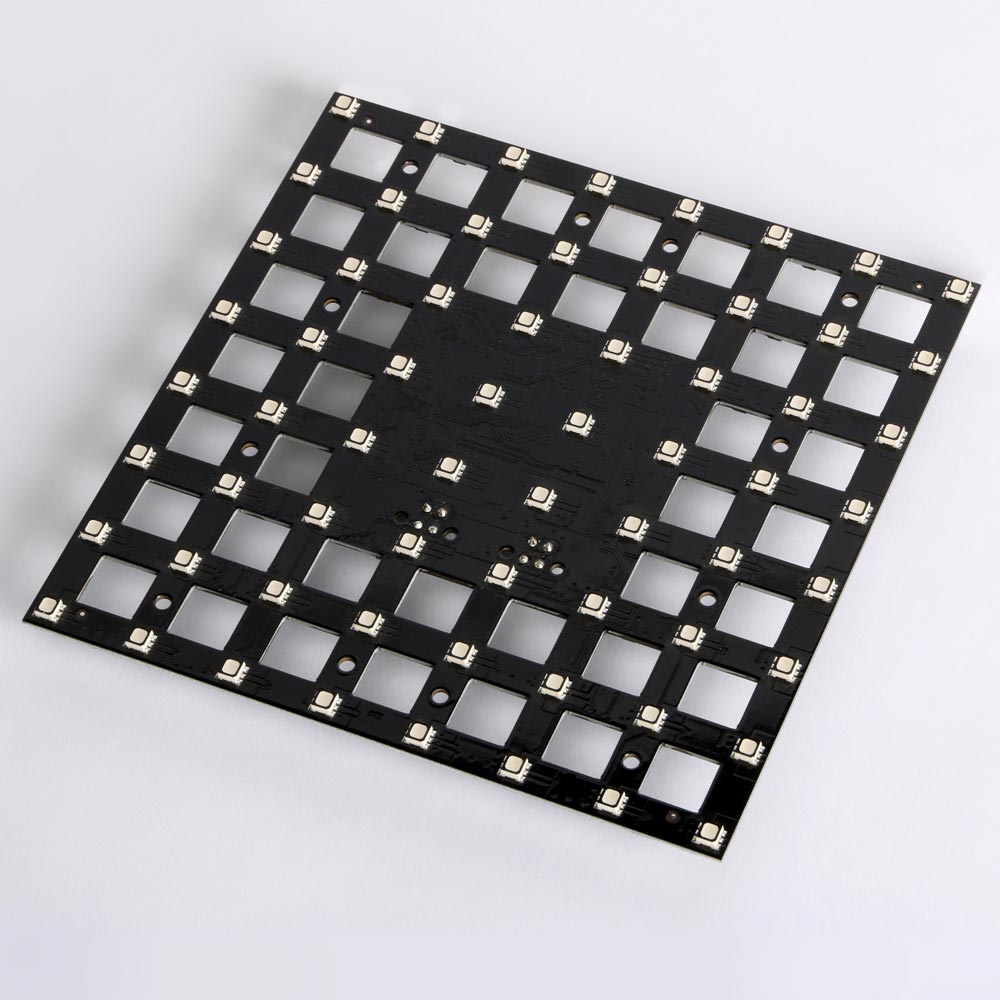

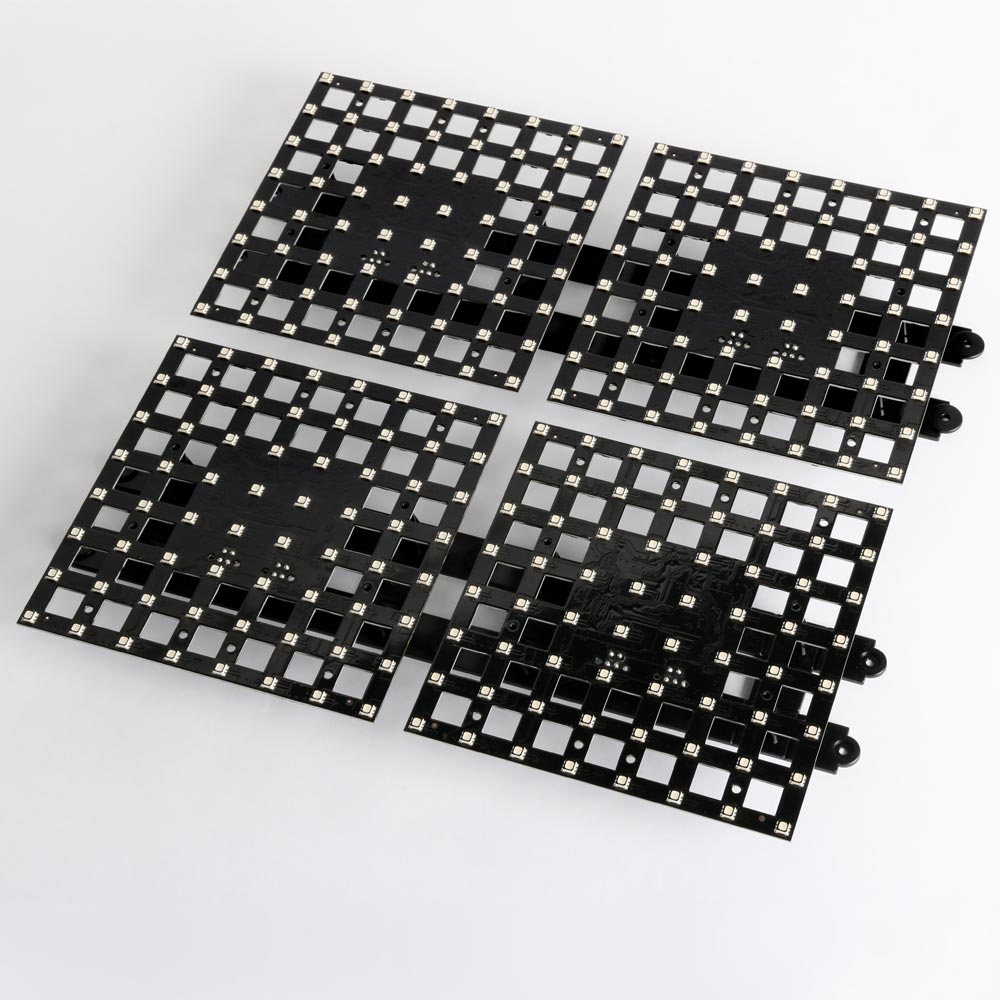

The VC-Grid is a small, 200 x 200 mm LED video module with a 25 mm pixel pitch. Useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort, the VC-Grid’s compact size makes it extremely suitable for integration into stage designs, set elements, creative ceilings, lobbies and much more. Used with or without a front diffuser, multiple VC-Grids can be combined in a countless variety of ways for ultimate design freedom. A combined power/data cable allows VC-Grids to be daisy-chained for easy setup and less cabling.

■概要
・Wide range of pixel pitches to suit every application
・Easy cabling, mapping and configuration
・Bright and fully calibrated for optimal consistency

■特徴
・64 individually controllable pixels
・4000 nits of brightness
・High-quality 16-bit per color image processing technology
・Pixel-level brightness and color calibration for optimal image quality
・P3/DMX controllable (automatic protocol detection)
・Intuitive mapping and addressing via P3 System Controller
・Combined power/data input (single cable for power and data input)
・Combined power/data thru (to daisy-chain multiple VC-Grids)
・Supported by integrated power and data processor (P3 PowerPort 1500) and simple cabling system

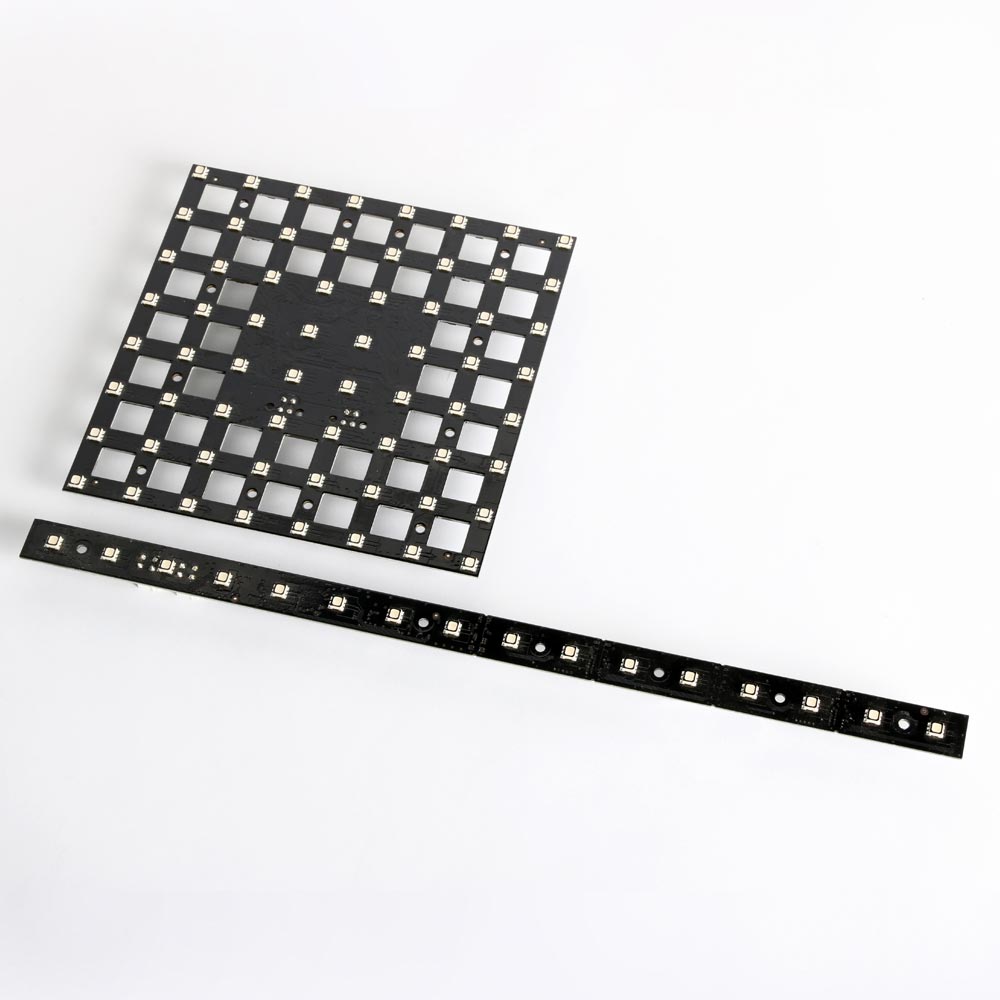

・Custom designs available on request (pixel pitch and module dimensions)

■■仕様
■PHYSICAL
・Length: 200 mm *
・Width: 200 mm *
・Height: 18 mm
・Weight: 140 g
 *Including 15 mm board-to-board gap

■CONTROL AND PROGRAMMING
・Control options: Martin P3 System Controller™ via Martin P3 PowerPort 1500™ and/or DMX
・Control modes: Pixel and module
・Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
・Protocol detection: Automatic
・Setting and addressing: P3 System Controller or RDM-compliant controller
・DMX channels (RGB): 192 (pixel mode) or 3 (module mode)
・Color and intensity calibration: Pixel-level
・DMX compliance: USITT DMX512-A
・RDM compliance: ANSI/ESTA E1.20
・Firmware update: Via P3 System Controller

■CONTROL/USER INTERFACE
・Device status: Multi-color visual indication
・Device test and reset: Pushbutton to call up local test patterns and reset device

■OPTICS
・Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
 *Figure obtained under manufacturer's test conditions.

■PHOTOMETRIC DATA
・Pixels: 64 per module
・Viewing angle: 120° x 120°
・Luminous intensity, RGB, calibrated mode: 4000 Nit
・P3 VIDEO PROCESSING
・Color Resolution: 16 bits per color (48 bit per pixel)
・Color Temperature Control: 2000K-11000K
・Synchronization: System-wide
・Frame Rate: Up to 75 frames/sec
・Brightness Control: 0-100% (at full color resolution)
・Gamma Correction: Fully controllable
・Gamma Control: Fully controllable
・Color Gamut Control: Fully controllable
・LED aging correction: Built-in

■CONSTRUCTION
・Base: Black FR4 circuit board
・Transparency through module (unmasked area): 37%
・Protection rating: IP20
・RoHS compliant

■INSTALLATION
・Mounting: Mounting holes in module
・Orientation: Any
・Maximum number of VC-Grid™ 8x8 30 modules per daisy-chain: 12

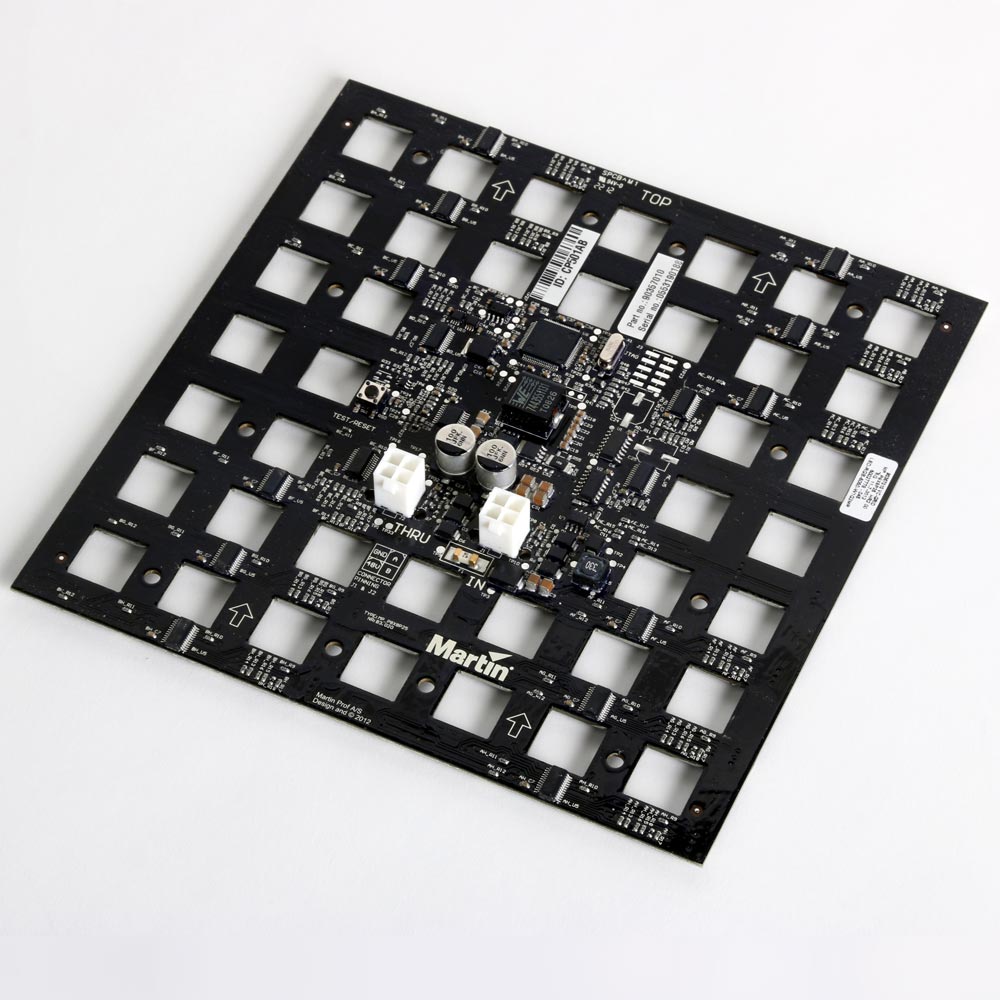

■CONNECTIONS
・Power & data input: 4-pin Molex connector
・Power & data thru: 4-pin Molex connector

■ELECTRICAL
・Nominal input voltage: 48 VDC from Martin P3 PowerPort 1500™ or external PSU
・Peak power consumption (at full intensity, full white): 30 W
・Typical power consumption (with typical video content): 10 W
・Figures for typical video content are indicative only and will vary.

■THERMAL
・Cooling: Convection
・Maximum ambient temperature (Ta max.): 45° C
・Minimum ambient temperature (Ta min.): -20° C
・Peak heat dissipation (calculated, at full intensity, full white): 105 BTU/hr.
・Typical heat dissipation (calculated, with typical video content): 35 BTU/hr.
・Figures for typical video content are indicative only and will vary.

■データシート
https://adn.harmanpro.com/site_elements/resources/18297_1565816147/Martin_VC-Grid_SpecSheet%28A4%29_original.pdf

■マニュアル
https://adn.harmanpro.com/site_elements/resources/15650_1547661400/UM_VC-Grid_EN_F_original.pdf

■Mixing P3 Video and DMX for Creative Control—P3 lifehack#6(動画)
https://www.youtube.com/watch?v=NboppT71lo4&feature=emb_logo

■メーカーサイト
https://www.martin.com/en-US/products/vc-grid
