Martin VC-Strip 60 [新品]

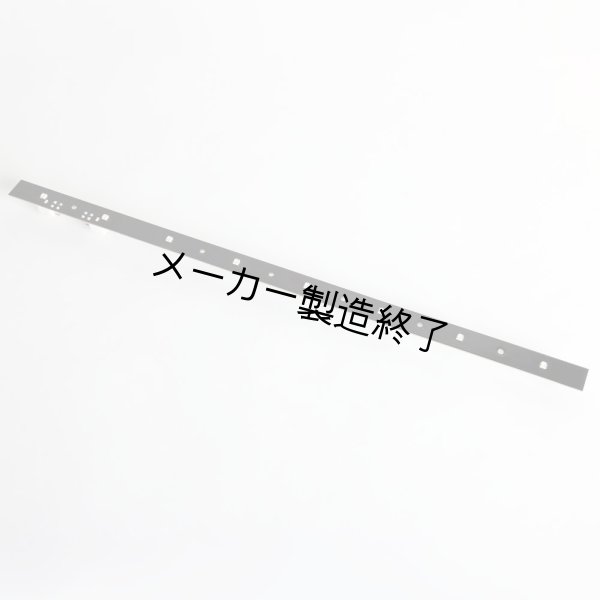

The VC-Strip family of narrow LED video strips is ideal for integration of video into stage and set designs, interiors, custom set elements and more. VC-Strips are fully pixel-level calibrated on brightness and colors for optimal uniformity and quality and are driven by Martin’s award-winning P3 System Controller family for smooth playback that outperforms any DMX-based system. VC-Strips are available in various lengths and can even be cut to required length on-site.

■概要
・Wide range of pixel pitches to suit every application
・Easy cabling, mapping and configuration
・Bright and fully calibrated for optimal consistency

■特徴
・8/4 individually controllable pixels
・60 mm pixel pitch
・750 nits of brightness
・High-quality, 16-bit per color image processing technology
・Pixel-level brightness and color calibration for optimal image quality
・P3/DMX controllable (automatic protocol detection)
・Intuitive mapping and addressing via P3 System Controller
・Combined power/data input (single cable for power and data input)
・Combined power/data thru (to daisy-chain up to 63 VC-Strip 60s)
・Supported by integrated power and data processor (P3 PowerPort 1500) and simple cabling system

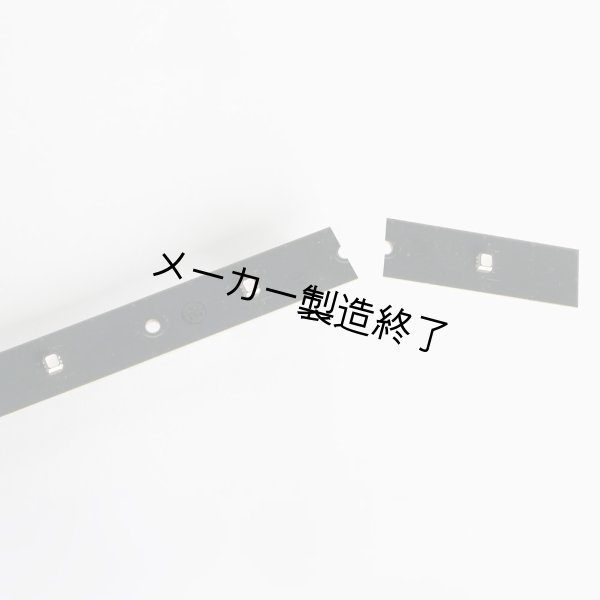

・Length of VC-Strip can be customized on-site (simple cutting) to fit integration needs

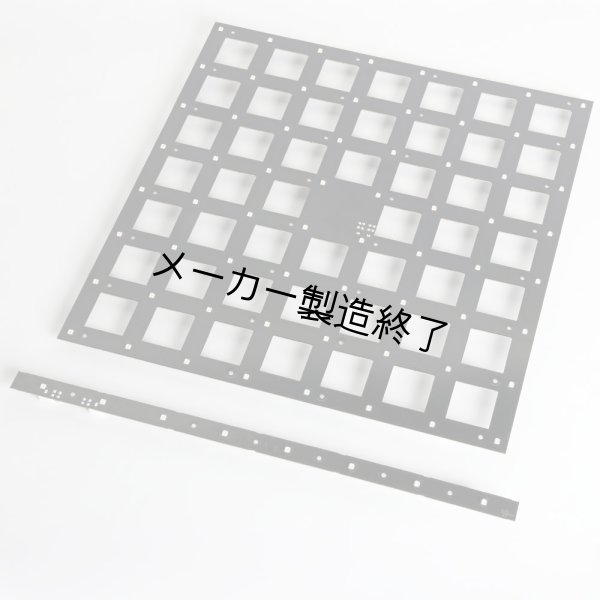

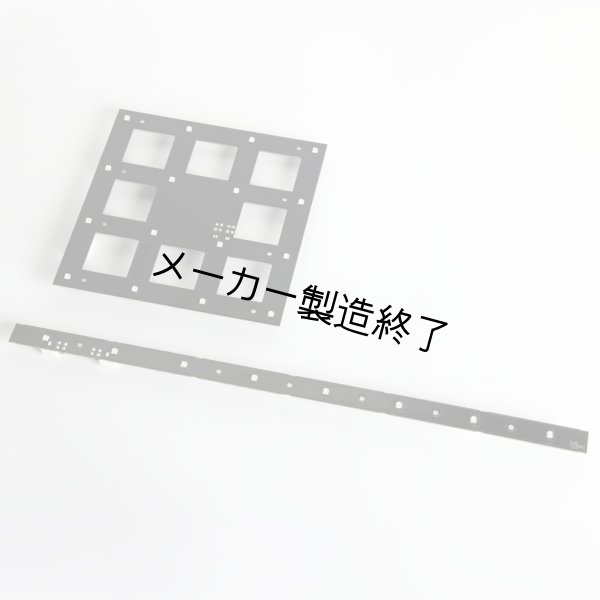

・Compatible with VC-Grid 60

■■仕様
■PHYSICAL
・VC-Strip 8x1 60™:
 ・Length: 480 mm *
 ・Width: 19 mm
 ・Height: 15 mm
 ・Weight: 53 g
・VC-Strip 4x1 60™:
 ・Length: 240 mm *
 ・Width: 19 mm
 ・Height: 15 mm
 ・Weight: 32 g
  *Including 1 mm board-to-board gap

■CONTROL AND PROGRAMMING
・Control options: Martin P3 System Controller™ via Martin P3 PowerPort 1500™ and/or DMX
・Control modes: Pixel and module
・Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
・Protocol detection: Automatic
・Setting and addressing: P3 System Controller or RDM-compliant controller
・DMX channels: Pixel mode 8x1 model = 24, 4x1 model = 12; Module mode (all models) = 3
・Color and intensity calibration: Pixel-level
・DMX compliance: USITT DMX512-A
・RDM compliance: ANSI/ESTA E1.20
・Firmware update: Via P3 System Controller

■CONTROL/USER INTERFACE
・Device status: Multi-color visual indication
・Device test and reset: Pushbutton to call up local test patterns and reset device

■OPTICS
・Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
 *Figure obtained under manufacturer´s test conditions

■PHOTOMETRIC DATA
・Pixels: 8/4 per module
・Luminous intensity, calibrated mode: 750 Nit
・Viewing angle: 120° x 120°
・Preliminary data, figures are approximate.
・P3 VIDEO PROCESSING
・Color Resolution: 16 bits per color (48 bit per pixel)
・Color Temperature Control: 2000K-11000K
・Synchronization: System-wide
・Frame Rate: Up to 75 frames/sec
・Brightness Control: 0-100% (at full color resolution)
・Gamma Correction: Fully controllable
・Gamma Control: Fully controllable
・Color Gamut Control: Fully controllable
・LED aging correction: Built-in

■CONSTRUCTION

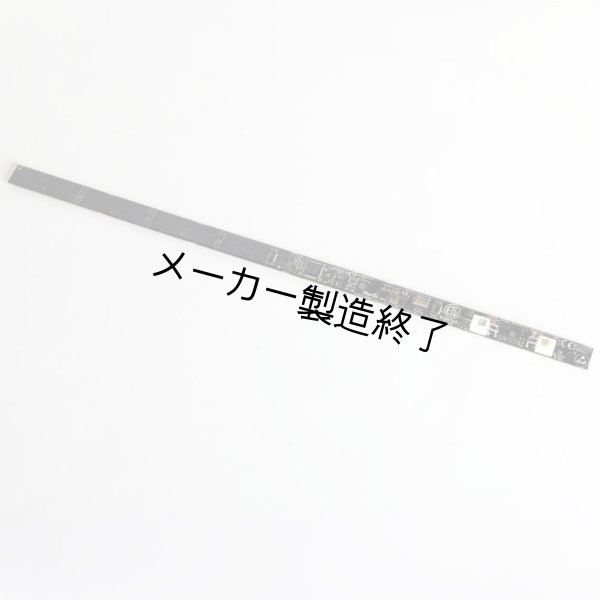

・Base: Black FR4 circuit board
・Protection rating: IP20
・RoHS compliant

■INSTALLATION
・Mounting: Mounting holes in module
・Orientation: Any
・Maximum number of VC-Strip™ 8x1 60 modules per daisy-chain: 63
・Maximum number of VC-Strip™ 4x1 60 modules per daisy-chain: 63

■CONNECTIONS

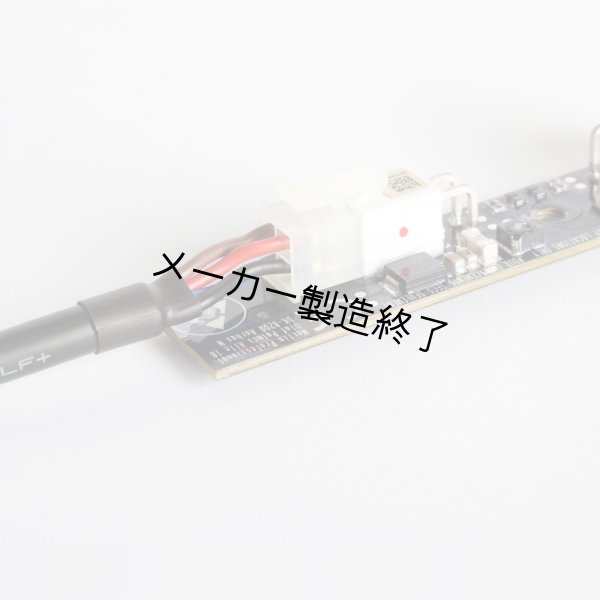

・Power & data input: 4-pin Molex connector
・Power & data thru: 4-pin Molex connector

■ELECTRICAL
・Nominal input voltage: 48 VDC from Martin P3 PowerPort 1500™ or external PSU
・Peak power consumption (at full intensity, full white): 8x1 model 4 W; 4x1 model 2 W
・Typical power consumption (with typical video content): 8x1 model 1.5 W; 4x1 model 0.7 W
・Figures for typical video content are indicative only and will vary. Power consumption figures include cable and assume a 50 m chain

■THERMAL
・Cooling: Convection
・Maximum ambient temperature (Ta max.): 45° C
・Minimum ambient temperature (Ta min.): -20° C
・Peak heat dissipation (calculated, at full intensity, full white): 8x1 model 14 BTU/hr.; 4x1 model 7 BTU/hr.
・Typical heat dissipation (calculated, with typical video content): 8x1 model 5.5 BTU/hr.; 4x1 model 2.5 BTU/hr.
・Figures for typical video content are indicative only and will vary.

■スペックシート
https://adn.harmanpro.com/site_elements/resources/18300_1565651337/Martin_VC-Strip%2060_SpecSheet%28A4%29_original.pdf

■マニュアル
https://adn.harmanpro.com/site_elements/resources/15651_1547661674/UM_VC-Strip_EN_E_original.pdf

■Fast Deployment of Pre-Made Map on P3—P3 lifehack#2(動画)
https://www.youtube.com/watch?v=dL826HXVOjA&feature=emb_logo

■P3 Live Preview and Flexible Video Mapping—P3 lifehack#3(動画)
https://www.youtube.com/watch?v=mi7Jz4-MX7g&feature=emb_logo

■P3 Directly from Green Hippo Media Server—P3 lifehack#5(動画)
https://www.youtube.com/watch?v=DrH-qFU1xyA&feature=emb_logo

■Mixing P3 Video and DMX for Creative Control—P3 lifehack#6(動画)
https://www.youtube.com/watch?v=NboppT71lo4&feature=emb_logo

■メーカーサイト
https://www.martin.com/en-US/products/vc-strip-60
