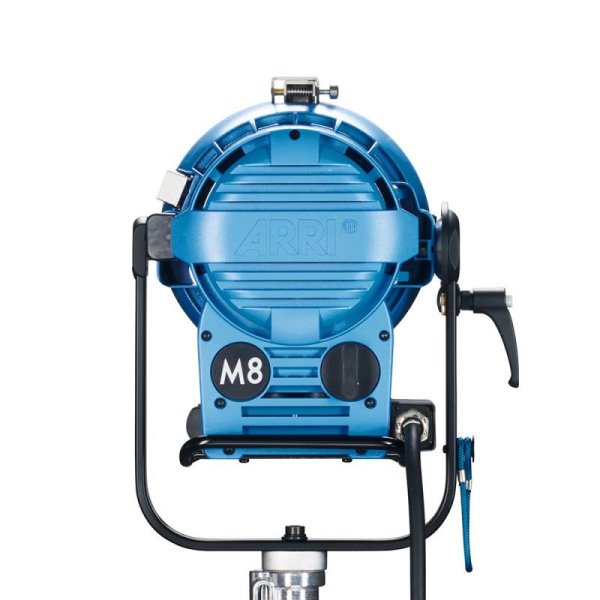

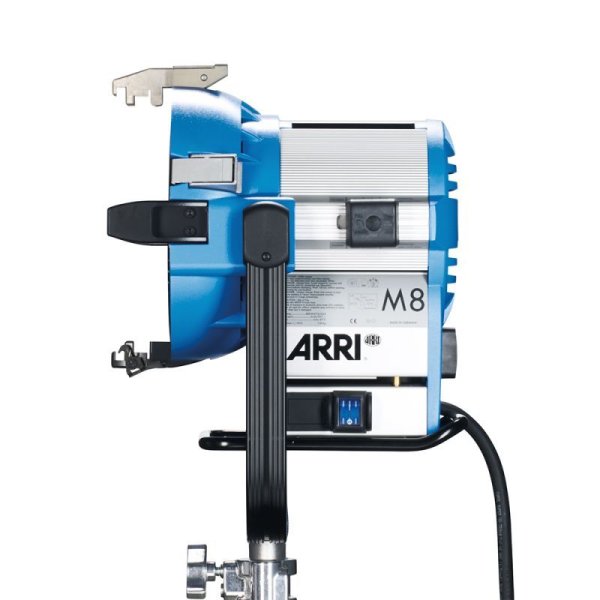

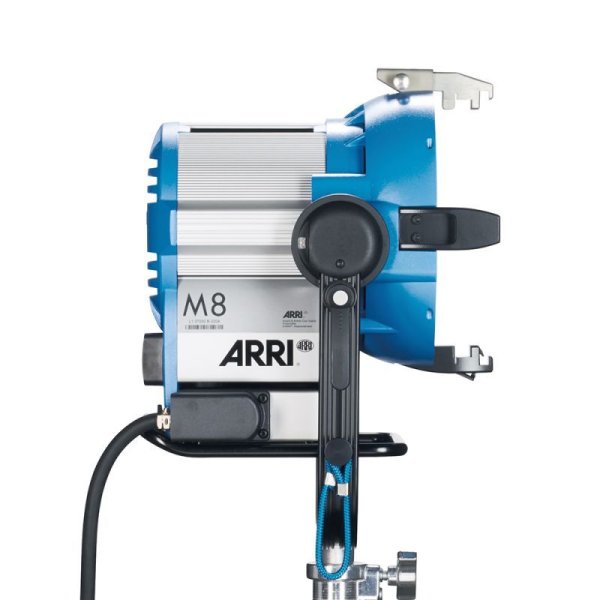

Arri M-series M8 [新品]

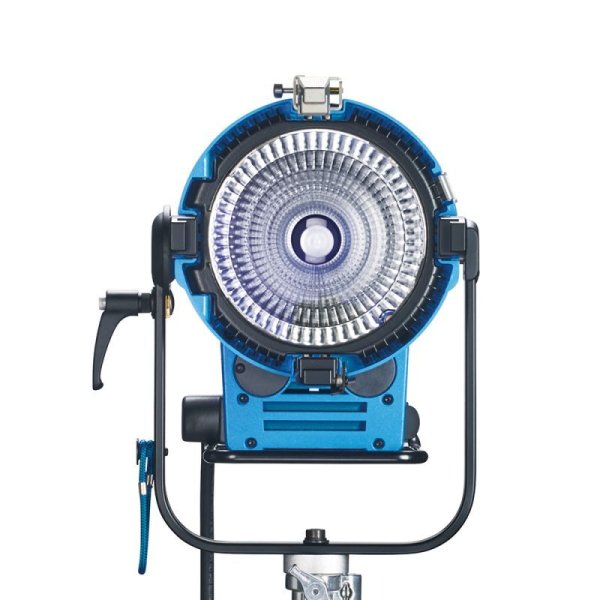

The M8 is the latest and smallest lighting fixture in ARRI’s highly successful M-Series of HMI lampheads. Like the rest of the M-Series, the M8 is equipped with MAX Technology, a unique, patented reflector design that unifies the advantages of a Fresnel and a PAR fixture.

The combination of an open face design and the unrivalled efficiency of the MAX Technology reflector makes the M8 exceptionally bright; in fact, the light output produced by its 800 W lamp comes close to the output from a 1,200 W Fresnel or PAR (with lens). The unit can be focused between 15° and 60° just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow. By eliminating the need for bulky, easily breakable spread lenses, the M8 will speed up workflows on set.

■概要
・Lens-less MAX Technology: Easy to use
・Light output comparable to 1,200 W fixture
・Smallest lamphead with MAX Technology reflector
・Highly mobile for a wide range of uses
・Focusable between 15° and 60°
・Cross-Cooling allows safe operation even at 90° tilt
・Uses existing 230 & 245 mm accessories from ARRI True Blue D12 and from Chimera
・Compensation for Cable Losses (CCL)
・Uses existing 575 to 1,800 W cables with international connector
・Suitable for high frame rate images
・IP Rating IP23
・Tilt locks to hold heavy accessories stable

■詳細
・SeriesM-Series
・ModelM-Series M8
・Mains PlugVEAM
・Lamphead TypeOpen Face with Facetted Reflector, 800 W
・ReflectorMAX Technology reflector made of high purity aluminium
・Lamp TypeMetal Halide 800 W/SE (Only 800 W, no 575 W lamps)
・Power Consumption800 W
・Voltage Range90 to 130 V / 180 to 250 V
・Lamp BaseG22
・Dimmingyes, 50 to 100 % via ARRI Ballast Unit
・Correlated Color Temperature6,000 K
・Beam Angle15° to 62°
・Weight in kg net*approx. 8 kg
・Weight in kg packed*approx. 11 kg
・Measurements (HxWxL) incl. Pin in mm*591 x 350 x 310 mm
・Measurements (HxWxL) excl. Pin in mm*458 x 350 x 310 mm
・Measurements (HxWxL) Packed size in mm*440 x 400 x 460 mm
・Measurements (HxWxL) Packed size in inch*17.3 x 15.8 x 18.1"
・Lens / UV-Protection Glass Diameter in mm200 mm
・Accessory Diameter in mm230 mm
・Barndoor in mm245 mm
・MountingSpigot 28 mm
・Housing ColorBlue/Silver
・Protection Class / IP RatingI / IP23
・CertificationsCE, CB, GS, cNRTLus

■データシート(英語PDF)
https://www.arri.com/resource/blob/31482/8764688fa9ce88b33bf3f4f48e2fb52a/arri-m-series-m8-data-sheet-en-sep2018-data.pdf

■メーカーサイト
https://www.arri.com/en/lighting/daylight/m-series/m8
