Arri M-series M40 [新品]

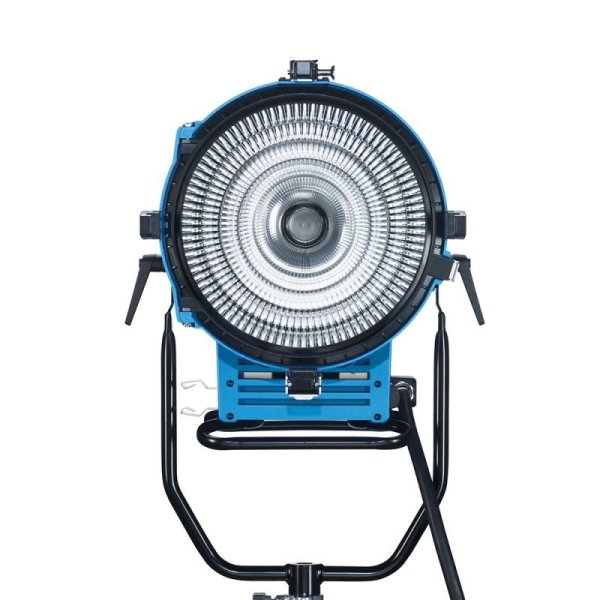

A member of the ARRI M-Series, the M40 is a lens-less system that unifies the advantages of Fresnel and PAR fixtures. The unit is open face and thus very bright: around 30 % brighter than an AS40 in spot. Due to its unique, patented MAX Technology reflector, it is also focussable over a range of 18 to 52° Half Peak Angle. The M40 gives a remarkably even beam spread that casts crisp shadows over the whole focus range. The reflector characteristics is optimised for 4,000 W lamps, but can also be used with 2,500 W lamps.

The lamphead is equipped with a CCL module (Compensation of Cable Losses). When operated with the ARRI EB 2.5/4 kW High Speed AutoScan with CCL, full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output indepent from cable length.

■概要
・Lens-less MAX Technology: Easy to use
・Around 30 % brighter than AS 40
・Compensation for Cable Losses (CCL)
・Tubular steel yoke
・Two disk brakes with steel handles
・Cross-Cooling allows safe operation at extreme tilt angles
・Suitable for high frame rate images
・IP Rating IP23

■詳細
・SeriesM-Series
・ModelM-Series M40
・Mains PlugVEAM, Schaltbau (GTV-Standard)
・Lamphead TypeOpen Face with Facetted Reflector, 2,500 / 4,000 W
・ReflectorMAX Technology reflector made of high purity aluminium
・Lamp TypeMetal Halide 4,000 W/SE; Metal Halide 2,500 W/SE
・Power Consumption4,000 W / 2,500 W
・Voltage Range200 V / 115 V
・Lamp BaseG38
・Dimmingyes, 50 to 100 % via ARRI Ballast Unit
・Correlated Color Temperature6,000 K
・Beam Angle18° to 52° (with 4,000 W lamp)
・Weight in kg net*approx. 20 kg
・Weight in kg packed*approx. 24 kg
・Measurements (HxWxL) incl. Pin in mm*839 x 505 x 524 mm
・Measurements (HxWxL) excl. Pin in mm*706 x 505 x 524 mm
・Measurements (HxWxL) Packed size in mm*660 x 595 x 665 mm
・Lens / UV-Protection Glass Diameter in mm350 mm
・Accessory Diameter in mm400 mm
・Barndoor in mm413 mm
・MountingSpigot 28 mm
・Housing ColorBlue/Silver
・Protection Class / IP RatingI / IP23
・CertificationsCE, CB, GS, cNRTLus

■データシート(英語PDF)
https://www.arri.com/resource/blob/31490/bffb6b1737011e1f8cc1e3128b5286b5/arri-m-series-m40-data-sheet-en-sep2018-data.pdf


■メーカーサイト
https://www.arri.com/en/lighting/daylight/m-series/m40
