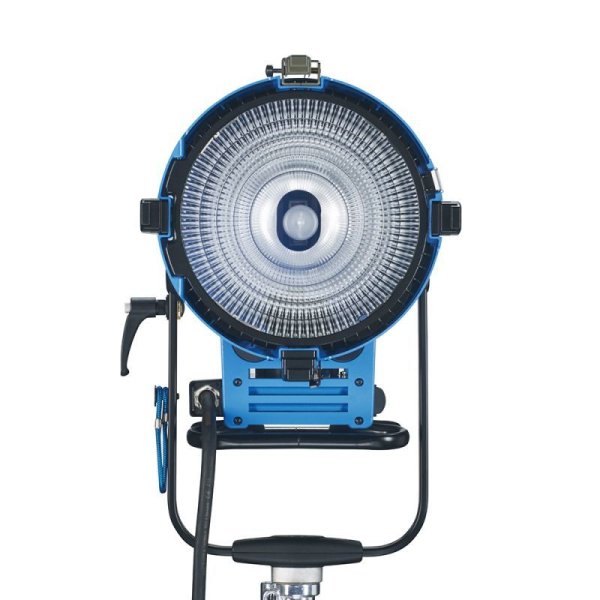

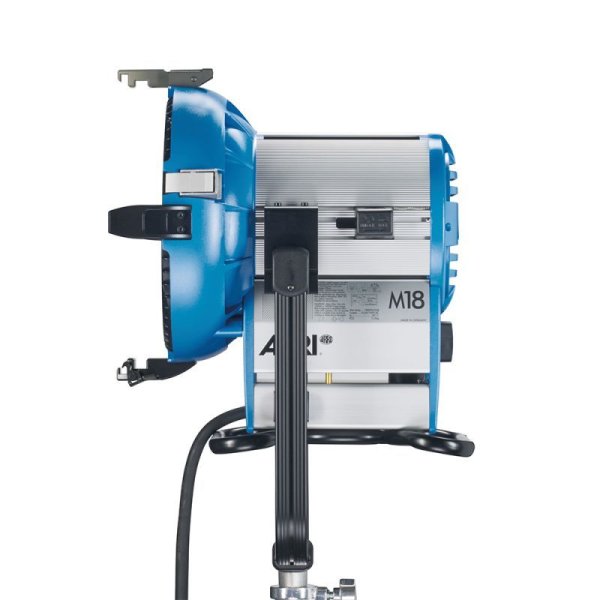

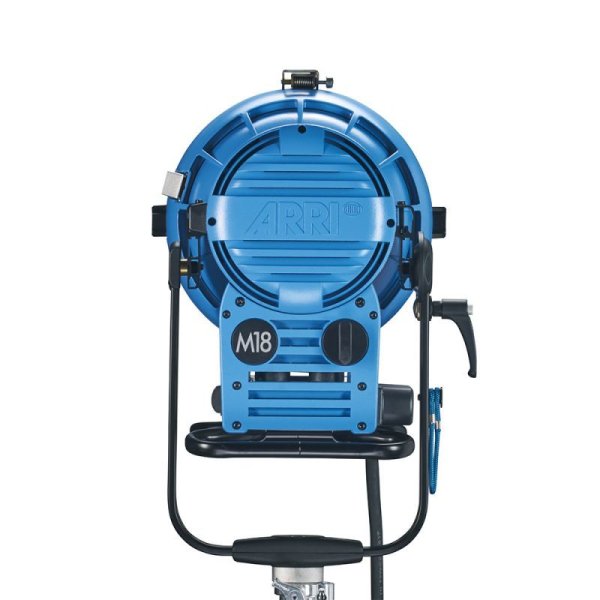

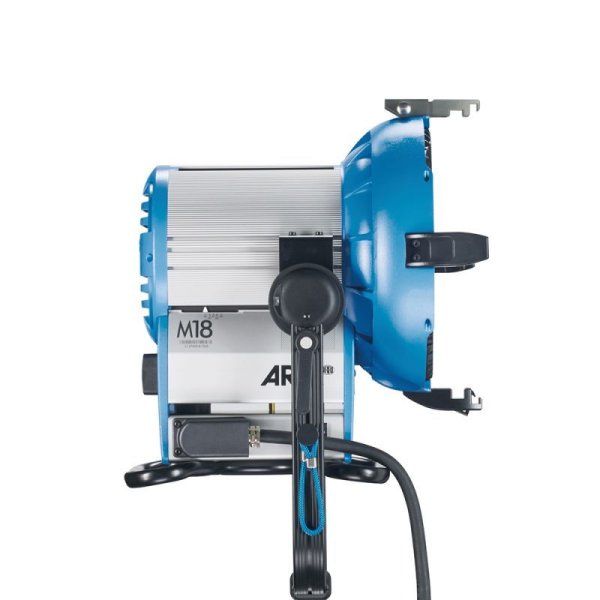

Arri M-series M18 [新品]

The M18 is an 1,800 W open face lamphead, combining the Academy Scientific and Engineering Award-winning lens-less optical technology of the ARRIMAX with the innovative True Blue design. The result is an extremely powerful lamphead, as small as a 1,200W PAR but with a 70 % higher light output. The M-Series M18 fixture is adjustable from 20° to 60° without requiring spreader lenses.

■概要
・Lens-less MAX Technology: Easy to use
・New 1,800 W lamp
・Virtually the same size as a 1,200 W lamphead but more than 70 % brighter
・Runs from most domestic sockets world-wide
・Uses existing 575/1,200/1,800 W cables
・Can also be used with 1,200 W lamps and ballasts
・Cross Cooling allows safe operation at any tilt angle
・IP Rating IP23
・True Blue tilt lock holds even heavy Chimeras
・Easy maintenance

■詳細
・SeriesM-Series
・ModelM-Series M18
・Mains PlugVEAM, Schaltbau (GTV-Standard)
・Lamphead TypeOpen Face with Facetted Reflector, 1,200 / 1,800 W
・ReflectorMAX Technology reflector made of high purity aluminium
・Lamp TypeMetal Halide 1,800 W/SE; Metal Halide 1,200 W/SE
・Power Consumption1,800 W / 1,200 W
・Voltage Range100 V / 140 V
・Lamp BaseG38
・Dimmingyes, 50 to 100 % via ARRI Ballast Unit
・Correlated Color Temperature6,000 K
・Beam Angle20° to 60° (with 1,800 W lamp)
・Weight in kg net*approx. 12 kg
・Weight in kg packed*approx. 16 kg
・Measurements (HxWxL) incl. Pin in mm*658 x 388 x 393 mm
・Measurements (HxWxL) excl. Pin in mm*525 x 388 x 393 mm
・Measurements (HxWxL) Packed size in mm*530 x 510 x 555 mm
・Lens / UV-Protection Glass Diameter in mm276 mm
・Accessory Diameter in mm330 mm
・Barndoor in mm344 mm
・MountingSpigot 28 mm
・Housing ColorBlue/Silver
・Protection Class / IP RatingI / IP23
・CertificationsCE, CB, ENEC, cNRTLus

■データシート(英語PDF)
https://www.arri.com/resource/blob/31486/1a6209e7e85fadca556066f12b551f72/arri-m-series-m18-data-sheet-en-sep2018-data.pdf


■メーカーサイト
https://www.arri.com/en/lighting/daylight/m-series/m18
