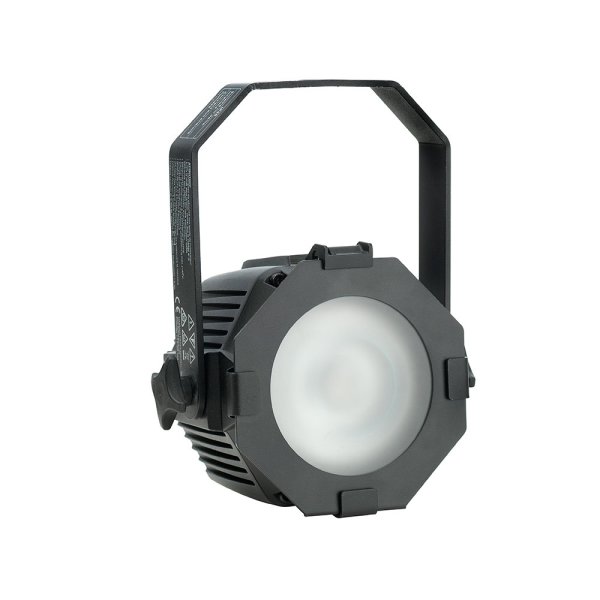

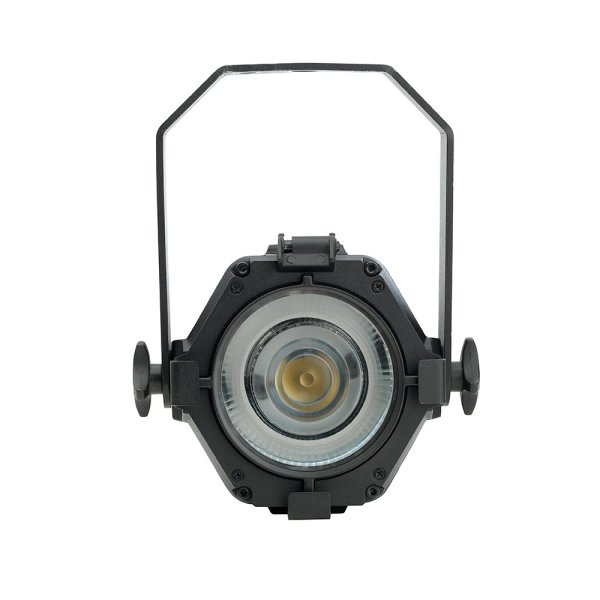

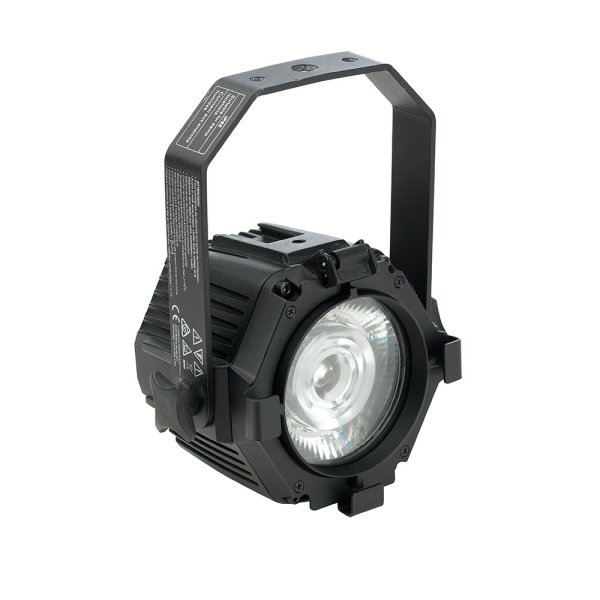

Martin VDO Atomic Dot WRM [新品]

The Martin VDO Atomic Dot WRM hybrid lighting and video fixture, also available in a CLD color temperature variant, combines a small blinder, compact strobe, video-pixel and small spotlight.

By combining a video-controlled Aura backlight and a bright blinder/strobe dot in one fixture, lighting designers are empowered with greater creative potential to make a bigger impact with audiences than ever before. The fixtures’ compact design also gives designers the ability to place VDO Atomic Dots just about anywhere and deploy them in larger quantities. Integrated support for P3, DMX, Art-Net and sACN eliminates the need for additional interface boxes and onboard P3 eases pixel mapping and using the product as a video controlled blinder or strobe.

VDO Atomic Dots are ideal for rental customers and lighting designers working in concert/touring and TV show sets as well as supporting corporate and nightclub clients.

■特徴
・High power warm white beam (2700K)
・Beam angle of 11 degrees
・Field angle of 22 degrees

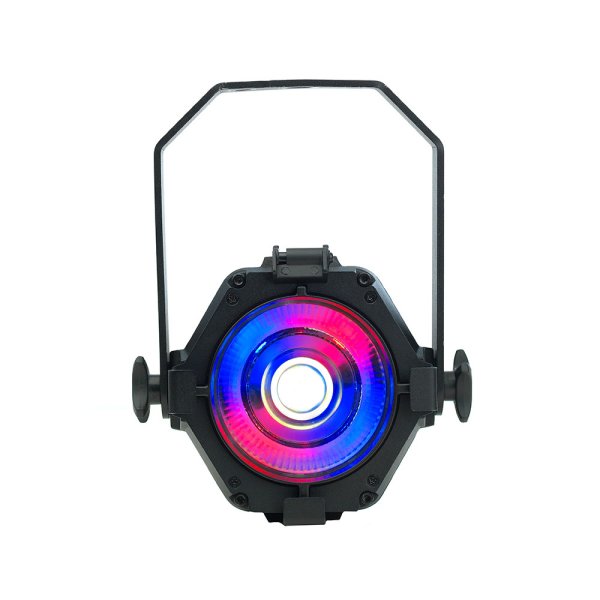

・Pixel-controllable RGB Aura backlight
・Compact form-factor
・Built-in power supply (100-240V)

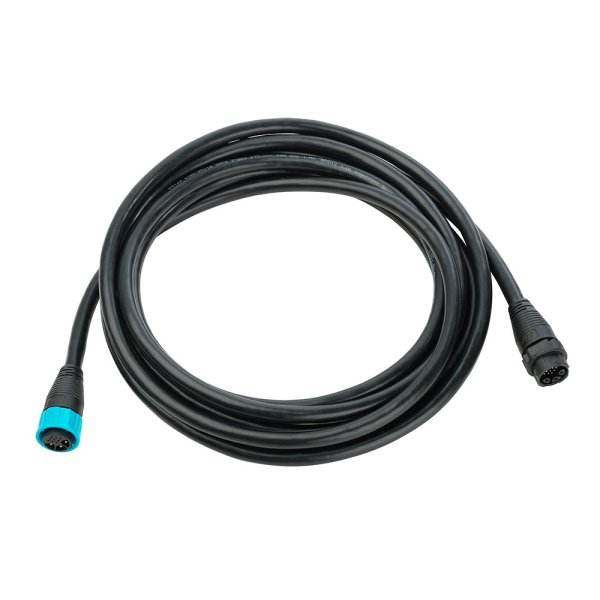

・Power and Data IN & THRU via hybrid cable
・P3, DMX, Art-Net & sACN compatible
・Built-in pixel-FX on backlight and beam

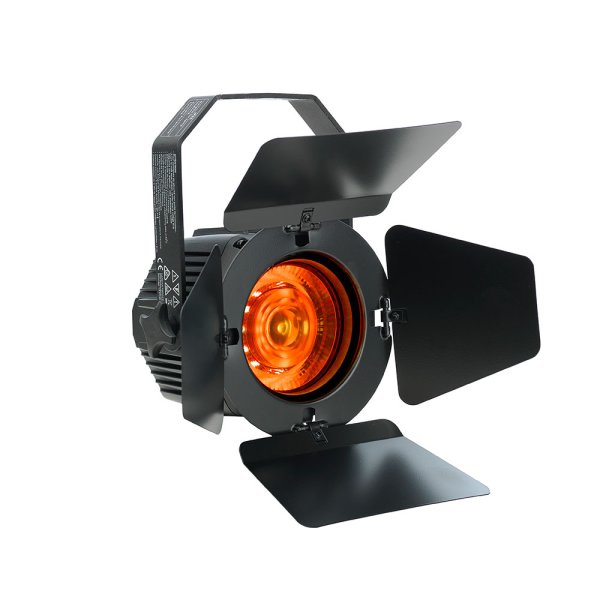

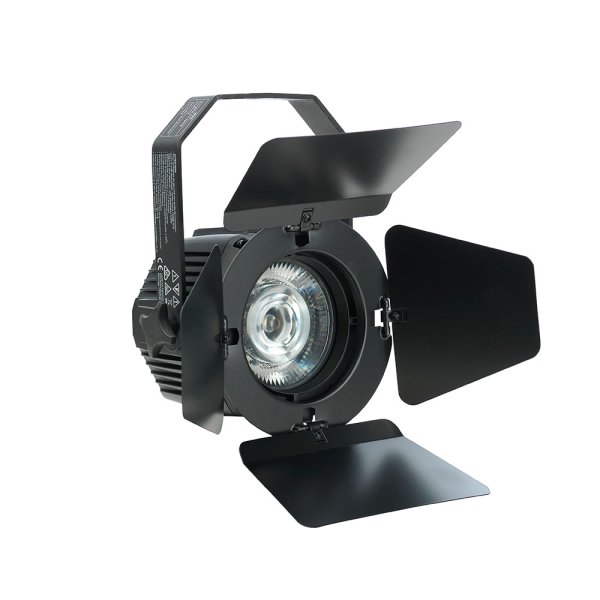

・Front-accessory holder for barndoors and/or diffuser/lens
・Detachable yoke-assembly

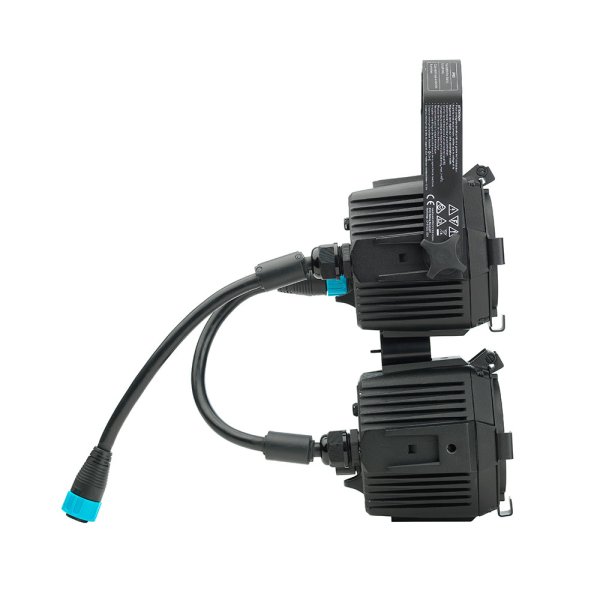

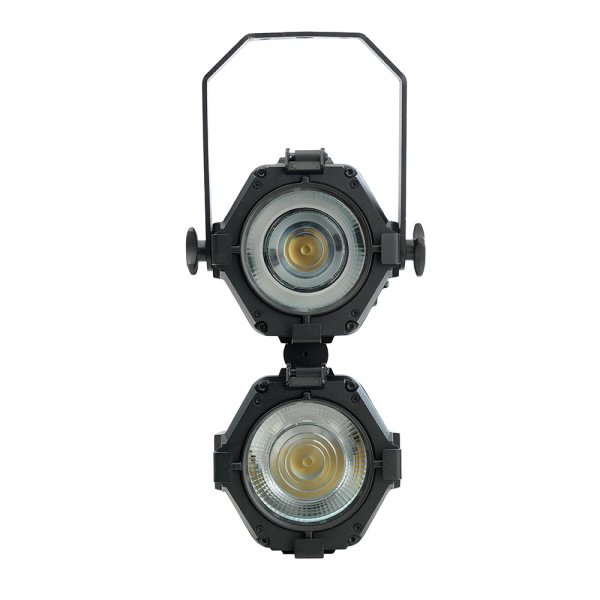

・Smart interlocking mechanics to build battens, arrays and creative shapes
・Passive cooling
・IP65-rated

■■仕様
■PHYSICAL
・Fixture:
 ・Width: 175 mm (incl. hanging bracket) (150mm fixture center-to-center using interlock couplers)
 ・Height: 138 mm (150mm fixture center-to-center using interlock couplers)
 ・Depth: 146 mm
 ・Weight: 2.2 kg
・PDE Junction Box:
 ・Width: 94 mm
 ・Height: 50 mm
 ・Depth: 106 mm
 ・Weight: 0.5 kg

■DYNAMIC EFFECTS
・Strobe: 0.289 – 16.667Hz, variable flash rate, intensity and duration (incl. blinder mode)
・Aura: RGB control per pixel, 16 pixels
・Built-in FX: Various pre-programmed FX on Strobe, Aura and combination of both

■CONTROL AND PROGRAMMING
・Control Protocols: DMX, RDM, Art-Net, sACN and P3
・Protocol detection: Automatic
・Setting and addressing: RDM or P3
・DMX channels: 1, 3, 4, 19, 64
・Fixture Identification: User-settable ID number
・DMX compliance: USITT DMX512-A
・RDM compliance: ANSI/ESTA E1.20
・Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
・sACN Compliance: ANSI E1.31
・Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
・DMX/RDM Transceiver: RS-485
・Ethernet Transceiver: 10/100Mbit
・Firmware update: Via DMX using Martin Companion or via Ethernet using P3 System Controller

■CONTROL/USER INTERFACE
・Device status: Multi-color status LED
・Device test and reset: Pushbutton to call up local test patterns and reset device

■OPTICS AND PHOTOMETRIC DATA
・Beam/Strobe LED:
・Max. total lumen output: 2850 lumens
・CRI (Color Rendering Index): >84
・Beam Angle: 11 Degrees (half peak)
・Field Angle: 22 Degrees (one-tenth peak)
・Color Temperature: 2700 K
・Resolution: 16-bit
・Minimum LED lifetime: 50,000 hours (to >70% luminous output)
・Aura Backlight LEDs:
・Color Temperature: Variable
・Resolution: 16-bit per color per pixel
・Minimum LED lifetime: 50,000 hours (to >70% luminous output)
・P3 VIDEO PROCESSING
・Color Resolution: 16 bit per color (48 bit per pixel)
・Color Temperature Control: 2000-11000 K (Aura)
・Synchronization: System-wide
・Frame Rate: Up to 75 frames/sec
・Brightness Control: 0-100% (maintaining full color depth)
・Gamma Correction: Fully controllable
・Gamma Control: Fully controllable
・Color Gamut Control: Full spectrum control (Aura)

■CONSTRUCTION
・Housing: Aluminum
・Color: Black
・Protection rating: IP65
・RoHS: Compliant
・REACH: Compliant

■INSTALLATION
・Mounting options: Hanging from bracket, hanging from clamp attached directly to fixture or hanging from other fixture using interlock mechanism
・Location: Indoor or temporary outdoor use
・Clamp attachment to hanging bracket: M12
・Clamp attachment directly to fixture: M8
・Maximum vertical column height: 16 fixtures
・Orientation: Any
・Minimum distance to combustible materials: 0.1 m
・Minimum distance to illuminated surfaces: 0.2 m

■CONNECTIONS
・VDO Atomic Dot Fixture:

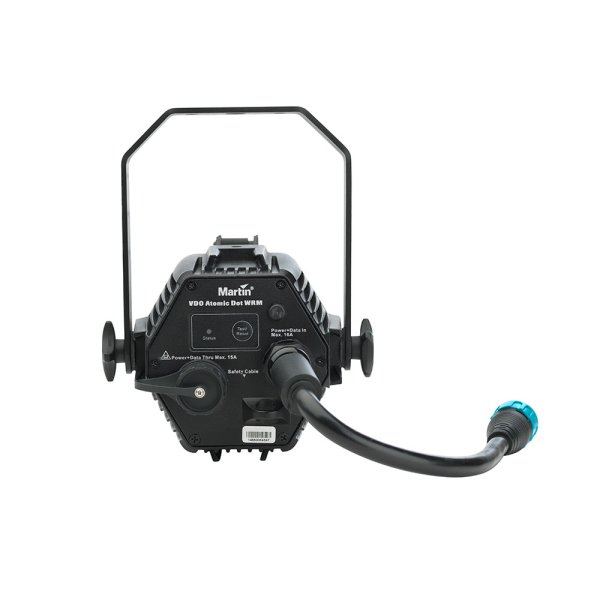

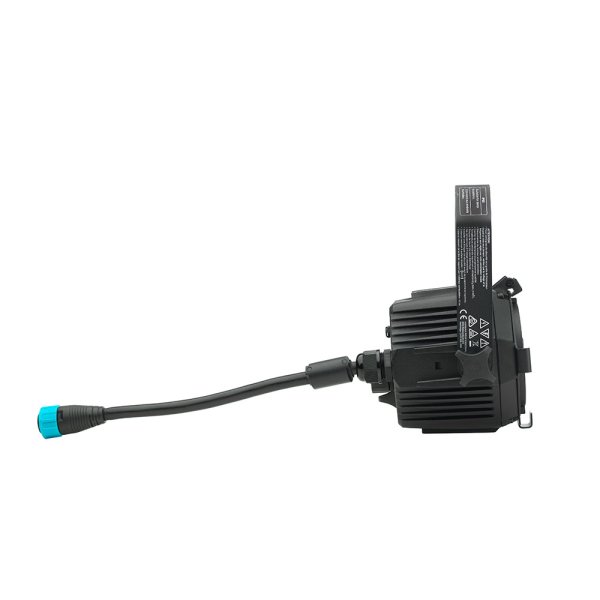

・AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
・AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
・All connections hot plugging compatible

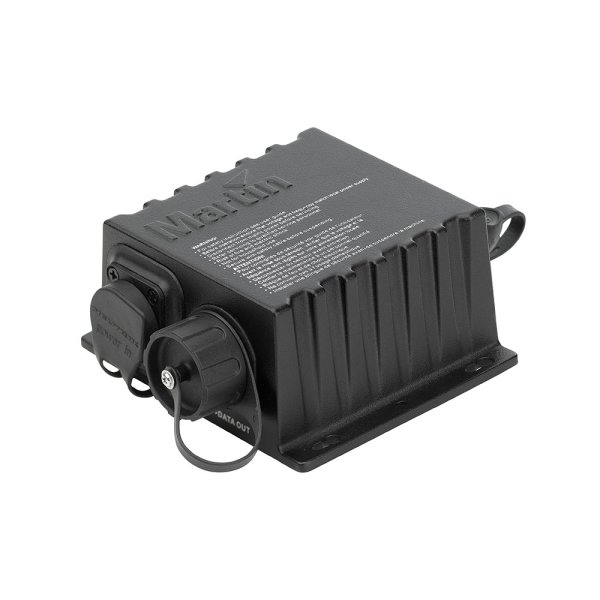

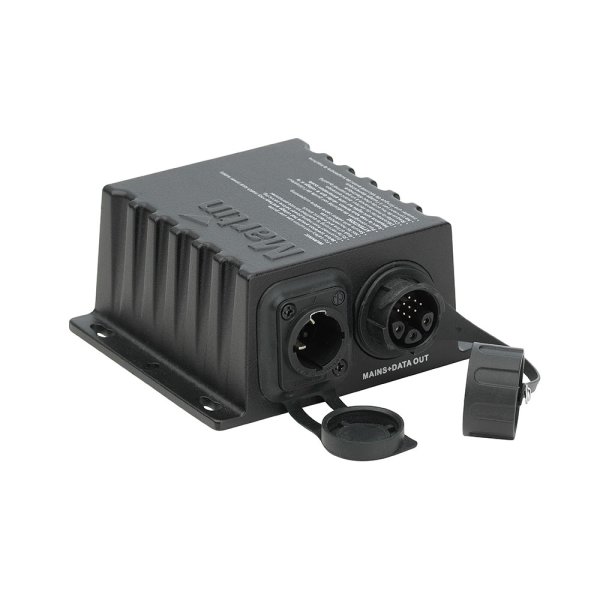

・PDE Junction Box :
AC Power input: Neutrik powerCON TRUE1 TOP (IP65 when mated with matching Neutrik cable connector)

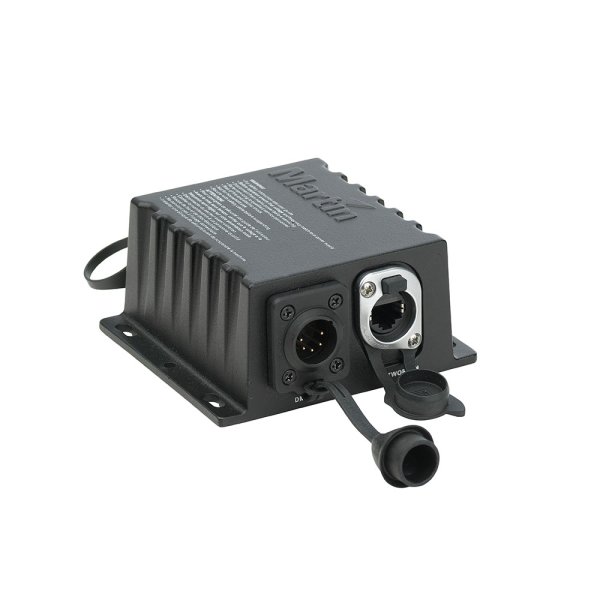

・DMX input: Neutrik XLR 5-pin Male TOP (IP65 when mated with matching Neutrik cable connector) (compatible with standard 5-pin XLR connectors)
・Ethernet input: Neutrik etherCON TOP (IP65 when mated with matching Neutrik cable connector) (compatible with standard etherCON Cat 5E and Cat 6A) (NOT compatible with etherCON Cat 6 push-pull)
・AC Power, DMX and Network thru: Chassis-mount PDE hybrid connector (IP65)
・All connections hot plugging compatible

■ELECTRICAL
・AC power: 100-240 V AC nominal, 50/60Hz
・Power supply unit: Auto-ranging electronic switch mode
・Typical half-cycle RMS inrush current: 1.12 A
・Maximum power consumption: 55 W
・Typical earth-leakage current: 0.25 mA

■TYPICAL POWER AND CURRENT
・100 V, 60 Hz: 49.0 W, 0.49 A, PF 0.99
・120 V, 60 Hz: 48.9 W, 0.41 A, PF 0.98
・208 V, 60 Hz: 48.6 W, 0.24 A, PF 0.95
・230 V, 50 Hz: 50.2 W, 0.23 A, PF 0.96
・240 V, 50 Hz: 49.6 W, 0.22 A, PF 0.94
・Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.

■THERMAL
・Cooling: Convection
・Maximum ambient temperature (Ta max.): 40° C
・Minimum ambient temperature (Ta min.): 0° C
・Typical heat dissipation (calculated, +/- 10%): 171 BTU/hr

■スペックシート
https://adn.harmanpro.com/site_elements/resources/17178_1559146915/Martin_VDOAtomicDot_SpecSheet_original.pdf

■マニュアル
https://adn.harmanpro.com/site_elements/resources/20126_1573169034/UM_VDO_AtomicDOT_EN_B_original.pdf

■Martin VDO Atomic Dot SAVEUS Arena Tour 2019(動画)
https://www.youtube.com/watch?v=KuACk_qEX50&feature=emb_logo

■メーカーサイト
https://www.martin.com/en-US/products/vdo-atomic-dot-wrm
