Martin VDO Fatron 20 [新品]

Your creative VDO toolbox just got bigger, more dynamic and way more flexible, making your P3 System Controller even more versatile.

VDO Fatron 20 is a 20 mm pixel pitch outdoor-rated LED video batten with an extensive range of optical accessories for a wide variety of looks that allows you to seriously play with creativity in 3D stage designs. Easy video-mapping and creative mix ‘n’ match with other Martin LED video products via the P3 System Controller. It uses the same integrated power and data cabling as VDO Sceptron and VDO Dotron, making installation a breeze. Be creative.

■概要
・The perfect expansion of your creative VDO toolbox for exciting 3D stage setups
・Extensive range of field-exchangeable diffusers and lenses for a great variety of looks
・Easy setup, mapping and configuration via P3 System Controller
・Complete range of rigging accessories available

■特徴
・Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and simple cabling system
・Combined power and data cabling (compatible with other products such as VDO Sceptron and VDO Dotron)
・P3/DMX/RDM controllable (automatic protocol detection)
・Extensive range of built-in effects
・Intuitive mapping and addressing via P3 System Controller
・Fully brightness and color calibrated for optimal consistency between products (colors matched with VDO Sceptron and VDO Dotron)
・Pixel-level brightness and color calibrated for a completely homogenous look
・High-quality 16-bit per color image processing technology
・20 mm pixel pitch
・500 cd per meter calibrated
・1500 lumen per meter calibrated

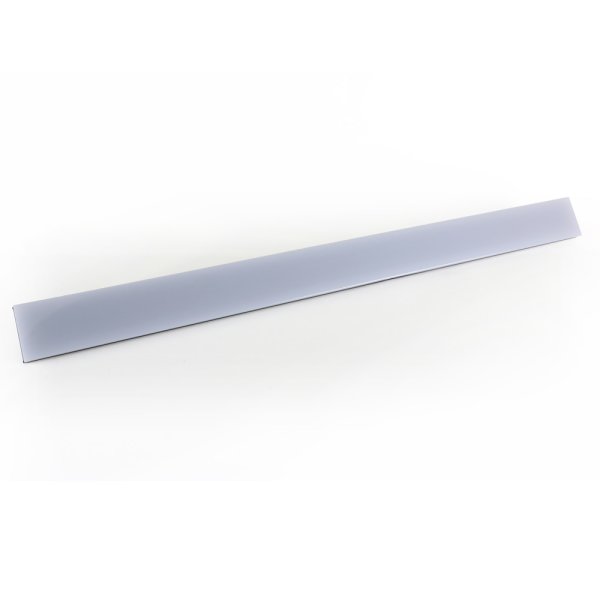

・8 different diffuser options plus 1 lens option (all field-exchangeable)
・IP65 rated for outdoor use

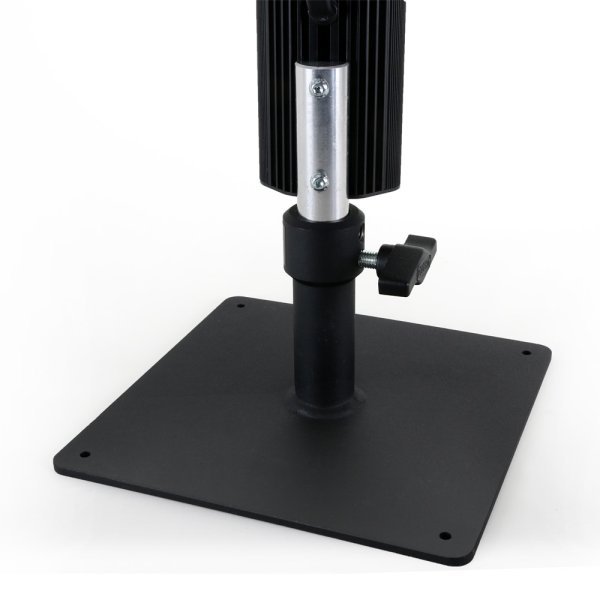

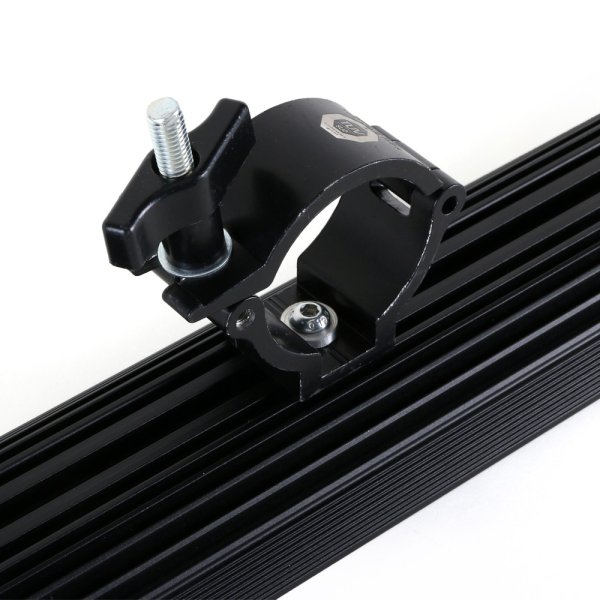

・Versatile rigging accessories
・Available in two lengths: 1000 mm and 320 mm

■■仕様
■PHYSICAL
・VDO Fatron™ 20, 320 mm model:
 ・Length: 320 mm
 ・Width: 80 mm
 ・Height without front: 28 mm
 ・Height with standard front (Square Diffuser): 48 mm
 ・Weight without front: 0.85 kg
 ・Weight with standard front (Square Diffuser): 0.95 kg
・VDO Fatron™ 20, 1000 mm model:
 ・Length: 1000 mm
 ・Width: 80 mm
 ・Height without front: 28 mm
 ・Height with standard front (Square Diffuser): 48 mm
 ・Weight without front: 2.5 kg
 ・Weight with standard front (Square Diffuser): 2.8 kg

■CONTROL AND PROGRAMMING
・Control options: Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX
・Control modes: RGB, basic, segment and pixel-level
・Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
・Protocol detection: Automatic
・Setting and addressing: Martin P3™ System Controller or RDM-compliant controller
・DMX channels:
・VDO Fatron™ 20, 320 mm: 3/10/19/55
・VDO Fatron™ 20, 1000 mm: 3/10/37/157
・Color and intensity calibration: Pixel-level
・DMX compliance: USITT DMX512-A
・RDM compliance: ANSI/ESTA E1.20
・Firmware update: Via Martin P3™ System Controller

■CONTROL/USER INTERFACE
・Device status: Multi-color visual indication

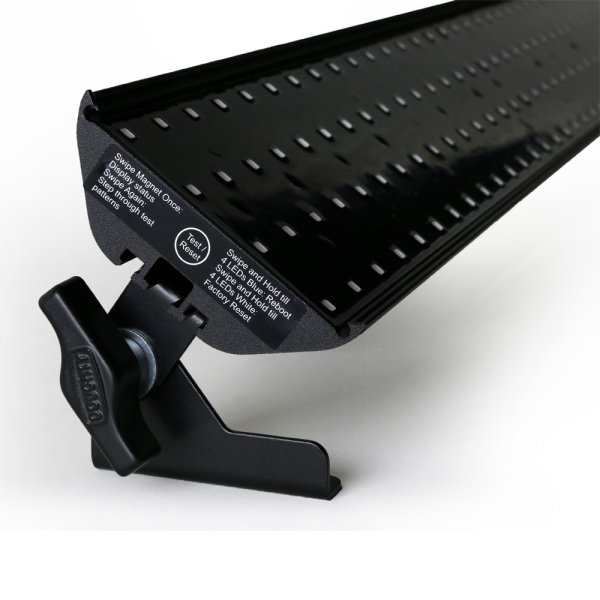

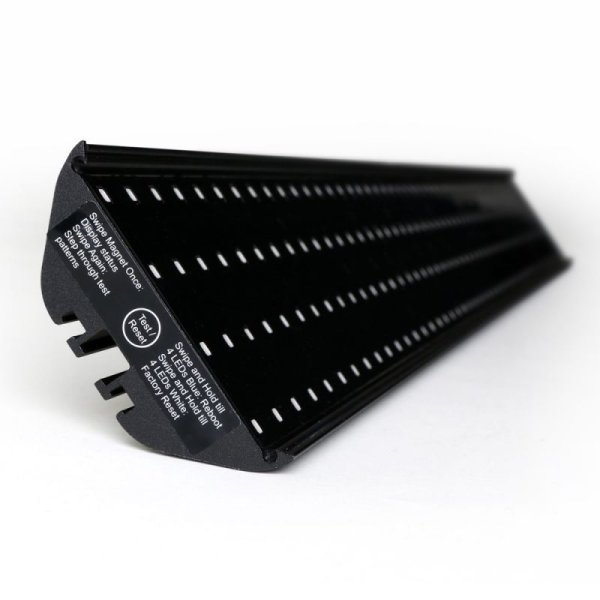

・Device test and reset: Magnetic pushbutton to call up local test patterns and reset device

■OPTICS
・Options:
・Open Front
・Flat Diffuser
・Smoked Flat Diffuser
・Round Diffuser
・Smoked Round Diffuser

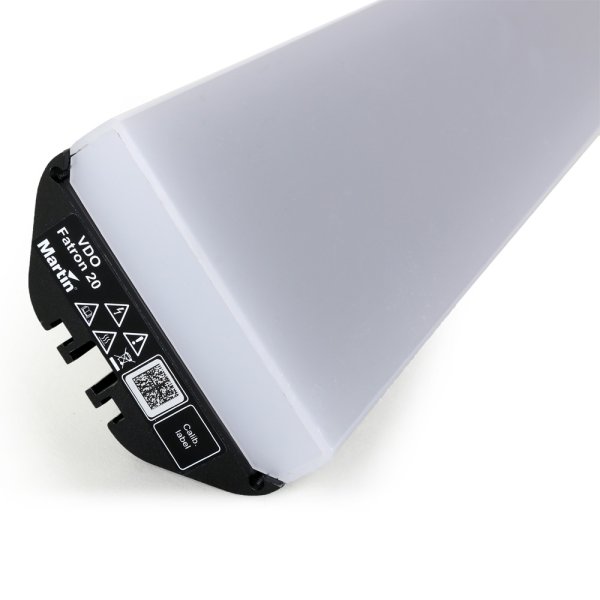

・Square Diffuser (supplied with fixtures as standard)
・Smoked Square Diffuser
・NoBlend Diffuser
・Smoked NoBlend Diffuser
・Lens Array Narrow
・All optical accessory options are interchangeable and clip onto fixtures
・Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
 *Figure obtained under manufacturer’s test conditions.

■PHOTOMETRIC DATA
・Color resolution: 16 bits per color (48 bits per pixel)
・Viewing angle: 120° x 120°
・VDO Fatron™ 20 320 mm:
・LED array: 4 x 16
・Pitch (pixel center-to-center): 20.00 mm
・Luminous intensity, calibrated mode: 500 cd per meter
・Total output, calibrated mode: 1500 lumens per meter
・Total output, calibrated mode: 6250 nits
・VDO Fatron™ 20 1000 mm:

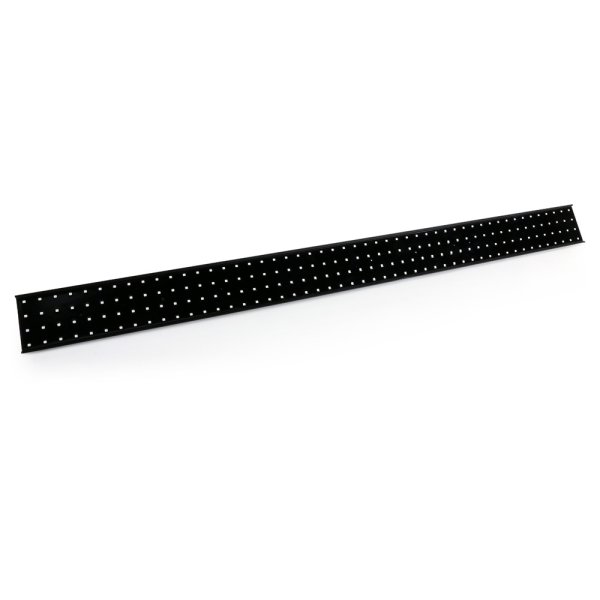

・LED arrays: 4 x 50
・Pitch (pixel center-to-center): 20.00 mm
・Luminous intensity, calibrated mode: 500 cd per meter
・Total output, calibrated mode: 1500 lumens per meter
・Total output, calibrated mode: 6250 nits

■VIDEO PROCESSING
・Brightness control
・Gamma correction and control
・Color temperature control
・Color space control
・Calibration processing
・Synchronization

■SIGNAL PROTOCOL
・Martin P3 (via Martin P3™ PowerPort) or DMX (direct)

■CONSTRUCTION
・Color: Matte black
・Base: Extruded aluminum profile
・Protection rating: IP65
・RoHS compliant

■INSTALLATION
・Mounting: Channel for M6 captive nuts on back of profile

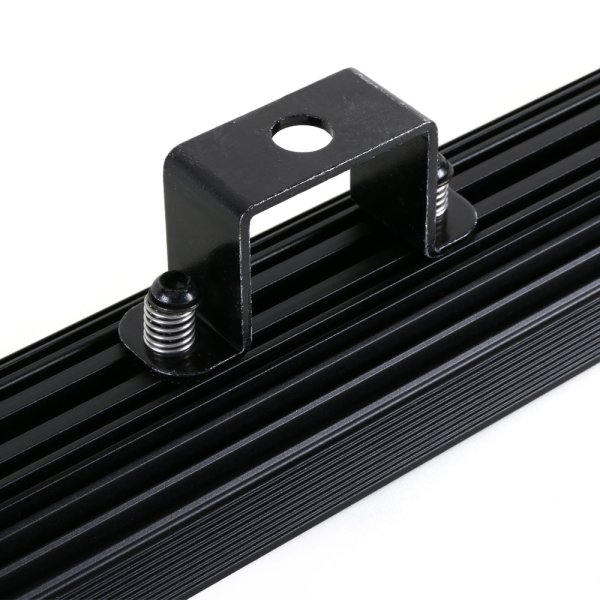

・Mounting options: M6 bolts, optional sliding bracket (accepts M12 bolt)
・Orientation: Any

■CONNECTIONS

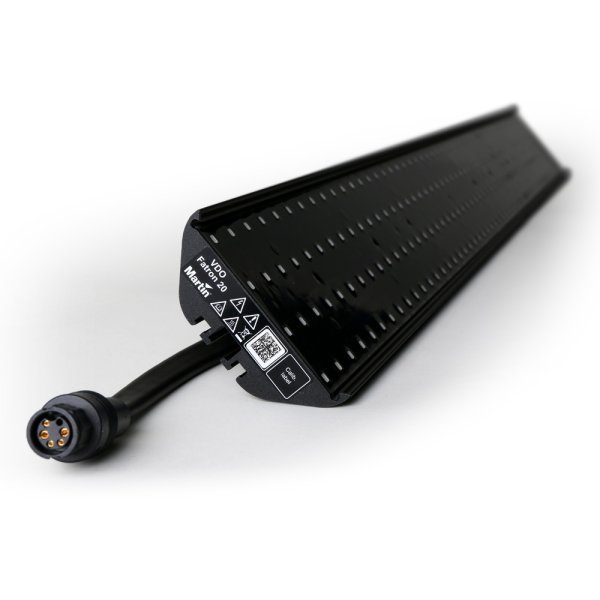

・Power and data input: 6-pin custom (BBD) IP66-rated
・Power and data thru: 6-pin custom (BBD) IP66-rated
・Hot plugging compatible

■ELECTRICAL
・Nominal input voltage: 48 VDC +/- 4%
・Maximum power consumption, all LEDs at full intensity, VDO Fatron™ 20, 320 mm: 20 W
・Maximum power consumption, all LEDs at full intensity, VDO Fatron™ 20, 1000 mm: 60 W
・Power supply options: Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin™ IP66 PSU 240W or generic 48 VDC PSU

■THERMAL
・Cooling: Convection
・Maximum ambient temperature (Ta max.): 45° C (113° F)
・Minimum ambient temperature (Ta min.): -20° C (-4° F)
・Maximum total heat dissipation, calculated, +/- 10%:
・VDO Fatron™ 20, 320 mm: 70 BTU/hr
・VDO Fatron™ 20, 1000 mm: 205 BTU/hr
