Martin VDO Dotron [新品]

Your creative VDO toolbox just got bigger, more dynamic and flexible, making your P3 System Controller even more versatile.

VDO Dotron is a compact and powerful outdoor-rated video pixel with many faces that truly sparks creativity for 3D stage setups. A wide variety of lenses and diffusers offers a wealth of different looks - or go with no front for a raw look. Easy video-mapping and creative mix ‘n’ match with other Martin LED video products via the P3 System Controller. It uses the same integrated power and data cabling as VDO Sceptron and VDO Fatron, making installation a breeze. Be creative.

■概要

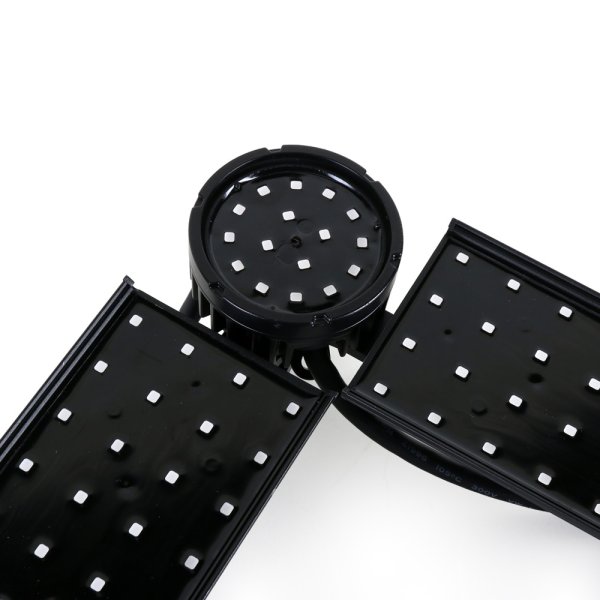

・The perfect expansion of your creative VDO toolbox for exciting 3D stage setups
・Extensive range of field-exchangeable diffusers and lenses for a great variety of looks
・Easy setup, mapping and configuration via P3 System Controller
・Complete range of rigging accessories available

■特徴
・Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and a simplified cabling system

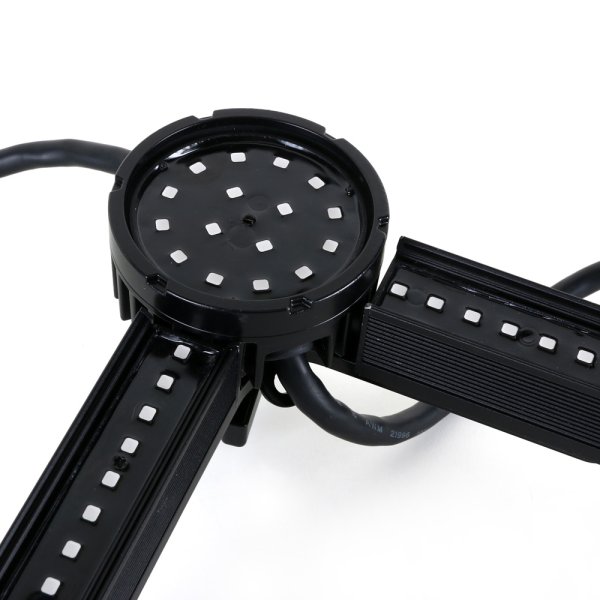

・Combined power and data cabling (compatible with other products such as VDO Sceptron and VDO Fatron)
・P3/DMX/RDM controllable (automatic protocol detection)
・Extensive range of built-in pixelated effects
・Intuitive mapping and addressing via P3 System Controller

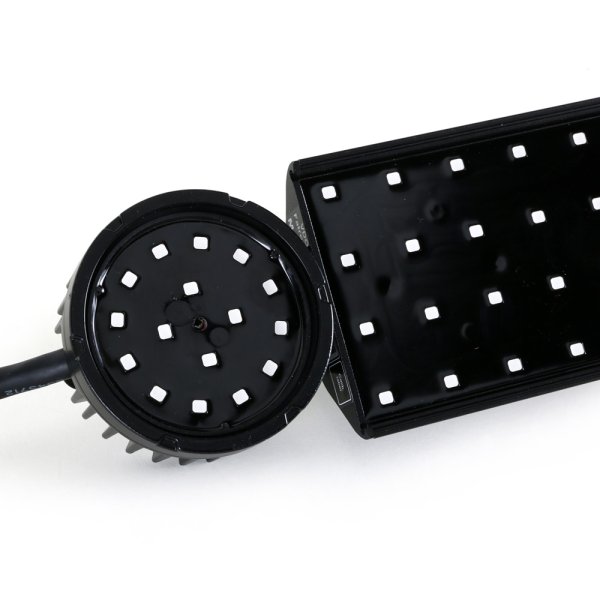

・Fully color and brightness calibrated for optimal cross-product consistency (colors match with VDO Sceptron and VDO Fatron)
・High-quality 16-bit per color image processing technology
・100 lumen per dot calibrated
・4 different diffuser options plus 1 narrow lens array (all field-exchangeable)
・IP65 rated for outdoor use
・Versatile rigging accessories

■■仕様
■PHYSICAL
・Diameter: 72 mm
・Height: 34 mm , without diffuser/lens installed
・Weight: 0.3 kg , without diffuser/lens installed

■CONTROL AND PROGRAMMING
・Control options: Martin P3™ System Controller via Martin P3™ PowerPort 1500 / Martin P3™ PowerPort 1000 IP and/or DMX
・Control modes: RGB and basic
・Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
・Protocol detection: Automatic
・Setting and addressing: Martin P3™ System Controller or RDM-compliant controller
・DMX channels: 3/10
・Calibration: Color and intensity of entire dot
・DMX compliance: USITT DMX512-A
・RDM compliance: ANSI/ESTA E1.20
・Firmware update: Via Martin P3™ System Controller

■CONTROL/USER INTERFACE
・Device status: Multi-color visual indication
・Device test and reset: Magnetic pushbutton to call up local test patterns and reset device

■OPTICS
・Minimum LED lifetime:
・Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
 *Figure obtained under manufacturer’s test conditions
・Options

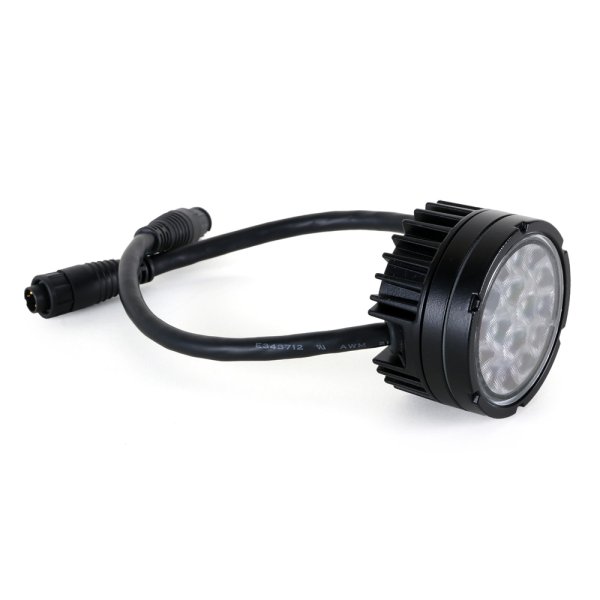

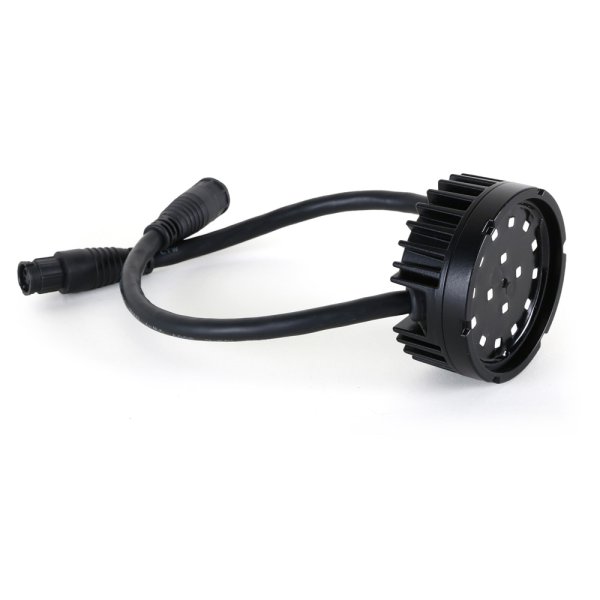

・Open Front
・Flat Diffuser
・Flat Smoked Diffuser

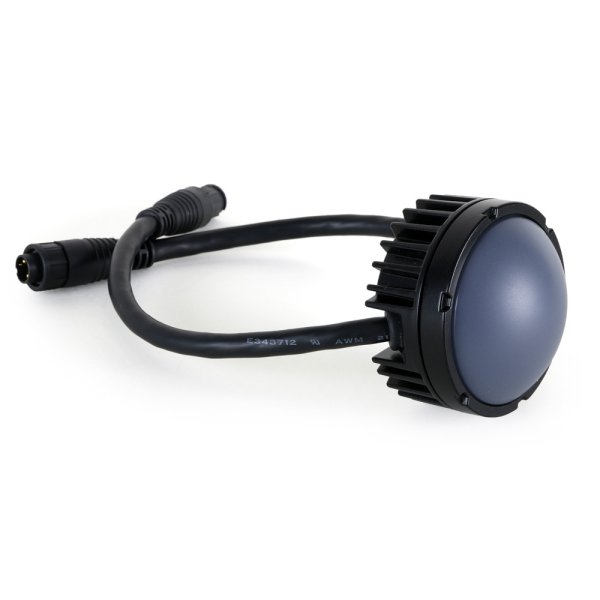

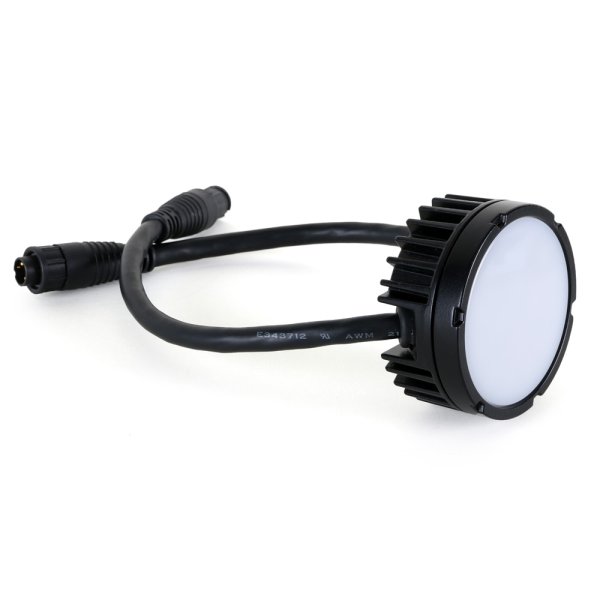

・Dome Diffuser (supplied standard with fixture)

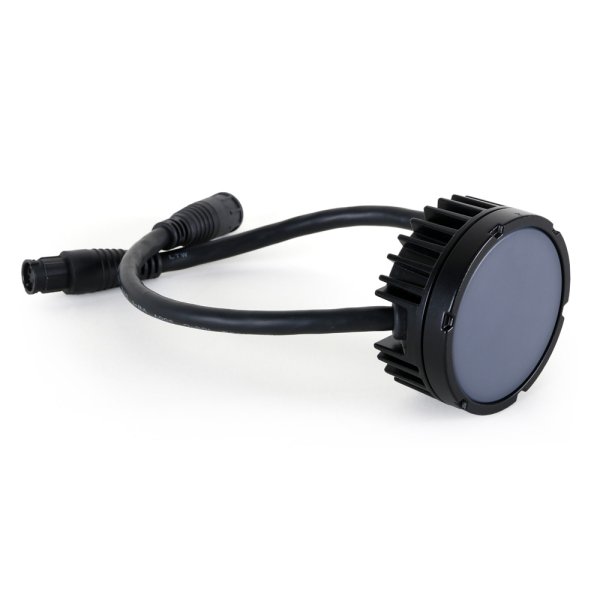

・Dome Smoked Diffuser
・Lens Array Narrow
・All options can be interchanged at any time

■PHOTOMETRIC DATA
・Color resolution: 16 bits per color (48 bits per pixel)
・Luminous intensity, calibrated mode: 40 cd
・Viewing angle:
・Open Front: 103° x 103° (half-peak)
・Flat Diffuser: TBA
・Dome Diffuser: 125° x 125° (half-peak)
・Lens Array: TBA
・Total output, calibrated mode: 4,000 nits (fixtures placed in array at 100 mm center-to-center), 100 lumens

■VIDEO PROCESSING
・Brightness control
・Gamma correction and control
・Color temperature control
・Calibration processing
・Synchronization

■SIGNAL PROTOCOL
・Martin P3 (via Martin P3™ PowerPort) or DMX/RDM (direct)

■CONSTRUCTION
・Housing: Cast aluminum
・Color: Matte black
・Protection rating: IP65
・RoHS compliant

■INSTALLATION

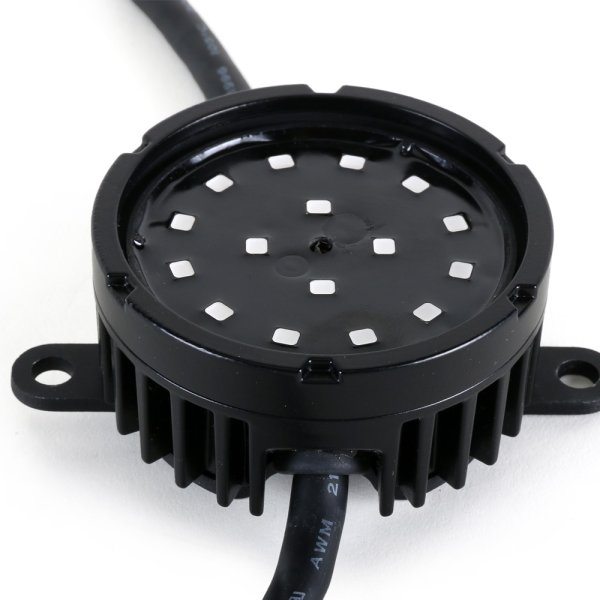

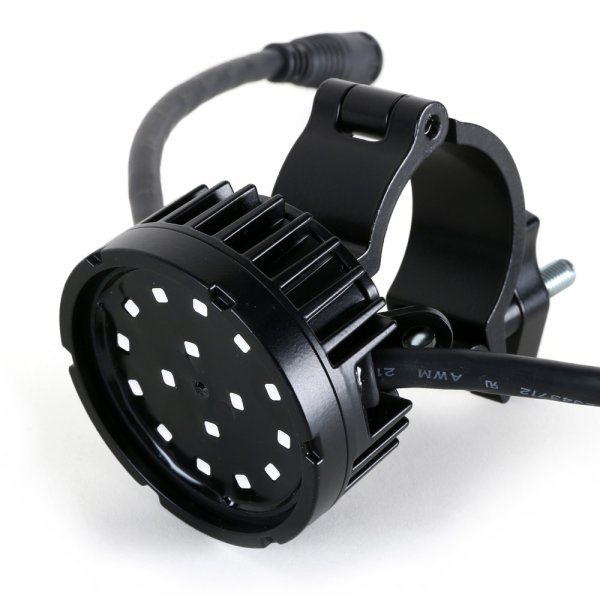

・Mounting: Optional flange bracket and other accessories
・Mounting options: Flat surface at any angle, pedestal or other suitable support
・Orientation: Any

■CONNECTIONS
・Power & data input: 6-pin custom (BBD) IP66-rated
・Power & data thru: 6-pin custom (BBD) IP66-rated
・Hot plugging compatible

■ELECTRICAL
・Nominal input voltage: 48 VDC +/- 4%
・Power supply options: Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin IP66 PSU 240W or generic 48 VDC PSU
・Total power consumption (at maximum intensity, full white): 5 W

■THERMAL
・Cooling: Convection
・Maximum ambient temperature (Ta max.): 55° C
・Minimum ambient temperature (Ta min.): -20° C
・Total heat dissipation (calculated, +/- 10%): 20 BTU/hr

■スペックシート
https://adn.harmanpro.com/site_elements/executables/14495_1531164810/VDO-Dotron_original.pdf

■マニュアル
https://adn.harmanpro.com/site_elements/executables/7225_1526701157/UM_VDO-Dotron_EN_B_original.pdf

■P3 Live Preview and Flexible Video Mapping—P3 lifehack#3(動画)
https://www.youtube.com/watch?v=mi7Jz4-MX7g&feature=emb_logo

■P3 Directly from Green Hippo Media Server—P3 lifehack#5(動画)
https://www.youtube.com/watch?v=DrH-qFU1xyA&feature=emb_logo

■Mixing P3 Video and DMX for Creative Control—P3 lifehack#6(動画)
https://www.youtube.com/watch?v=NboppT71lo4&feature=emb_logo

■Martin VDO Dotron – creative LED video pixel(動画)
https://www.youtube.com/watch?v=ntlmno8a8YQ&feature=emb_logo

■The Many Faces Of VDO Dotron(動画)
https://www.youtube.com/watch?v=pdHUTa2CHjs&feature=emb_logo

■メーカーサイト
https://www.martin.com/en-US/products/vdo-dotron
