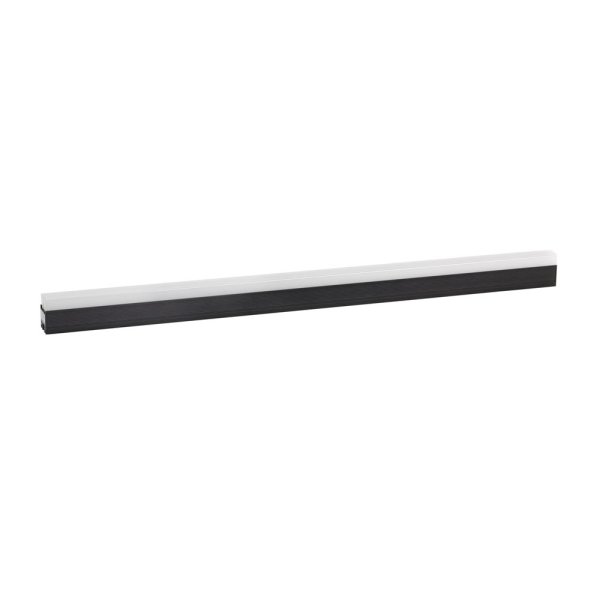

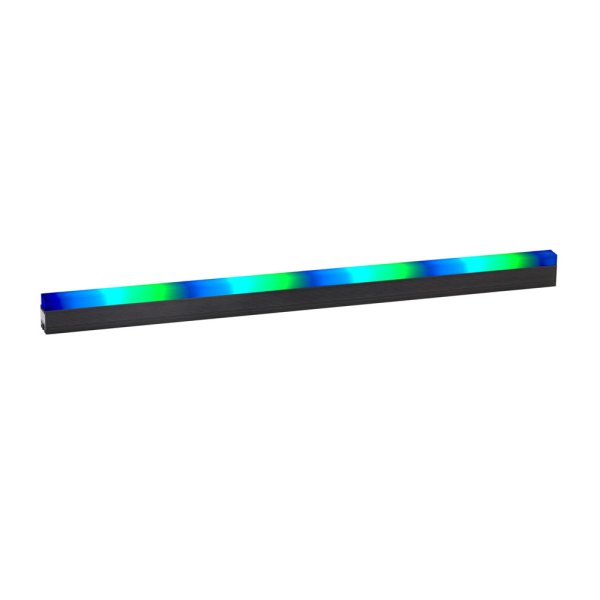

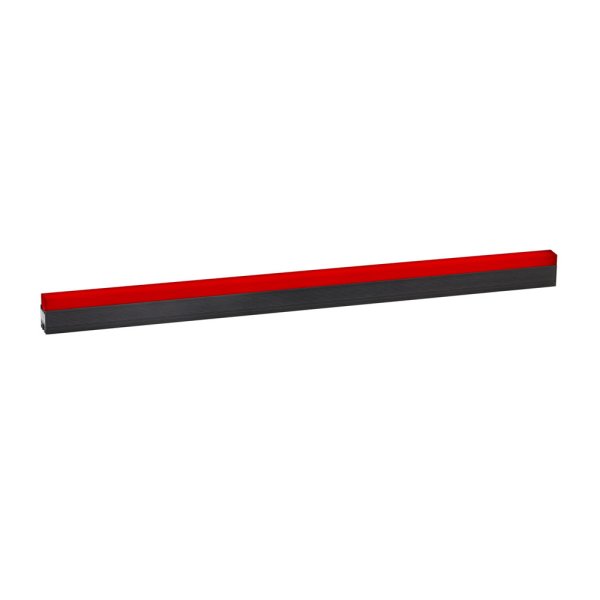

Martin VDO Sceptron 10 [新品]

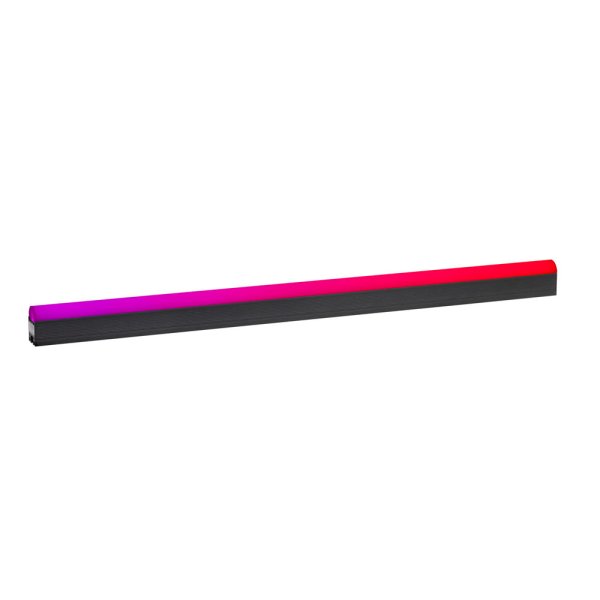

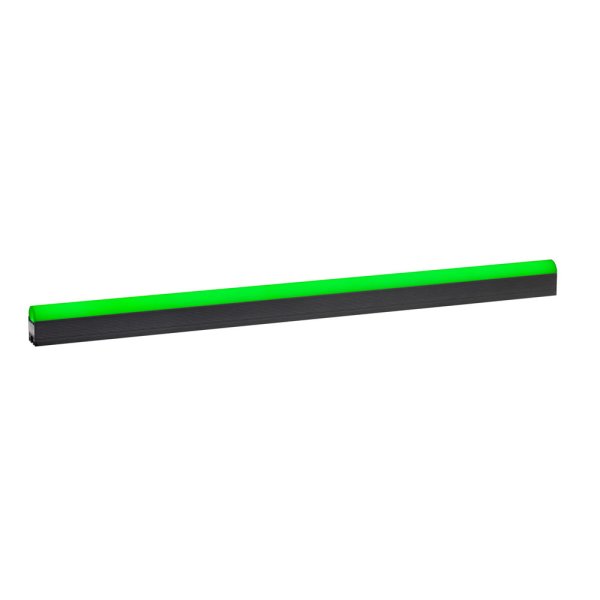

The VDO Sceptron 10 is a linear outdoor-rated LED video fixture for the rental market with 10 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks. The VDO Sceptron 10 is driven by the Martin P3 System Controller family for easy configuration, mapping and setup, and is also backwards compatible with DMX for smaller setups. The integrated power and data cabling allows for long daisy-chains with many fixtures per cable-run, while the power supply can be located backstage (up to 50 m away) for a clean setup avoiding messy cabling and several driver boxes.

■概要
・Extensive range of field-exchangeable optical accessories for a wide variety of looks
・Easy setup, mapping and configuration
・Bright and fully calibrated for optimal consistency
・Complete range of rigging accessories available

■特徴
・10 mm pixel pitch
・250 cd per meter calibrated
・750 lumen per meter calibrated
・High-quality 16-bit per color image processing technology
・Pixel-level brightness and color calibration for optimal image quality
・P3/DMX controllable (automatic protocol detection)
・Intuitive mapping and addressing via P3 System Controller
・Combined power/data input (single cable for power and data input)
・Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and simple cabling system
・Available in lengths of 1000 mm and 320 mm
・Field-exchangeable diffusers and lenses
・Versatile rigging accessories

■■仕様
■PHYSICAL
・Length: Available in 320 mm and 1000 mm versions
・Width: 27 mm
・Height: 28 mm
・Weight: 1.2 kg / m (0.81 lbs. per foot)
・CONTROL AND PROGRAMMING
・Control options: Martin P3™ System Controller via Martin P3™ PowerPort 1500 / Martin P3™ PowerPort 1000 IP, and/or DMX
・Control modes: RGB, basic, segment and pixel-level
・Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
・Protocol detection: Automatic
・Setting and addressing: P3 System Controller or RDM-compliant controller
・DMX channels: 3/10/13/22/103/307
・Color and intensity calibration: Pixel-level
・DMX compliance: USITT DMX512-A
・RDM compliance: ANSI/ESTA E1.20
・Firmware update: Via Martin P3™ System Controller

■CONTROL/USER INTERFACE
・Device status: Multi-color visual indication
・Device test and reset: Magnetic pushbutton to call up local test patterns and reset device

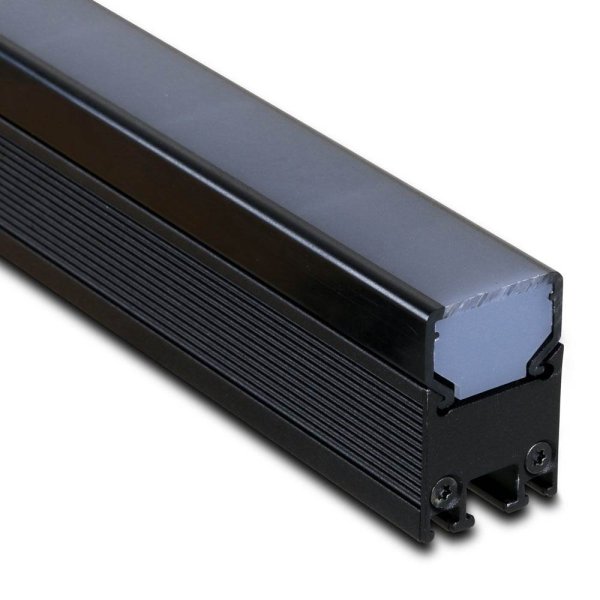

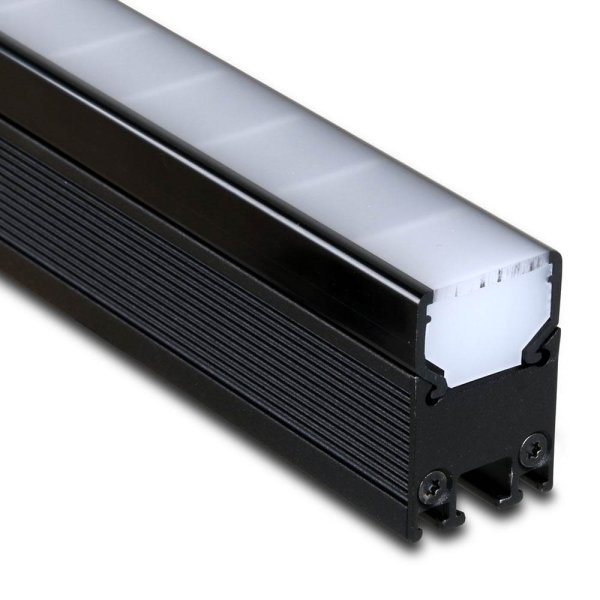

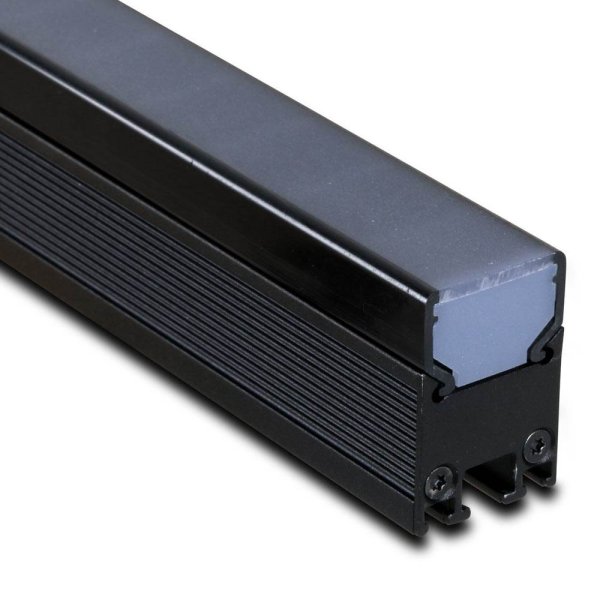

■OPTICS
・Options:
・Open Front
・Flat Diffuser
・Flat Smoked Diffuser

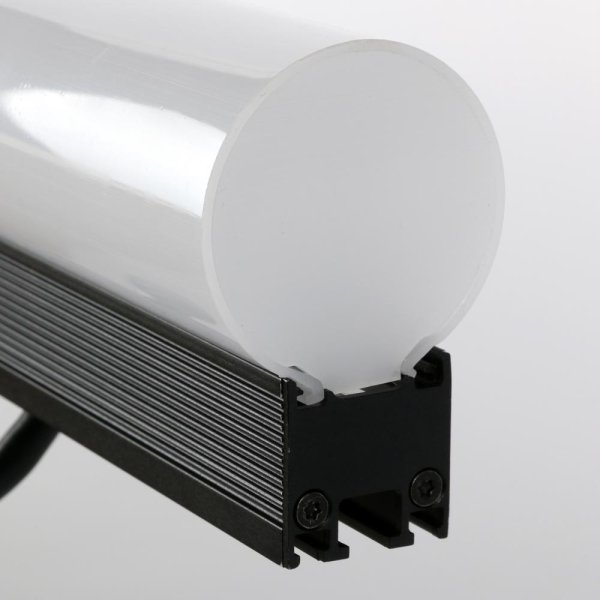

・Round Diffuser
・Round Smoked Diffuser

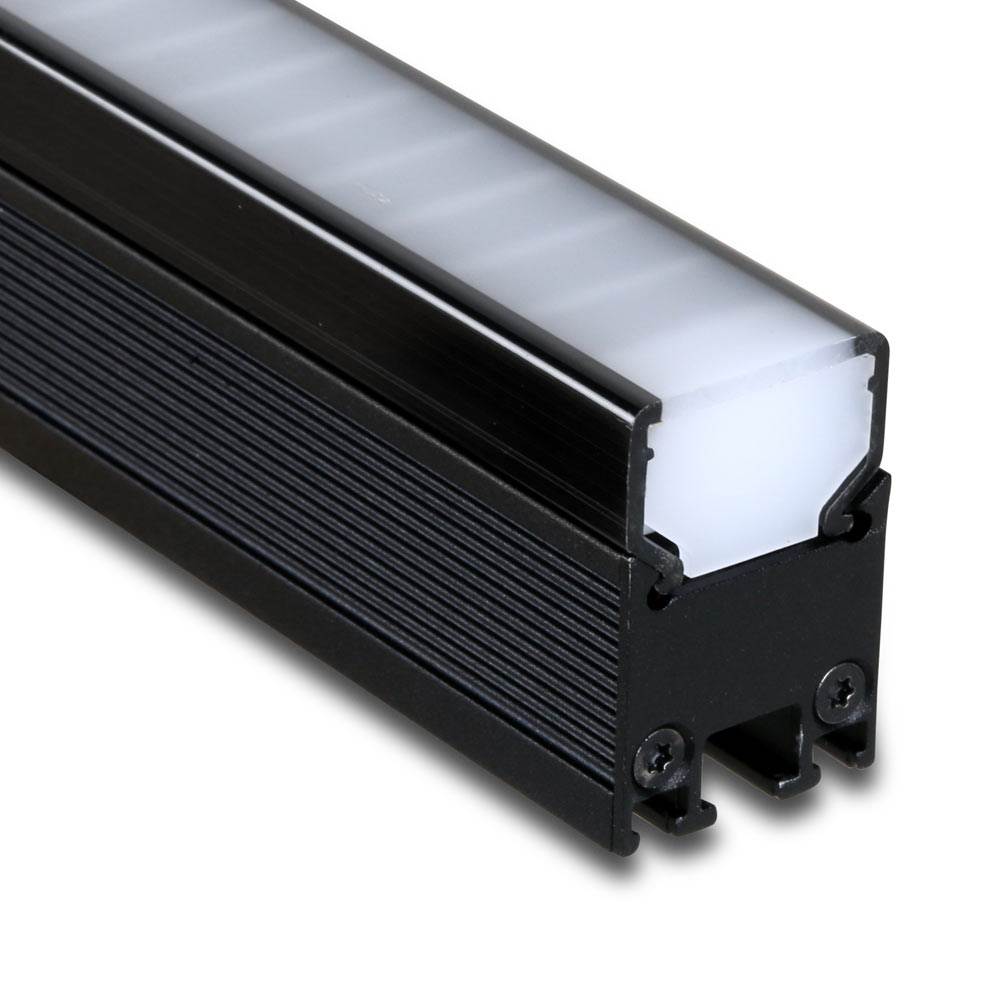

・Square Diffuser (supplied as standard with fixture)

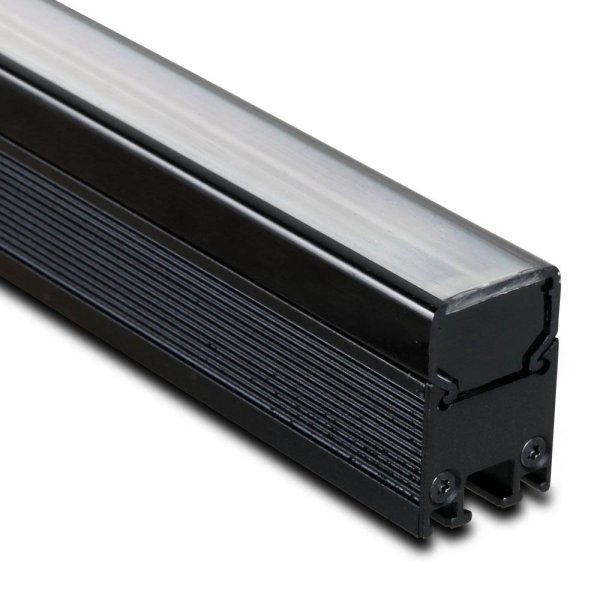

・Square Smoked Diffuser
・Tube Diffuser
・Tube Smoked Diffuser
・NoBlend Diffuser
・Smoked NoBlend Diffuser
・Asymmetric (Wall-Washing) Lens
・All options can be interchanged at any time.
・Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
 *Figure obtained under manufacturer’s test conditions.

■PHOTOMETRIC DATA
・Color resolution: 16 bits per color (48 bits per pixel)
・Pixels: 100 per meter
・Pitch (pixel center-to-center): 10.00 mm
・Luminous intensity, calibrated mode: 250 cd per meter*
・Viewing angle: 120° x 120°
・Total output, calibrated mode: 8,333 nits (modules spaced 30 mm center-to-center)*, 750 lumens per meter*
 *Preliminary data, figures are approximate.

■VIDEO PROCESSING
・Brightness control
・Gamma correction and control
・Color temperature control
・Color space control
・Calibration processing
・Synchronization

■SIGNAL PROTOCOL
・Martin P3 (via Martin P3™ PowerPort) or DMX

■CONSTRUCTION
・Color: Matte black
・Base: Extruded aluminum profile
・Protection rating: IP65
・RoHS compliant

■INSTALLATION

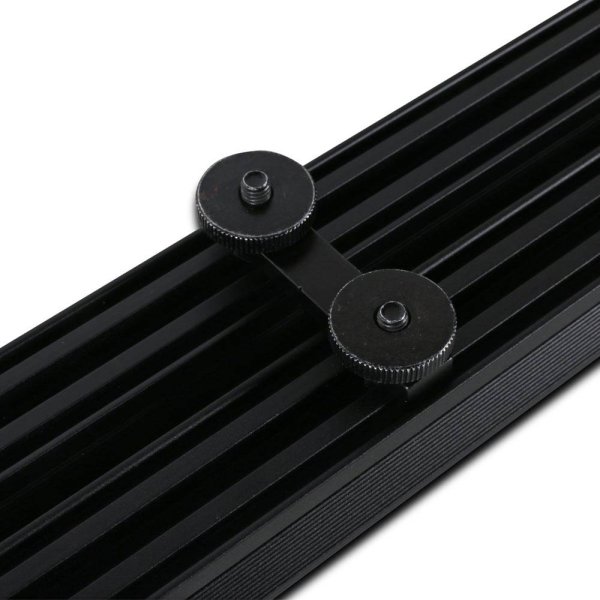

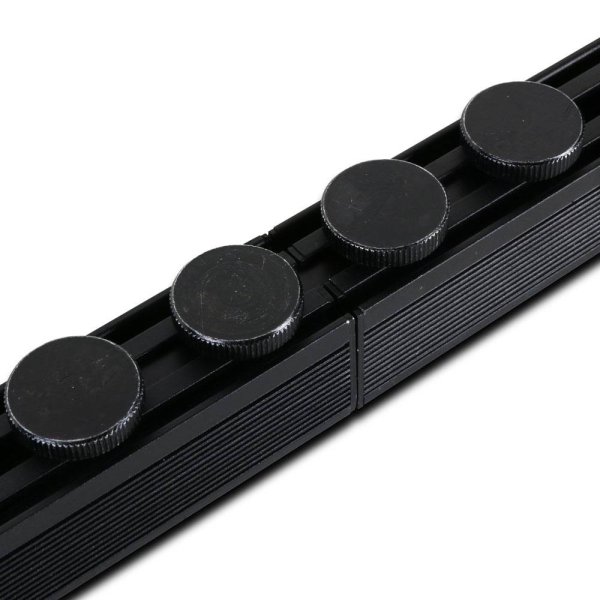

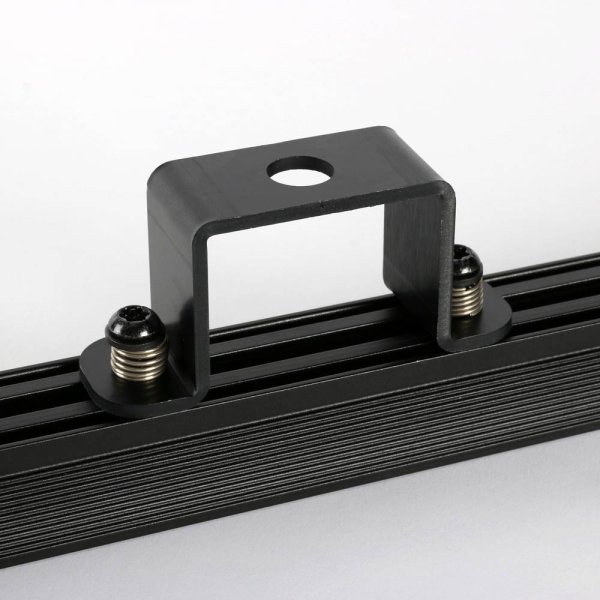

・Mounting: Slot for locking nuts on back of profile (M6) and optional sliding bracket for M12 bolt
・Mounting options: Flat surface at any angle, pedestal or other suitable support
・Orientation: Any

■CONNECTIONS

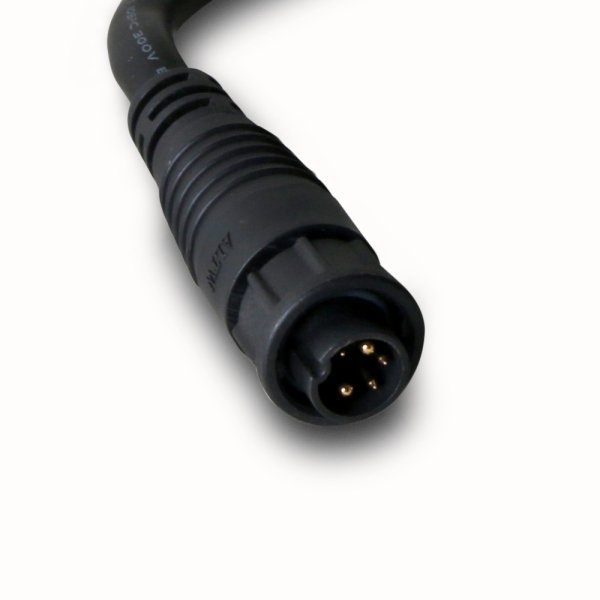

・Power and data input: 6-pin custom (BBD) IP66-rated
・Power and data thru: 6-pin custom (BBD) IP66-rated
・Hot plugging compatible

■ELECTRICAL
・Nominal input voltage: 48 VDC +/- 4%
・Power supply options: Martin P3™ PowerPort 1500, P3™ PowerPort 1000 IP, Tripix™ Power or generic 48 VDC PSU
・Total power consumption (at maximum intensity, full white): 33 W per meter

■THERMAL
・Cooling: Convection
・Maximum ambient temperature (Ta max.): 55° C (131° F)
・Minimum ambient temperature (Ta min.): -30° C (-22° F)
・Total heat dissipation (calculated, +/- 10%): 115 BTU/hr per meter

■スペックシート
https://adn.harmanpro.com/site_elements/executables/14499_1531164818/VDO-Sceptron-10_original.pdf

■マニュアル
https://adn.harmanpro.com/site_elements/executables/7221_1526701109/UM_VDO-Sceptron_EN_F_original.pdf

■P3 Live Preview and Flexible Video Mapping—P3 lifehack#3(動画)
https://www.youtube.com/watch?v=mi7Jz4-MX7g&feature=emb_logo

■P3 Directly from Green Hippo Media Server—P3 lifehack#5(動画)
https://www.youtube.com/watch?v=DrH-qFU1xyA&feature=emb_logo

■Mixing P3 Video and DMX for Creative Control—P3 lifehack#6(動画)
https://www.youtube.com/watch?v=NboppT71lo4&feature=emb_logo

■The Many Faces of VDO Sceptron(動画)
https://www.youtube.com/watch?v=ylF9L11Z5PY&feature=emb_logo

■Martin VDO Face 5 and VDO Sceptron rocking the scene in the making of “City Light”(動画)
https://www.youtube.com/watch?v=oouJIm8m1sQ&feature=emb_logo

■SUPERLOADER – City Light(動画)
https://www.youtube.com/watch?v=lLvr5qLR7vY&feature=emb_logo

■VDO Sceptron family(動画)
https://www.youtube.com/watch?v=ERCRRFASA64&feature=emb_logo

■メーカーサイト
https://www.martin.com/en-US/products/vdo-sceptron-10
