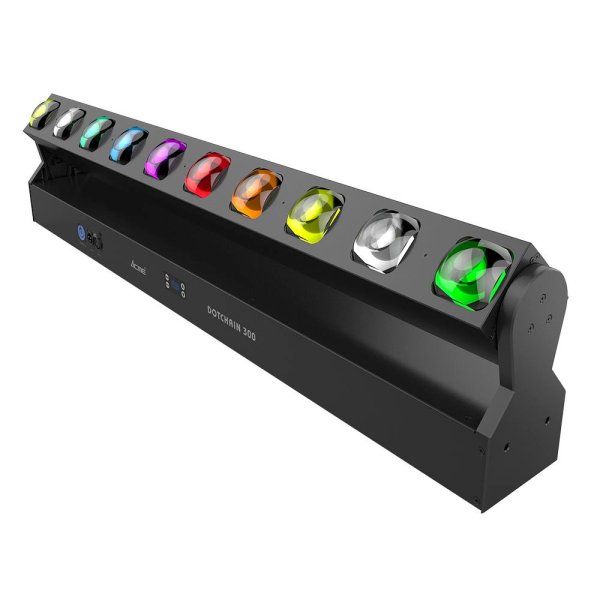

ACME DOTCHAIN 300（ドットチェーン 300） [BAR 300]

DOTCHAIN 300 newly launched LED bar light, is fitted with 10 premium-quality pixel-controllable 20W RGBW LEDs. With fixed sharp beam angle designed in a tight 2°, Dotchain 300 can deliver powerful beam and shiny strobe. What's more, the equally-spaced LEDs allow for the creation of multi-unit strips in the horizontal/vertical orientation or any other patterns, with full pixel-mapping capabilities. It also has 220° in tilt movement, making sure the beams can cover the most field of the installation site. Absolutely quiet operation with no fans design will keep it free of externally heavy oil smoke or coloured paper from entertainment applications. With an economic investment, you can decorate the wedding halls, clubs, bars, ballrooms, and other entertainment applications with this all-new DOTCHAIN 300.


Features

Light source: 10x 20W RGBW LED
Fixed Beam Angle at a Tight 2°
10 LEDs can be controlled individually
Smooth dimming from 0-100%
Outstanding strobe effect with variable speed
With the equally-spaced LEDs, it enables an endless layout of multi-unit strips in various patterns.

Model

BAR 300

Light Source

Light source: 10x 20W RGBW LED
Beam angle: 2°

Optical System

Advanced optical design and high-efficient lenses to ensure the tight beam angle

Control and Program

4-buttons touch panel
Display: OLED display
Protocols: DMX512, RDM
DMX Protocol modes: 2
Control channels: 47/12
Upgrade the firmware via DMX link

Pan & Tilt

Tilt movement: 220°

Electrical and Connectors

Input voltage range: 100-240V~ 50/60Hz
Power consumption: 180 W
Power in/out: Power Connector in/out
Data in/out: 3-pin / 5-pin XLR

Fixture Specification

Height: 1,000mm (39.4")
Width: 117mm (4.6")
Depth: 233mm (9.2")
Weight: 11kg (24.3lbs)

Carton Specification

Height: 1,095mm (43.1")
Width: 315mm (12.4")
Depth: 230mm (9.1")
Weight: 13kg (28.7lbs)(One-pack per carton)

Work Environment

Maximum ambient temperature: 45°C
Minimum operating temperature: 0°C
Maximum surface temperature: 56°C
Protection rating：IP20

Approvals

CE compliant

Installation

Horizontally or vertically mounting are available
Operating position is universal
2 x Fast-locked clamps for 50 millimeter truss
Safety Rope Hole

Included Items

Digital User Manual
Power Cable
2 x Fast-locked clamps for 50 millimeter truss

Optional Accessories (with item code)

Signal Line: 3/5-pin XLR signal line
Safety cable: 2060000200(SW-02)
