ACME SUPER DOTLINE（スーパードットライン） [TB 1060]

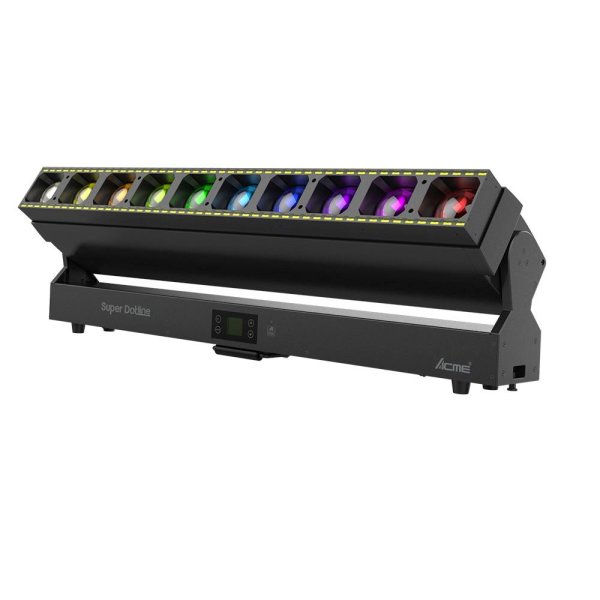

SuperDotline, a visual combination of beam, wash & strobe, an overall upgrade based on our classic DOTLINE360. The main light section features 10x60W RGBW LEDs providing high-brightness multicolored mixing lighting. Two Strobe sections have 24 individually controlled areas empowered by 96x3W LEDs of cold and warm white and 96x0.5W LEDs of RGB, delivering high-powered strobe effects at variable speeds. With a beam angle of 2.8°-31° and a field angle of 5°-46°, it can provide an intense and broad beam and wash effect at large spatial coverage. Motorized linear iris offers fast and smooth changes of effects. Unlimited placement such as hanging/ fast- interlocking/ up-right placement continues to expand its application for concerts, projecting charismatic in-air animations.


Features

Light Source:
Main Light: 10 x 60W RGBW LED
Strip Light:
96 x 3W CW LED
96 x 3W WW LED
96 x 0.5W RGB LED
Zoom angle:
Beam angle: 2.8°-31°
Field angle: 5°-46°
Total lumen output up to 22,400 lm
Motorized linear iris fast and smooth
Sharp and saturated beam effect
Outstanding color mixing
Outstanding strobe effect with variable speed

Model

TB 1060

Light Source

Light Source:
Main Light: 10 x 60W RGBW LED
Strip Light:
96 x 3W CW LED
96 x 3W WW LED
96 x 0.5W RGB LED
Color Temperature:
Main Light(White): 6,300K
Strip Light(ColdWhite): 6,000-7,000K
Strip Light(WarmWhite): 2,600-2,900K
Total lumen output up to 22,400 lm
Rated Source Life: up to 20,000hours

Optical System

Zoom angle:
Beam Angle: 2.8°-31°(60W)
Field angle: 5°-46°(60W)

Control and Program

4-Button touch panel
Display: LCD Display
Protocols: DMX512, RDM, Art-Net, sAcn
DMX Protocol modes: 8
Control channels: 17/27/99/108/168/8+100/8+160/21
Firmware Upgrade: Upgrade via DMX link & USB

PAN & TILT

Tilt movement: 202°

Electrical and Connectors

Input Voltage Range: 100-240V~ 50/60Hz
Power consumption: 1,155 W
Power In/Out: Power Connector In/Out
Data in/out: 3-pin or 5-pin XLR Socket, RJ45

Fixture Specification

Fixture Dimensions:
Width: 1,000 mm (39.4")
Depth: 290 mm (11.4")
Height: 120 mm (4.7")
Weight: 23 kg (50 lbs)
Flight Case Dimensions:
Width: 1,220 mm (48.0")
Depth: 810 mm (32.0")
Height: 730 mm (28.7")
Weight: 175 kg (385.8 lbs)(include flight case, quad loader case)
Carton Dimensions:
Width: 1,200 mm (47.2")
Depth: 400 mm (15.7")
Height: 245 mm (9.6")
Weight: 27 kg (60 lbs)(One-pack per carton)

Work Environment

Maximum ambient temperature: 40°C
Minimum operating temperature: 0°C
Maximum surface temperature: 65°C
Protection rating: IP20

Approvals

CE compliant
UKCA compliant

Installation

Available in horizontal or vertical mounting
Universal operating position
2x Omega adaptors with 1/4-turn quick locks
Safety Rope Hole

Factory Configuration

Digital User Manual
Power Cable
Two Fast-lock Omega Brackets

Optional Accessories(with item code)

Flight Case: 3205096024
Signal Line: 3-pin or 5-pin XLR signal line
Safety cable: 2060000200(SW-02)
Clamps: 2060001632(C-250B)
