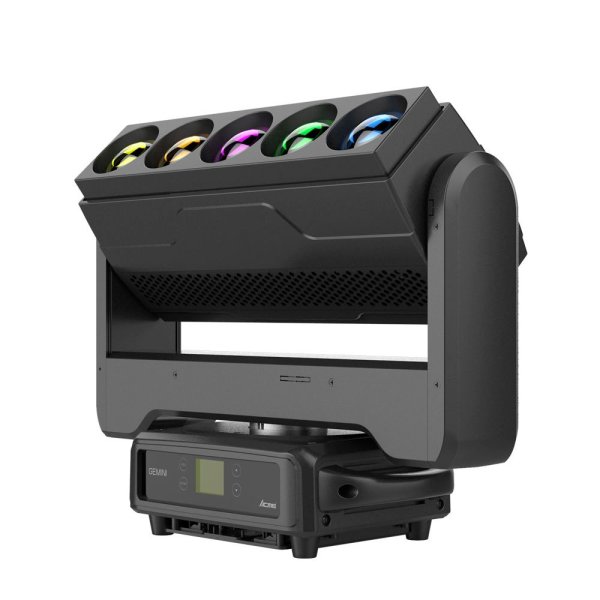

ACME GEMINI（ジェミニ） [CM 560Z]

Functional Overview

GEMINI. A newborn Twin.

It's a Strobe and it's a Zoom Bar, All in one.

Pan and Tilt grant a full movement that keeps an infinite loop for magic effects. Its design combines 5x60W Full-Color LEDs and 36x18W Cold White LEDs. The design for RGBW LEDs produces vivid, bright, and homogeneous colors, zooming from beams to the wash in an extremely smooth and delicate way. But it’s not alone, the opposite side punches with stroboscopic effects and the power reaching up to 41,000lm. GEMINI is extraordinary for TV shows, installations, concerts, or other large-scale events.

Because Two, it's better than One.


Features

Light Source:
Beam: 5 x 60W RGBW LED
Strobe: 36 X 18W CW LED
With zoom and strobe function
Beam mode: 5 pcs LED pixel control
Strobe mode: 18 zones individually controlled
Motorized liner zoom system
Outstanding mixing color effect
Outstanding strobe effect with variable speed
0~100% smooth dimming
2x omega brackets(optional with 2 x foldable fixed clamps)
Flicker free management

Model

CM 560Z

Light source

Light Source:
Beam: 5 x 60W RGBW LED
Strobe: 36 X 18W CW LED
LED life expectancy: 20000 hours

Optical system

Advanced optical system to ensure clear and large-range beam & wash effect
High - efficiency zoom optical system, ratio 1:11
Beam/Wash Batten:
Beam Angle: 2.8°- 31°
Field Angle: 5°-46°
Strobe Tube:
Beam Angle: 96°
Field Angle: 116°
Fixture total lumen output: 41,000lm (Strobe Tube)

Control and Program

4-buttons touch panel
Display: LCD display
Control Mode: DMX512, RDM, Art-Net, sACN
DMX Protocol modes: 7
Channel Mode: 58/25/23/35+/27/70/55 CH
Upgrade the firmware via DMX link
Pan/Tilt Resolution: 16 bit
Dimmer: 16 bit

PAN & TILT

Pan & Tilt movement: Infinite
Automatic Pan/Tilt position correction
Fixation: Pan/Tilt lock

Electrical and Connectors

Power supply with electronic auto-ranging
Input voltage range: 100-240V~ 50/60Hz
Total Power Consumption: 1,240 W
Beam Power Consumption: 460 W
Strobe Power Consumption: 820W
Power In/Out: Power Connector in/out
Data in/out: 3-pin or 5-pin XLR,RJ45

Fixture Specification

Height:420 mm (16.5”)
Width: 130 mm (5.1”)
Depth: 500 mm (19.7")
Weight: 19.5 kg (43 lbs)
Flight Case Dimensions:
Height: 655 mm (25.8")
Width: 580 mm (22.8")
Depth: 1110 mm (43.7")
Weight: 123 kg (271.2 lbs)(With Quad-Loder Case)

Work environment

Maximum ambient temperature: 45°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP20

Approvals

CE compliant
cETLus compliant

Installation

Horizontally or vertically mounting are available
Operating position is universal
2 x omega brackets (optional with 2 x foldable fixed clamps)
Safety Rope Hole

Included items

Digital User Manual
Power Cable
2 x omega brackets (optional with 2 x foldable fixed clamps)

Optional Accessories (with item code)

Flight case: 3205096001
Safety cable: 2060000200 (SW-02)
Signal Line: 3-pin or 5-pin signal line
