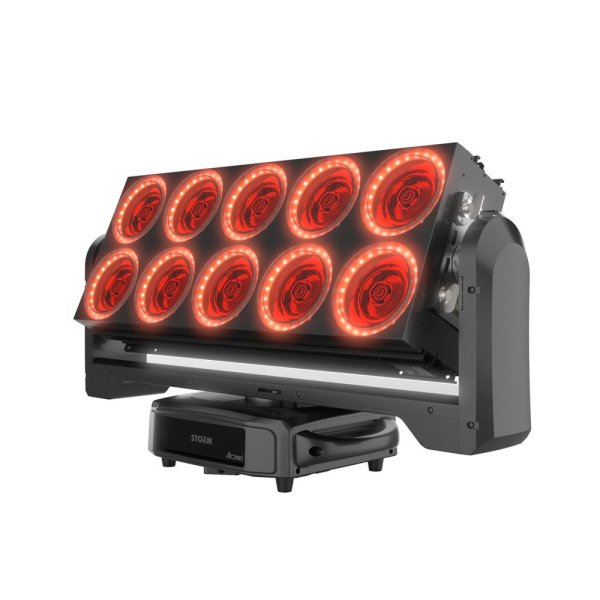

ACME STORM（ストーム） [MB 1000]

Functional Overview

Storm has been developed from the idea to create a powerful stage effect lighting.

Something that would combine three different effect’s Lighting Sources on itself, an all in one product, where a movable and removable base let you play with it.

Storm is featured of Ten powerful blinder beams, with Tungsten effect, 100W LED each, combined with crowns of 24 indexable multicoloured LED’s. An internal glowing multicolour effect complete the unit. Storm is mind blowing for TV shows, installations, concerts, or other large-scale events.


Features

Light Sources:
10 x 100W LED (Warm White + Tungsten effect)
Led inside ring: 10 x 6 x 0.5W LED (RGB)
Led outside ring: 10 x 24 x 0.5W LED (RGB)
Unique 'tungsten' LED effect
Multi-point surface light, multi-point back light with pixel control, Rainbow effect in both directions
High output, low energy consumption, good heat dissipation, long life
Outstanding strobe effect with variable speed
Fixed Beam Angle at a Tight 4° with sharp effect
Smooth dimming from 0-100%
Optioanl frost filters
2 x Fixed foldable clamps for 50mm truss
Reserved 2 pairs of M12 locking points of removable clamp for 70 millimeter truss
Flicker Free Management from 900 Hz to 25,000 Hz


Model

MB 1000

Light Source

Light Sources:
10 x 100W LED (Warm White + Tungsten effect)
Led inside ring: 10 x 6 x 0.5W LED (RGB)
Led outside ring: 10 x 24 x 0.5W LED (RGB)
Total lumen output up to 30,000Lm
Beam angle: 4°
Field Angle: 6°
LED life expectancy: 20,000 hours

Control and Program

4-buttons touch panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol modes: 4
Control channels: 16/88/37/100
Upgrade the firmware via DMX link

Electrical and Connectors

Input voltage range: 100-240V~ 50/60Hz
Power consumption: 1,100 W
Power in/out: Power Connector in/out
Data in/out: 3-pin or 5-pin XLR,RJ45

PAN & TILT

Pan movement: 540°
Tilt movement: 244°
Pan/Tilt Resolution: 16 bit
Automatic Pan/Tilt position correction
Fixation: Pan/Tilt lock

Fixture Specification

Fixture Dimensions:
Height: 970 mm (38.1")
Width: 351 mm (13.8")
Depth: 446 mm (17.5")
Weight: 42 kg (92.5 lbs)
Flight Case Dimensions:
Height: 760 mm (29.9")
Width: 1,220 mm (48.0")
Depth: 810 mm (32.0")
Weight: 162 kg (357.1 lbs)(include flight case, dual loader case)

Work Environment

Maximum ambient temperature: 40°C
Minimum operating temperature: 0°C
Maximum surface temperature: 60°C
Protection rating: IP20

Approvals

CE compliant
UKCA compliant
cETLus compliant

Installation

Horizontally or vertically mounting are available
Operating position is universal
2 x Fixed foldable clamps for 50mm truss
Safety Rope Hole
Reserved 2 pairs of M12 locking points of removable clamp for 70 millimeter truss

Included items

Digital User Manual
Power Cable
Omega Bracket: 3002001497

Optional Accessories (with item code)

Flight Case: 3205096023 (Dual loader case)
Optional Frost Filters
Signal Line: 3-pin or 5-pin XLR signal line
Safety cable: 2060001603-A(SW-05)
Tripod Stand: 3002003859
