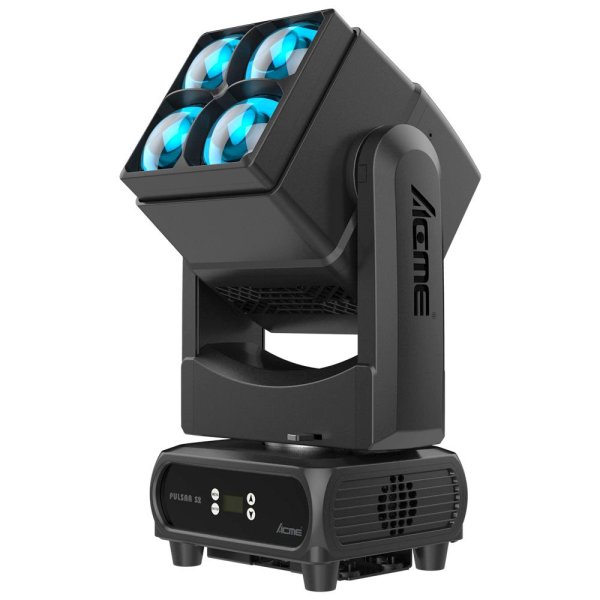

ACME PULSAR S2（パルサー S2） [CM S2]

Functional Overview

Get the most out of PULSAR S2. It brings rugged model, as well as multi-effect lighting, to an explosive dual-head design.

PULSAR S2 takes you beyond the limits of multi-functional lighting fixtures. The front part features 4x 60W RGBW LEDs, allowing powerful beams and wash to flow seamlessly through smooth zooming capabilities of 2.5°-28°. Individual pixel control offers the designer a wide range of effect choices.

The rear part is equally remarkable, a marvelous formation of pixel strobe and beam-24 controllable zones of 96 CW LEDs, 9 zones of 108 RGB LEDs and 9 LEDs for with pixel control beam, delivering rich, saturated mixed colors and captivating effects that go from point to surface.

A wide 100° coverage in pixel strobe section dynamic strobe capabilities and a tight 3.5°angle sharpens intense and well-defined mid-air beams and light curtains.

With linear focus adjustment for seamless transitions between sharpness and softness, infinite pan/tilt rotation ensuring no blind spots in your stage, the compact size making installation hassle-free, PULSAR S2 will instantly set the concerts, TV studios, variety shows, and other large and medium-sized events impossibly high.


Features

With zoom and strobe function
Beam/Wash section: 4 pcs RGBW LED has pixel control function
Strobe section:
96 pcs CW LEDs are divided into 24 controllable zones
108 pcs RGB LEDs are divided into 9 controllable zones
10W Beam section: 9 pcs CW LEDS are available for pixel control
Variable CTO: 2,500K-8,000K
Build-in color macro effect
Motorized liner zoom system
Outstanding strobe effect with variable speed
0~100% smooth dimming


Model

CM S2

Light Source

Light Source:
Beam/Wash section: 4x 60W RGBW LED
Pixel/Strobe section:
96x 3W CW LED
108x 0.5W RGB LED
10W Beam section: 9x 10W CW LED
Total Lumen Output:
Beam/Wash section: 3,427 lm
Pixel section(RGB): 2,326 lm
Strobe section(CW): 15,072 lm
10W Beam section: 1,224 lm
Rated Source Life: up to 20,000 hours*

Optical System

Beam/Wash section:
Beam angle: 2.5°-28°
Field angle: 4.4°-36°
Pixel section: 115°
Strobe section: 108°
10W Beam section: 3.5°
Diameter of Front Lens: 70*70mm

Control and Program

4-Button touch panel
Display: OLED display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol modes: 4
Control channels: 24/39/97/21+76
Firmware Upgrade: Upgrade via DMX link

PAN & TILT

Pan movement: Infinite
Tilt movement: Infinite
Automatic Pan/Tilt position correction
Moving-head operated with either 16-bit resolution

Other Effects

Variable CTO: 2,500K-8,000K
Build-in color macro effect
Motorized liner zoom system
Outstanding strobe effect with variable speed
0~100% smooth dimming

Electrical and Connectors

Input voltage range: 100-240V~ 50/60Hz
Power consumption: 600 W
Power In/Out: Power Connector in/out
Date In/Out: 3 pin or 5 pin XLR In/Out, Art-Net In/Out

Fixture Specification

Fixture Dimensions:
Width: 237 mm (9.3")
Depth: 176 mm (6.9")
Height: 383 mm (15.1")
Weight: 10 kg (22 lbs)
Flight Case 1 Dimensions:
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 640 mm (25.2")
Weight: 156 kg (344.0 lbs)(include flight case, Octa Loader Case)
Flight Case 2 Dimensions:
Width: 1,055 mm (41.5")
Depth: 580 mm (22.8")
Height: 640 mm (25.2")
Weight: 115 kg (253.5 lbs)(include flight case, Hexa Loader Case)
Carton Specification:
Width: 365 mm (14.4")
Depth: 265 mm (10.4")
Height: 480 mm (18.9")
Weight: 12 kg (26.5 lbs))(include carton, one-pack per carton)

Work Environment

Maximum ambient temperature: 40°C
Minimum operating temperature: 0°C
Maximum surface temperature: 65°C

Approvals

CE compliant
UKCA compliant
cETLus compliant

Installation

Horizontally or vertically mounting are available
Universal working position
1x omega brackets
Safety cable attachment hole

Included Items

Digital User Manual
Power Cable
1x omega brackets

Optional Accessories (with item code)

Flight Case1: 3205110033
Flight Case2: 3205001335
Clamp: 2060001625(C-150B)
Safety cable: 2060000200(SW-02)
Signal Line: 3-pin or 5-pin XLR signal line
