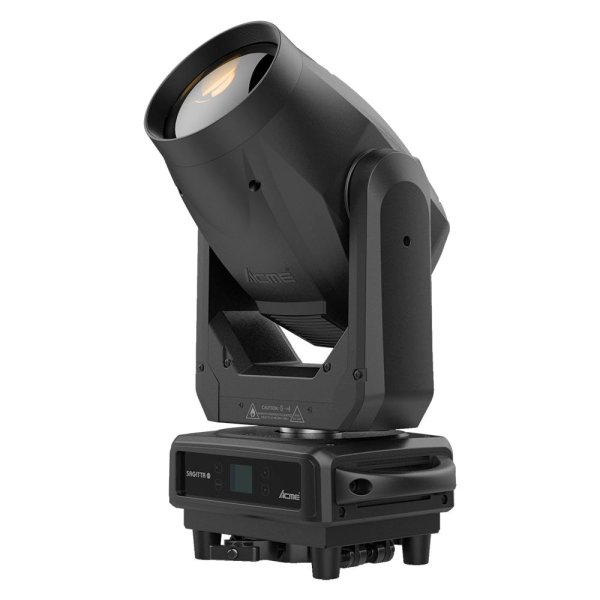

ACME SAGITTA（サジッタ） [XP 400 BEAM II]

Functional Overview

Developed from CHIRON, retaining the sharp beam, 6000-hour- long lamp life, SAGITTA offers a brighter and much more clear-edge beam solution.

A continuous minimized 2 ° beam angle distributed from a larger frontal lens of 160mm delivers an amazing 2,340,000 lux@5M, nearly three-times brighter than the former generation, shooting narrow and even beam.

A shivering, multicolored pattern feast is at your sight with ten well-defined gobos and additional 3 gobos for creating the dynamic "flowing water effect", providing high flexibility for lighting designers.

A much smoother and more satisfying working condition is available with faster pan/tilt movement, and a smaller 21.5kg and compact housing.

SAGITTA is a combination of integrated beams, patterns, rich colors, and frost functions. It is very suitable for small and medium-sized events such as stages and fashion shows to create colorful and dynamic stages. It is also a professional choice for LDs.


Features

Fitted with a powerful Philips MSD Platinum 18R LL
a large 160mm frontal lens
Color Temperature: 6,800K
Motorized focus
Excellent color macro effect
1x Color wheels: 14 complementary colors plus open
Static gobo wheel: 13 HD gobos, including 3 water effect gobos, plus open
Prisms: 1x 8-facet prism, 1 x 24-facet prism in both directions and overlayable
0-100% smooth dimming
Frost Filter: soften beam edge in-air effects
provide soft and even light beam
Outstanding strobe effect with variable speed
2 x Fixed foldable clamps for 50mm truss

Model

XP 400 BEAM II

Light Source

Light source: Philips MSD Platinum 18R LL
Life expectancy: 6,000 hours

Optical System

Advanced optical design to ensure precise gobos and colors
Beam angle: 2°

Control and Program

4-Button touch panel
Display: LCD Display
Protocols: DMX512, RDM
DMX Protocol modes: 3
Control channels: 14/17/19
Firmware Upgrade: Upgrade via DMX

PAN & TILT

Pan movement: 540°
Tilt movement: 260°
Pan/Tilt Resolution: 16 bit
Automatic Pan/Tilt position correction

Color Wheel

1 x Color wheels: 14 complementary colors plus open

Static Gobos

Static gobo wheel: 13 HD gobos, including 3 water effect gobos, plus open

Prism

1 x Combinable Rotating and Indexable Prisms: one 8-facet prism, one 24-facet linear prism

Frost Filters

1 x Advanced Frost Filter: soften beam edge in-air effects

Diffuser Filters

Diffuser Filters: provide soft and even light beam

Electrical and Connectors

Input Voltage Range: 100-240V~ 50/60Hz
Power consumption: 485 W
Power In/Out: Power Connector In/Out
Data in/out: 3-pin or 5-pin XLR

Fixture Specification

Fixture Dimensions:
Width: 350 mm (13.8")
Depth: 253 mm (10")
Height: 600 mm (23.6")
Weight: 21.5 kg (47 lbs)
Flight Case Dimensions:
Width: 605 mm (23.8")
Depth: 580 mm (22.8")
Height: 810 mm (31.9")
Weight: 81.5 kg (180 lbs)(include flight case, dual loader case)

Work Environment

Maximum ambient temperature: 40°C
Minimum operating temperature: 0°C
Maximum surface temperature of the device: 70°C
Protection rating: IP20

Installation

Available in horizontal or vertical mounting
Universal working position
2x Fixed foldable clamps for 50mm truss
Safety cable attachment hole

Factory Configuration

Digital User Manual
Power Cable
Factory certificate and warranty card
2 x Fixed foldable clamps for 50mm truss

Optional Accessories (with item code)

Raincover: 3033001749
Safety Rope: 2060001603-A (SW-05)
Signal Line: 3-pin or 5-pin XLR signal line
