GLP FUSION Exo Spot 30（フュージョン Exo スポット 30）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

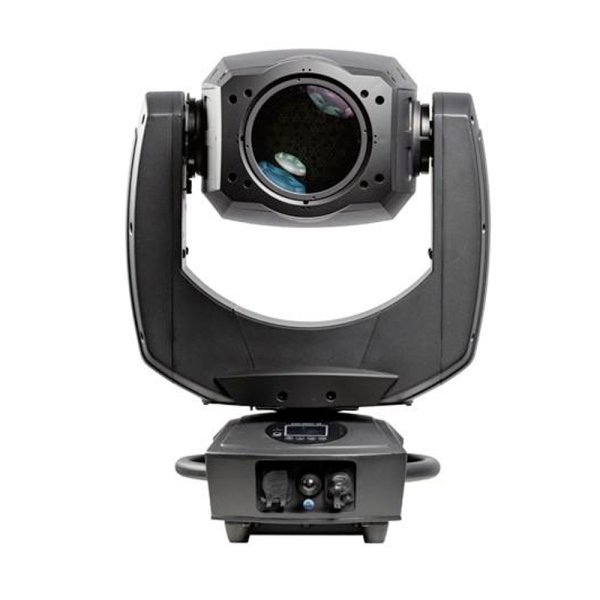

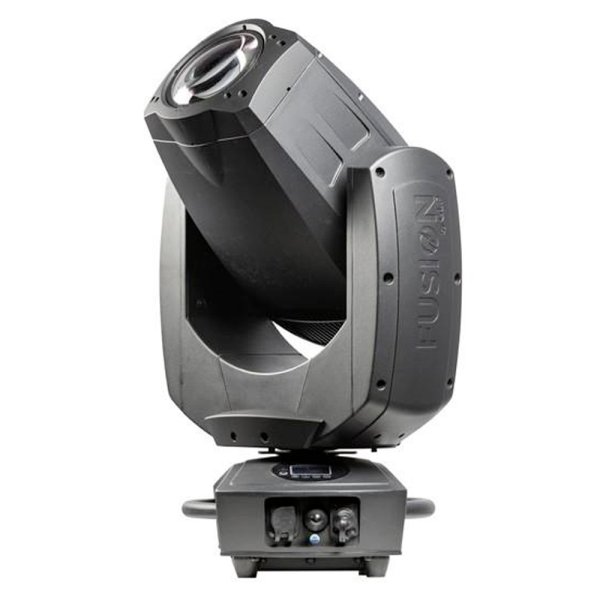

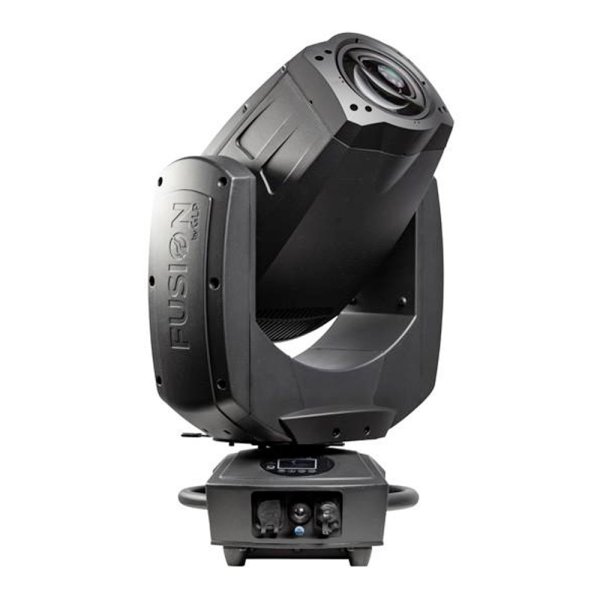

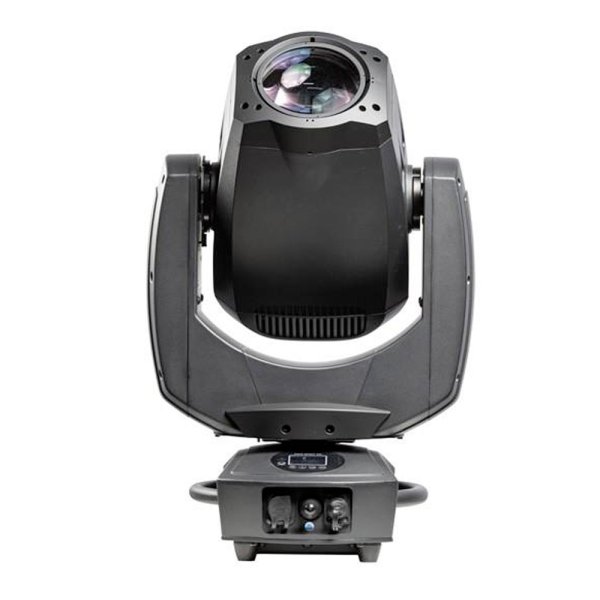

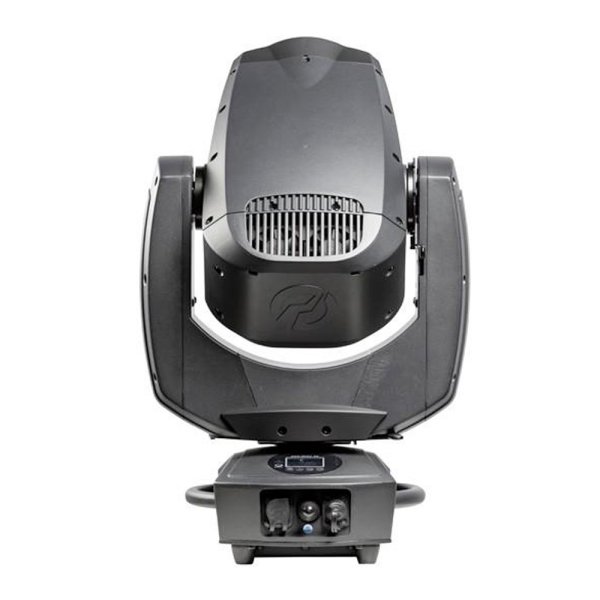

The FUSION Exo Spot 30 from FUSION by GLP is a powerful moving head with IP65 classification and a zoom range of 7 to 30 degrees. The Exo Spot 30 uses a highly efficient 230 watt LED engine with a color temperature of 7,500 Kelvin.

In addition, there is a whole range of additional features:

rotating Prism

Frost Filter

Goborad 1 with 8 fixed Gobos

Goborad 2 with 6 rotating Gobos

CMY Color mixing with 18 additional colors

motorized Focus and Zoom

electronic Shutter with variable Speed

16-bit Pan and Tilt

only 25.9 kg

So versatile, the Exo Spot 30 can be operated anywhere in the world thanks to a switching power supply with automatic voltage detection.
Wireless DMX is available as an optional control. The rugged housing and its IP65 rating equip the Exo Spot 30 for the most demanding conditions in any environment.

仕様

■Light Source
Type
White Light LED-Engine
Light Source Count
1
Optical System
Output
8,300 lm
Min. Zoom
7°
Max. Zoom
30°
Focus
motorized
2m – infinite
Output Lens Diameter
110 mm / 4.33 in
Effects
Dimmer / Shutter
0 – 100% electronic
regular and random strobe and pulse effects
selectable dimmer curves
Frost
heavy
Gobo Wheel 1
8 Gobos
fixed
Gobo Wheel 2
6 Gobos
rotating
Gobo Size
Outer Diameter: 20 mm / 0.87 in
Image Diameter: 16 mm / 0.63 in
Color mixing
CMY color mixing
variable 0 – 100 %
Color Wheel
indexable
continuous rotation
3 fixed dichroic filters + open
Cyan variable 0 – 100%
Color Wheel 2
indexable
continuous rotation
3 fixed dichroic filters + open
Magenta variable 0 – 100%
Color Wheel 3
indexable
continuous rotation
3 fixed dichroic filters + open
Yellow variable 0 – 100%
Pan
540°
Tilt
258°
Zoom
motorized
Position correction system
Position feedback
Control
DMX channels
23
Control Modes
HighRes
Control Modes
1
Protocol
DMX (USITT DMX512-A)
RDM (ANSI/ESTA E1.20)
Setting and addressing
OLED Display
4 Button Menu Navigation
RDM
Software Update
via DMX Line
High-Res Channels
Dimming
Tilt
Performance Modes
fast
medium
smooth
Dimming Curves
linear
soft
Fan Modes
regulated
high
medium
low
Others
Stand Alone 1 captured Scene
3 Layer Pattern-FX-Engine
Connectors
Signal connection
XLR 5-Pin
In/Out
Power input
Neutrik powerCON TRUE1
In/Out
Electrical Specifications
Power input
100 – 240 VAC / 50 – 60Hz
Power supply
auto-ranging electronic switch-mode
Power supply cable
US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft
EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
max. power (@230V)
295 W
Thermal Specifications
Cooling
combined convection and forced air
max. ambient temperature (Ta max.)
45 °C / 113 °F
min. ambient temperature (Ta min.)
-20 °C / -4 °F
Mounting Options
Mounting
2 pair of 1/4-turn locks
eyelets for safety cable
Orientation
any
Location
Outdoor temporary
min. distance to combustible materials
0.5 m / 18.7 in
Construction
Housing Color
Black
Housing Material
Aluminum
Protection Rating
IP 65
Construction Features
Pan-Tilt-Lock-System
