GLP FUSION Exo Wash 30（フュージョン Exo ウォッシュ 30）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

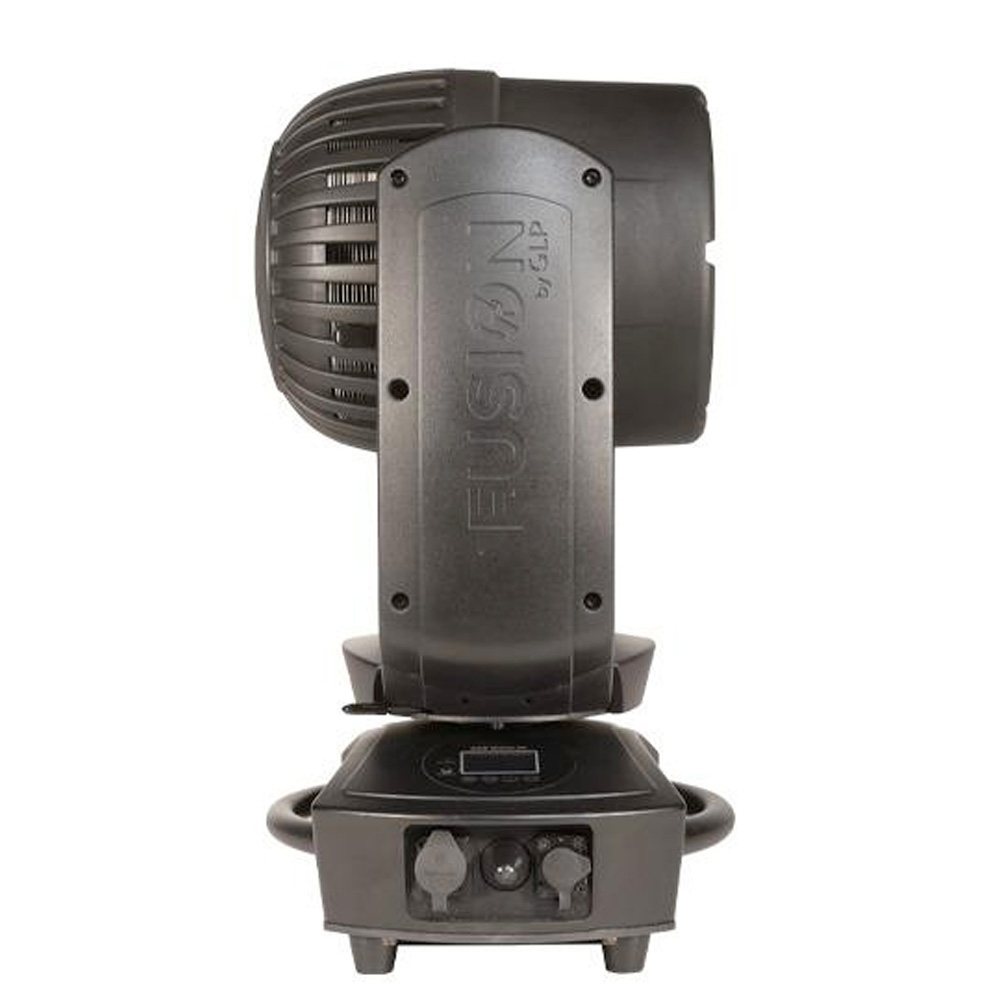

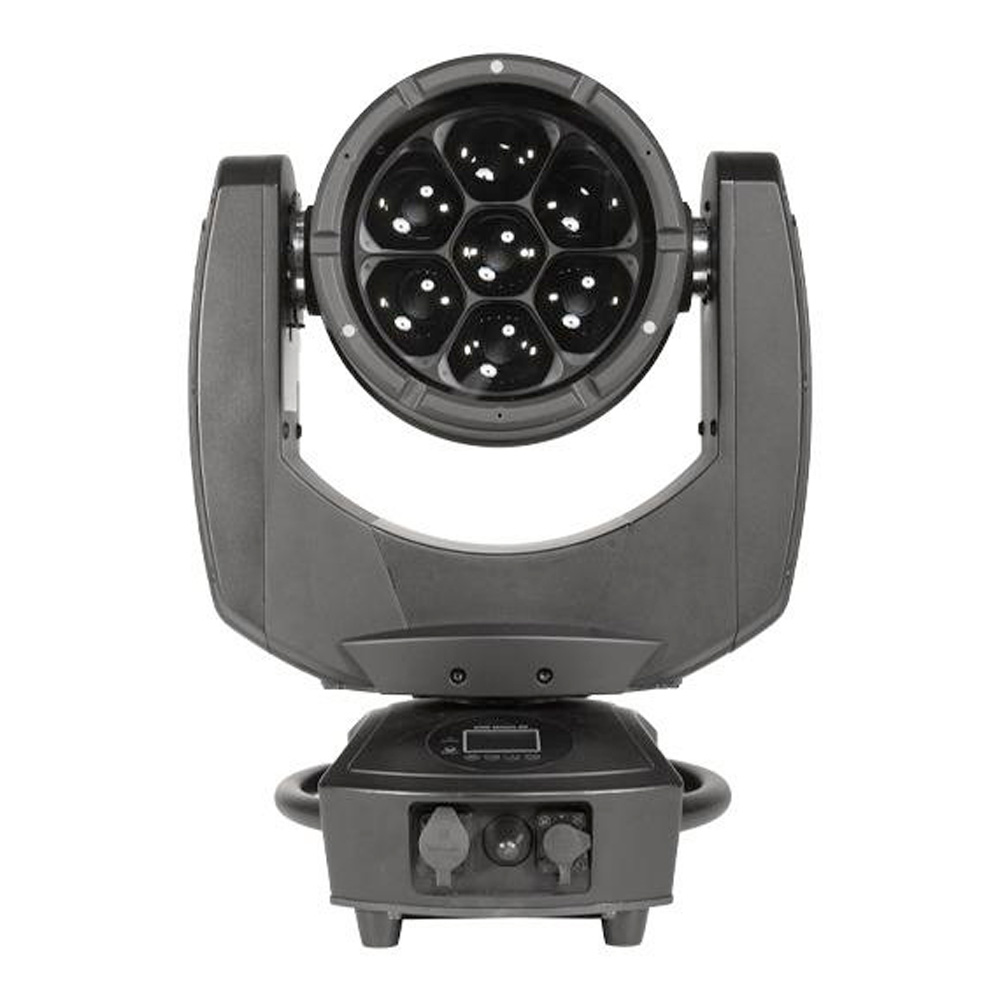

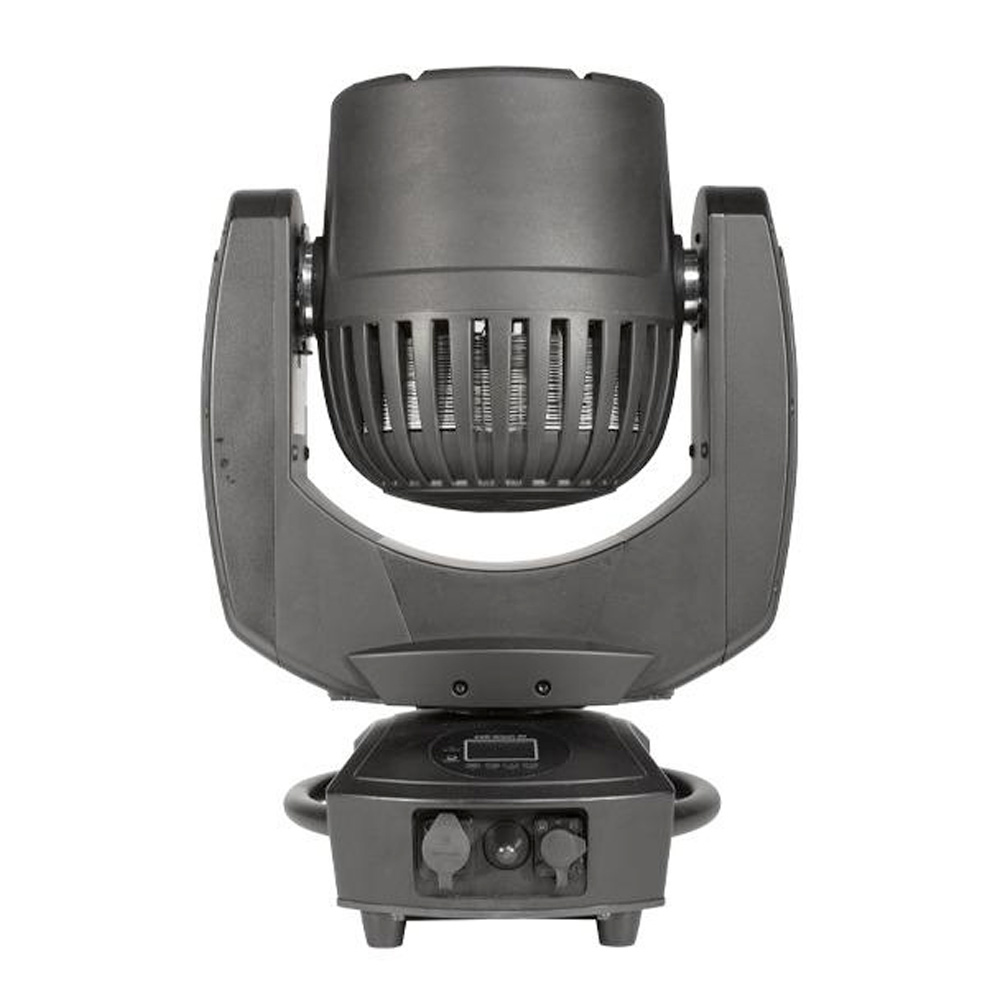

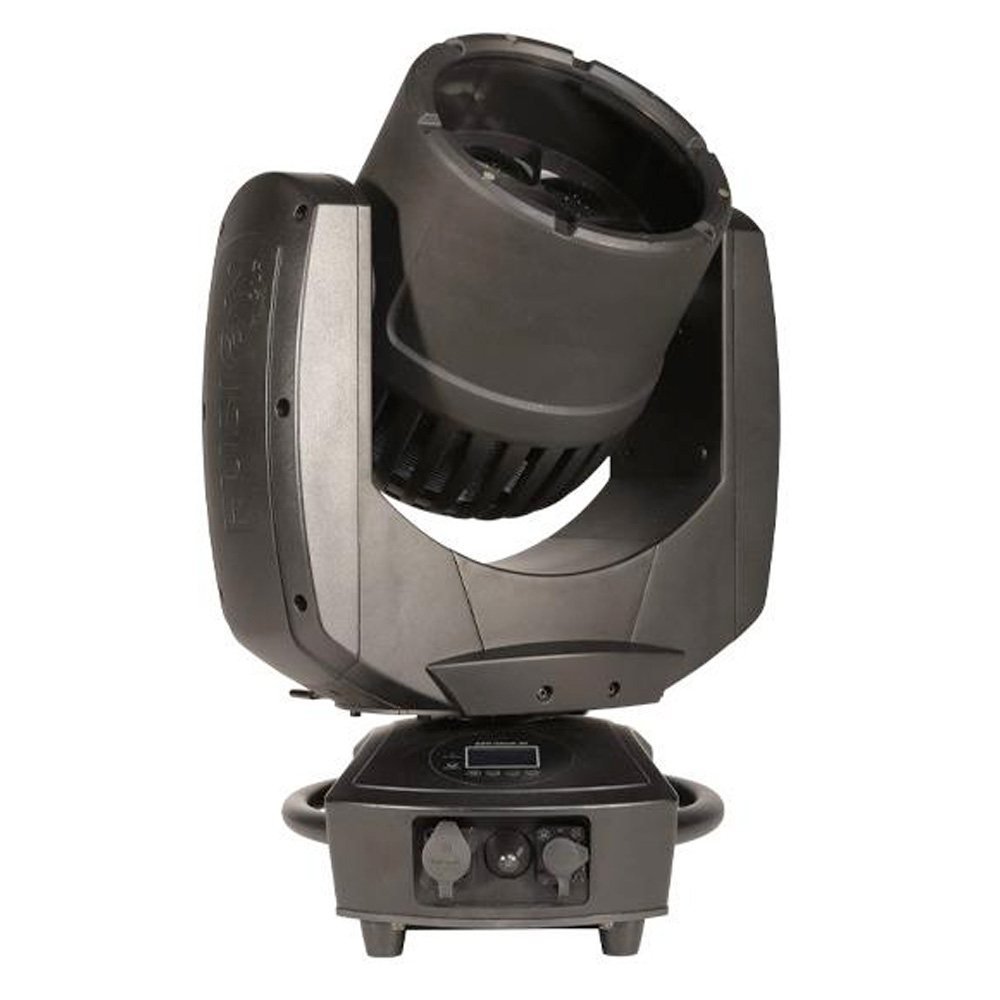

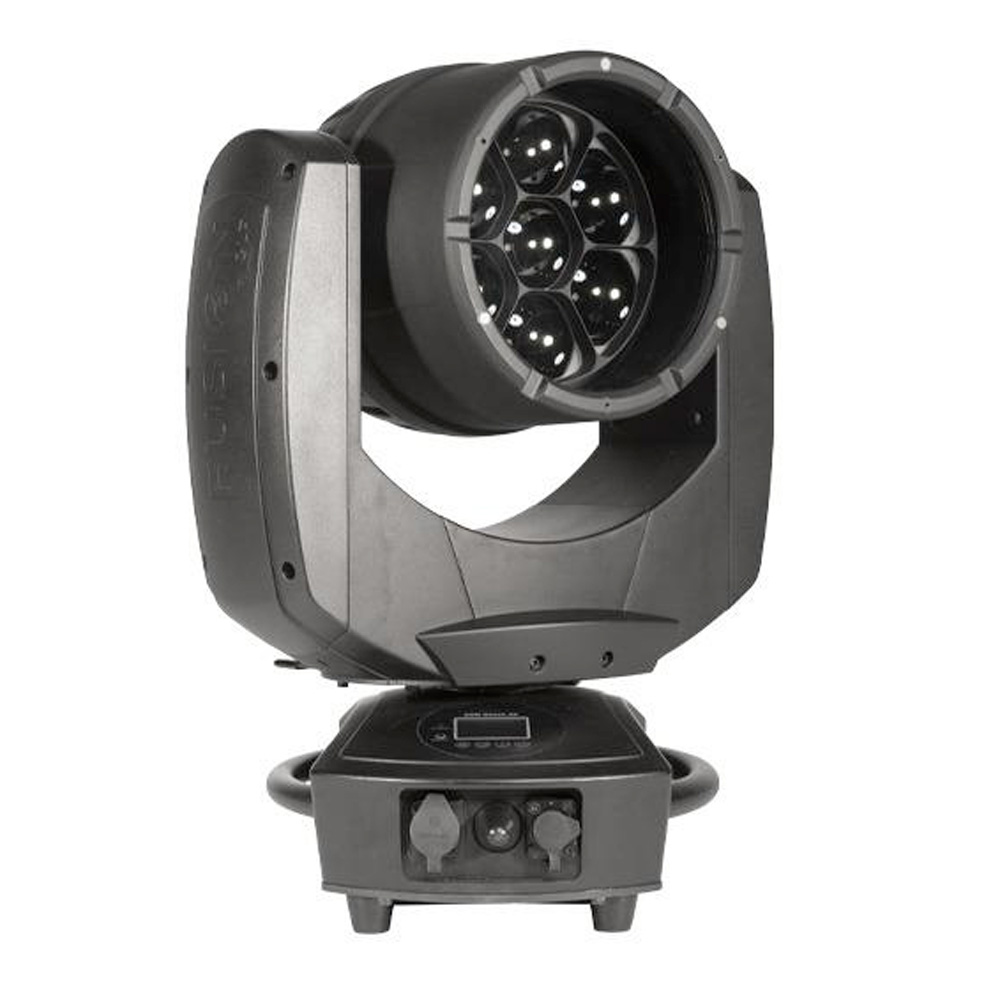

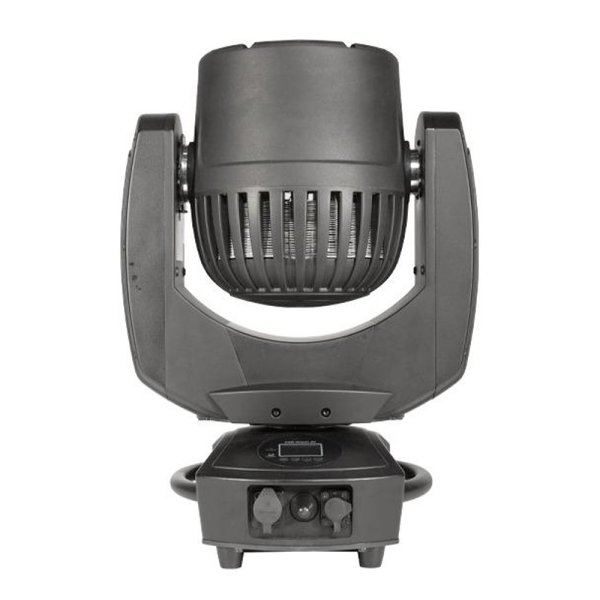

The Exo Wash 30 from FUSION by GLP is an IP65 rated Moving Head wash fixture with a full feature set in a compact housing.

Featuring a durable and robust die cast housing, the Exo Wash 30 is ready for the toughest of outdoor weather conditions. With 7 powerful 32 W RGBW Osram LEDs, the FUSION Exo Wash 30 delivers a solid, bright beam in a full color range from the deepest saturates to the lightest pastel shades, and offers color control over each individual pixel.

Supporting the stunning output is a zooming optical system that can vary the beam continuously from 4° to 40°.

The Exo Wash 30 incorporates True1 In/Out connectors, variable PWM control and also features easy to use magnetic head mounts, for filter holders and any other future attachments.

仕様

■Light Source
Type
RGBW
Light Source Count
7
Light Source Power
40 W
Light Source Lifetime
20,000 h
Optical System
Min. Zoom
4°
Max. Zoom
54°
Effects
Dimmer / Shutter
0 – 100% electronic
regular and random strobe and pulse effects
Color mixing
RGBW
variable 0 – 100 %
CTC (Color Temperature Control)
2,500 – 10,000 K
Pan
540°
Tilt
267°
Control
DMX channels
13 / 22 / 37 / 50
Control Modes
Pixel-Mapping
Control Modes
4
Protocol
DMX (USITT DMX512-A)
RDM (ANSI/ESTA E1.20)
Setting and addressing
RDM
Display
self charging buffer battery
OLED display with 4 buttons
Wireless
Lumenradio CRMX DMX/RDM (optional)
Software Update
DMX link
Dimming Curves
linear
soft
Fan Modes
regulated
high
medium
low
Connectors
Signal connection
XLR 5-Pin
In/Out
Power input
Neutrik powerCON TRUE1
In/Out
Electrical Specifications
Power input
100 – 240 VAC / 50 – 60Hz
Power supply
auto-ranging electronic switch-mode
Fuse
T5A 250 V
max. power (@230V)
230 W, 1 A
Thermal Specifications
Cooling
combined convection and forced air
max. ambient temperature (Ta max.)
45°C / 113°F
min. ambient temperature (Ta min.)
-20°C / -4°F
Total heat dissipation (calculated, +/-10%)
785 BTU/h
Mounting Options
Mounting
2 pair of 1/4-turn locks
Rubber feet
eyelets for safety cable
Orientation
any
Location
Outdoor temporary
min. distance to combustible materials
0.5 m / 18.7 in
Construction
Housing Color
Black
Housing Material
Aluminum
Protection Rating
IP 65
Construction Features
Pan-Tilt-Lock-System
Shipping
Single fixture
cardboard
