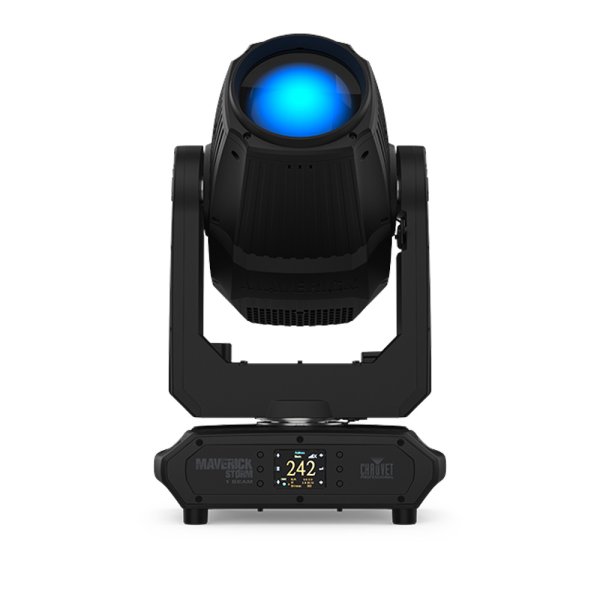

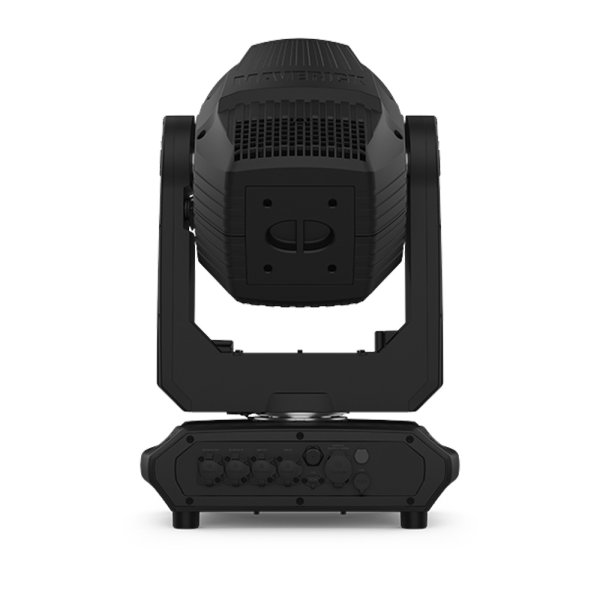

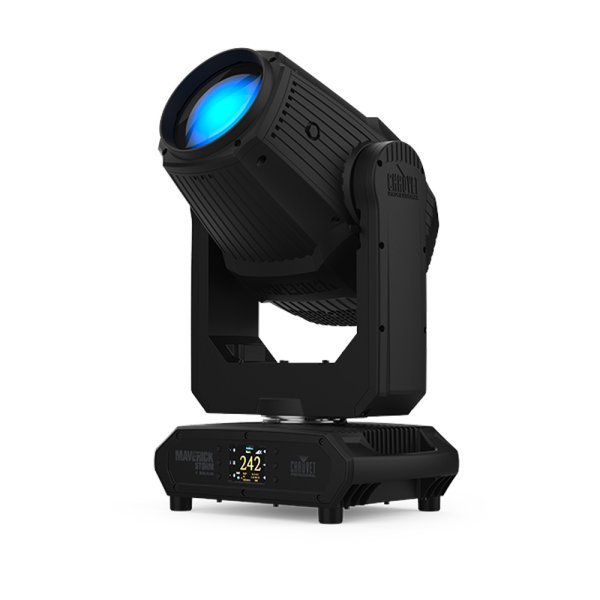

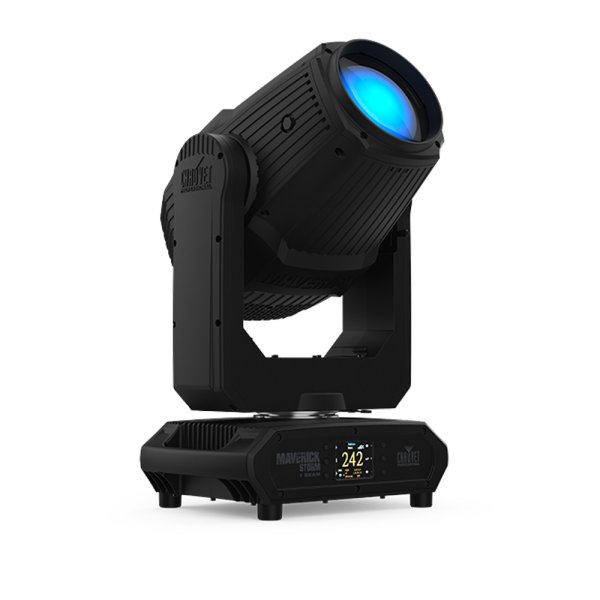

Chauvet Professional Maverick Storm 1 Beam（ショーベー マーベリック ストーム1 ビーム）

Maverick Storm 1 Beam（マーベリック ストーム1 ビーム） は、CMYカラーミキシングとスタジアムスケールの出力を、軽量でコンパクトな合金外装 IP65定格の灯体から提供し、シャープなビームエフェクトと正確な色を実現します。

概要

・SIRIUS HRI 310W 光源の力を最大限に引き出すように設計された光学システムを備えた強力なビーム灯体
・しっかりと焦点を合わせたアンテナとレイヤー可能な2つの独立したプリズムが、外観と配光を微調整するためのフロストで、大きなビジュアルエフェクトを生成
・DMX、ArtNet、sACN、RDM、および CRMXに対応します。

■特徴
Fully featured, IP65 rated, high powered Beam fixture with an OSRAM SIRIUS HRI 310 W lamp 6,000 hour life expectancy lamp, CMY color mixing, 1 gobo wheel, 2 layerable prisms, precision focus, and lightweight aluminum/magnesium housing

CMY Color mixing

13 + open color wheel

Frost for even light distribution

Tight 1.3° narrow beam angle for focused air effects and no field spill

Individually controllable and layerable 5 facet linear and 8 facet round prisms for maximizing visual impact

17 static gobos for massive visual effect

DMX, RDM sACN, ArtNet, and WDMX protocol control

True 1 compatible power input

Easy to read OLED display with simple, effective menu options

Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost

■仕様
SPECIFICATIONS
OPTICAL
Light Source: SIRIUS HRI 310 W lamp 7650K, 6,000 hours life expectancyColor Temperature (at full): 7178 KCRI: 80.1Beam Angle: 1.3°Field Angle: 2.3°Cutoff Angle: 3 °Lumens – Output: 30,639Illuminance (total): 190,709 lux @ 15 m
DYNAMIC EFFECTS
Pan and Tilt: 540°/270°Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tiltColors: 14 + white, split colors, continuous scroll at variable speedsGobos: 17 + open (17 metal), continuous scroll at variable speedsGobo Size (1): Gobo Wheel 1 (static): 123 mm (outside), 6 mm (image), 1 mm (max. thickness)Dimmer: MotorizedShutter/Strobe: MotorizedFocus: MotorizedFrost: MotorizedPrism: 5 Facets, motorized, rotatingPrism: 8 Facets, motorized, rotatingMove-in-Black: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 15.28 x 10.04 x 25.91 in (388 x 255 x 658 mm)Weight: 51.2lb (23.3 kg)Exterior Color: BlackHousing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel
CONNECTIONS
Power Connection: Edison plug to Seetronic Powerkon IP65Power Input: Seetronic Powerkon IP65Data Connectors: 5-pin IP ratedCable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX, RDM, ArtNet, sACN, Lumen RadioDMX Channels: 19 or 21Modes/Personalities: 2 personalities (19, 21)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power and Current: 482 W, 4.070 A @ 120 V, 60 HzPower and Current: 469 W, 2.334 A @ 208 V, 60 HzPower and Current: 467 W, 2.011 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC, UKCL, CBIP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valveTemperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
WHAT'S INCLUDED
Maverick Storm 1 BeamSeetronic Powerkon IP65 power cord2 Omega brackets with mounting hardwareQuick Reference Guide
OPTIONAL ACCESSORIES
Professional Clamps : CTC-50HC, CTC-50HCNSafety Cable: SC-07DMX CablesIP Rated Seetronic® Powerkon ExtensionsUpload 08 Software UploaderMicro T-1 TRX G6 WDMX Transceiver

参照

■メーカーサイト
https://www.chauvetprofessional.com/products/maverick-storm-1-beam/
