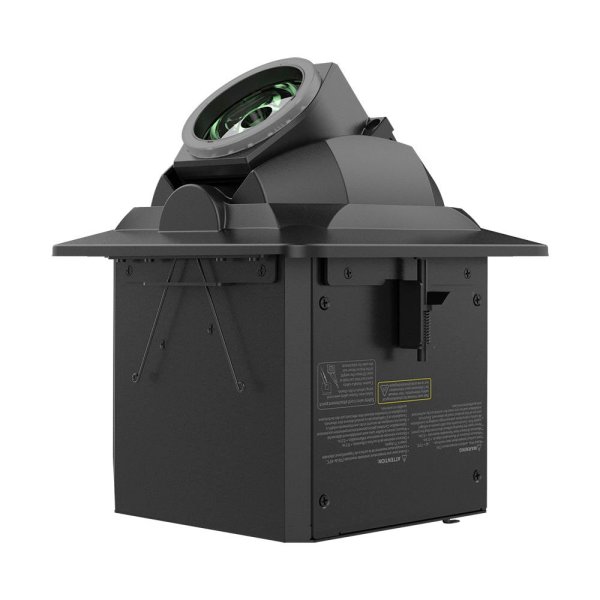

ACME EYES CC（アクミー） [BEAM 50C RGBW]

■概要
Functional Overview
EYES CC (Ceiling Install Version) is designed for stage art installations such as visual image stage, bars, ballrooms, banquet halls, etc.The compact and lightweight designing concept was the realization key of horizontal and vertical uniform and fast splicing, what’s more, the shape is flexible and changeable in all kinds of performance creation. Featured with a angel eye LED on top, it increases the fun of playing pixel running, circle chasing, stroboscopic, dimming speeding, and any other creative effects with the uniform 40w RGBW color mixing system. Moreover, the ground-breaking of the ACME unique axis development has completed the dynamic visual 3D effects and given the infinite imagination more than any other traditional lighting decoration.


Features
Light source:
1x 40W RGBW LED
20x 0.5W Angel Eye LED
LED life expectancy: 20000 hours
Beam Angle: (Optional): 5°/25°
Effects: Angel Eye LED pixel running, circle chasing, stroboscopic, dimming speeding, 3D visual movement
Uniform RGBW color mixing system and rainbow effect
Compact design, small size and light weight
Smooth dimming from 0~100%
Multi-speed strobe effect
Horizontally or vertically mounting are available
Connected quantity: 100–240V~ 50/60Hz 22

Model
BEAM 50C RGBW

Light source
Light source:
1x 40W RGBW LED
20x 0.5W Angel Eye LED
LED life expectancy: 20000 hours

Optical system and Effects
Beam Angle: (Optional): 5°/25°
Effects: Angel Eye LED pixel running, circle chasing, stroboscopic, dimming speeding, 3D visual movement
High resolution dimmer 0–100%

Control and Program
4-buttons touch panel
Display: OLED display with battery backup
Protocols: DMX512,RDM, Master/Slave
DMX Protocol modes: 2
Control channels: 14 / 29

PAN & TILT
Pan movement: 77°
Tilt movement: 77°
Automatic Pan/Tilt position correction

Electrical and Connectors
Input voltage range: 100–240V~ 50/60Hz
Power consumption: 50W
Power in/out: Power connector input/output
Data in/out: 3-pin or 5-pin XLR

Fixture Specification
Fixture Dimension:
Width:195 mm (7.67")
Depth:195 mm (7.67")
Height: 236 mm (9.3")
Weight: 3.5 kg (7.7 lbs)
Carton Dimension：
Width: 275 mm (10.8")
Depth: 345 mm (13.6")
Height: 305 mm (12")
Weight: 4.3kg (9.5lbs) (one pack per carton)

Work environment
Maximum ambient temperature: 40°C
Minimum operating temperature: 0°C
Maximum surface temperature: 65°C

Approvals
CE compliant

Installation
Built-in embedded ceiling fixed point installation
Can be built-in embedded ceiling by junction buckle
Operating position is universal
Safety Rope Hole

Included items
Digital User Manual

Optional Accessories (with item code)
Safety rope：2060000200 (SW-02)
