The Martin MAC Allure Wash PC is a washlight variant within the Martin MAC Allure family, featuring a novel RGBW light engine with unique 7-segmented beam control. With instant color control and pixelated beam, the MAC Allure Wash PC enables dynamic diffused projection and mid-air effects, previously not possible. The proprietary light engine sets new standards in compactness and efficiency.

To ease programming and content creation, this is also the first washlight to incorporate Martin’s own P3 control that works in addition to industry standard controls such as DMX, Art-Net and sACN. The MAC Allure Wash PC´s LED drivers run the light engine at high and precise refresh rates securing that there is no flicker or banding on any broadcast application. This fixture also features a compact 17.6 kg (39 lbs.) design that fits nicely into smaller sets and spaces, reducing truss loading constraint concerns and fits into three unit flight cases.

Despite its very innovative feature set, enabling many new and creative possibilities, the MAC Allure Wash PC is designed to not overload the user with unnecessary parameters or features. This makes the MAC Allure Wash PC a simple-to-use, every day light that is ideal for concert/touring, TV, corporate, houses of worship, concert venues, nightclubs, and cruise ships.

■特徴
・Compact LED wash light with light and color engine divided into seven full color pixels
・Truly sustainable workhorse moving head
・Integrated Martin P3 visual control as well as DMX, Art-Net and sACN incorporated onboard
・Built for pixel mapping with an all solid state color mixing system, instant color and intensity response, and seven pixel beam technology
・High and precise refresh rates ensure no flicker or banding on any broadcast application
・Color calibrated system excels on subtle pastels and white tones to ensure consistent colors across fixtures
・Discrete single lens look without horizontal light spill
・Rotating and indexing Beamshaper for dynamic positioning of the output

■■仕様
■PHYSICAL
・Length: 385 mm
・Width: 410 mm across yoke
・Height:
 609 mm maximum
 603 mm head straight up
・Weight: 17.6 kg
・Minimum center-to-center distance in side-by-side installation: 510 mm

■DYNAMIC EFFECTS
・Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
・Color mixing: RGB(W), independently variable 0 - 100%
・Color temperature control: Variable 2000 - 8000 K
・Color wheel: Virtual, multiple colors, split colors and open, indexing, continuous rotation, random color
・Beam shaping: Rotating and Indexing
・Zoom: Motorized
・Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
・Dimmer/shutter: 0 - 100% continuous electronic dimming, regular and random strobe and pulse effects, instant open and blackout
・Dimming options: Choice of four dimming curves
・Pan: 540°
・Tilt: 268°
・Position correction system: Absolute position monitoring

■CONTROL AND PROGRAMMING
・16-bit control: Dimming, color, rotating gobos, zoom, focus, pan and tilt
・Setting and addressing: Control panel with backlit graphic display and 4 buttons or via DMX
・DMX channels: 28/64
・Fixture Identification: User-settable ID number
・DMX compliance: USITT DMX512-A
・RDM compliance: ANSI/ESTA E1.20
・Transceiver: Opto-isolated RS-485
・Fixture software update: USB memory device or over DMX link

■OPTICS
・Zoom range: 12° - 36° one-tenth peak (1:3)
・Light source: 7 x 60W RGBW LEDs
・Total LED engine power: ~420 W
・Minimum LED lifetime: 50,000 hours (to >80% luminous output)*
 *Figure obtained under manufacturer's test conditions

■PHOTOMETRIC DATA
・Light engine luminous output: 14,000 lumens
・Fixture luminous output: 6,000 lumens
・Calibrated default white: 6500K
・CRI (Color Rendering Index) : >80
・CQS (Color Quality Scale): 88
・TM-30 Rf (IES TM-30-15 Fidelity Index): 82
・TM-30 Rg (IES TM-30-15 Gamut Index): 109
・TLCI (Television Lighting Consistency Index): 82

■CONSTRUCTION
・Housing: High-impact flame-retardant thermo¬plastic
・Color: Black (white housing option available, made to order)
・Protection rating: IP20

■INSTALLATION
・Mounting Parts: 2 pairs of 1/4-turn locks
・Location: Dry location only, must be fastened to surface or structure
・Orientation: Any
・Minimum distance to combustible materials: 0.2 m (8 in.)
・Minimum distance to illuminated surfaces: 1.0 m (3.3 ft.)

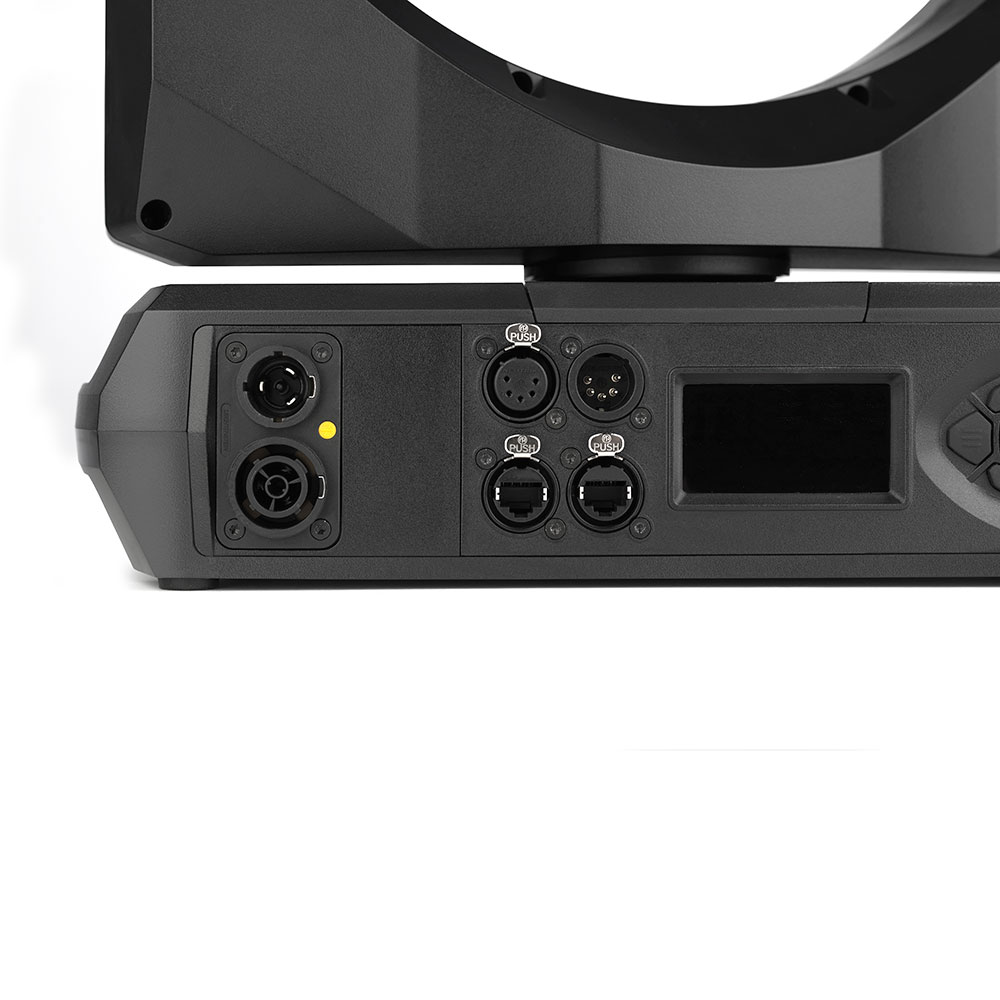

■CONNECTIONS
・AC power input/output: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector) / Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-M connector)
・DMX and RDM data in/out: 5-pin locking XLR
・Ethernet data: Neutrik EtherCon in/out

■ELECTRICAL
・AC power: 100-240 V nominal, 50/60 Hz
・Power supply unit: Auto-ranging electronic switch-mode
・Power Consumption: 73 W (all effects static, zero light output)
・Half-cycle RMS inrush current at 230 V, 50 Hz: 16.6 A

■TYPICAL POWER AND CURRENT
・Typical power data, extended color mode, all LEDs at 100% intensity:
 ・100 V, 60 Hz: 4.8 A, 480 W, PF 0.99
 ・120 V, 60 Hz: 4.0 A, 480 W, PF 0.99
 ・208 V, 60 Hz: 2.4 A, 480 W, PF 0.97
 ・230 V, 50 Hz: 2.1 A, 480 W, PF 0.97
 ・240 V, 50 Hz: 2.0 A, 480 W, PF 0.97
・Typical power data, calibrated mode, full intensity at 6500 K:
 ・100 V, 60 Hz: 3.7 A, 370 W, PF 0.99
 ・120 V, 60 Hz: 3.1 A, 370 W, PF 0.99
 ・208 V, 60 Hz: 1.9 A, 370 W, PF 0.96
 ・230 V, 50 Hz: 1.7 A, 370 W, PF 0.96
 ・240 V, 50 Hz: 1.6 A, 370 W, PF 0.95
・Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
PF = power factor.

■THERMAL
・Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
・Maximum ambient temperature (Ta max.): 40° C (104° F)
・Minimum ambient temperature (Ta min.): 5° C (41° F)
・Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
・Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.

■INCLUDED ITEMS
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
