SGM G-Spot [新品]

The G-Spot is a multi-environmental, maintenance-free RGB LED moving head with IP65-rating and a bright color output. It is capable of an even field beam projection with sharp imaging and no color aberrations. The integrated dehumidifier of the G-Spot ensures perfect inner cleanness of the luminaire and no accumulation of dust or externally induced impact on internal optics, gobos or the light source unit. Due to the revolutionary product features, the G-Spot won the prestigious top industry PLASA Award for Innovation, 2013.

■概要
・High-power IP65 RGB LED light source
・15327 lumen and 8° to 43° zoom range
・2 rotatory gobo wheels, FX wheel, 4-facet prism and ultra-high-speed strobe
・DMX, RDM and wireless control
・2000K - 10000K CTC control, no hotspots
・Linear frost and smooth iris feature
・Practically maintenance-free and silent performance
・Flicker-free / Programmable scenes

■サイズ
・Weight: 52.00 kg
・Dimensions: 470 x 805 x 492 mm

■■仕様
■Optical Data
・Focus Motorized
・Frost 0% - 100%, variable
・LED expected lifetime 50,000 hours
・Lens diameter 125 mm
・Lightsource High-power RGB LED
・Prism 4-facet rotating prism
・Pseudo zoom range 1° to 43°
・Zoom Motorized
・Zoom range 8° to 43°

■Photometric
・Color temperature range 2000K - 10000K
・Efficacy 16 lm/W
・Light output all LEDs on 15327 lm
・Light output blue 1446 lm
・Light output green 3571 lm
・Light output red 4663 lm
・Lux @ 10m 5529 lux
・Lux @ 3m 61437 lux
・Lux @ 5m 22117 lux
・Maximum Beam Angle 42 °
・Maximum Field Angle 44 °
・Minimum Beam Angle 9 °
・Minimum Field Angle 11 °

■Physical
・Color options
 Black - RAL 9004
 Custom color - Any RAL
 White - RAL 9010
・IP class IP65
・Lens material AR-coated glass
・Material Aluminium Plastic PA6.6Stainless Steel
・Net dimensions 470 x 805 x 492 mm
・Net max height 821 mm
・Net weight52 kg

■Features
・Dehumidifier Base / Head
・Dimming Electronic
・Effect wheels Continuous rotation with variable speed and direction

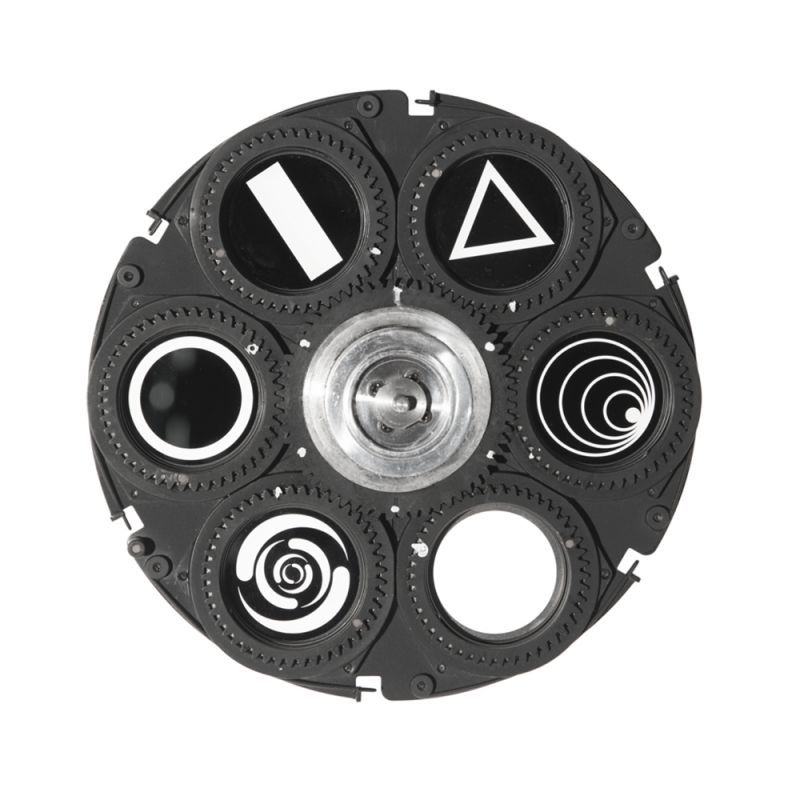

・Gobo wheel (1) 5 rotatable, indexable, and interchangeable gobos + open
・Gobo wheel (2) 5 rotatable, indexable, and interchangeable gobos + open

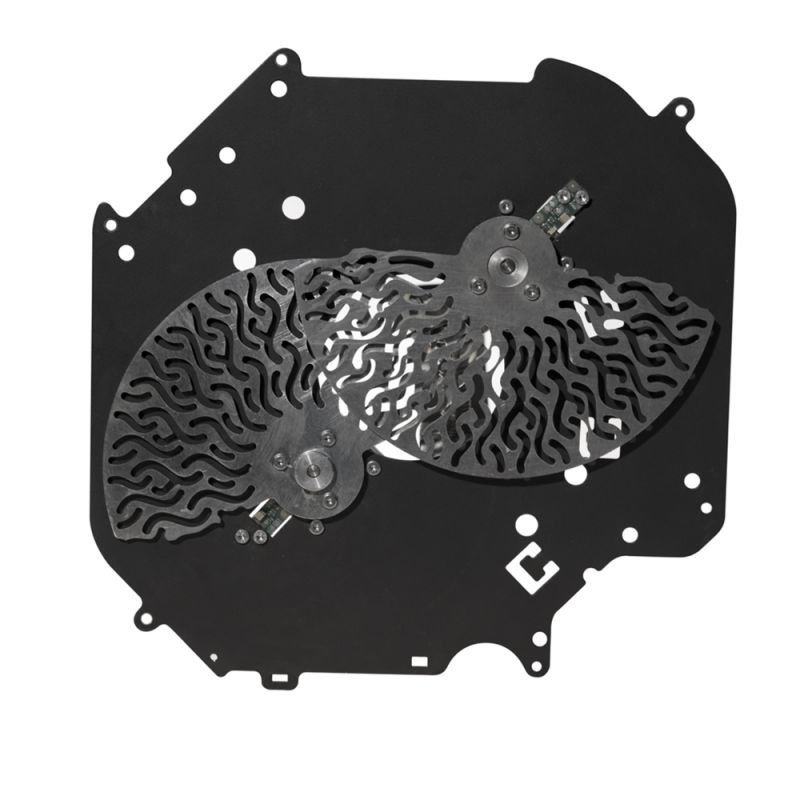

・Iris 1% - 100%, pulse effect
・Pan 540°
・Strobe Ultra-high-speed strobe effects
・Tilt 270°

■Electrical
・AC power, max. 190 - 264V 50/60Hz
・AC Power, nominal 208 - 240V 50/60Hz
・Electrical Protection Overload protection
・Main fuse T12A - 250V
・Max Inrush Current 230VAC 30 A
・Max power consumption 1150 W
・Power factor 0.97 PF (230 V) PF (230V)
・Power Supply Unit Auto-ranging electronic switch-mode
・Standby power consumption 70 W
・Typical power consumption 750 W

■Programming and Control
・16-bit control Dimmer, colors, pan/tilt, gobo index/rotation, zoom, focus
・Cabled DMX 5 pin XLR input/output
・DMX channels 24 or 30
・DMX modes 2
・Protocol USITT DMX512A Wireless DMX (LumenRadio)RDM ANSI E1.20
・Setting and addressing Control panelOLED graphical display / 4 buttonsRDM ANSI E1.20RFID
・Standalone mode Up to 24 programmable scenes
・Wireless DMX Lumen Radio with RDM

■Connections
・DMX data in/out IP65 XLR 5-pin cable, 0,2 m (7.8 in)
・Power Power input connector

■Installation
・Mounting point 4 x 2 quarter-turn locking points
・Orientation Any
・Rigging possibilities Hanging (Omega Brackets included)
・Safety features 2 attachment points for safety wireMinimum distance to combutible materials: 0.3 meter (11 in).

■Thermal
・Cooling Active, Forced Air, Temperature-regulated
・Humidity (max.) 98 %
・Temperature range, Operating -40°C to 50°C
・Temperature range, Start-up -20°C to 50°C
・Temperature range, Storage -40°C to 80°C
・Thermal Protection Automatic overtemperature protection

■Included items
・Included items2 Omega bracket with quater-turn fasteners2 m power cableSafety instructions and installation quick guide

■Gobos
・Glass Borosilicate high-temperature glass
・Image diameter 30 mm
・Maximum thickness glass 3.5 mm colored glass or textured gobos
・Maximum thickness metal 1.1 mm black & white
・Metal Not Recommended
・Outside diameter 37.5 mm

■Conforms To
・CE - 2014/30/EU: EMC Directive
 EN 55103-1EN 55103-2EN 61000-3-2EN 61000-3-3
・CE - 2014/35/EU: Low Voltage Directive
 EN 60598-1EN 60598-2-17EN 62471EN 6052
・9RoHS2 Directive 2011/65/EU
・UL UL Std. 1573

■Certified To
・CSA CSA E60598-1, Ed: 2CSA-E598-2-17-98, Ed: 1
