SGM G·Profile Turbo [新品]

The G-Profile Turbo is a high-brightness LED moving head based on an optimized additive color mixing to match the highest demands of color rendering and total output. Its framing system allows the G-Profile Turbo to perform beam-shaping images and projections via four individually controllable blades with module rotation. The integrated dehumidifier ensures perfect inner cleanness of the luminaire. G-Profile Turbo is the perfect solution for those who need a powerful LED profile moving head with good chromaticity levels and an outstanding performance in different shades of white.

■概要
・IP65 RLB LED light source (Red, Lime, Blue)
・lumen and 8° to 43° zoom range
・4-blade rotatory framing module, 1 rotatory gobo wheel, FX wheel, 4-facet prism, and ultra-high-speed strobe
・Extended color palette with warmer colors and richer green hues
・2000K - 10000K CTC control, no hotspots
・Linear frost and smooth iris feature
・Practically maintenance-free and silent performance
・Flicker-free / programmable scenes / DMX, RDM, and wireless control

■サイズ
・Weight: 52.00 kg
・Dimensions: 470 x 805 x 492 mm

■■仕様
■Optical Data
・Focus Motorized
・Frost 0% - 100%, variable
・LED expected lifetime 50,000 hours
・Lens diameter 125 mm
・Lightsource High-power RLB LED
・Prism 4-facet rotating prism
・Pseudo zoom range 1° to 43°
・Zoom Motorized
・Zoom range 8° to 43°

■Photometric
・Color temperature range 2000K - 10000K
・CRI typical 83
・Efficacy 20 lm/W
・Light output all LEDs on 19973 lm
・Light output blue 1896 lm
・Light output green 5899 lm
・Light output red 4523 lm
・Lux @ 10m 7042 lux
・Lux @ 3m 78241 lux
・Lux @ 5m 28166 lux
・Maximum Beam Angle 43 °
・Maximum Field Angle 45 °
・Minimum Beam Angle 9 °
・Minimum Field Angle 11 °

■Physical
・Color options
 Black - RAL 9004
 Custom color - Any RAL
 White - RAL 9010
・IP class IP65
・Lens material AR-coated glass
・Material Aluminium Plastic PA6.6 Stainless Steel
・Net dimensions 470 x 805 x 492 mm
・Net max height 821 mm
・Net weight 52 kg

■Features
・Dehumidifier Base / Head
・Dimming Electronic
・Effect wheels 2 independent effect wheels with semi-continuous effect
・Framing Rotatable framing module +/-45°4 controllable shutter blades, individually adjustable +/-30°
・Gobo wheel (1) 5 rotatable, indexable, and interchangeable gobos + open
・Iris 1% - 100%, pulse effect
・Strobe Ultra-high-speed strobe effects
・Tilt 270°

■Electrical
・AC power, max. 190 - 264V 50/60Hz
・AC Power, nominal 208 - 240V 50/60Hz
・Electrical Protection Overload protection
・Main fuse T12A - 250V
・Max Inrush Current 230VAC 30 A
・Max power consumption 1150 W
・Power factor 0.98 PF (230 V) PF (230V)
・Power Supply Unit Auto-ranging electronic switch-mode
・Standby power consumption 65 W
・Typical power consumption 1000 W

■Programming and Control
・16-bit control Dimmer, colors, pan/tilt, gobo index/rotation, zoom, focus
・Cabled DMX 5 pin XLR input/output
・DMX channels 31, 32, 46, 47
・DMX modes4
・Protocol USITT DMX512ARDM ANSI E1.20

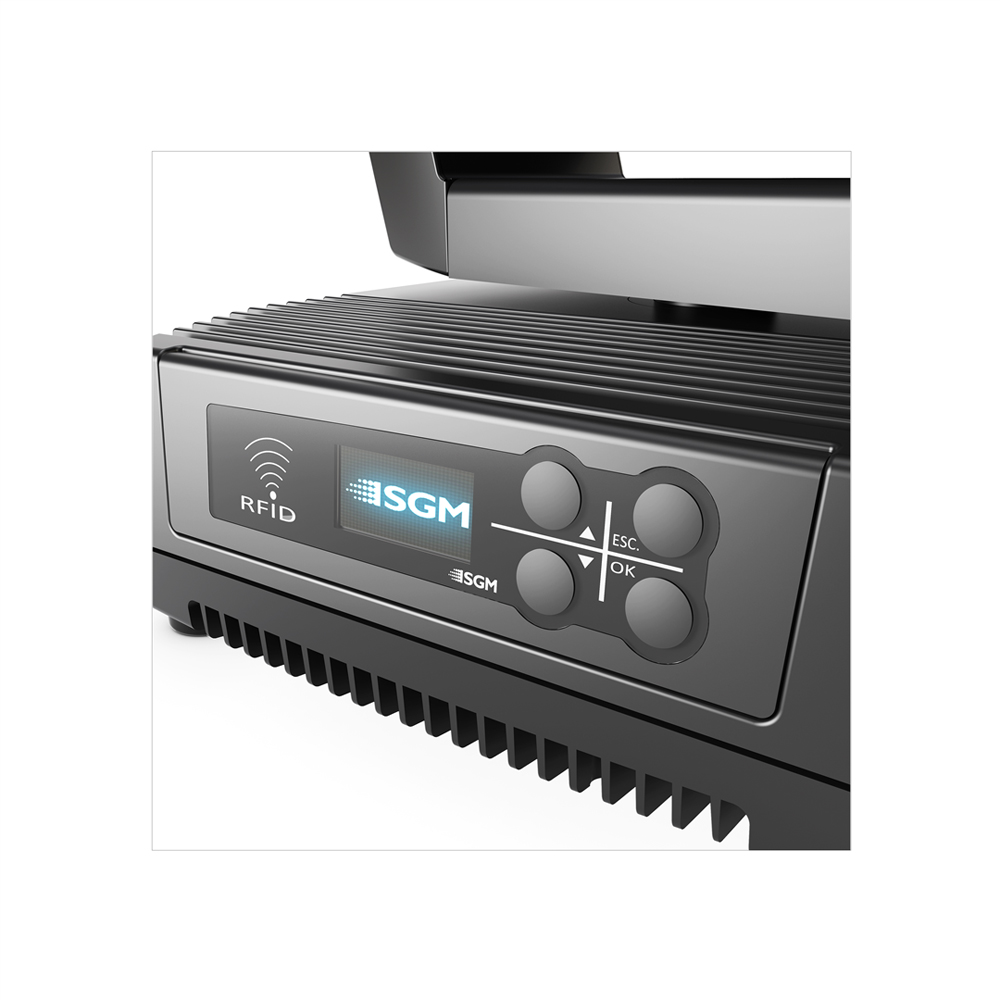

・Setting and addressing Control panelOLED graphical display / 4 buttonsRDM ANSI E1.20RFID
・Standalone mode Up to 24 programmable scenes
・Wireless DMX Lumen Radio with RDM

■Connections
・DMX data in/out IP65 XLR 5-pin cable, 0,2 m (7.8 in)
・Power Power input connector

■Installation
・Mounting point 4 x 2 quarter-turn locking points
・Orientation Any
・Rigging possibilities Hanging (Omega Brackets included)
・Safety features 2 attachment points for safety wireMinimum distance to combutible materials: 0.3 meter (11 in).

■Thermal
・Cooling Active, Forced Air, Temperature-regulated
・Humidity (max.) 98 %
・Temperature range, Operating -40°C to 50°C
・Temperature range, Start-up -20°C to 50°C
・Temperature range, Storage -40°C to 80°C
・Thermal Protection Automatic overtemperature protection

■Included items
・Included items2 Omega bracket with quater-turn fasteners2 m power cableSafety instructions and installation quick guide

■Gobos
・Glass Borosilicate high-temperature glass
・Image diameter 30 mm
・Maximum thickness glass 3.5 mm colored glass or textured gobos
・Maximum thickness metal 1.1 mm black & white
・Metal Not Recommended
・Outside diameter 37.5 mm

■Conforms To
・CE - 2014/30/EU: EMC DirectiveEN 55103-1
 EN 55103-2EN 61000-3-2EN 61000-3-3
・CE - 2014/35/EU: Low Voltage Directive
 EN 60598-1EN 60598-2-17EN 62471EN 60529RoHS2 Directive2011/65/EU

■メーカーサイト
https://sgmlight.com/products/entertainment/g%C2%B7profile-turbo
