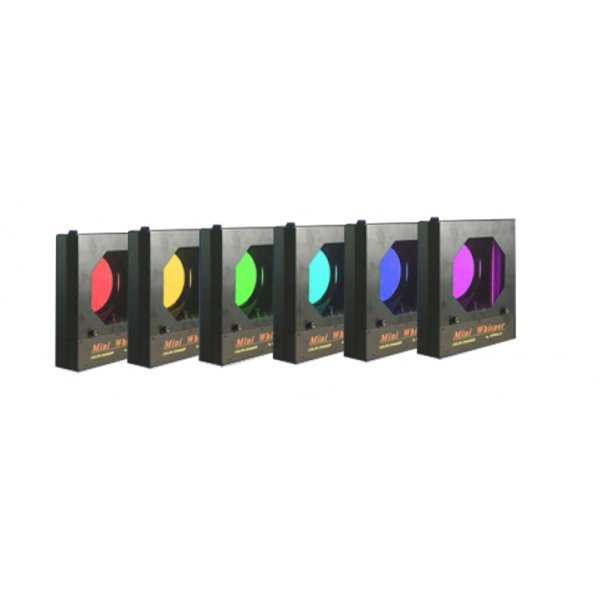

Compulite Color Scrollers Whisper 8"(コンピュライト カラスクローラー ウィスパー) [新品]

Compulite Color Scrollers Whisper 8"(コンピュライト カラスクローラー ウィスパー) [新品]

販売価格はお問い合わせください。

商品詳細

Uses two DC servomotors, controlled by an internal microprocessor, to directly drive the color scrolls. The velocity is controlled independently for each motor to ensure correct gel string tension and position. Fan operation is accessed via DMX channels and remotely controlled by the lighting console. Operational modes are set using the 5 DIP switches on the color changer unit. When teamed with Compulite control consoles, unique scroller patching, special dark gel, and frame set up functions are available in the Scroller Patch menu. The Compulite Whisper 1kW-D color changer is compatible with all control consoles that output DMX512 lighting control data. The Whisper D has an internal dark gel feature and a frame snap feature for easy manual operation. An optional 24V operating mode makes Whisper D compatible with various manufacturers' power supply units.

■仕様
・Spot type: 1kw
・Height: 34.8cm (13.7”)
・Width: 33.7cm (13.3”)
・Depth: 7.4cm (2.9”)
・Front aperture: Ø20cm (7.9")
・Weight: 2.75kg (6.1lb)
・End to end speed: 2.2 sec
・connectors: 4 Pin XLR Daisy Chain
・Power supply: 48 / 24VDC
・Current consumption: 0.7A
・Max number of frames: 16

■Frame dimensions:
・Leader frame: 46.1 cm (18.1")
・Active: 34.6cm (13.6")
・Width: 20.7cm (8.1")
・Daisy Chain: 8 Units / PSU
