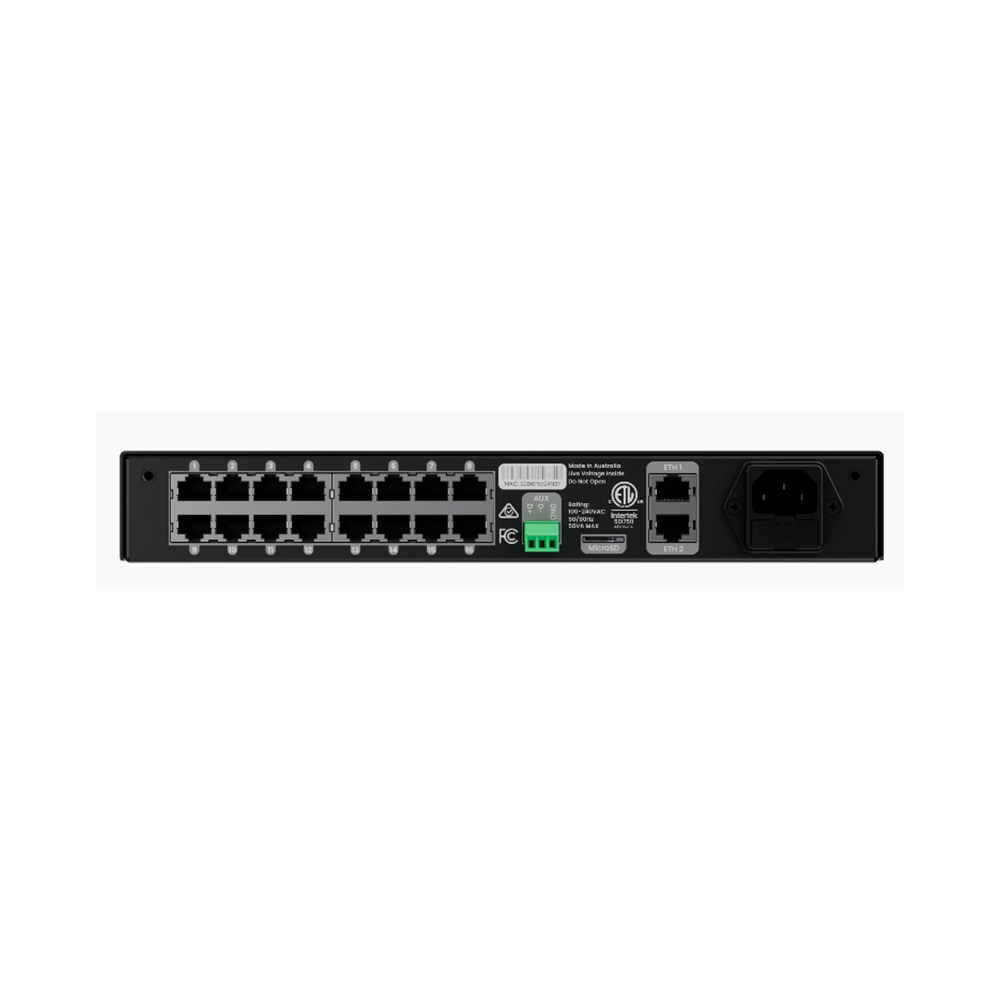

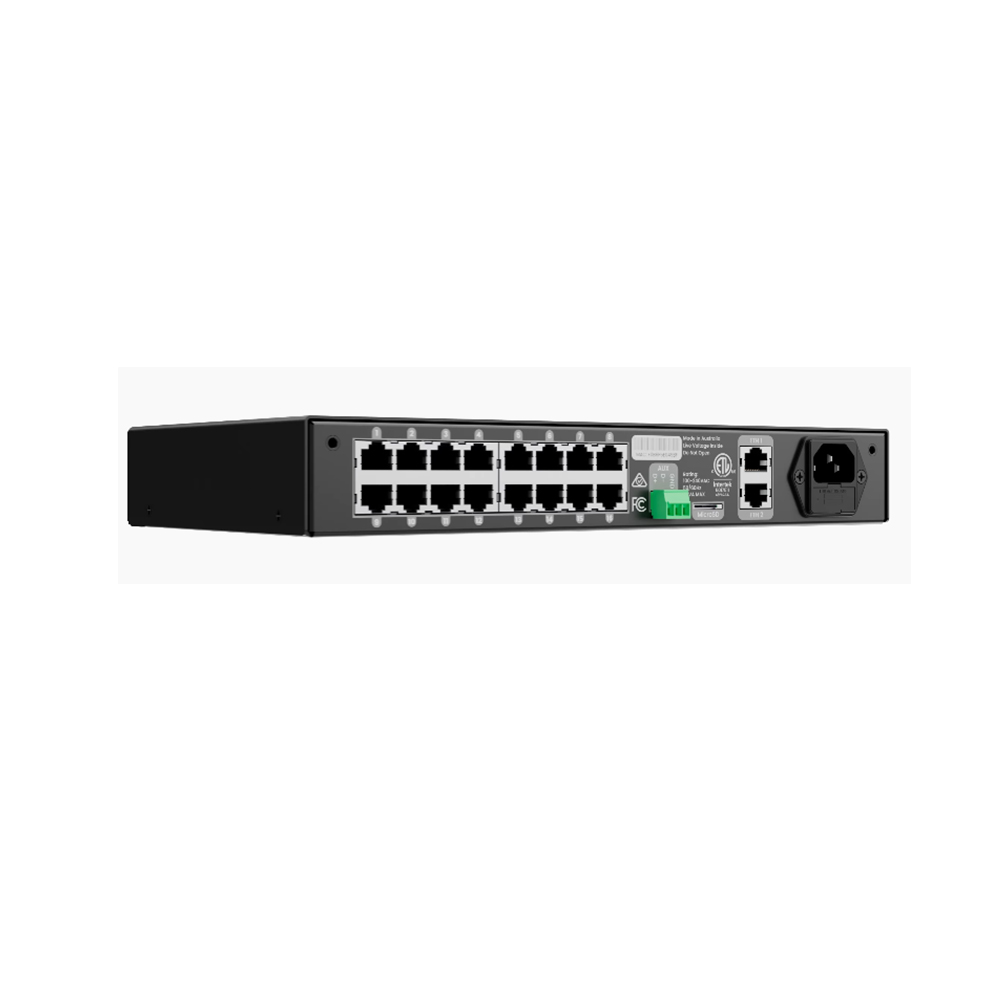

Advatek Lighting PixLite T16X-S Mk3

概要

The PixLite® T16X-S Mk3 is a powerful long-range pixel LED controller that joins Advatek's bestselling T8-S Mk3 controller. This new model was developed with 16 output connectors to meet demand from our customers for an even more powerful long-range solution in a reliable, user-friendly system.

特徴

96 universes of Art-Net or sACN
Connect up to 16 R1 or R2 receivers
over 90+ pixel protocols supported
microSD for Advatek SHOWTime™
Auxiliary port for DMX512 In/Out
Configure using Advatek Assistant 3
Electrical fault protection on all ports
Five-year warranty and global certifications
Conformal Coating: apply a protective layer to your electronic equipment to enhance durability

More Pixels in more locations with the PixLite® T16X-S Mk3.
The PixLite® T16X-S Mk3 is a powerful long-range pixel LED controller that joins Advatek's bestselling T8-S Mk3 controller. This new model was developed with 16 output connectors to meet overwhelming demand from our customers for an even more powerful long-range solution in a reliable, user-friendly system.

Advatek equipment is proudly made in Australia for ultimate manufacturing quality control and is also covered by a five-year product warranty for your absolute peace of mind.

Powered by the mighty PixLite® Mk3 processor
PixLite® Mk3 is Advatek's state-of-the-art processor. It uses sophisticated third generation firmware to enable totally unforgettable lighting displays.

01 Gamma correction for pixels of all resolutions. Dimming curves can be adjusted to better match the human eye, no longer limited to pixels above 8-bits. Pixels will appear more vivid and accurate.
02 Extremely fast refresh rates. The Mk3 processor can handle hundreds of frames per second, allowing for fast and dynamic effects displayed with higher reliability.
03 Dithering. Artificially generate higher resolution pixel control, to make low-resolution pixels appear much higher.
04 Dynamic adjustment. Thanks to Auto-Sync, the outgoing frame rate will dynamically adjust to the incoming frame, even without an external synchronization source. This reduces the chance of out-of-sync pixel systems and tearing.

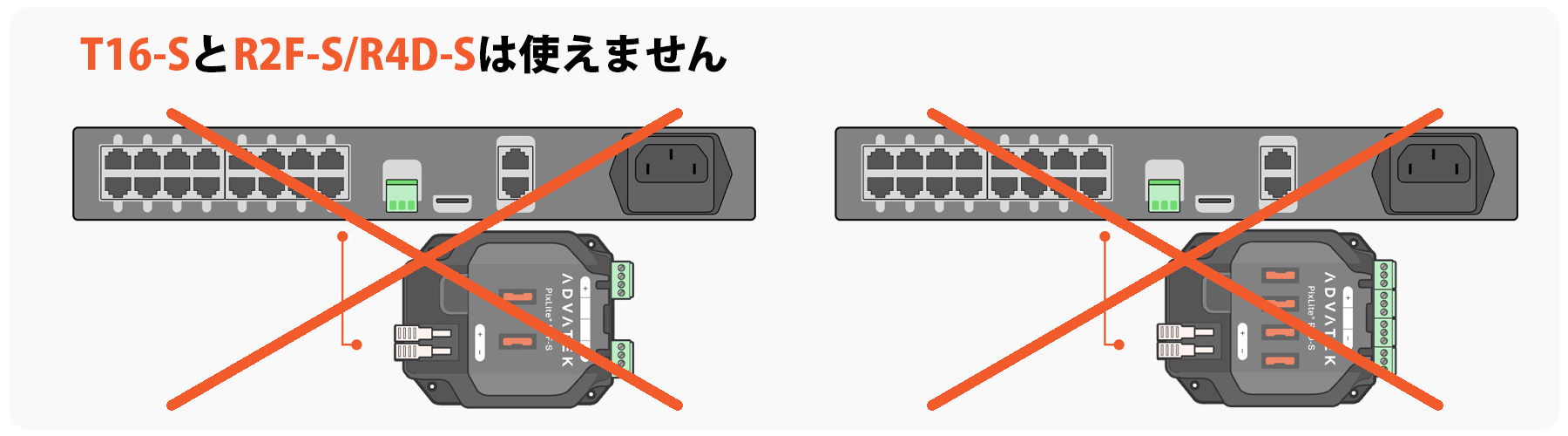

With 16 physical output connectors, each supporting half the signal capacity of the T8, think of the T16 as the T8, with each of its 8 outputs split in two.

Capable of transmitting data over a distance of up to 300m, supporting up to 96 universes of data to sixteen PixLite® R1/R2 receivers.

When a discrete location needs a single run of pixels, the PixLite® R1F-S and the PixLite® T16X-S Mk3 are the best choice. Fewer Transmitters, no wasted pixel outputs and reduced system cost and commissioning time.

仕様

Ethernet Ports

2 x 10/100/1000 Mbit/s

microSD Card Slot


Auxiliary Port

1 x RS485 Input/Output

Data Outputs (to receivers)

16 x RJ45

Dimensions

282 mm x 42 mm x 169 mm

Weight

1.32 kg

Enclosure Material

Aluminum

Mounting Options

Direct Panel, Wall & Rack Mountable

Input Power

100V-240V AC

AC Fuse

1A M205

Ambient Operating Temperature

-10°C to +60°C

Country of Origin

Australia
