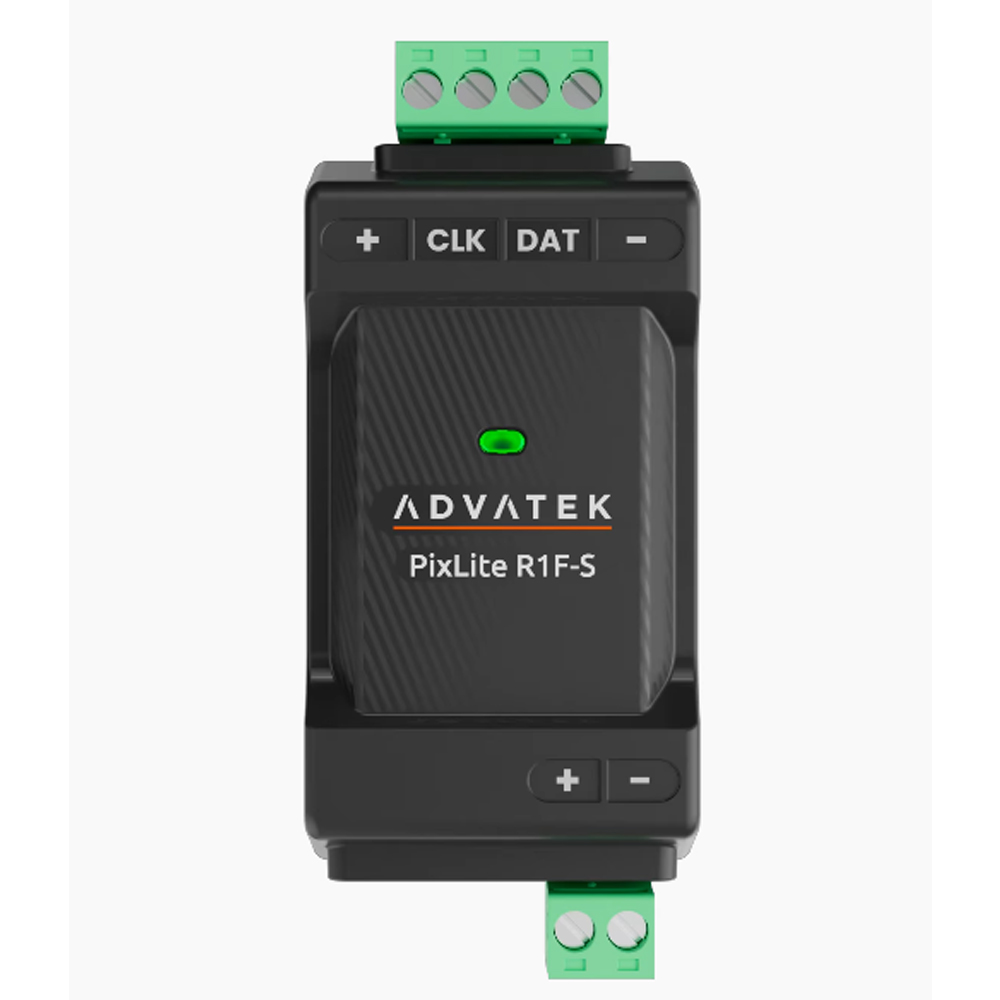

Advatek Lighting PixLite R1F-S

概要

Meet the PixLite® R1F-S, Advatek’s newest long-range receiver, designed for flexibility and cost optimization.​ The R1F-S offers a 5-48V compatibility, higher current capacity, and a compact design perfect for tight spaces.

特徴

Single pixel output
Slimline form factor
Receiver and pixels can be driven at 5-48V
10A throughput current
Multiple receivers cover a 300-meter radius from the transmitter
Ideal for installations requiring a sleek, low-profile unit

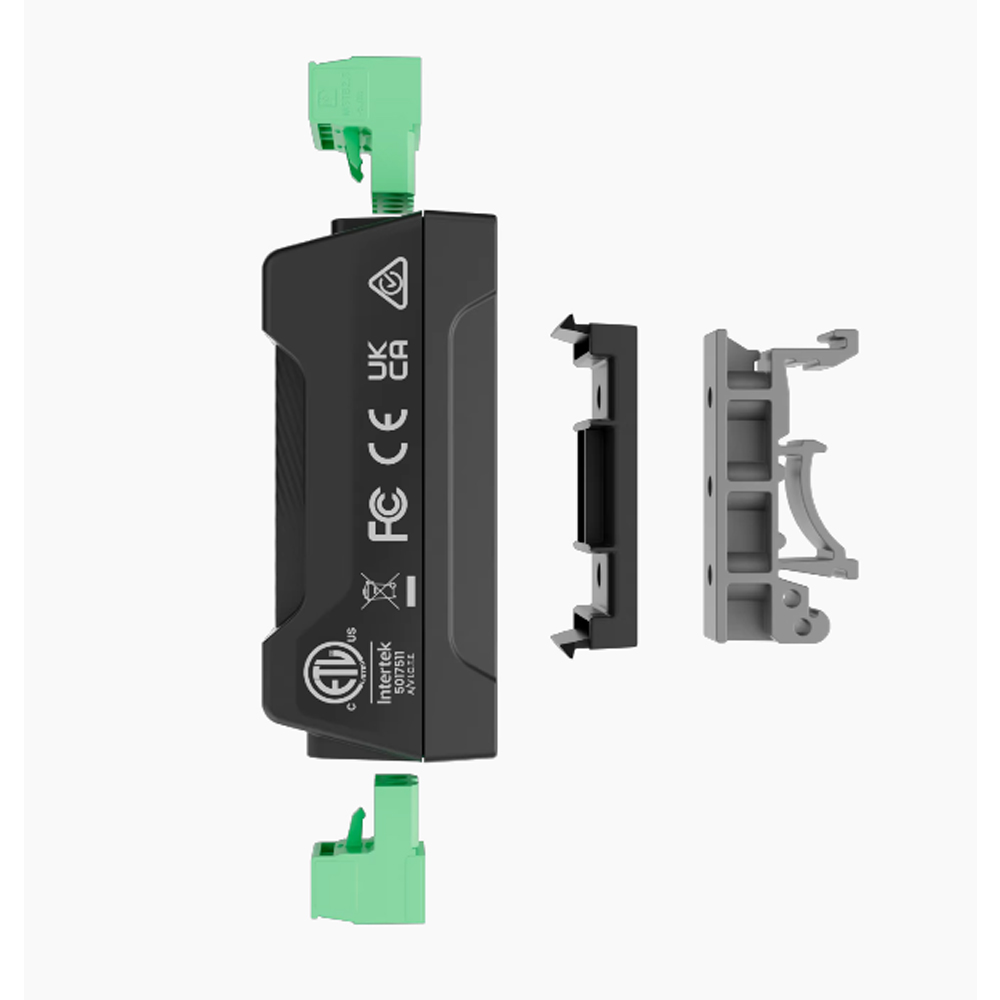

DIN rail mount
Flat surface mount
Tubular surface mount
Global certifications

Meet the PixLite® R1F-S, Advatek’s newest long-range receiver, designed for flexibility and cost optimization.​

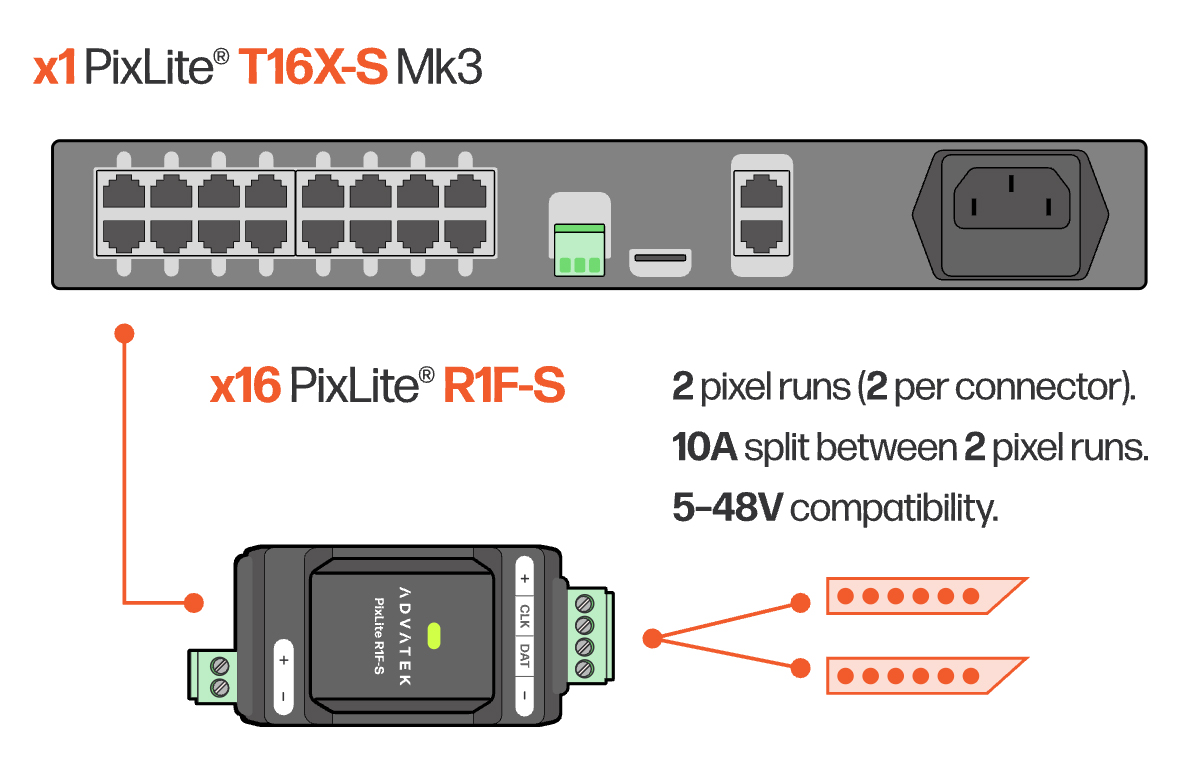

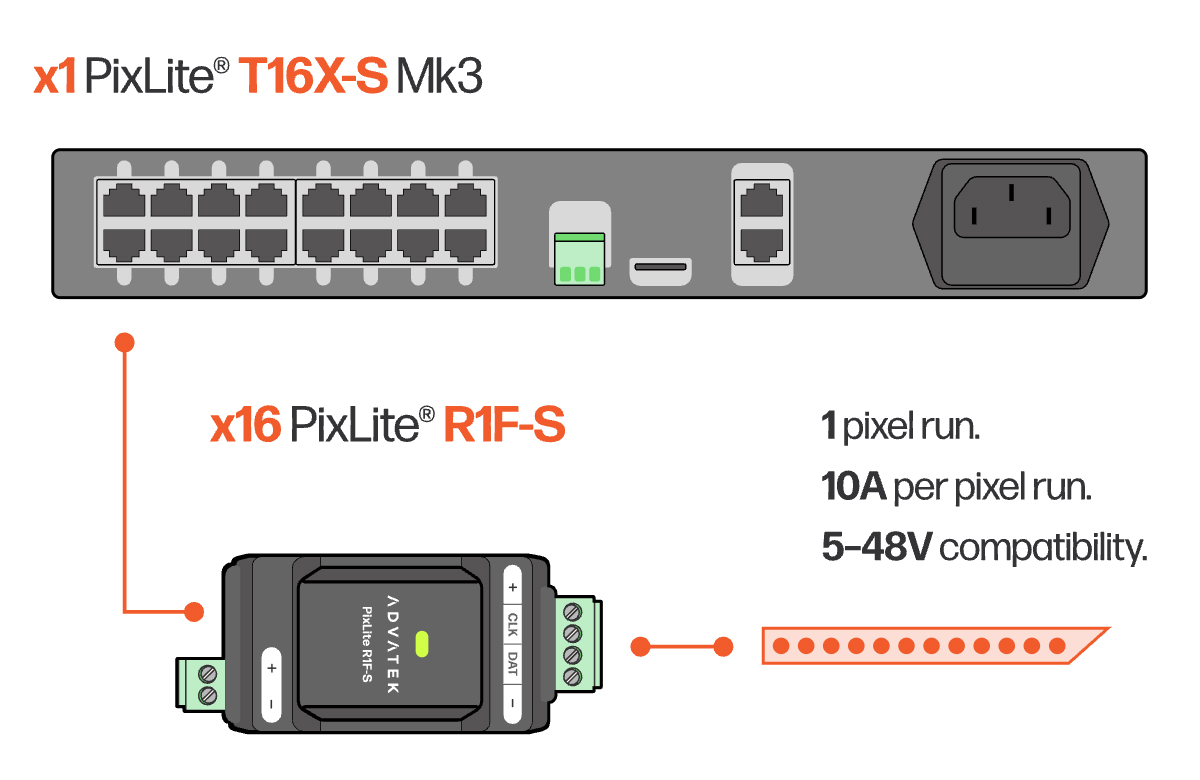

The R1F-S offers a 5-48V compatibility, higher current capacity, and a compact design perfect for tight spaces. Paired with the PixLite® T16X-S Mk3, this system can reduce control costs by up to 40% in highly dispersed pixel installations, making it ideal for large-scale architectural projects and more.​

Advatek equipment is proudly designed & made at our headquarters in Australia for ultimate manufacturing quality control. Our products are covered by a five-year product warranty for your absolute peace of mind.

仕様

Pixel Outputs

1

Data Inputs (from Transmitter)

1

Dimensions

72 x 39 x 31mm

Weight

0.054kg

Enclosure Material

Black Polycarbonate

Mounting Option

Flat/Tubular Surface & DIN Rail Mount

Input Power

5V - 48V DC

Per Output Current Limit

10A

Ambient Operating Temperature

-20°C to +55°C

参照

■メーカーサイト
https://www.advateklighting.com/products/r1f-s
