LITEGEAR LiteRibbon Cinema Daylite, X5（12V：1m）（24V：2m）（ライトギア ライトリボンシネマ デイライト） [新品]

■概要
・LiteRibbon Cinema Daylite X5 offers cinema-quality emitters with CRI and full-spectrum output. These emitters are created with the finest materials available for accurate simulation of Daylite sources.
・LiteRibbon Cinema is the signature flagship LiteRibbon series, and is the single best applied phosphor LED product available in the industry. Cinema Series is 30% brighter than the previous VHO Pro LiteRibbon. New solder pads are included, and are staggered in between the LED’s and the cut points – means bussing is 90% faster and easier.
・This all-new LiteRibbon proudly joins the LiteGear Cinema family of unified color-space products including S2 LiteMat, LiteMat Plus, and LiteTile Plus.

■共通仕様
・Product Line LiteRibbon
・Product Series Cinema Series
・Product Description HD-X5
・Color Name Daylite White
・Color Details 6200K
・Chromaticity (CIE 1931) x-0.3264 , y-0.3337
・Color Consistency + / – 100K
・Product Markings DayLite
・Color 1 (of 2) 6000
・Color 2 (of 2) 6000
・X Series X5
・Watts / LED 0.1667
・LEDs / PCB 300
・LEDs / Meter 600
・Watts / PCB 50
・Watts / Meter 100
・Amps / Segment 0.42
・Amps / Total 8.33
・LED Pitch 8.33
・PCB width (mm) 41.65
・PCB length (mm) 500
・PCB Mask Color
・Rear Mounting Material
・Input Lead Length (mm) 500
・Input Connector PH3.F
・Lead Conductor Qty 3
・Number of Circuits 2
・Connection Type Solder
・Power Supply Type C.V. (Constant Voltage)
・Indoor/Outdoor Indoor
・Operating Ambient Temp. (C) -20 ~ +50
・Max. Operating Temp (C) 70ºC
・Storage Temp (C) -30 ~ +80
・Thermal Requirements
・CRI ra 97
・CQS-Qa 93
・TLCI 96.8
・TM-30 Rf 91
・TM-30 Rg 100
・Typical Availability
・PCB Material 2 Layer Adhesiveless Flex
・Min. Bend Radius* (mm) 20
・Emitter Type 2835
・IP Rating IP 20
・Rated Life (Hours) 50000
・Humidity% 85, non condensing
・Safety Certification cULus, CE
・RoHs Compliant Yes
・Beam Angle 120
・lm/Segment
・Lumens per meter
・Luminous Efficacy lm/W

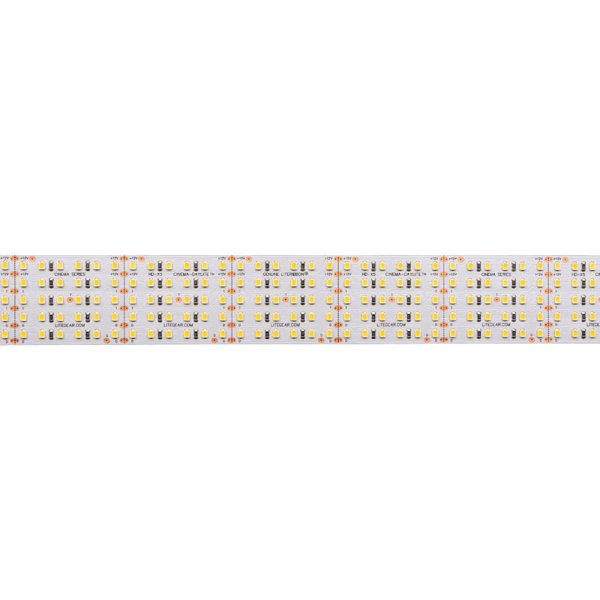

■仕様（12V：1m）
・Product Length 1 Meter
・Rated DC Voltage 12
・Input Voltage (Range, DC) 8 ~ 13.5
・Nominal Input Voltage (DC) 12
・Input Voltage (Max., DC) 14
・Ma / LED 0.139
・LEDs / Segment 30
・Watts / Segment 5
・Watts Total 100
・LED Quantity 600
・Amps / PCB 4.17
・Amps / Meter 8.33
・Segment Length (mm) 50
・Max. length (mm) 1000
・Segments / PCB 10
・Part No.LR-CS-12-DAY-HD-X5

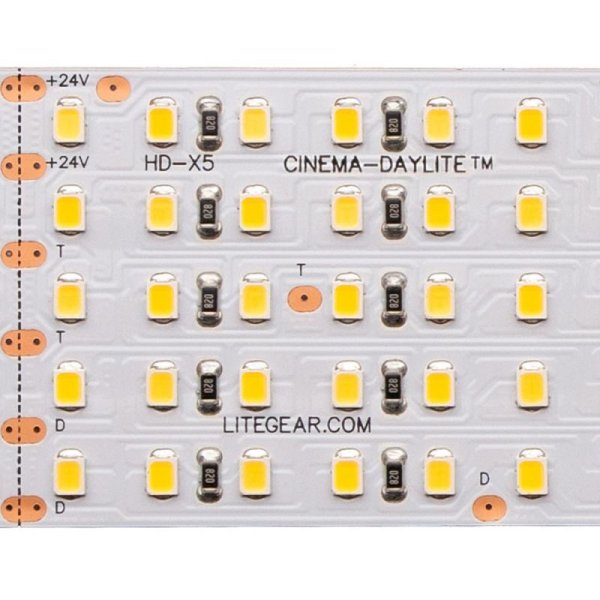

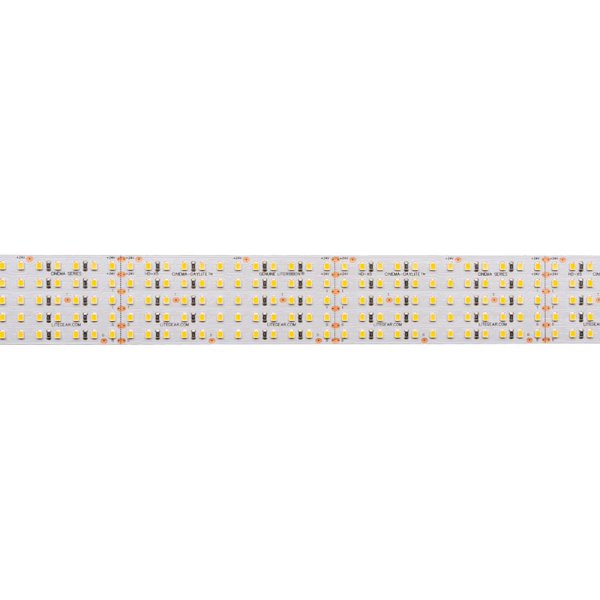

■仕様（24V：2m）
・Product Length 2 Meters
・Rated DC Voltage 24
・Input Voltage (Range, DC) 16 ~ 26
・Nominal Input Voltage (DC) 24
・Input Voltage (Max., DC) 26
・Ma / LED 0.069
・LEDs / Segment 60
・Watts / Segment 10
・Watts Total 200
・LED Quantity 1200
・Amps / PCB 2.08
・Amps / Meter 4.17
・Segment Length (mm) 100
・Max. length (mm) 2000
・Segments / PCB 5
・Part No.LR-CS-24-DAY-HD-X5

■モデル番号
・SKU: LR-CS-12-DAY-HD-X5（12V：1m）
・SKU: LR-CS-24-DAY-HD-X5（24V：2m）

■データシート
https://www.litegear.com/wp-content/uploads/2020/10/LiteRibbon-Cinema-Daylite-X5_-Data-Sheet.pdf

■メーカーサイト（12V：1m）
https://www.litegear.com/product/lr-cs-hd-x5-day-12/

■メーカーサイト（24V：2m）
https://www.litegear.com/product/lr-cs-hd-x5-day-24/
