LITEGEAR LiteCard Chroma Series, Cine-Five, RGB+HY(12V/24V)(ライトギア ライトカード) [新品]

LITEGEAR LiteCard Chroma Series, Cine-Five, RGB+HY(12V/24V)(ライトギア ライトカード) [新品]

販売価格はお問い合わせください。

商品詳細

■概要
・LiteCard Chroma Series Cine-Five RGB+HY is the first edition to the LiteCard Chroma family. The new revolutionary LiteCard Cine-Five features cinema-quality 95+ CRI hybrid with the ability to add in crisp RGB color accents. While Cine-Five is technically part of the Chroma family, at its core, it’s essentially LiteGear’s truly most adjustable Hybrid LiteRibbon. Each variation of LiteCard Cine-Five is available in 12 volt and 24 volt versions.

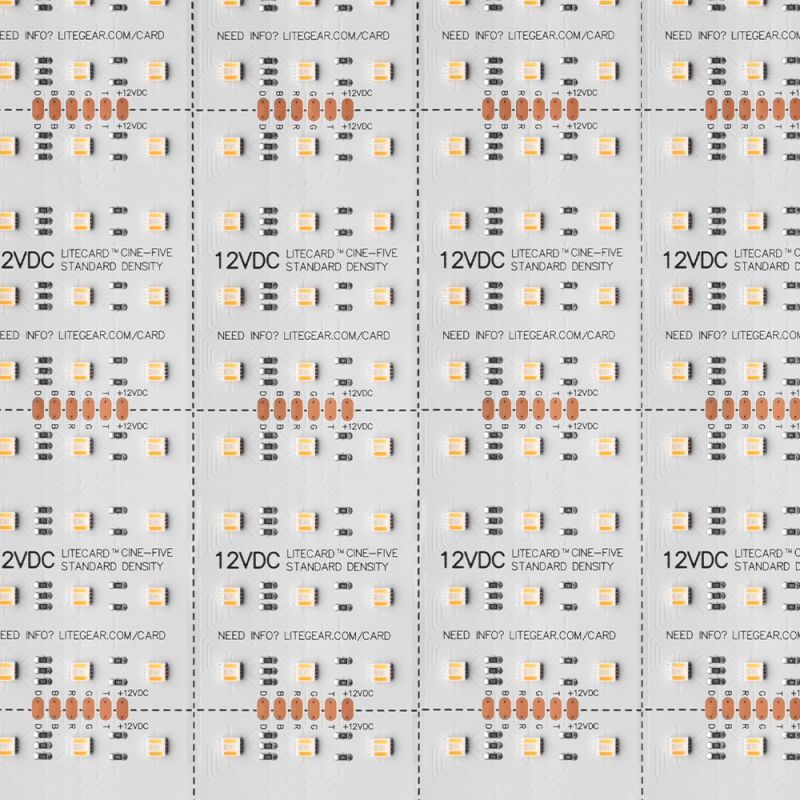

・Cine-Five LiteCard includes LiteGear’s popular MagicBus feature. The solder pads on the card will be staggered in between the LED’s and the cut points, which means bussing will be 90% faster and easier. Cine-Five LiteCard is available in 12V and 24V versions. It will make the perfect companion to LiteGear’s Studio 5X8 Dimmer, which has a built-in Cine-Five mode that will make the user experience incredibly streamlined and simple.

■共通仕様
・Optical System:Flexible LED card
・Color Name:Cine-Five
・Power:100W (total potential power per card)
・CCT:Hybrid 2600K (+/-300K) & 6000K (+/-300K)
・Beam Angle:120°
・Connector:Bare Wire
・Color Space Compliant:Yes (with appropriate controller)
・Green/Magenta:Yes (with appropriate controller)
・Segments per Card:24
・Total LED Quantity:288
・LEDs per Cut Segment:12
・LED Spacing:20mm
・Dimming Range:0-100%
・Mounting:Adhesive backing
・Operating Temperature:-10°C to +50°C
・LED Lifetime:50,000 Hrs
・IP Rating:20
・Certifications:UL Listed (Canada/US), CE Compliant (Europe)

■サイズ
・Weight:0.19 kg including wire lead

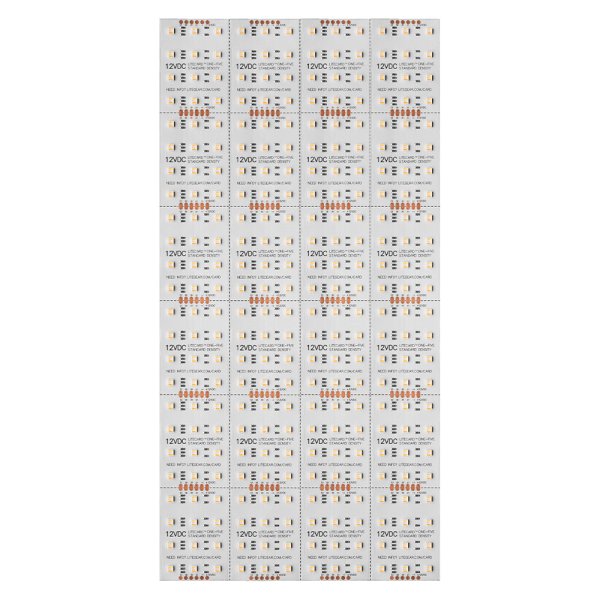

・PCB Dimensions:240mm x 480mm
・Card Overall Thickness:2.2mm
・Segment Dimensions:60mm x 80mm

■バリエーション

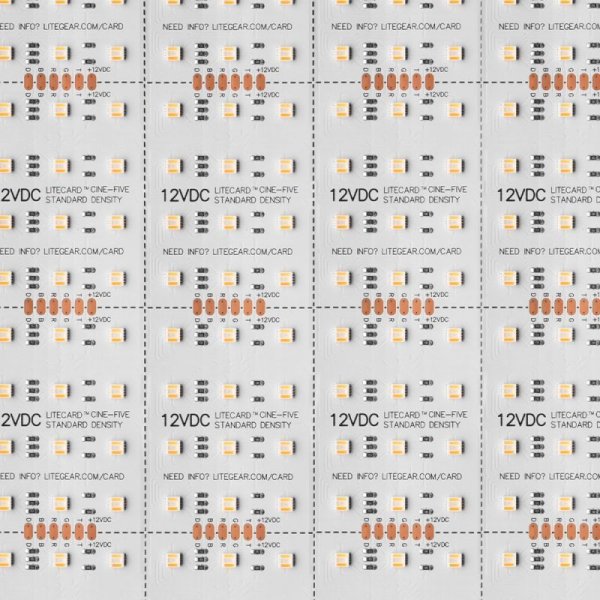

・SKU: LCC-12-RGBHY-SD-2448:12V
・SKU: LCC-24-RGBHY-SD-2448:24V

■仕様12V
・Voltage Input:12VDC Nominal (8-13.5VDC) Constant Voltage
・Current:8.33A (total potential current per card)
・CRI:95+ (Tungsten), 95+ (Daylite)
・TLCI:95.8 (Tungsten), 98.1 (Daylite)
・Lumens (lm) Whites:1647.0 (Tungsten), 1752.5 (Daylite)
・Lumens (lm) Colors:667.6 (Red), 1315.1 (Green), 342.8 (Blue)

■仕様24V
・Voltage Input:24VDC Nominal (20-25.5VDC) Constant Voltage
・Current:4.17A (total potential current per card)
・CRI:95+ (Tungsten), 95+ (Daylite)
・TLCI:95.8 (Tungsten), 98.1 (Daylite)

■データシート(英語)
https://www.litegear.com/wp-content/uploads/2019/11/LiteCard-Chroma-Cine-Five-Data-Sheet.pdf

■メーカーサイト(12V)
https://www.litegear.com/product/cine5-litecard-12/

■メーカーサイト(24V)
https://www.litegear.com/product/cine5-litecard-24/
