Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Our standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750 W HPL. This groundbreaking ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.

■概要
・Warm white ERS-style fixture with output exceeding a tungsten 750 W source
・Fully IP65 rated for seasonal use indoors or out
・Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
・Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme.
・Flat, even field of light for superior gobo projection
・RDM (Remote Device Management) for added flexibility
・Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

■■仕様
■OPTICAL
・Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy
・Color Temperature (at full): 3149 K
・CRI: 96
・Beam Angle (w/14° lens): 11°
・Beam Angle (w/19° lens): 13°
・Beam Angle (w/26° lens): 16°
・Beam Angle (w/36° lens): 20°
・Beam Angle (w/50° lens): 28°
・Beam Angle (w/15°?30° lens)(Narrow): 12°
・Beam Angle (w/15°?30° lens)(Wide): 14°
・Beam Angle (w/25°?50° lens)(Narrow): 21°
・Beam Angle (w/25°?50° lens)(Wide): 22°
・Field Angle (w/14° lens): 14°
・Field Angle (w/19° lens): 18°
・Field Angle (w/26° lens): 25°
・Field Angle (w/36° lens): 34°
・Field Angle (w/50° lens): 50°
・Field Angle (w/15°?30° lens)(Narrow): 15°
・Field Angle (w/15°?30° lens)(Wide): 29°
・Field Angle (w/25°?50° lens)(Narrow): 26°
・Field Angle (w/25°?50° lens)(Wide): 46°
・Dimming Modes: 4
・Lumens (w/19° lens): 7,587
・Lumens (w/26° lens): 10,284
・Lumens (w/36° lens): 10,121
・Lumens (w/50° lens): 9,655
・Illuminance (w/14° lens): 14,149 lux @ 5 m
・Illuminance (w/19° lens): 9,256 lux @ 5 m
・Illuminance (w/26° lens): 6,910 lux @ 5 m
・Illuminance (w/36° lens): 4,053 lux @ 5 m
・Illuminance (w/50° lens): 1,703 lux @ 5 m
・Illuminance (w/15°?30° lens)(Narrow): 16,827 lux @ 5 m
・Illuminance (w/15°?30° lens)(Wide): 10,626 lux @ 5 m
・Illuminance (w/25°?50° lens)(Narrow): 7,210 lux @ 5 m
・Illuminance (w/25°?50° lens)(Wide): 3,295 lux @ 5 m
・Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

■DYNAMIC EFFECTS
・Dimmer: Electronic
・Shutter/Strobe: Electronic
・Strobe Rate: 0 to 30 Hz
・Color Temperature Presets: No
・Dim Modes: 4
・Built-in Automated Programs: Yes

■CONSTRUCTION / PHYSICAL
・Dimensions (fixture only): 495 x 342 x 506 mm
・Dimensions (w/14° lens extended): 790 x 342 x 506 mm
・Dimensions (w/26° lens extended): 597 x 342 x 506 mm
・Dimensions (w/15°?30° lens): 835 x 371 x 371 mm
・Dimensions (w/25°?50° lens): 690 x 371 x 371 mm
・Weight (fixture only): 9.2 kg
・Weight (w/14° lens): 11.6kg
・Weight (w/26° lens): 11kg
・Weight (w/15°?30° lens): 15.5kg
・Weight (w/25°?50° lens): 14.4kg
・Exterior Color: Black
・Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
・Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
・Accessory Holder/Gel Frame Size (14° lens): 191 mm
・Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 159 mm
・Accessory Holder/Gel Frame Size (15°?30° lens): 191 mm
・Accessory Holder/Gel Frame Size (25°?50° lens): 191 mm

■CONNECTIONS
・Power Connection: Edison (local) plug to Seetronic Powerkon IP65
・Power Input: Seetronic Powerkon IP65
・Power Output: Seetronic Powerkon IP65
・Data Connectors: 5-pin IP65 XLR
・Cable Length (power): 1.5 m

■CONTROL
・Control Protocol: DMX, RDM
・DMX Channels: 2, 3, 4 or 7
・Modes/Personalities: 4 personalities (2, 3, 4, 7)

■ELECTRICAL
・Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
・Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
・Power and Current: 221 W, 1.85A @ 120 V, 60 Hz
・Power and Current: 215 W, 1.11 A @ 208 V, 60 Hz
・Power and Current: 213 W, 1.01 A @ 230 V, 50 Hz

■CERTIFICATIONS / QUALIFICATIONS
・CE, MET, FCC
・IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve

■WHAT'S INCLUDED
・Ovation E-260WW IP
・Seetronic Powerkon IP65 power cord

■REQUIRED ACCESSORIES
・Lens Tube: 19°, 26°, 36°, 50°

■OPTIONAL ACCESSORIES
・Professional Clamps: CTC-50HC, CTC-50HCN
・Neutrik powerCON cables
・3-pin or 5-pin DMX Cables
・Color Blending Filters: DF60X1D, DF20D
・RDM2go
・Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
・Gobo Holder: Ovation GR-1IP, Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos

■ORDERING INFO
・Item Code: 03121239

■備考

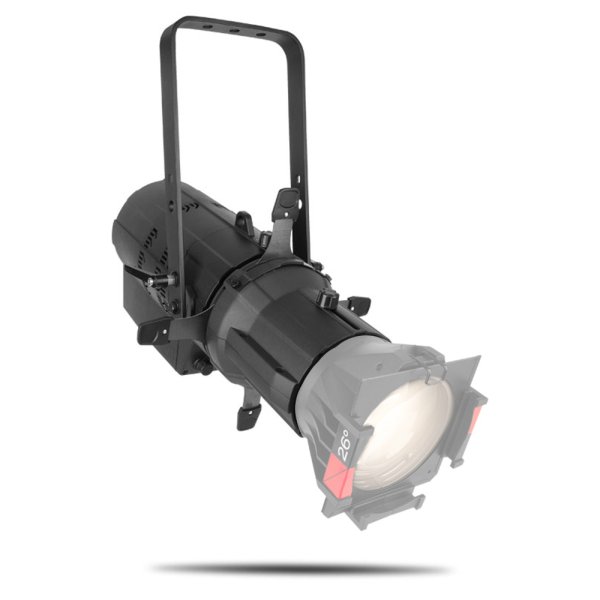

・先玉レンズは別途ご購入となります。

・Chauvet Professional Ovation Ellipsoidal HD Lens Tubes
https://www.urakataya.com/product/13859

・Chauvet Professional Ovation Ellipsoidal HD Zoom Lenses
https://www.urakataya.com/product/13858

■クイックリファレンスガイド(英語)
https://www.chauvetprofessional.com/wp-content/uploads/2015/01/Ovation_E-260WW_IP_QRG_Rev10_ML5-1.pdf

■マニュアル(英語)
https://www.chauvetprofessional.com/wp-content/uploads/2015/01/Ovation_E-260WW_IP_UM_Rev10.pdf

■メーカーサイト
https://www.chauvetprofessional.com/products/ovation-e-260ww-ip/
