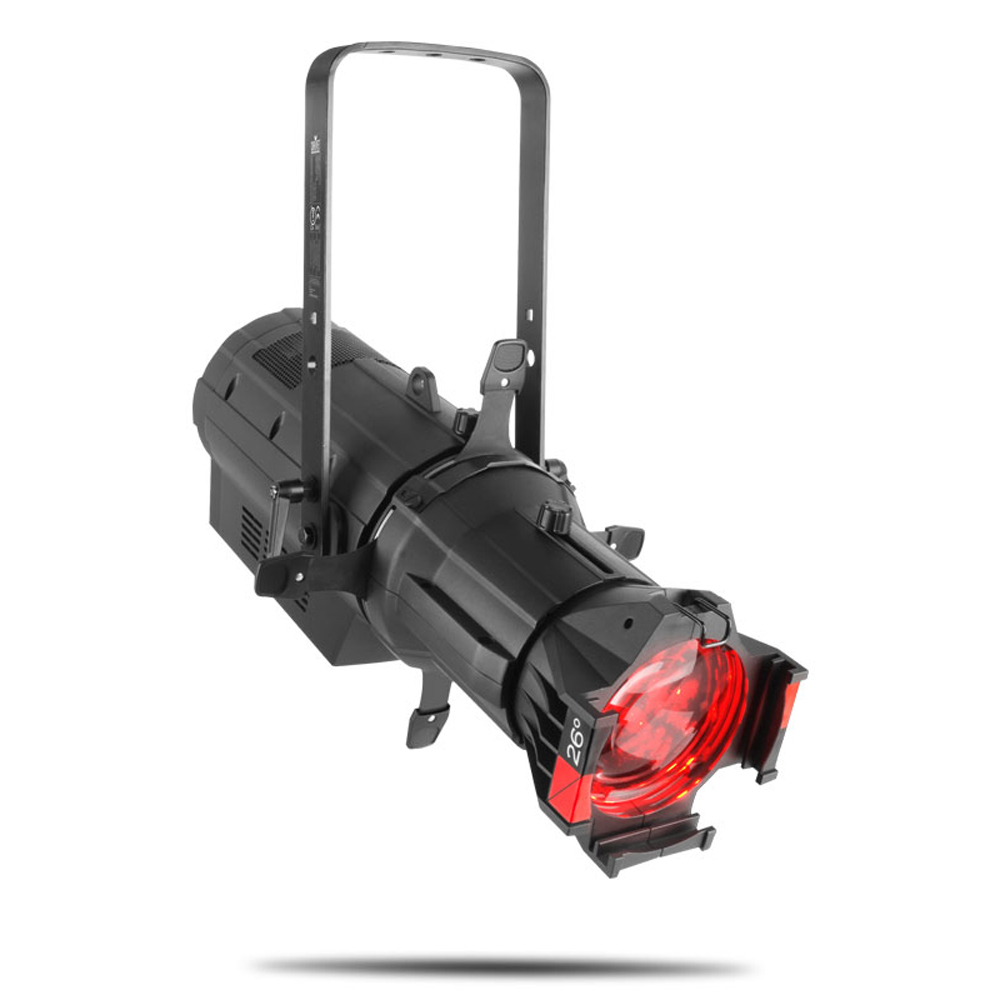

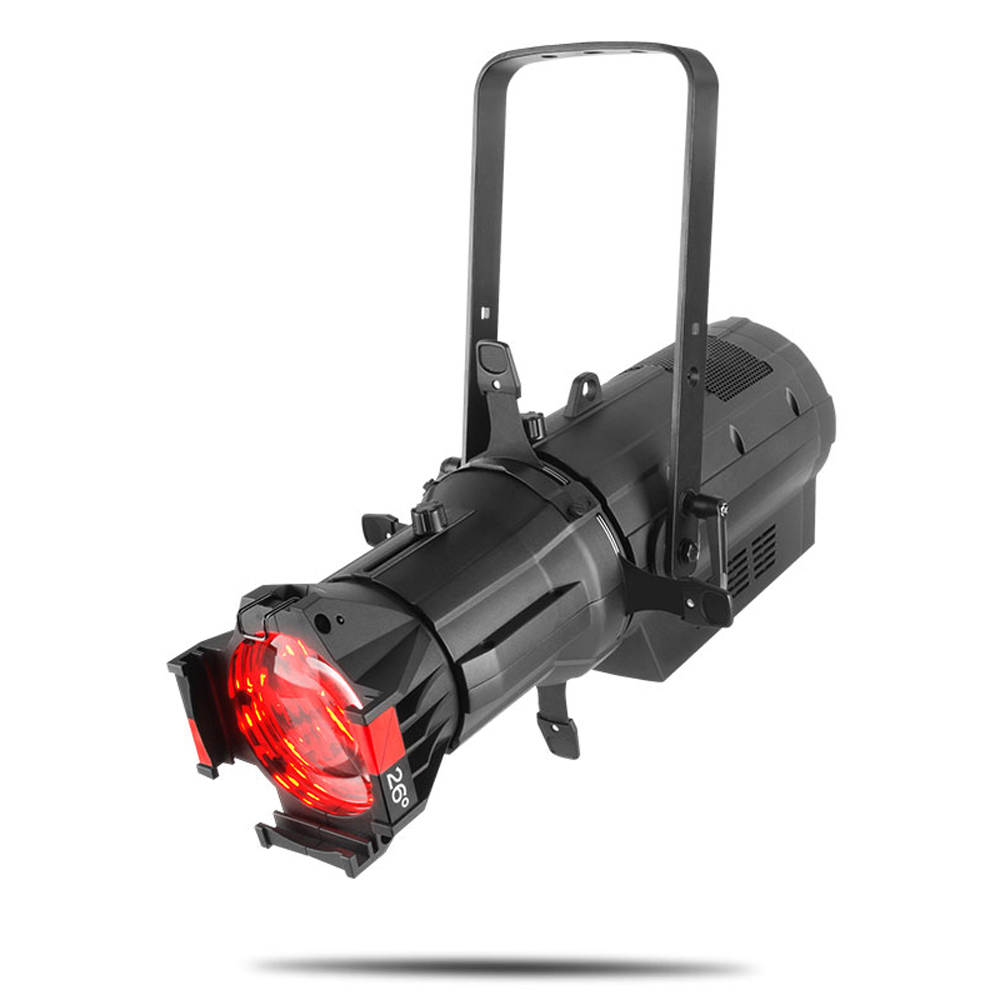

Ovation E-910FC is a high-performance ERS-style fixture with full RGBA-Lime color mixing and Color Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full 16-bit dimming (per color and master), selectable PWM, RDM and onboard dimming curve selection. Also accessible is our Virtual Color Wheel which matches popular gel colors.

■概要
・Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
・Ultra smooth 16-bit dimming of master dimmer and individual colors
・Flat, even field of light with superior color mixing
・Virtual Color wheel with color matched to popular gel colors
・Color Temperature Presets from 2800 K to 6500 K with high CRI & CQS
・RDM (Remote Device Management) for added flexibility
・Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
・Virtually silent operation for use in studio and theatre applications
・Works perfectly with industry standard lens tubes and accessories

■■仕様
■OPTICAL
・Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy
・Color Temperature (range): 2800 to 6500 K
・Color Temperature (at full): 6031 K
・CRI (3200 K): 82
・Beam Angle (w/14° lens): 11°
・Beam Angle (w/19° lens): 19°
・Beam Angle (w/26° lens): 24°
・Beam Angle (w/36° lens): 28°
・Beam Angle (w/50° lens): 41°
・Beam Angle (w/15°?30° lens)(Narrow): 13°
・Beam Angle (w/15°?30° lens)(Wide): 24°
・Beam Angle (w/25°?50° lens)(Narrow): 23°
・Beam Angle (w/25°?50° lens)(Wide): 36°
・Field Angle (w/14° lens): 14°
・Field Angle (w/19° lens):19°
・Field Angle (w/26° lens): 26°
・Field Angle (w/36° lens): 34°
・Field Angle (w/50° lens): 51°
・Field Angle (w/15°?30° lens)(Narrow): 15°
・Field Angle (w/15°?30° lens)(Wide): 29°
・Field Angle (w/25°?50° lens)(Narrow): 26°
・Field Angle (w/25°?50° lens)(Wide): 50°
・Lumens (w/14° lens):
・Lumens (w/19° lens): 3,236
・Lumens (w/26° lens): 4,316
・Lumens (w/36° lens): 3,918
・Lumens (w/50° lens): 3,813
・Illuminance (w/14° lens): 4,420 lux @ 5 m
・Illuminance (w/19° lens): 2,530 lux @ 5 m
・Illuminance (w/26° lens): 1,720 lux @ 5 m
・Illuminance (w/36° lens): 1,020 lux @ 5 m
・Illuminance (w/50° lens): 457 lux @ 5 m
・Illuminance (w/15°?30° lens)(Narrow): 4,260 lux @ 5 m
・Illuminance (w/15°?30° lens)(Wide): 1,620 lux @ 5 m
・Illuminance (w/25°?50° lens)(Narrow): 1,790 lux @ 5 m
・Illuminance (w/25°?50° lens)(Wide): 825 lux @ 5 m
・Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

■DYNAMIC EFFECTS
・Dimmer: Electronic
・Shutter/Strobe: Electronic
・Focus: Manual
・Strobe Rate: 0 to 28 Hz
・Standalone Color Mixing: Yes
・Color Temperature Presets: Yes
・Dim Modes: 4
・Built-in Automated Programs: Yes

■CONSTRUCTION / PHYSICAL
・Dimensions (fixture only): 495 x 285 x 487 mm
・Dimensions (w/14° lens extended): 730 x 285 x 487 mm
・Dimensions (w/26° lens extended): 658 x 285 x 487 mm
・Dimensions (w/15°?30° lens): 835 x 371 x 371 mm
・Dimensions (w/25°?50° lens): 690 x 371 x 371 mm
・Weight (fixture only): 7.1 kg
・Weight (w/14° lens): 9.43 kg
・Weight (w/26° lens): 9 kg
・Weight (w/15°?30° lens): 13.3 kg
・Weight (w/25°?50° lens): 12.2 kg
・Exterior Color: Black
・Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
・Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
・Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 159 mm
・Accessory Holder/Gel Frame Size (15°?30° lens): 191 mm
・Accessory Holder/Gel Frame Size (25°?50° lens): 191 mm

■CONNECTIONS
・Power Connection: Edison (Local) plug to Neutrik powerCON
・Power Connection: Edison (Local) plug to Neutrik powerCON
・Power Output: Neutrik powerCON
・Data Connectors: 5-pin XLR
・Cable Length (power): 1.5 m

■CONTROL
・Protocol(s): DMX, RDM
・DMX Channels: 3, 5, 7, 10, 12, 13, 15 or HSV
・Modes/Personalities: 7 personalities (3, 5, 7, 10, 12, 13, 15 or HSV)

■ELECTRICAL
・Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
・Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
・Power and Current: 215 W, 1.786 A @ 120 V, 60 Hz
・Power and Current: 214 W, 1.032 A @ 208 V, 60 Hz
・Power and Current: 216 W, 0.935 A @ 230 V, 50 Hz

■CERTIFICATIONS / QUALIFICATIONS
・CE, MET, FCC
・IP Rating: IP20, dry location

■WHAT'S INCLUDED
・OVATION E-910FC
・Neutrik powerCON power cord

■REQUIRED ACCESSORIES
・Lens Tube: 19°, 26°, 36°, 50°

■OPTIONAL ACCESSORIES
・Professional Clamps: CTC-50HC, CTC-50HCN
・Neutrik powerCON cables
・3-pin or 5-pin DMX Cables
・Color Blending Filters: DF60X1D, DF20D
・Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
・Gobo Holder: Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos

■ORDERING INFO
・Item Code: 03121116

■備考
・先玉レンズは別途ご購入となります。

・Chauvet Professional Ovation Ellipsoidal HD Lens Tubes
https://www.urakataya.com/product/13859

・Chauvet Professional Ovation Ellipsoidal HD Zoom Lenses
https://www.urakataya.com/product/13858

■クイックリファレンスガイド(英語)
https://www.chauvetprofessional.com/wp-content/uploads/2015/01/Ovation_E-910FC_QRG_ML5_Rev13.pdf

■マニュアル(英語)
https://www.chauvetprofessional.com/wp-content/uploads/2015/01/Ovation_E-910FC_UM_Rev10.pdf

■メーカーサイト
https://www.chauvetprofessional.com/products/ovation-e-910fc/
