Chauvet Professional RDM2go（ショーベー） [新品]
商品詳細

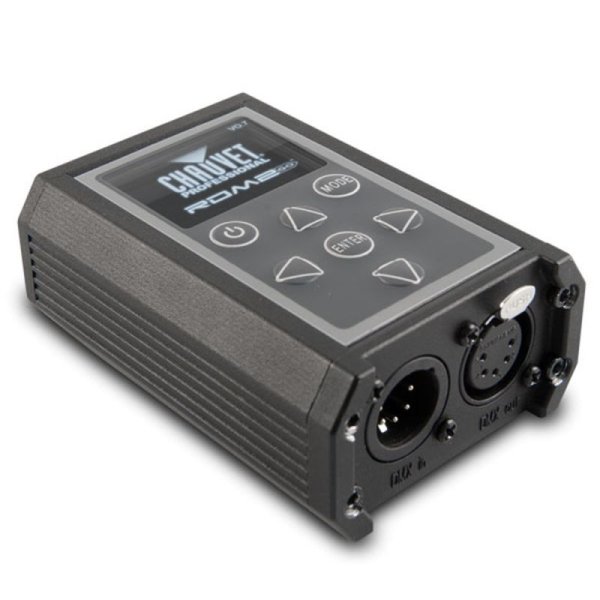

RDM2go is a multi-functional tool for working with fixtures over a DMX/RDM data line. This palm-sized controller performs a multitude of tasks including RDM functionality, DMX snapshot and test-scene record and playback, DMX input and output monitoring. RDM2go features a built-in DMX cable integrity checker, and an easy to read OLED display. It also addresses Chauvet’s Iluminarc IP fixtures that do not have a display. The unit easily recharges via a standard micro USB jack and comes with a convenient carry pouch and DMX connector converters.
■概要
・Handheld tool for managing fixtures and systems with DMX, RDM, and Ilumicode based control
・Easily address, locate and monitor RDM capable fixtures
・Check DMX addressing, cabling, and store/playback basic snapshots
・Address and set personalities of Ilumicode based architectural fixtures
・Comes with connector adaptors, USB charging cord and belt clip pouch
■■仕様
■DYNAMIC EFFECTS
・Standalone Color Mixing: Yes
・Color Temperature Presets (Ilumicode): Yes
・Dim Modes (Ilumicode): 5
・Customizable Programs: Yes
・Recall Custom Programs: Yes
■CONSTRUCTION / PHYSICAL
・Dimensions: 70 x 39 x 100 mm
・Weight: 0.35 kg
・Exterior Color: Black
・Housing Material: Aluminum die-cast
■CONNECTIONS
・Power Input: Micro USB-B Male
・Data Connectors: 5-pin XLR
・Cable Length (power): 3 ft (0.91 m)
■CONTROL
・Protocol(s): DMX, RDM, Ilumicode
・DMX Channels: 1, 2, 3, 4, 5, 6 or 7
・Modes/Personalities (Ilumicode): 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D)
■ELECTRICAL
・Power and Current: 18 W, 0.15 A @ 120 V, 60 Hz
・Power and Current: 18 W, 0.09 A @ 208 V, 60 Hz
・Power and Current: 18 W, 0.08 A @ 230 V, 50 Hz
■BATTERY
・Battery type: Lithium Ion
・Rechargeable: Yes
・Battery Life: 8 hours
・Battery Power: 3.7 V, 1,200 mAh
■CERTIFICATIONS / QUALIFICATIONS
・CE
・IP Rating: IP20, dry location
■WHAT'S INCLUDED
・RDM2go
・Carry Pouch
・2 pc, 3- to 5-pin converters
・5-pin male to bare wire adaptor
・USB-A Male to Micro USB-B Male (3 ft)
■REQUIRED ACCESSORIES
・DMX Cables
■OPTIONAL ACCESSORIES
・DMX Cables
■データシート（英語）
https://www.chauvetprofessional.com/wp-content/uploads/2018/01/RDM2go_UM_Rev2.pdf
■メーカーサイト
https://www.chauvetprofessional.com/products/rdm2go/
