Chroma Q Studio Force II 12（クロマキュー） [新品]

Using a homogenised LED source capable of delivering variable colour temperature, plus/minus green shift control and the ability to produce deep saturated colours when needed, the Studio Force II is specifically designed for TV Broadcast and film applications but also performs particularly well in other situations demanding high quality tuneable white light such as touring key lights, exhibitions, corporate events and theatre lighting.

The Studio Force II uses the same ColorSure technologies found in other innovative Chroma-Q fixtures to deliver consistent colour across fixtures.

概要

・Full spectrum variable white light engine
・High intensity homogenised output
・Extremely smooth uniform wash
・Variable plus / minus green shift
・Ideal for TV, Broadcast and Film
・PowerCON TRUE1 input and output for easy
・daisy chaining of fixtures

■詳細
・Plus / Minus Green Shift
　Tuneable white LED fixtures produce light typically ranging from cool white (~6,500K CCT) through to warm white (~2,800K CCT) by following the black body locus. Chroma-Q's plus / minus green shift control allows designers to vary hue by moving along the green magenta axis orthogonal to the colour temperature axis in accurately defined increments. This gives exceptional ability to control atmosphere and ambience on screen.
・Chroma-Q ColorSure
　The inherent variation between individual LED emitters means colour can vary from fixture to fixture. Chroma-Q's ColorSure is a proprietary system to ensure fixtures within the same product range provide consistent output regardless of when they are manufactured.
・A complex range of processes for selecting (binning) individual LED emitters; calibrating LED light engines in-house to a uniform standard and sophisticated firmware and software ensures exceptional fixture to fixture consistency.
・Features
　Studio Force II has a coloured touch display for easy navigation through the addressing, modes and settings. Power and DMX / RDM data through connections, optional wireless LumenRadio CRMX connection. Tool-less tilt adjustment allowing side-by-side fixture placement without any gap.
・Accessories

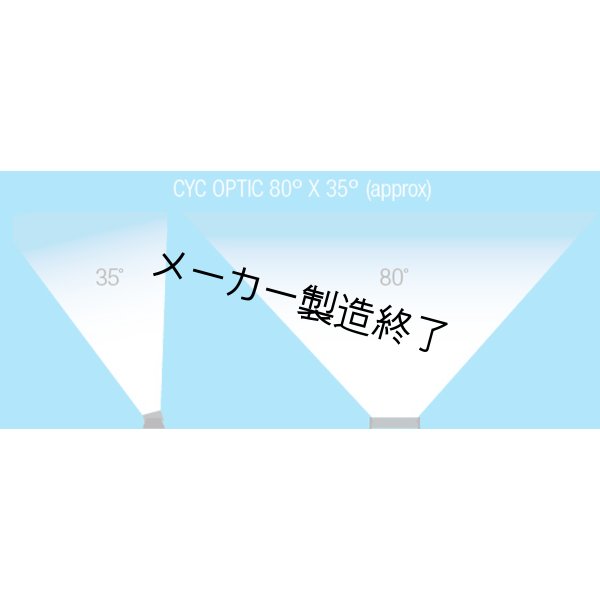

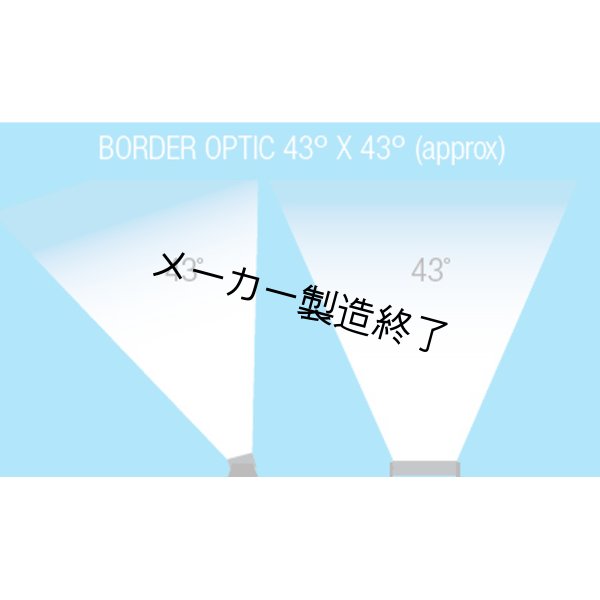

Chroma-Q offers a range of optional accessories for Studio Force II to tailor for any lighting situations. Accessories simply slide through the mounting slots. Cyc / border lenses can be used with other accessories.

仕様

■Product Code
・CHSF2V12 - ブラック
・CHSF2V12W - ホワイト
・CHSF2V12LR - ブラック w/LumenRadio RF
・CHSF2V12LRW - ホワイト w/LumenRadio RF

■サイズ
・Net Dimensions 335mm x 190mm x 218mm
・Net Weight 5.0kg
・Shipping Dimensions Length: 432mm / Width: 279mm / Height: 343mm
・Shipping Weight 7kg
・Power Supply Built-in
・Power Input Rating 100-240V AC 50-60Hz 160VA
・Power Factor 　
　0.99 @ 120V AC
　0.97 @ 240V AC
・Power Consumption
　150W @ 120V AC
　133W @ 240V AC
・Idle Power Consumption
　8W @ 120V AC
　10W @ 240V AC
・Typical Power & Current
　Measurements done with all LEDs at maxi- mum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%
・Power Connectors In/Out Neutrik powerCON TRUE1
・Data Connectors In/Out Neutrik XLR 5-pin
・Control Protocol DMX
・Cooling System Combined convection and forced air - 1 fan
・Operating Temperature 0°C to 40°C
・Construction Anodised aluminium extrusion
・Colour Black / White
・Built-In Hardware
　Yoke and quick release lever for tilt adjustment

参照

■メーカーサイト
https://chroma-q.com/products/studio-force-ii-12
