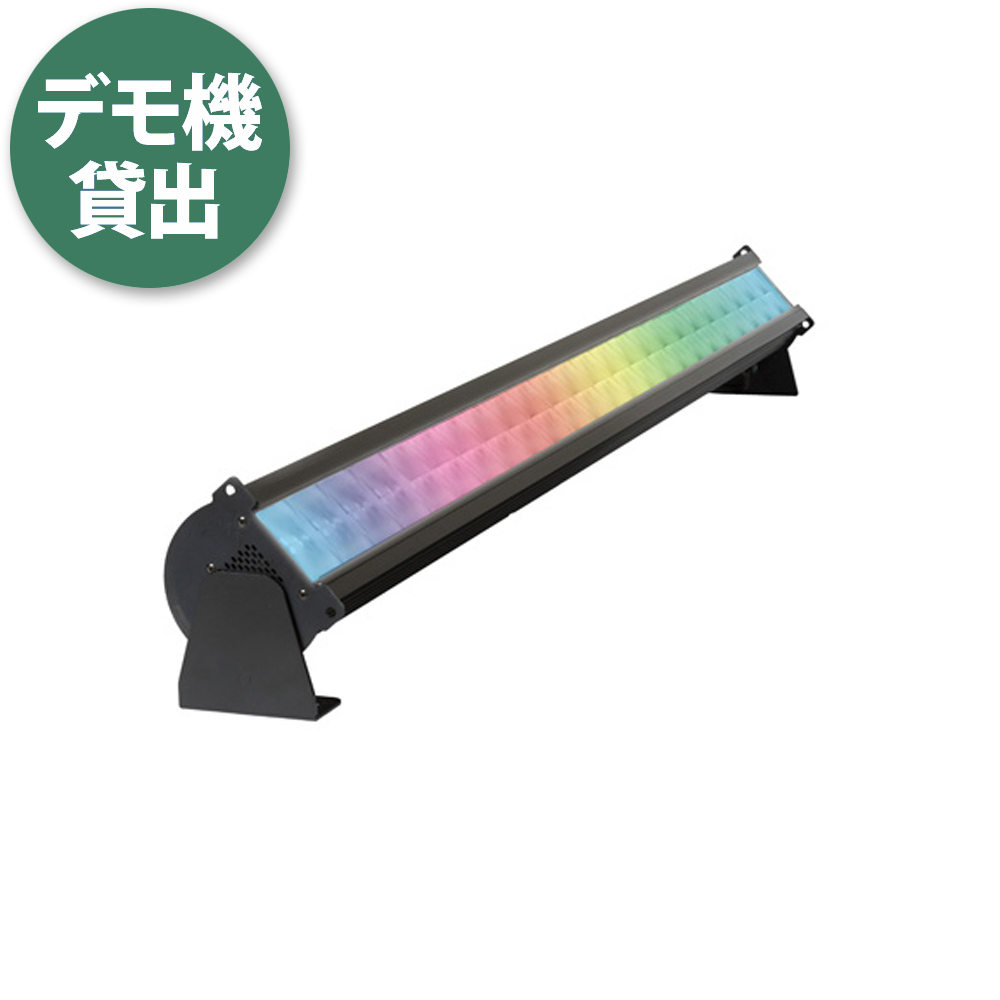

Chroma Q Studio Force II 72(クロマキュー) [新品]


Using a homogenised LED source capable of delivering variable colour temperature, plus/minus green shift control and the ability to produce deep saturated colours when needed, the Studio Force II is specifically designed for TV Broadcast and film applications but also performs particularly well in other situations demanding high quality tuneable white light such as touring key lights, exhibitions, corporate events and theatre lighting.

・Full spectrum variable white light engine
・High intensity homogenised output
・Extremely smooth uniform wash
・Variable plus / minus green shift
・Ideal for TV, Broadcast and Film
・PowerCON TRUE1 input and output for easy
・daisy chaining of fixture

・Plus / Minus Green Shift
 Tuneable white LED fixtures produce light typically ranging from cool white (~6,500K CCT) through to warm white (~2,800K CCT) by following the black body locus.
・Chroma-Q's plus / minus green shift control allows designers to vary hue by moving along the green magenta axis orthogonal to the colour temperature axis in accurately defined increments. This gives exceptional ability to control atmosphere and ambience on screen.
・Chroma-Q ColorSure
 The inherent variation between individual LED emitters means colour can vary from fixture to fixture. Chroma-Q's ColorSure is a proprietary system to ensure fixtures within the same product range provide consistent output regardless of when they are manufactured.
 A complex range of processes for selecting (binning) individual LED emitters; calibrating LED light engines in-house to a uniform standard and sophisticated firmware and software ensures exceptional fixture to fixture consistency.
 Studio Force II has a coloured touch display for easy navigation through the addressing, modes and settings. Power and DMX / RDM data through connections, optional wireless LumenRadio CRMX connection. Tool-less tilt adjustment allowing side-by-side fixture placement without any gap.

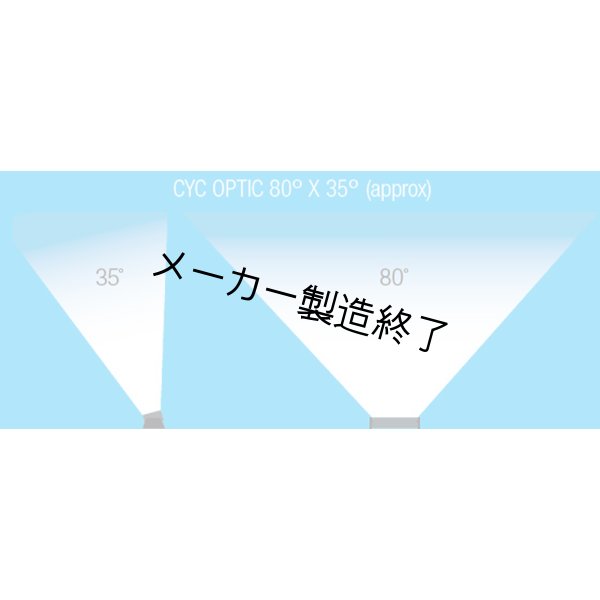

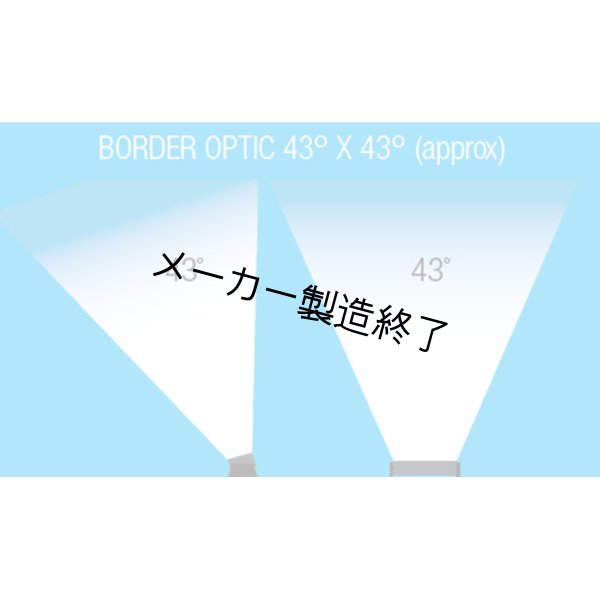

 Chroma-Q offers a range of optional accessories for Studio Force II to tailor for any lighting situations. Accessories simply slide through the mounting slots. Cyc / border lenses can be used with other accessories.

■Product Code
・CHSF2V72 - ブラック
・CHSF2V72W - ホワイト
・CHSF2V72LR - ブラック w/LumenRadio RF
・CHSF2V72LRW- ホワイト w/LumenRadio RF

・Net Dimensions 1,759mm x 165mm x 191mm
・Net Weight 24kg
・Shipping Dimensions Length: 1,855mm / Width: 305mm / Height: 320mm
・Shipping Weight 27 kg

・Power Supply Built-in
・Power Input Rating 100-240V AC 50-60Hz 800VA
・Power Factor
 0.97 @ 120V AC
 0.92 @ 240V AC
・Power Consumption
 800W @ 120V AC
 800W @ 240V AC
・Idle Power Consumption
 44W @ 120V AC
 46W @ 240V AC
・Typical Power & Current Measurements done with all LEDs at maxi- mum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%
・Power Connectors In/Out Neutrik powerCON TRUE1
・Data Connectors In/Out Neutrik XLR 5-pin
・Control Protocol ANSI E1.11 USITT DMX 512-A
・Cooling System Combined convection and forced air - 2 fan
・Operating Temperature 0°C to 40°C
・Construction Anodised aluminium extrusion
・Colour Black / White
・Built-In Hardware Quick release lever for tilt adjustment
・IP Rating IP20
 CISPR 32:2015 / EN 55032:2015,
 CISPR 24:2010/EN 55024:2010, IEC 60598-2-17:1984 + A1:1987+A2:1990 used in conjunction with IEC 60598-1: 2008 (Seventh Edition) FCC Part 15 Subpart B:2015 & ICES-003:2016 CSA C22.2 No. 166:2015-06 UL 1573:2003/ R:2014-01
