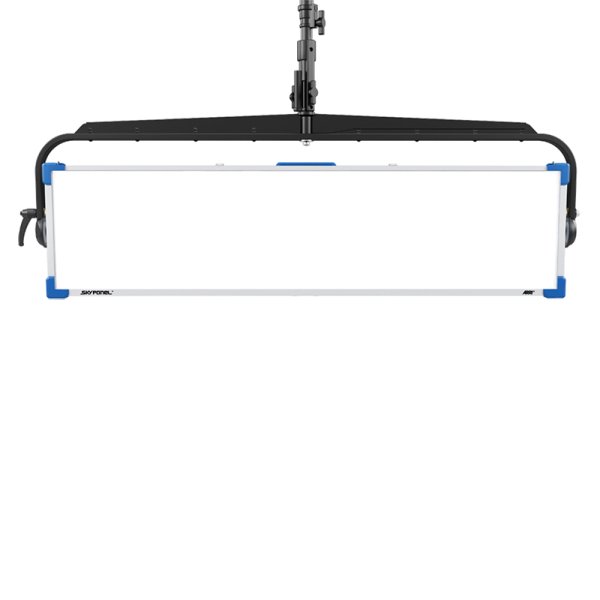

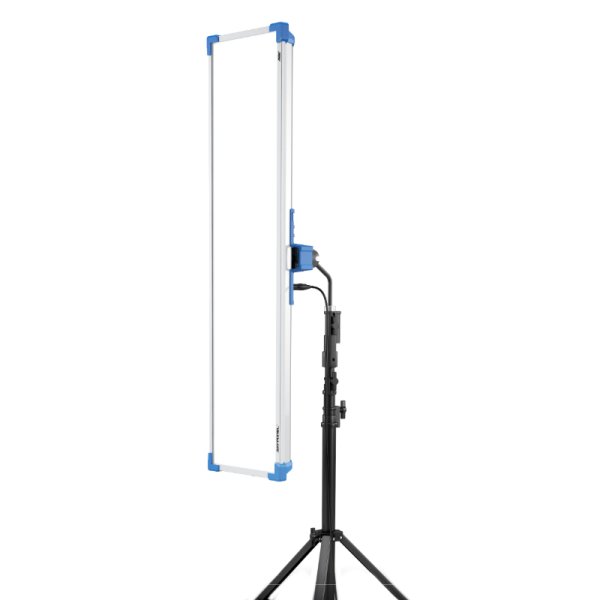

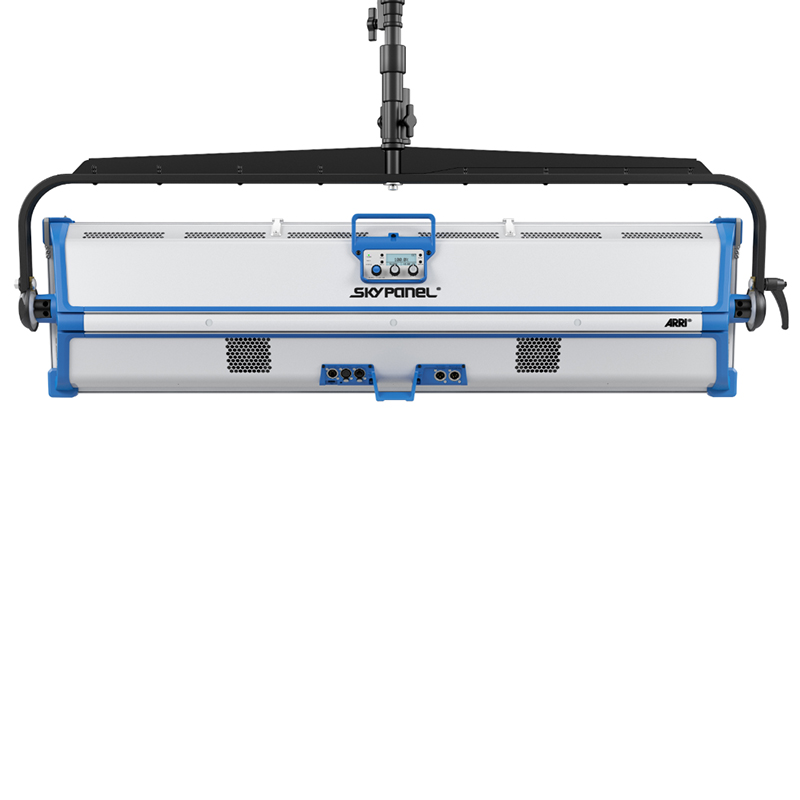

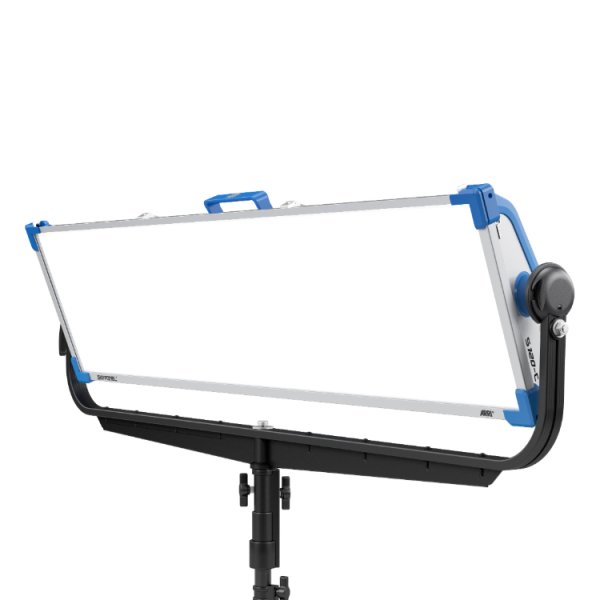

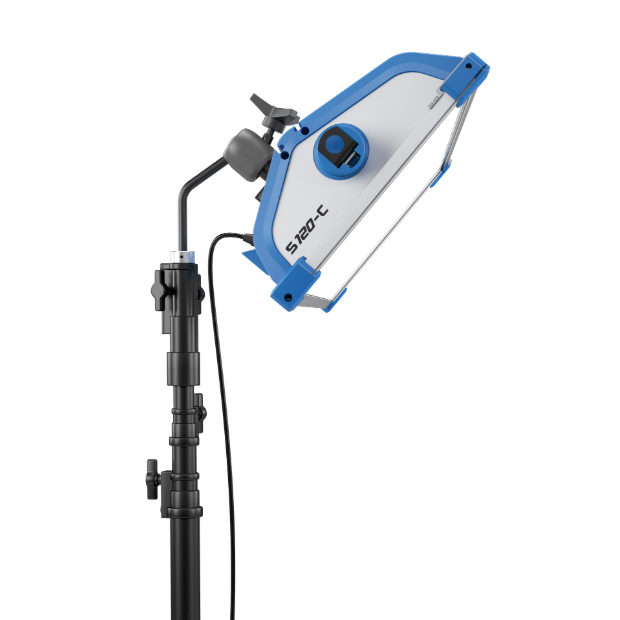

Arri SkyPanel S120-C [新品]

■The SkyPanel Family. Different sizes for different applications.
SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S120 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.

Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last – constructed from resilient materials and assembled by hand with great care. Other features include an on-board battery input for mobile applications, LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more.

■SeriesSkyPanel
・ModelS120-C
・Optical SystemSoft Diffusion Panel
・Light Aperture / Lens Diameter in mm1290 x 300 mm
・Light Aperture / Lens Diameter in inch50.8 x 11.8"
・Beam Angle110° (Half Peak Angle)
・Weight in kg net*Manual Version: approx. 16 kg
・Pole Operated Version: approx. 19 kg
・Center Mount Version approx.: 14 kg
・Weight in kg packed*Manual Version: approx. 26 kg
・Pole Operated Version: approx. 29 kg
・Center Mount Version approx.: 24 kg
・Weight in lbs. net*Manual Version: approx. 35 lbs
・Pole Operated Version: approx. 43 lbs
・Center Mount Version approx.: 31 lbs
・Weight in lbs. Packed*Manual Version: approx. 57 lbs
・Pole Operated Version: approx. 65 lbs
・Center Mount Version approx.: 53 lbs
・Measurements (HxWxL) incl. Pin in mm*Manual Version: 588 x 1467 x 133 mm
・Pole Operated Version: 615 x 1439 x 133 mm
・Measurements (HxWxL) excl. Pin in mm*Manual Version: 473 x 1467 x 133 mm
・Pole Operated Version: 500 x 1439 x 133 mm
・Measurements (HxWxL) incl. Pin in inch*Manual Version: 23.1 x 57.7 x 5.2"
・Pole Operated Version: 24.2 x 56.6 x 5.2"
・Measurements (HxWxL) excl. Pin in inch*Manual Version: 18.6 x 57.7 x 5.2"
・Pole Operated Version: 19.7 x 56.6 x 5.2"
・Measurements (HxWxL) Packed size in mm*500 x 1500 x 300 mm
・Measurements (HxWxL) Packed size in inch*19.7 x 59.1 x 11.9"
・HandlingAluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt / Center Mount Yoke
・Mounting28 mm Spigot (Junior Pin)
・Tilt Angle+/- 90°
・Lamphead Voltage Input48 V DC
・Power Consumption400 W Nominal, 430 W Maximum
・Lamphead Power ConnectionMale 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive)
・Battery ConnectorMale 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
・Battery DC Voltage Range23 to 36 V DC
・Battery Mode Light Output50 % of total output
・White Light2,800 K to 10,000 K continuously variable correlated color temperature
・Colored LightFull RGB+W Color Gamut with Hue and Saturation Control
・Color Temperature Tolerance+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
・Color RenditionCRI Average > 95, TLCI Average > 90
・Green-Magenta AdjustmentContinuously adjustable (Full Minusgreen to Full Plusgreen)
・Dimming0 to 100 % continuous
・ControlOn-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
・Wireless ControlNot integrated, via SkyLink
・Remote Device Management (RDM)DMX Setup, Hour Counter and Standard RDM Commands
・Software / Mini-USB InterfaceEthernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software Upgrade via flash drive
・Housing ColorBlue/Silver, Black
・Ambient Temperature Operation-20 to +45° C (-4 to +113° F)
・Protection Class / IP RatingIII / IP 20
・Estimated LED Lifetime (L70)50,000 hours
・Estimated Color Shift Over Lifetime (CCT)+/- 5 %
・CertificationsCE, CB, ENEC, cNRTLus, FCC, PSE

・Power Supply UnitS60/S120 PSU
・Power Supply Input Range110 to 240 V ~, 50/60 Hz
・Power Supply Output Range48 V DC
・Power Input ConnectionpowerCON TRUE1 (Bare Ends / Schuko / Edison)
・Power Output ConnectionFemale 3-Pin XLR to 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
・Weight in kgapprox. 4 kg
・Weight in lbsapprox. 8 lbs
・Measurements (HxWxL) in mm*91 x 191 x 383 mm
・Measurements (HxWxL) in inch*3.6 x 7.5 x 15.1"
・ControlOn-Board On/Off Switch
・MountingSkyPanel PSU Super Clamp Adapter / Rail Mount Adapter
・CertificationsCE, CB, ENEC, cNRTLus, PSE

Note *Weight and dimensions are rounded values. **Center Mount
