Swisson DMX-Recorder - XRC-200 [新品]

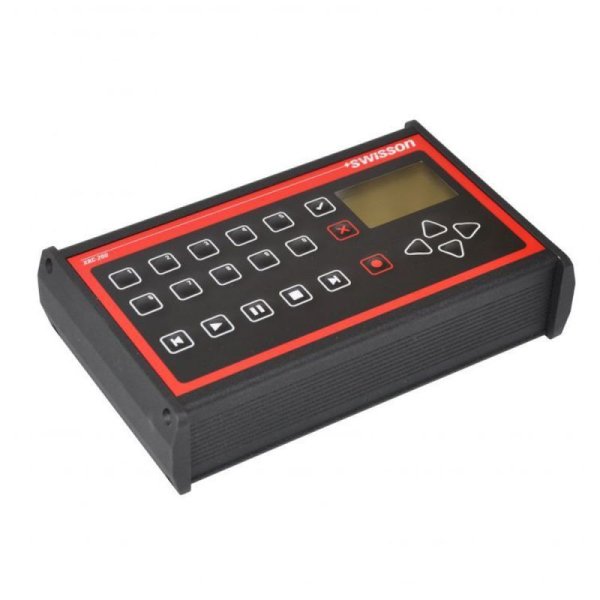

■The XRC-200 is an easy to use DMX recording and replay unit. The operating concept is similar to a CD player and can be used by non-professionals.

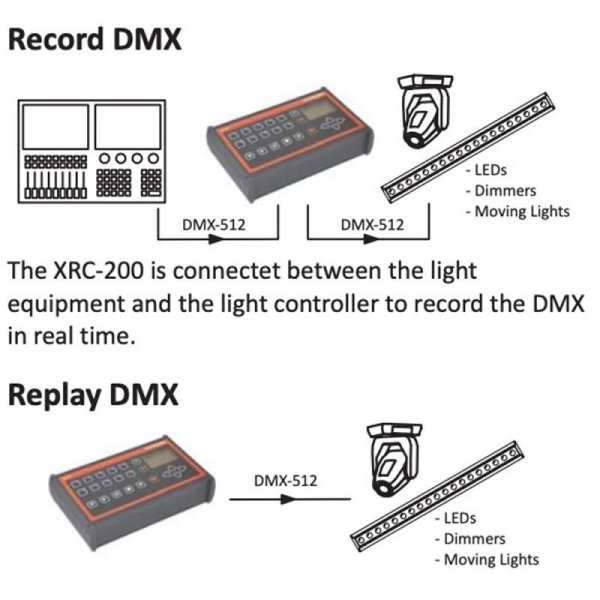

The sequences are recorded from a lighting console, or other DMX output device, onto the device. The XRC-200 replays the recorded sequences in real time.
With the ability to record 2 DMX universes (1024 DMX channels), the XRC-200 is also suitable for LED and moving light applications/installations. A variety of applications in architecture and entertainment, tradeshow, retail and museum lighting are covered with the XRC-200 easily and economically.

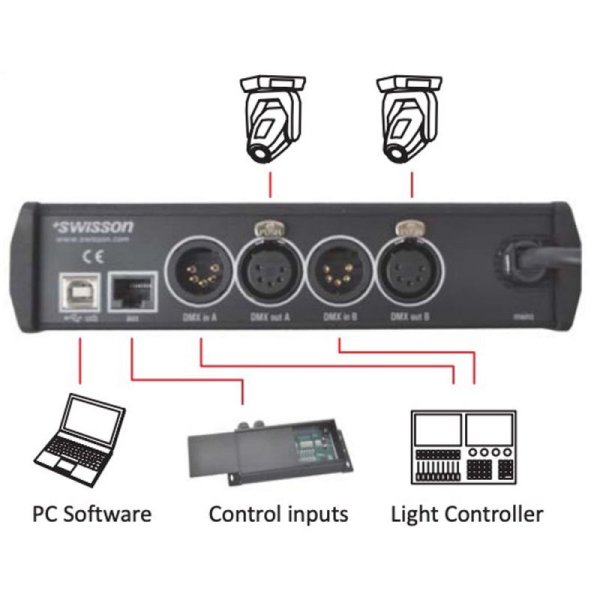

The optional XRC-CT15B contact box with 15 inputs for dry contacts allows a customized integration of triggers for control of the XRC-200 in. In addition, the XRC-200 has an internal timer for show and device control. The device can also be set up to be remotely operated or triggered by DMX. During live shows, the XRC-200 can be used as a DMX backup device.

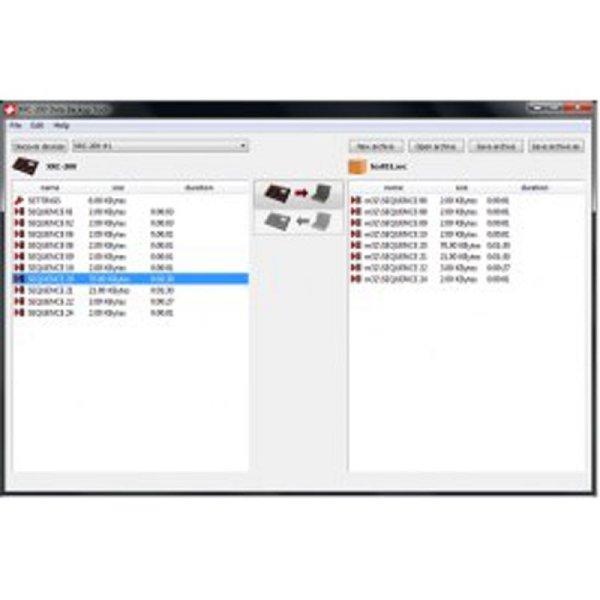

The sequences and settings of the XRC-200 can be stored and managed with the XRC-200 PC software, which is connected via the USB port.

■概要
・Record and play back 64 sequences
・10 configurable play lists
・Configurable fade times
・Optional 15 control inputs

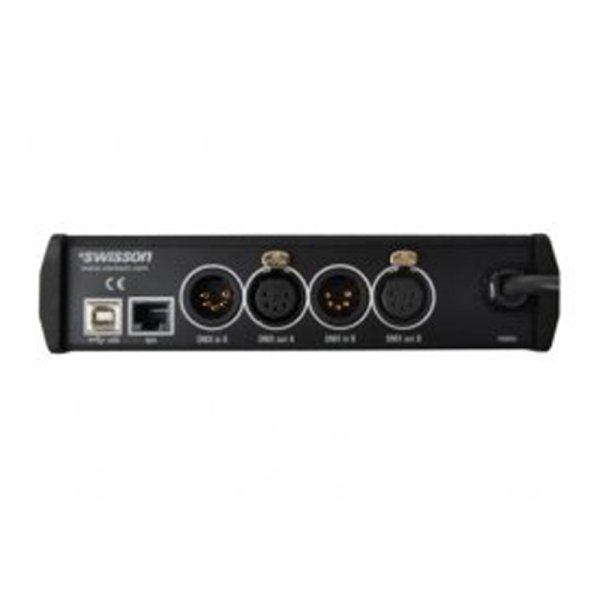

・2 DMX inputs
・2 DMX outputs
・Built-in timer
・Backup device
・USB connection for firmware update, and PC software
・PC software for uploading, downloading and storage of shows

■詳細
・Mains supply: 100-230V 50/60Hz
・PC connection: USB B
・Operating temperature: 0~45℃
・DMX Channels: 1024
・Memory: 256Mbit Flash
・Sequences: 64
・Playlists: 10
・Playlist steps: 64
・DMX remote: 可
・Autostart: 可
・Standby: 可
・Ignition sequence: 可
・Timer: Battery buffered
・Dry contacts: 15 (10 20 50 XRC-CT15b External Contact Boxとの併用必須)
・DMX inputs: 2
・DMX outputs: 2
・XRC-200 PC Software: Windowsベース(無料)

■アクセサリ

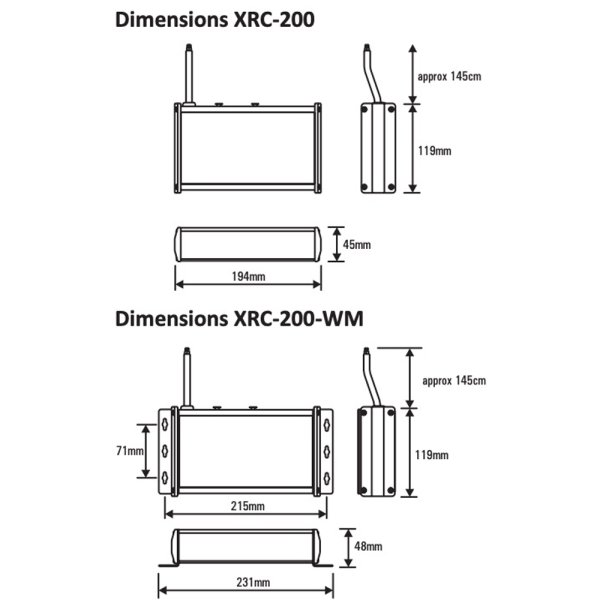

・10 20 62 XRC-200-WM DMX Recorder for wall mount
・10 20 50 XRC-CT15b External Contact Box

■メーカーサイト
・https://www.swisson.com
