HIGHLITE Infinity iM-2515（インフィニティ iM-2515） [41560]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

概要

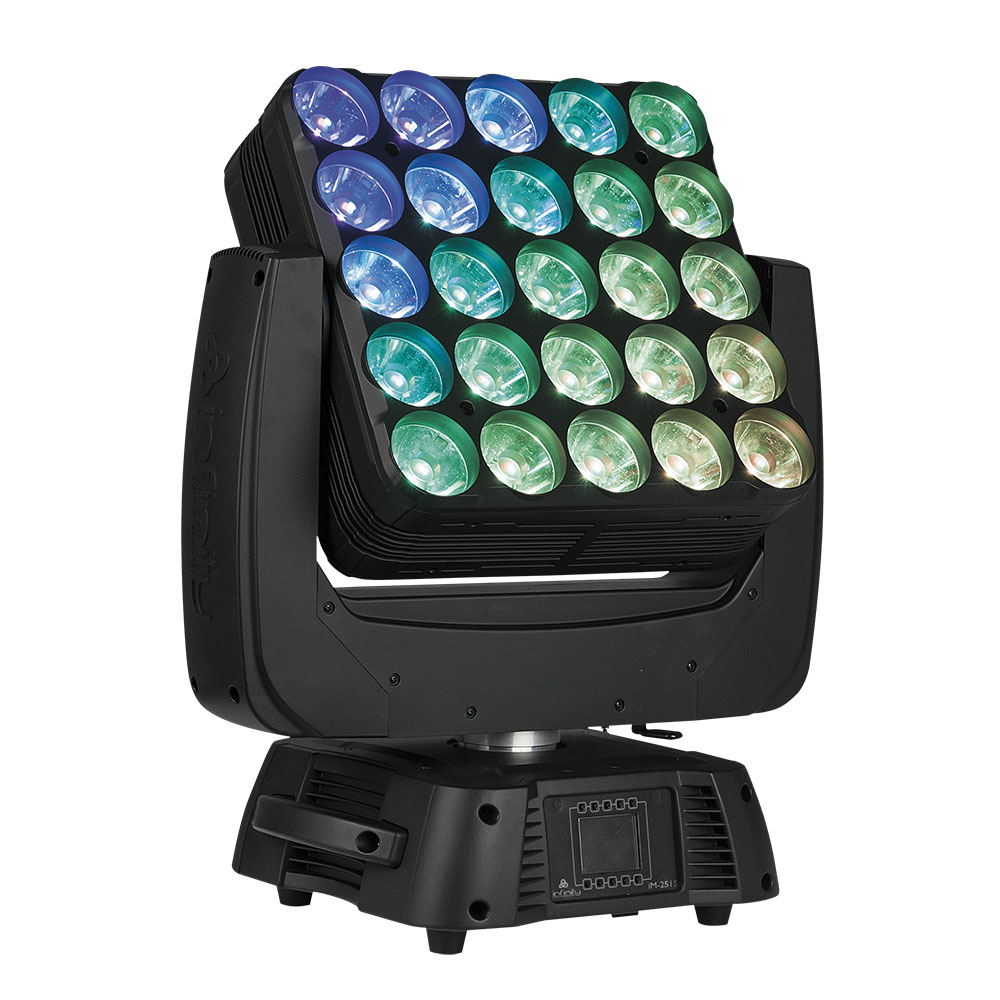

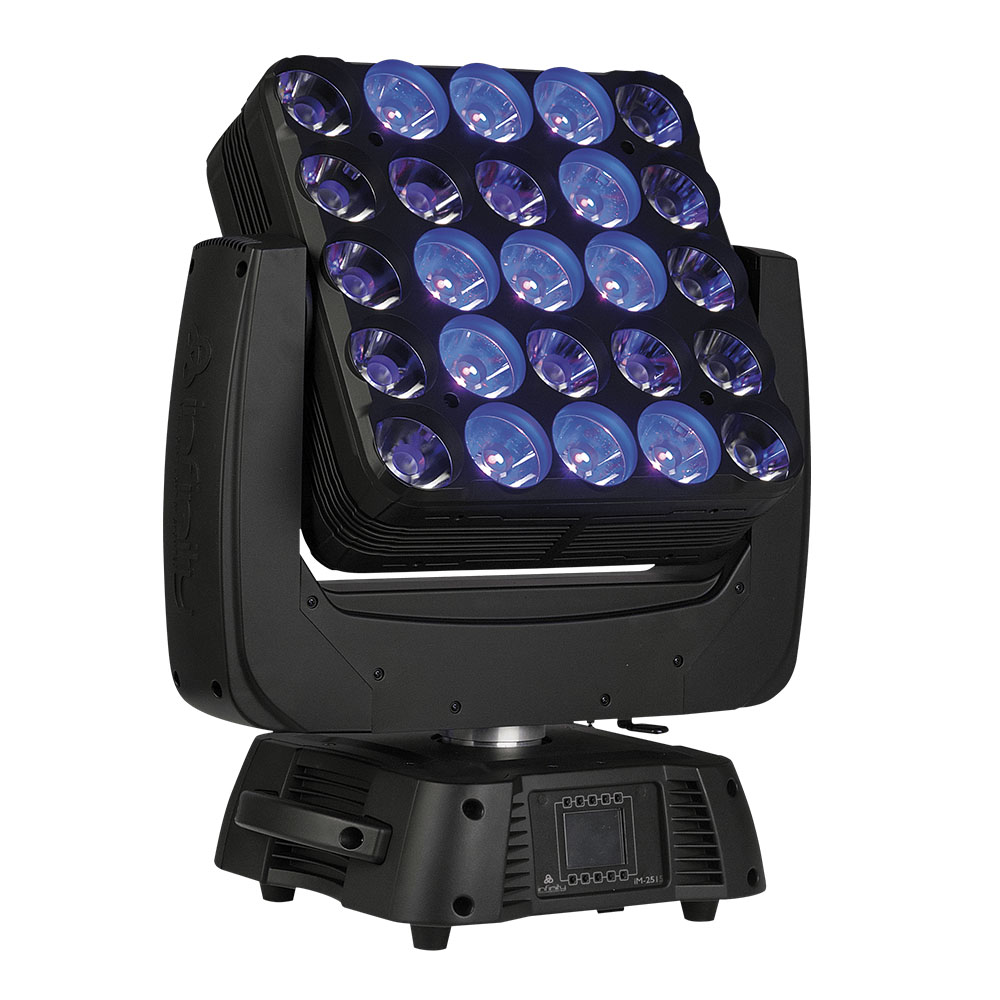

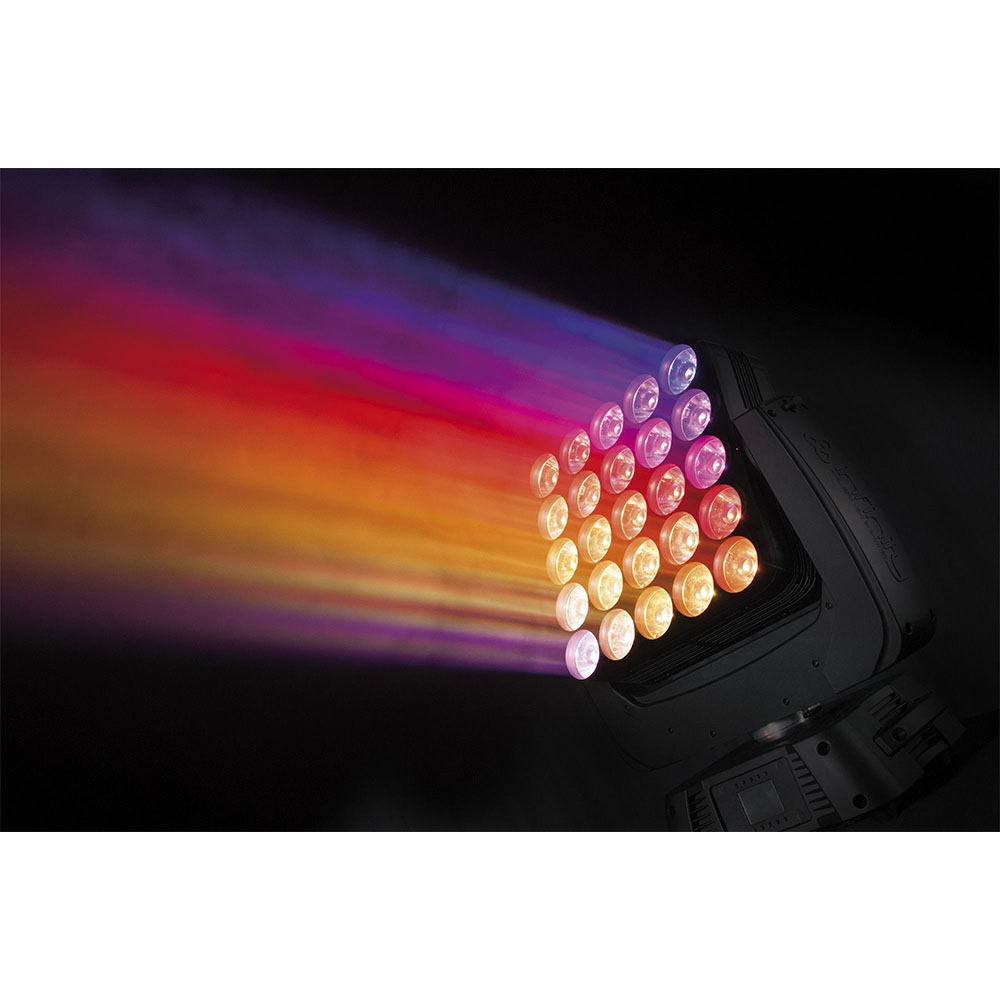

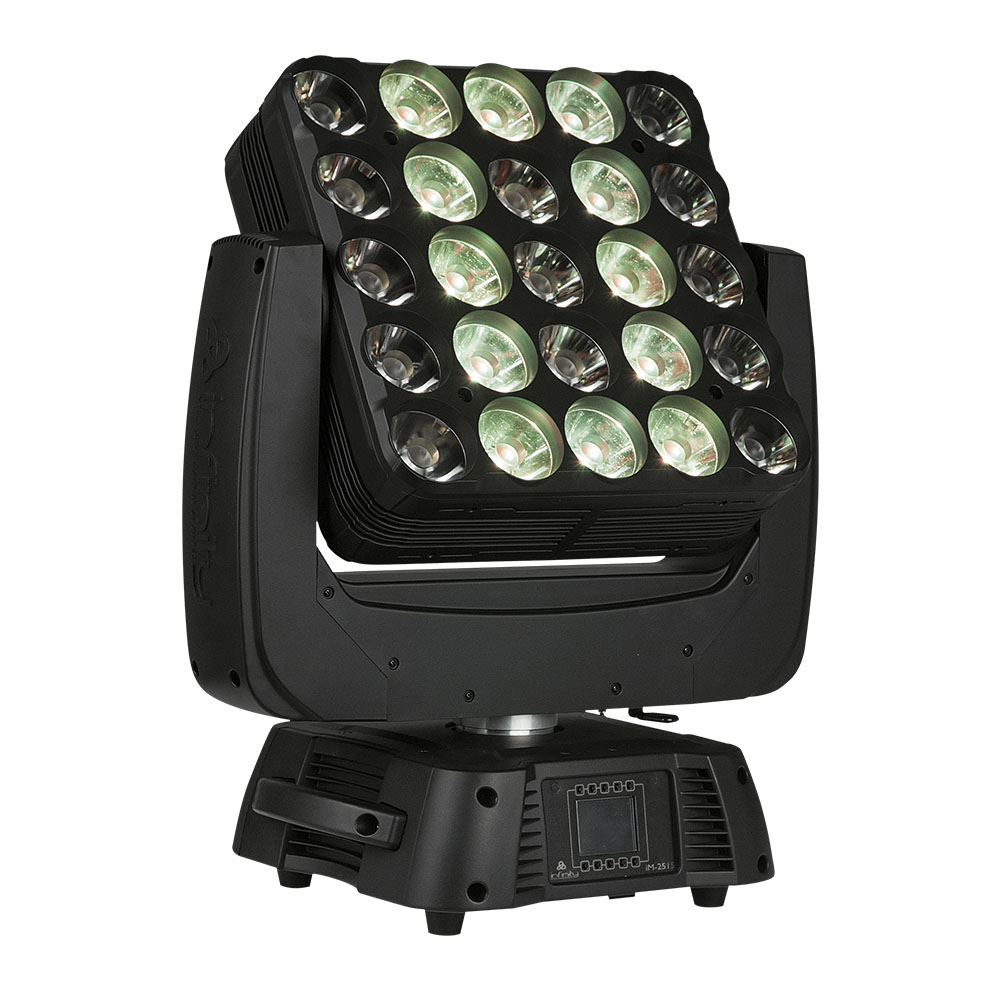

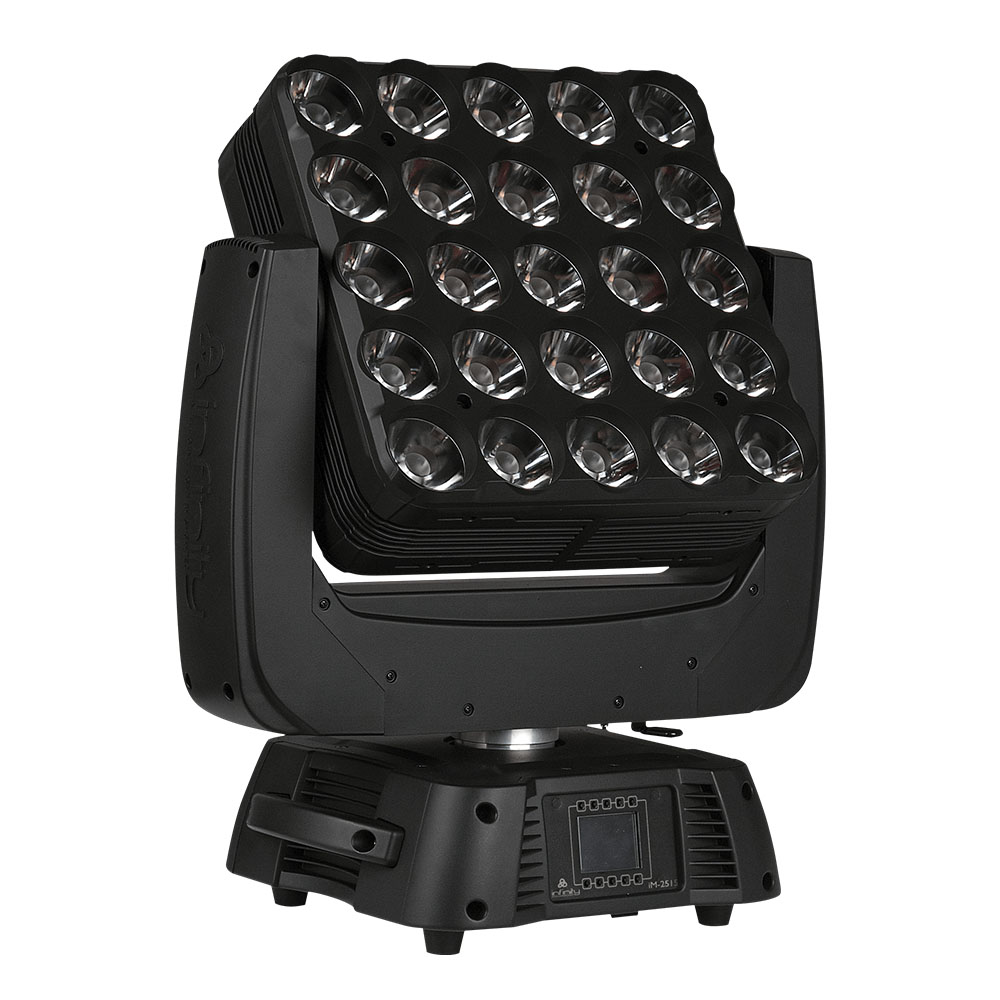

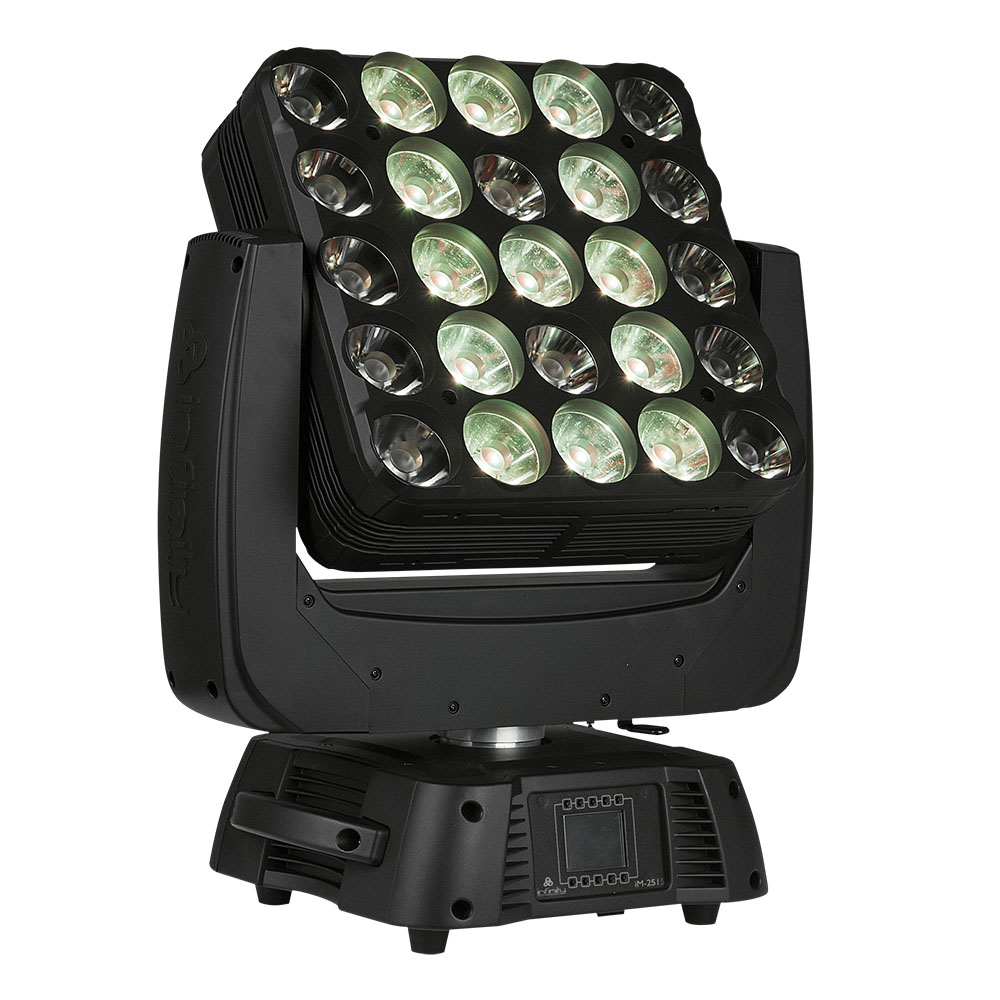

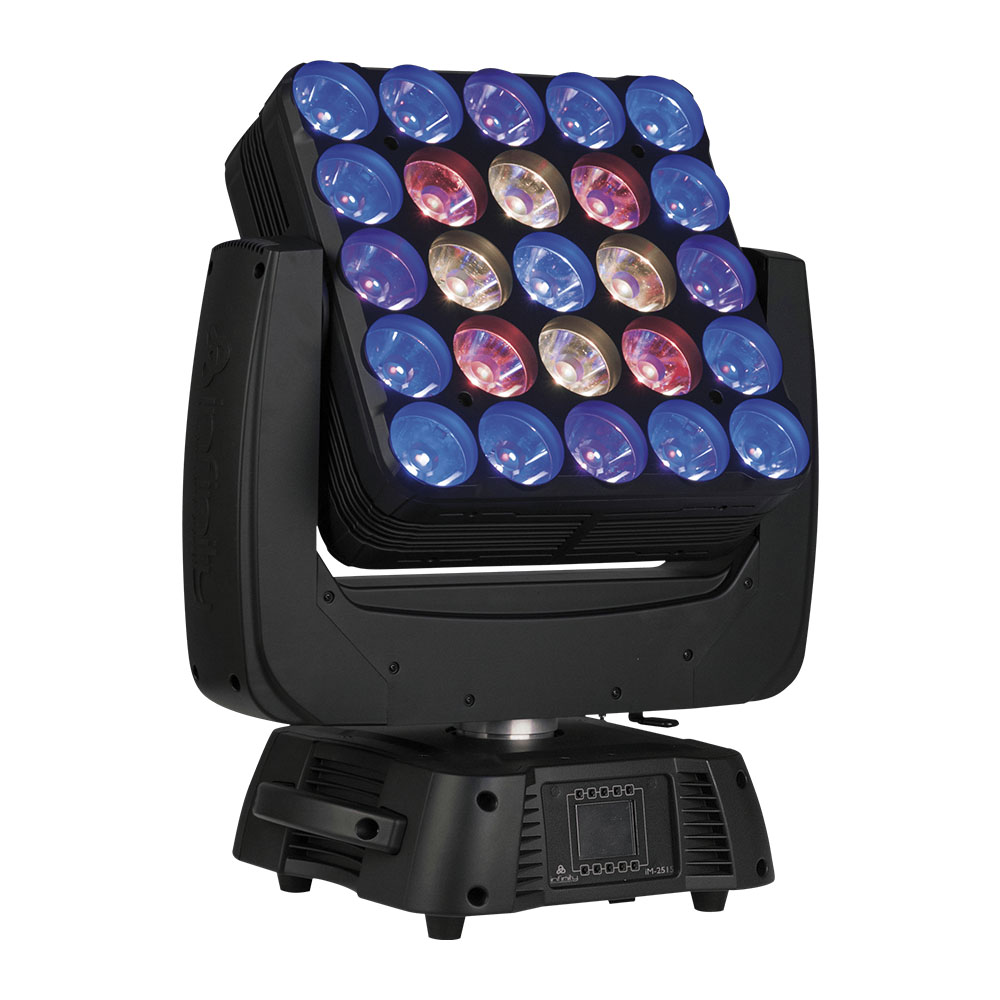

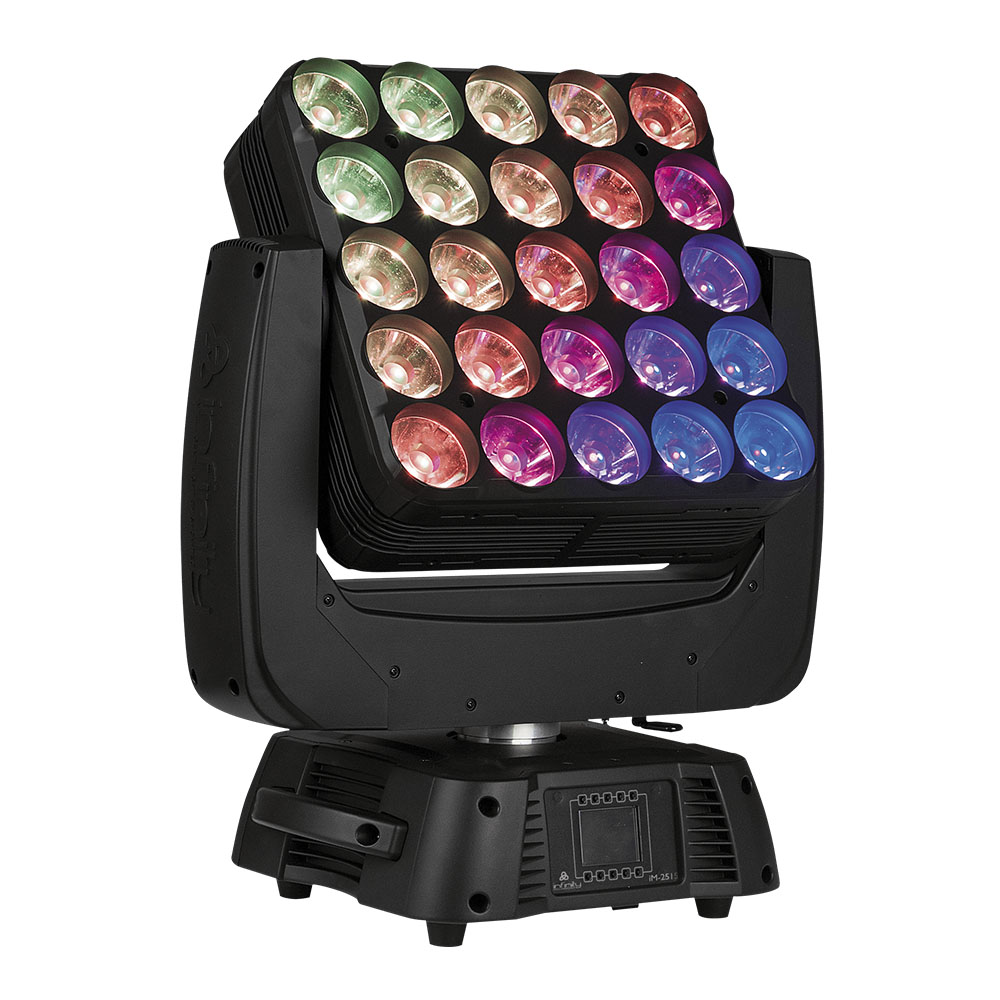

The Infinity® iM-2515, 5x5 Matrix, is an absolute highlite within this flagship series and should be part of any professional show!

This fully pixel controllable matrix fixture, with continuous rotating on both pan and tilt, offers endless creative possibilities to lighting designers.

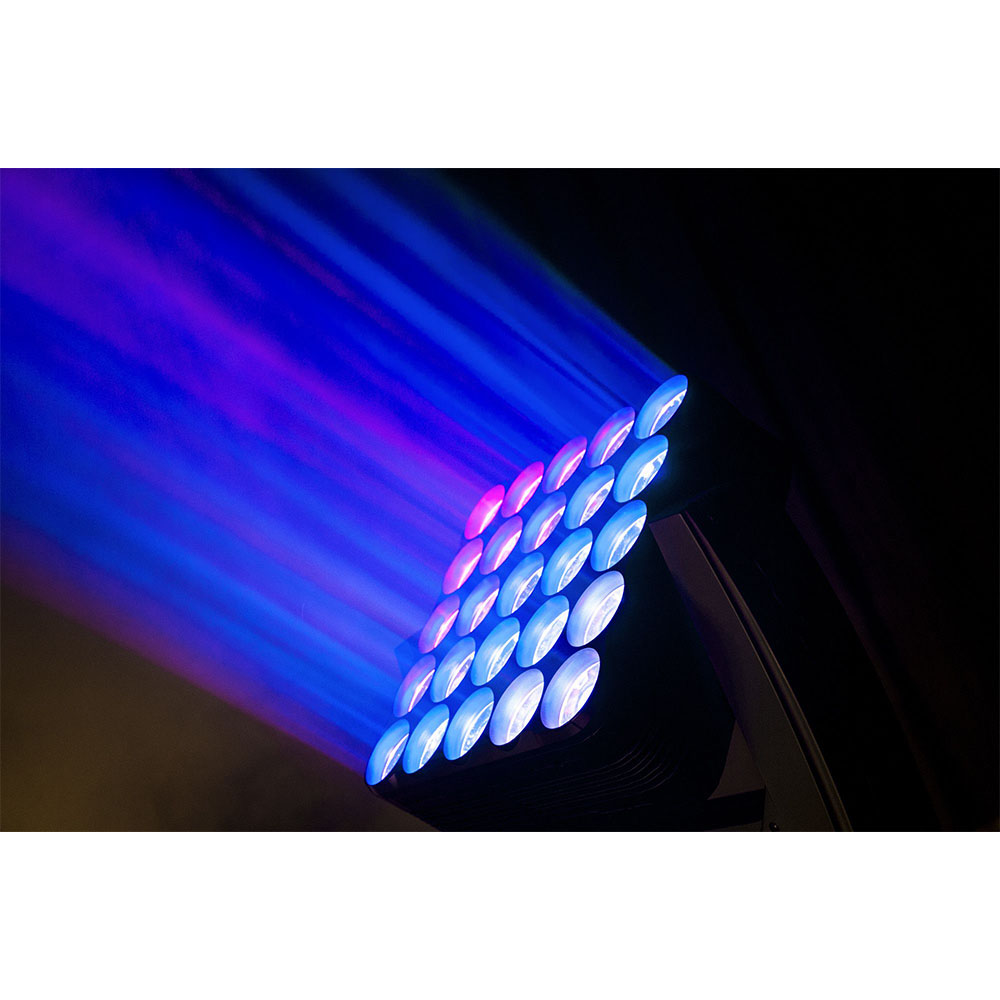

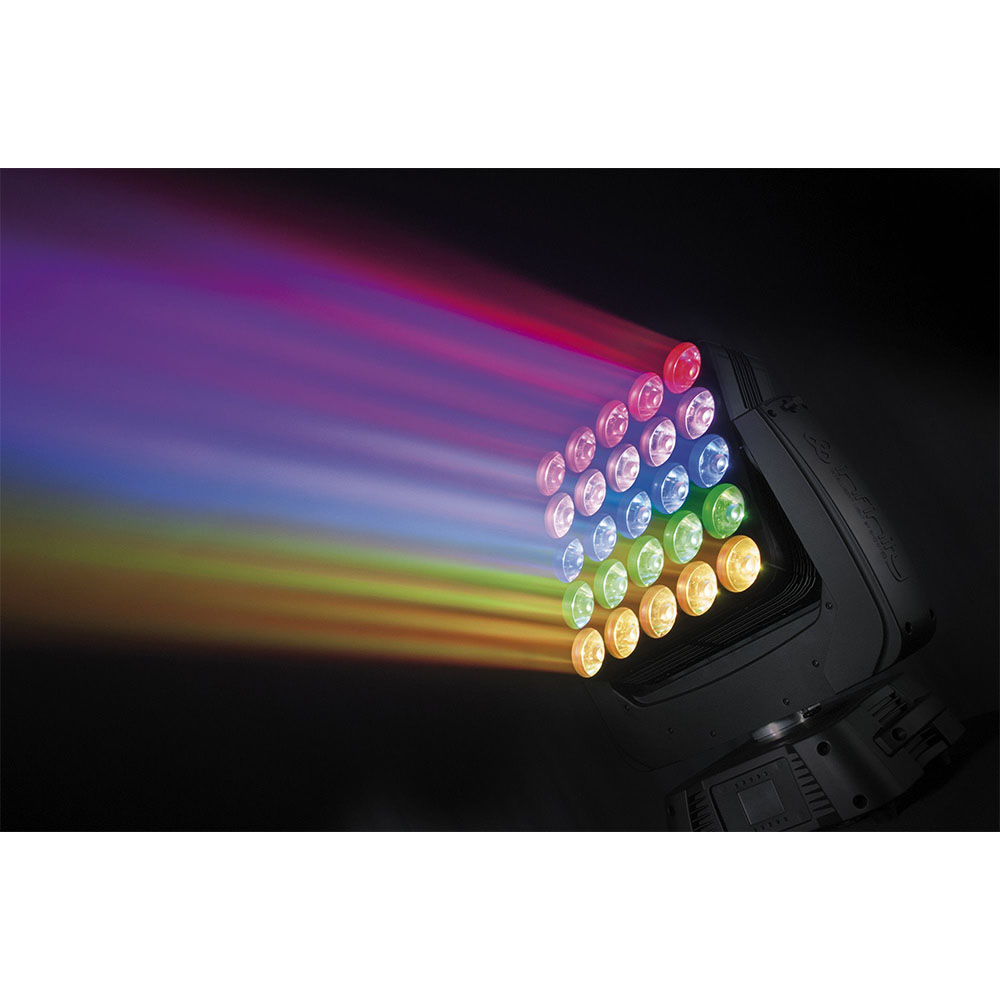

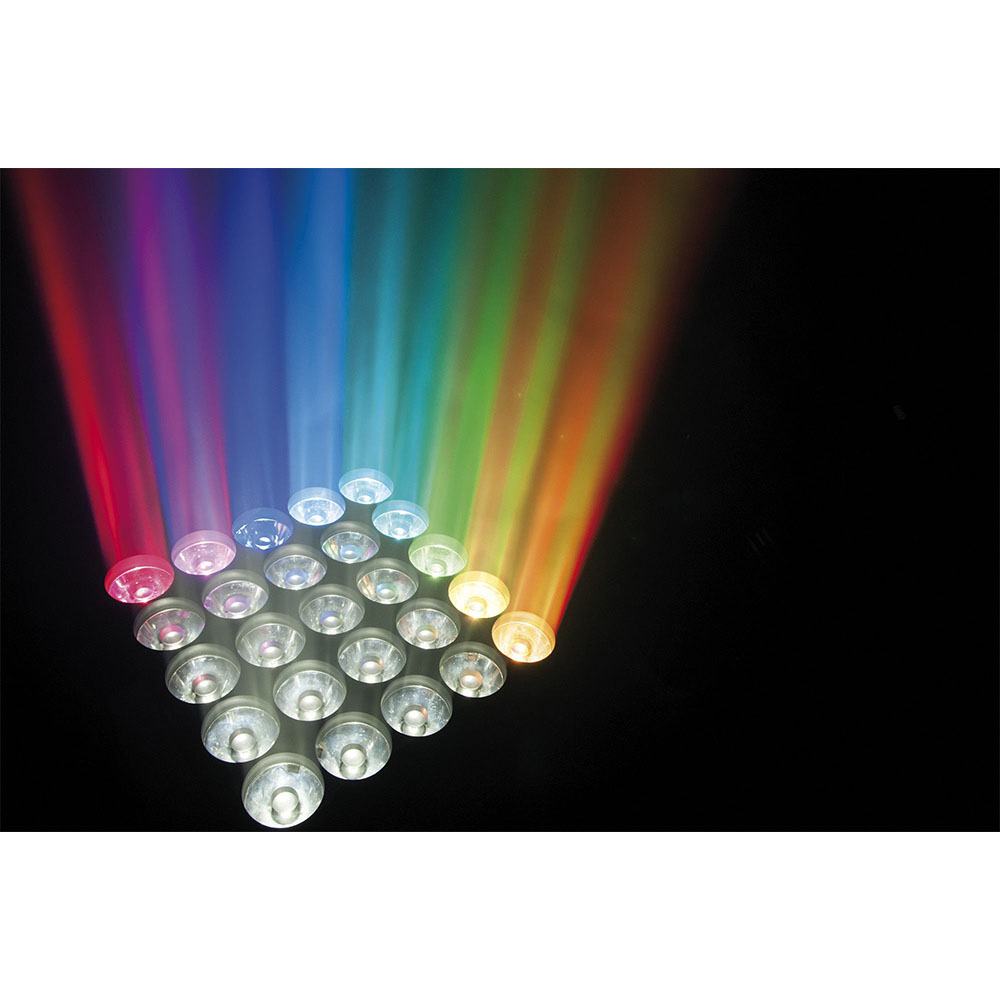

25 Osram O-Star 15 W RGBW LEDs, combined with high-grade optics, will guarantee a palette of beautiful colours and a high light output. High torque motors ensure fast movements and at a beam angle of just 4.5°, its beams are solid and precise.

Whether you want to create dynamic effects, breath-taking visuals or perfect solid beams, the Infinity® iM-2515 is the fixture that will help you achieve it all!

特徴

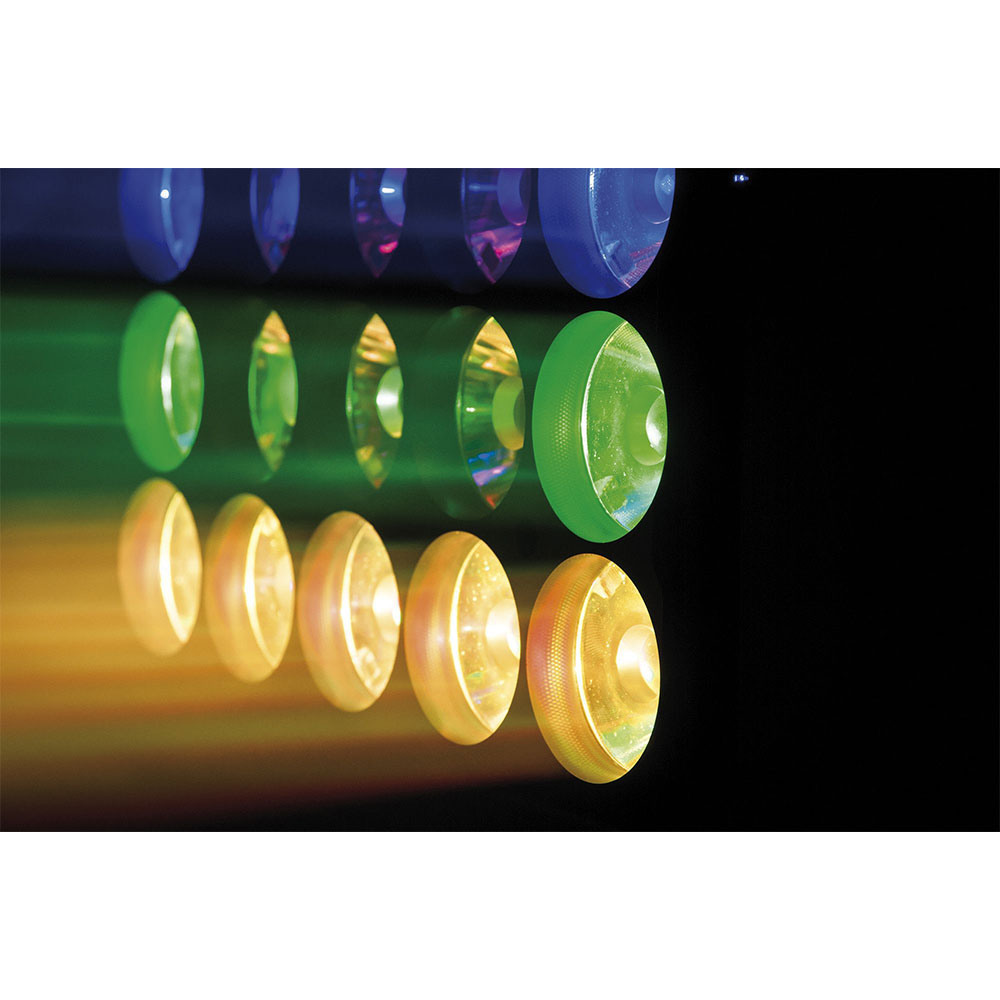

4.5° high grade optics

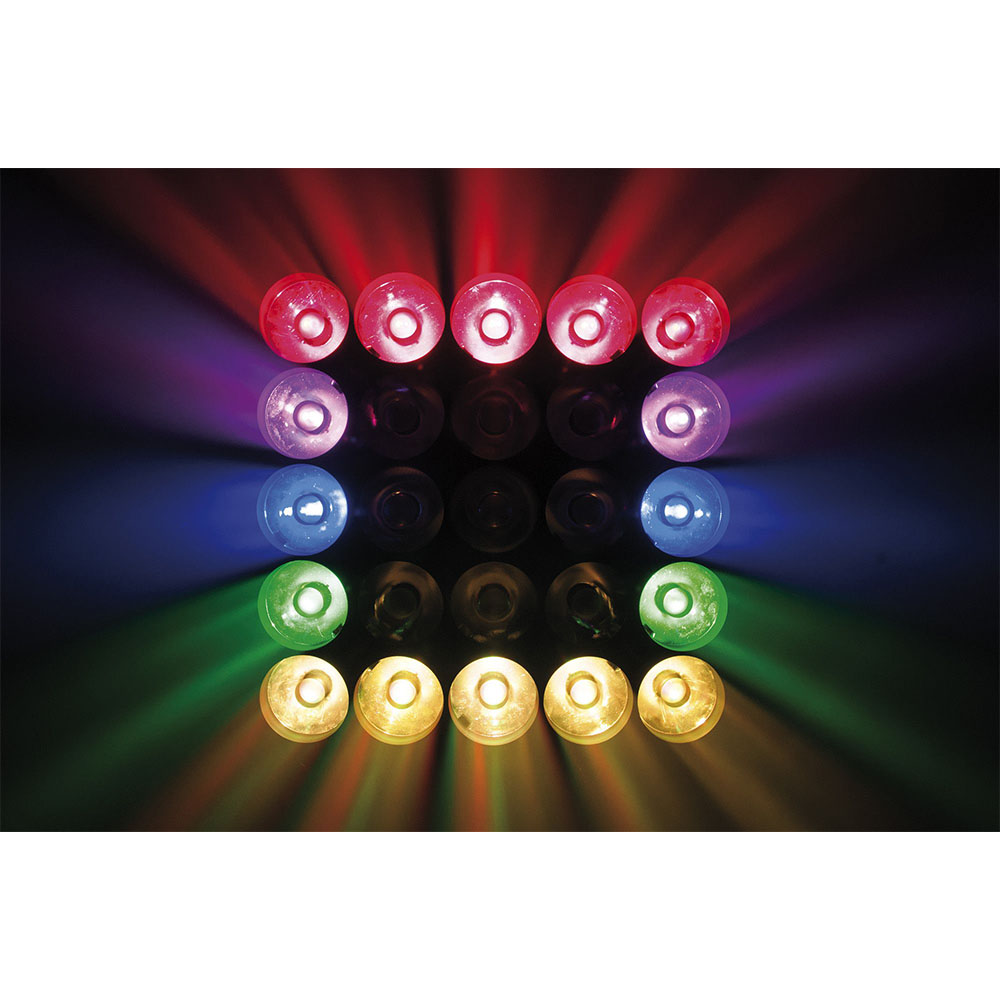

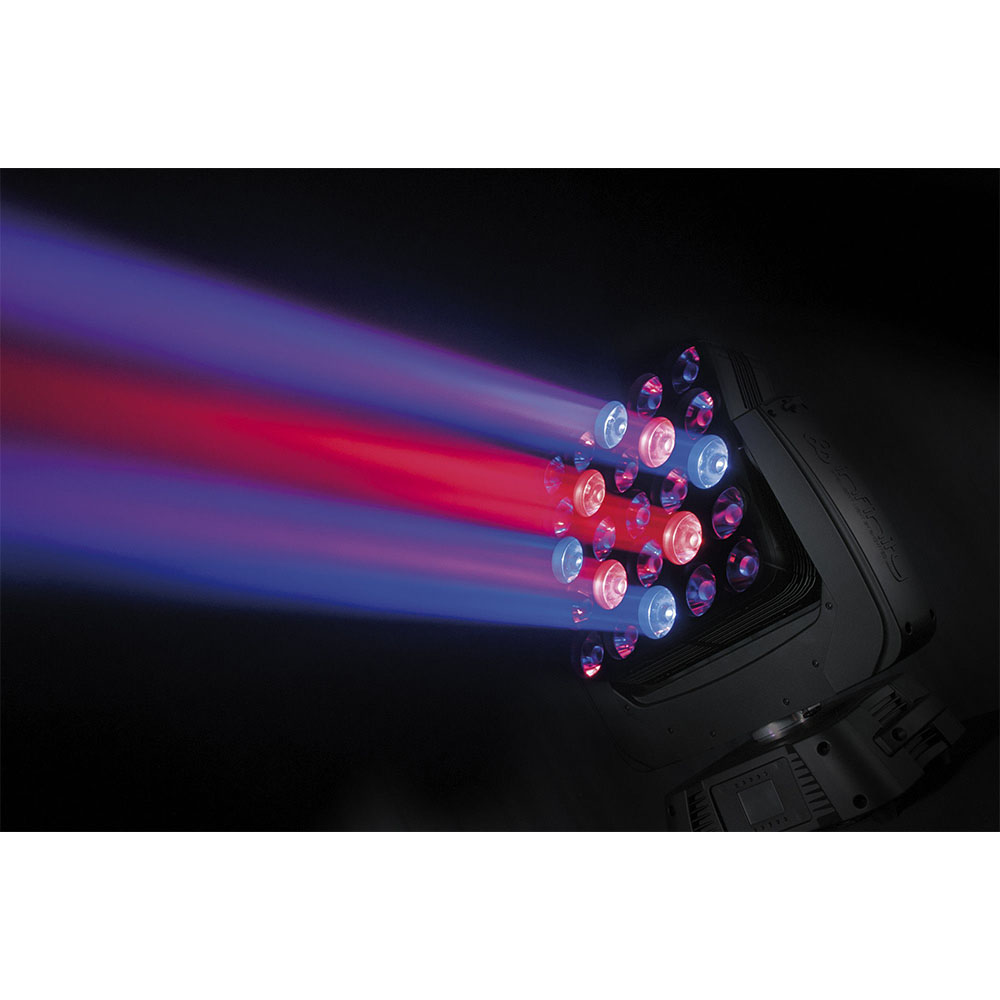

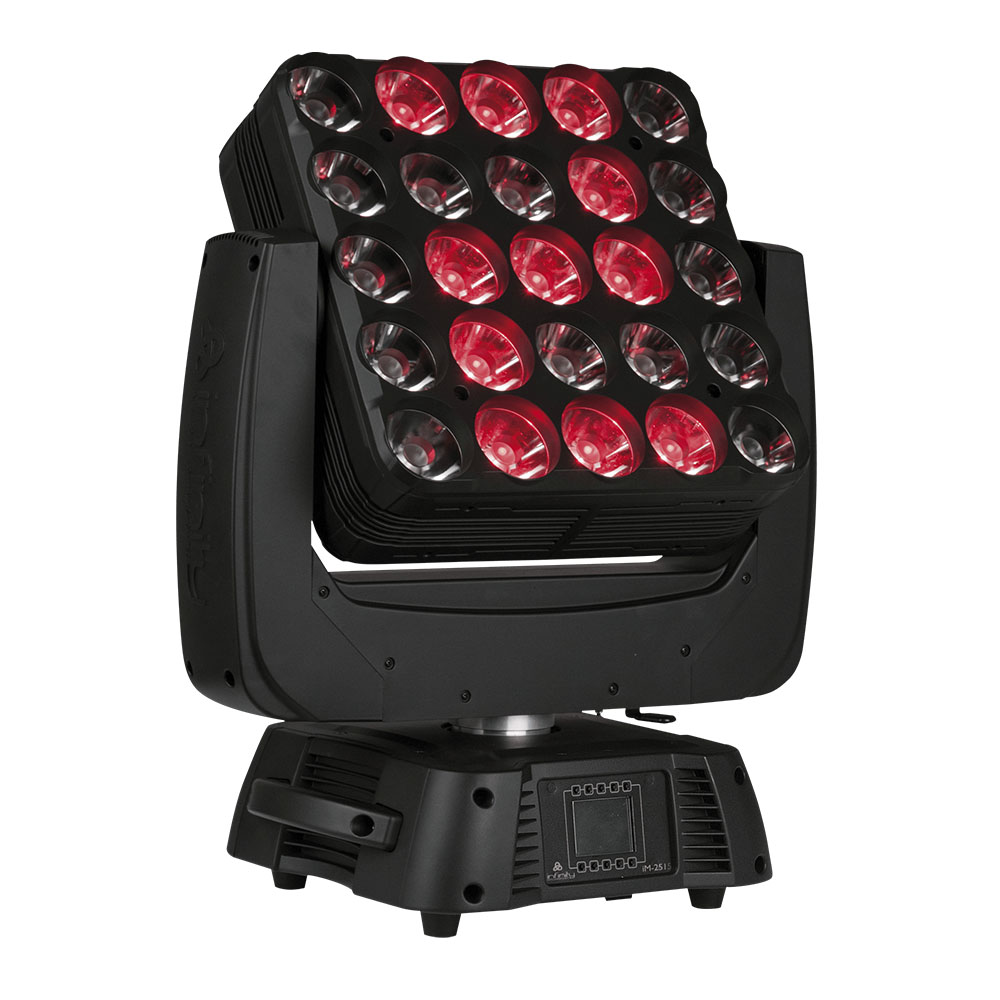

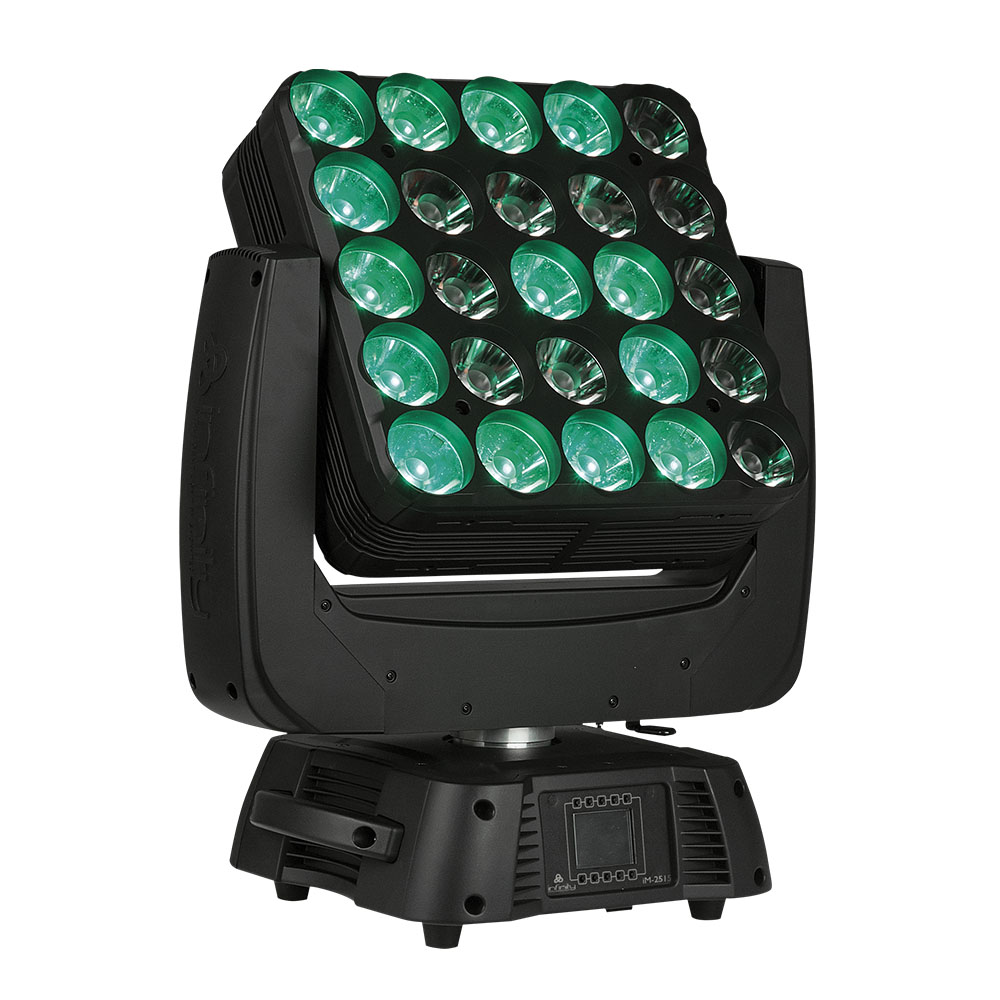

Full Pixel control
Continuous Pan & Tilt rotating

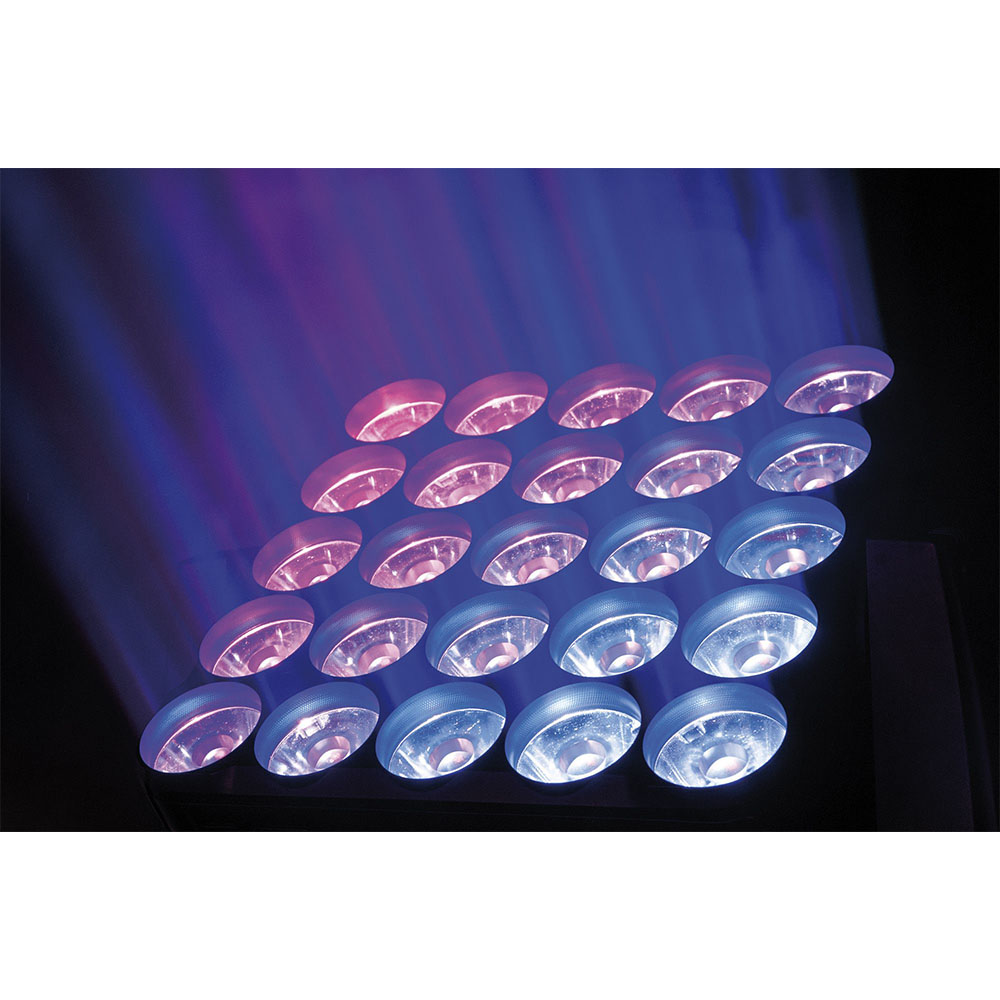

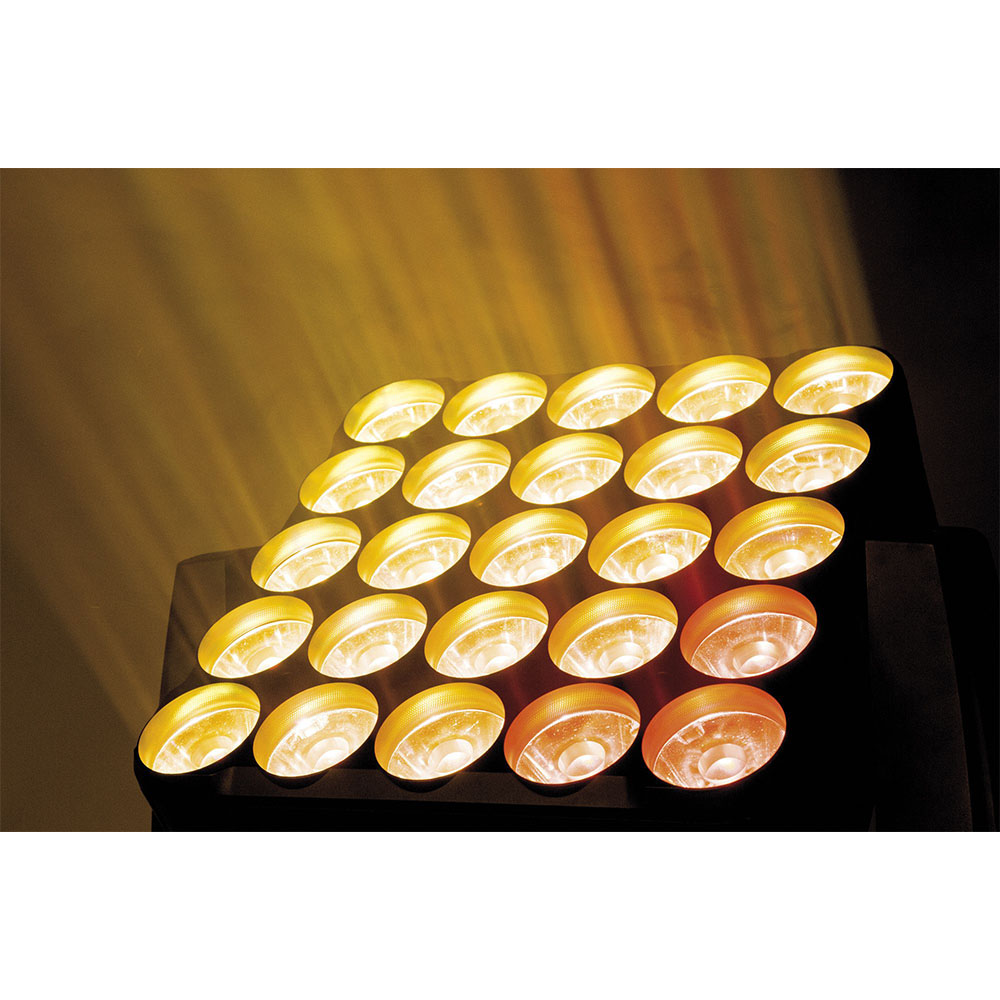

5x5 RGBW Matrix
Selectable RGBW or CMY colour mixing

仕様

Specifications
■Source
・Light Source Type: LED
・Light Source Quantity: 25
・Light Source Power: 15 W
・LED Colour Type: RGBW
・Luminous Flux (Total): 11700 lm
・CCT: 19000 K

■Optical
・Beam Angle (Circular): 4.5 °
・Field Angle (Circular): 4.5 °

■Control and Programming
・Control Mode: Auto, DMX, Master Slave
・DMX Channels: 23, 123, 100 Art-Net + 15 DMX
・Protocols: Art-Net, DMX
・Wireless: Optional
・Display: Battery, Gravity Sensor, LCD
・Dim Curve: Linear, Square, I-Square, S-Curve
・Zone Control (Sections): 25

■Dynamic Effects
・Dimmer: 0-100 %
・Strobe: 0-20 Hz

■Movement
・Pan: 540 °
・Tilt: 270 °
・Pan/Tilt Resolution: 16-bit
・Continuous Movement: Yes

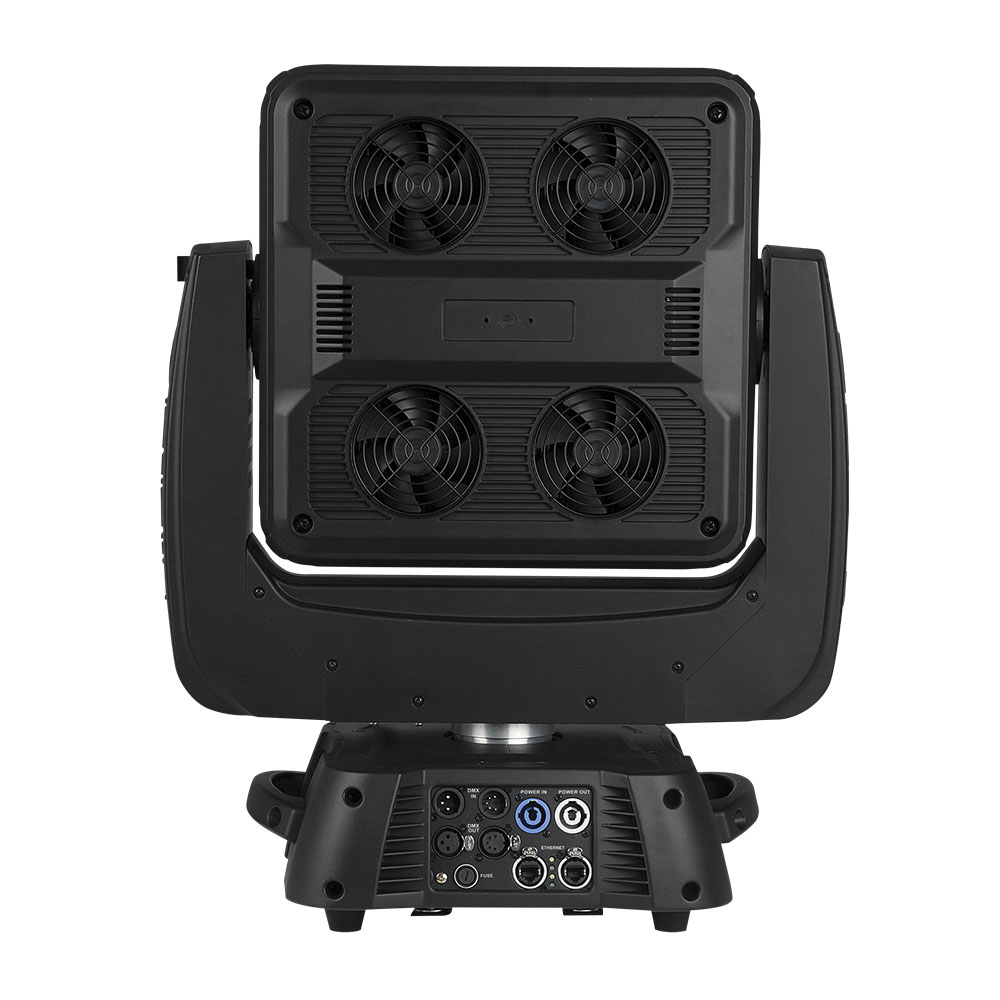

■Electrical Specifications and Connections
・Power Supply: 100-240 V AC 50/60 Hz
・Power Consumption: 510 W
・Fuse: 10 A
・Power Connector In: powerCON Blue
・Power Connector Out: powerCON Grey
・DMX Connector: XLR 3P In/Out, XLR 5P In/Out
・DMX Connector In: XLR 3P, XLR 5P
・DMX Connector Out: XLR 3P, XLR 5P
・Data Connector In: RJ45
・Data Connector Out: RJ45

■Mechanical Specifications
・IP Rating: IP20 (indoor use only)
・Housing: Metal, Plastic
・Colour: Black

■Product Properties
・Cooling: Axial fan

■Rigging

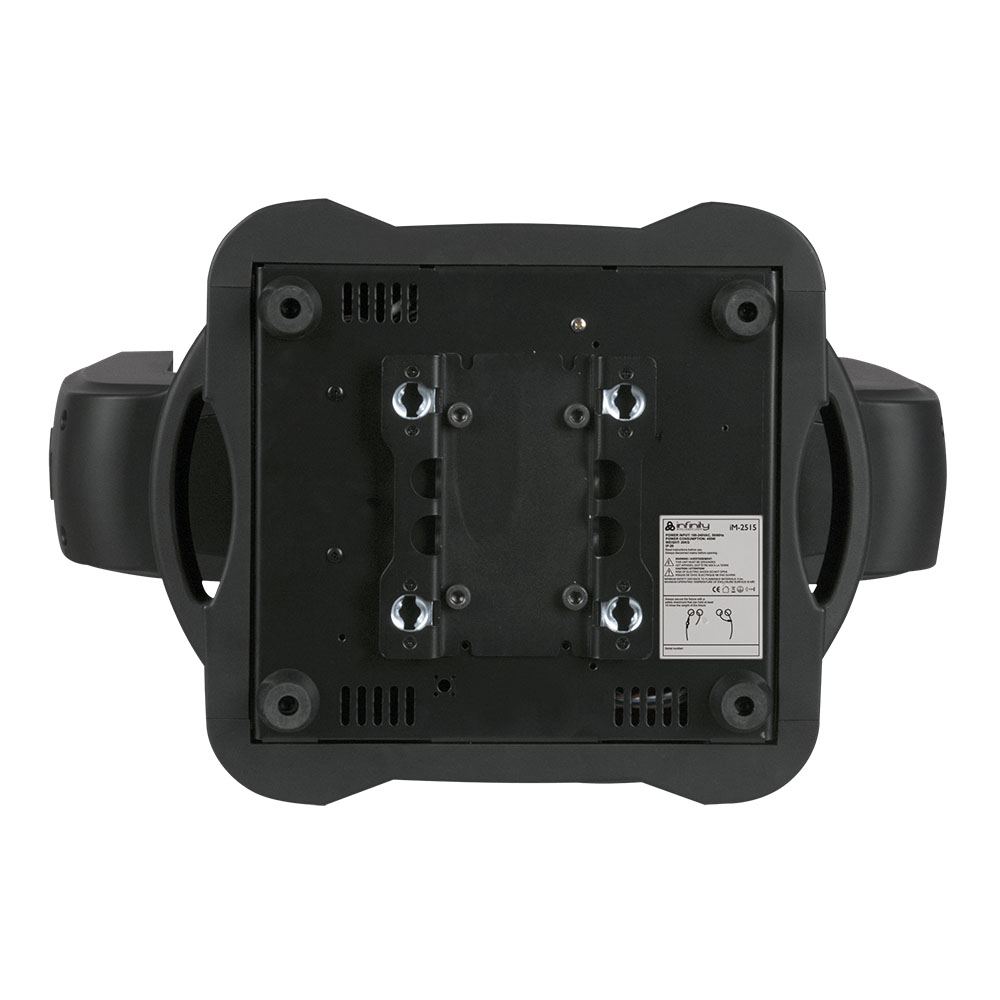

・Mounting Options: Quick-Lock
・Safety Attachment: Yes

■Thermal Specifications
・Maximum Ambient Temperature: 40 °C
・Maximum Surface Temperature: 80 °C

■Included Items
・Included Cables: powerCON cable
・Included Rigging: Quick-Lock Bracket
