Elation FUZE WASH Z120（フューズウォッシュ Z120）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

概要

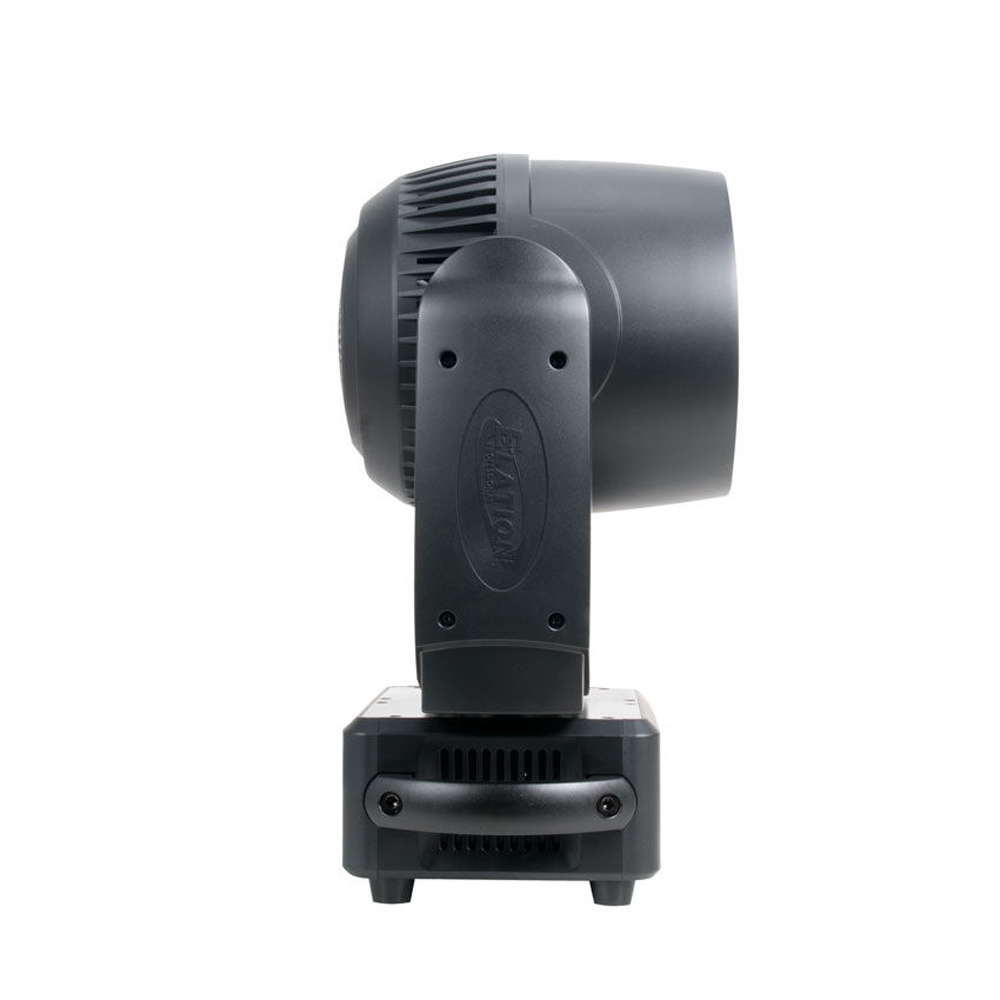

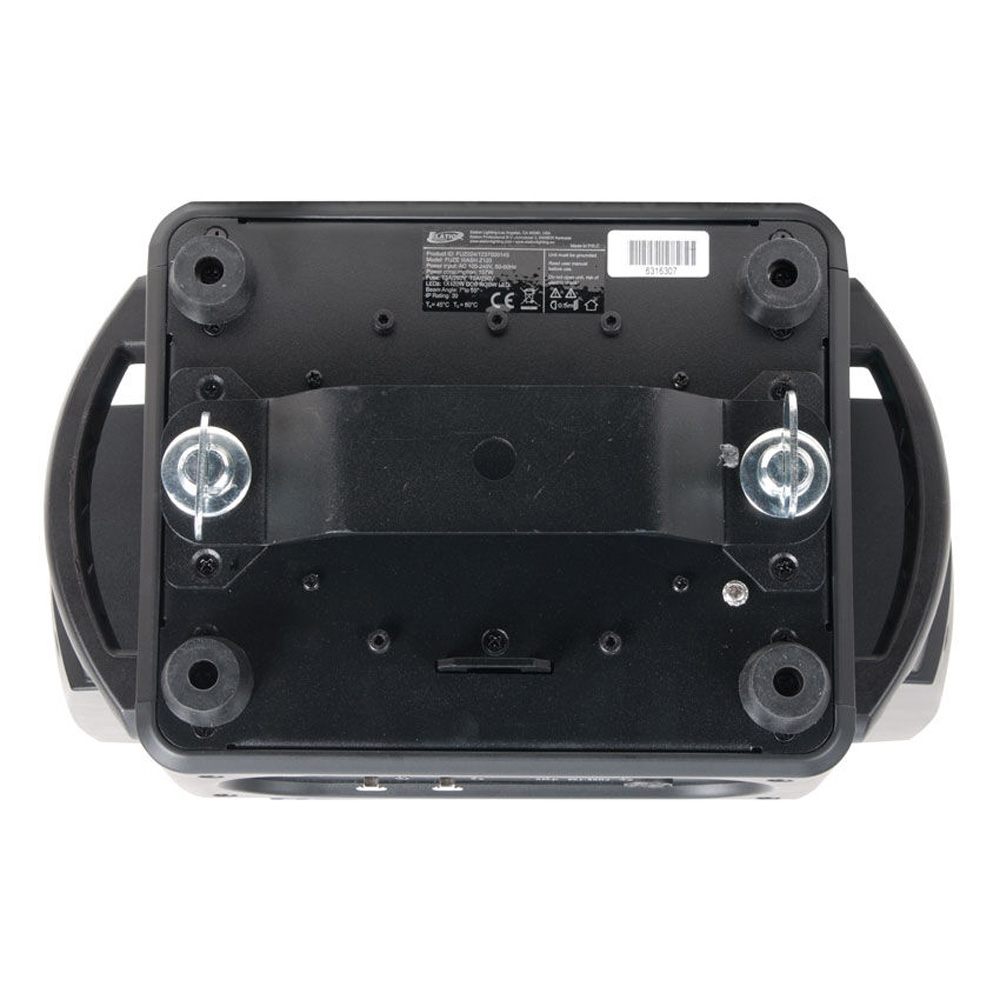

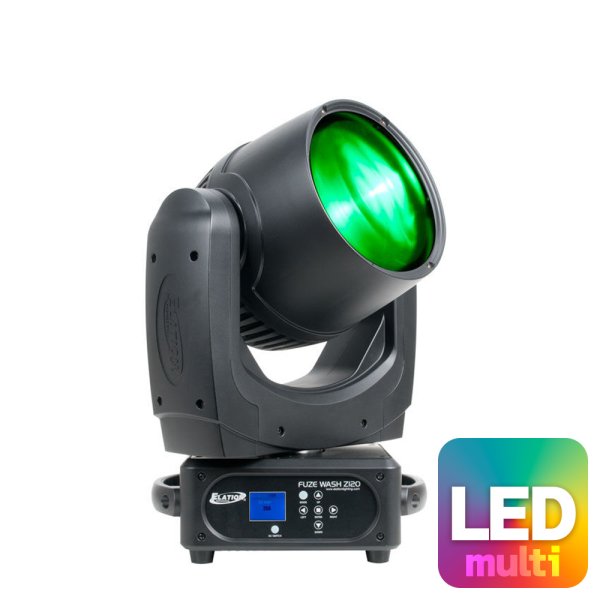

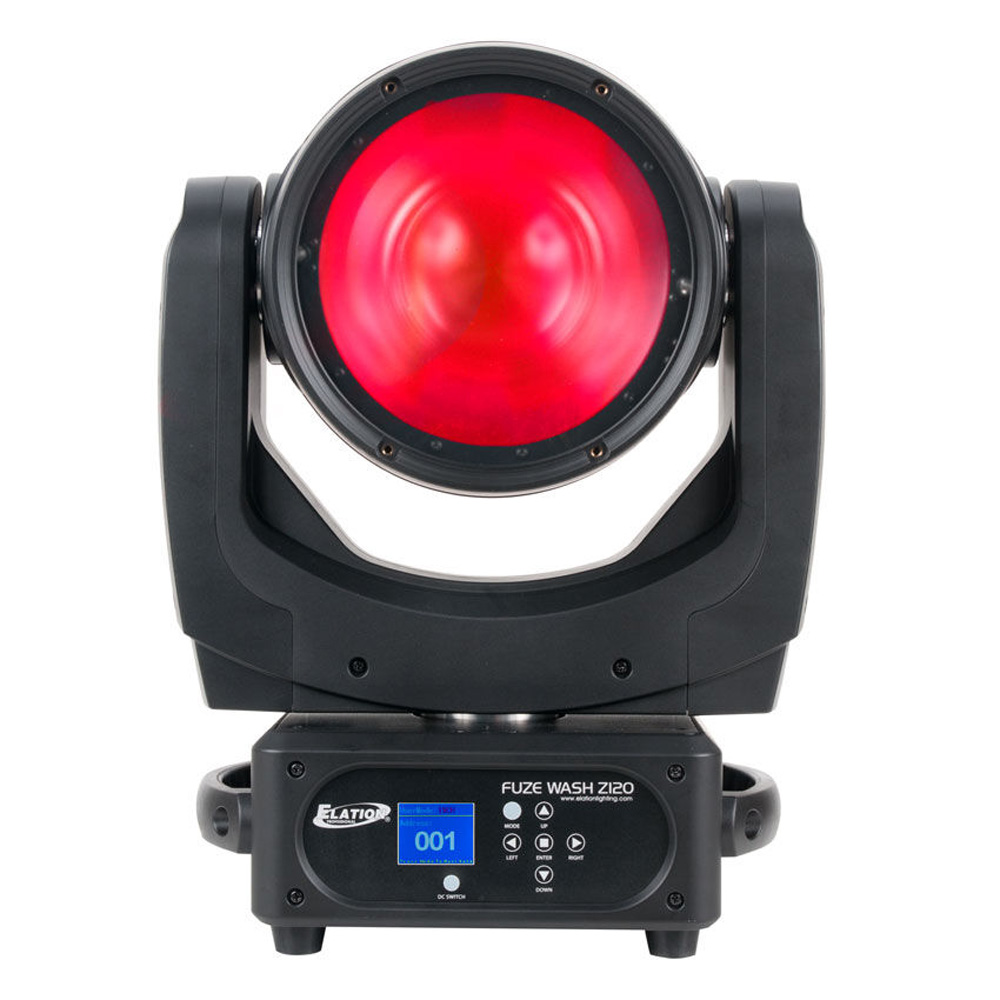

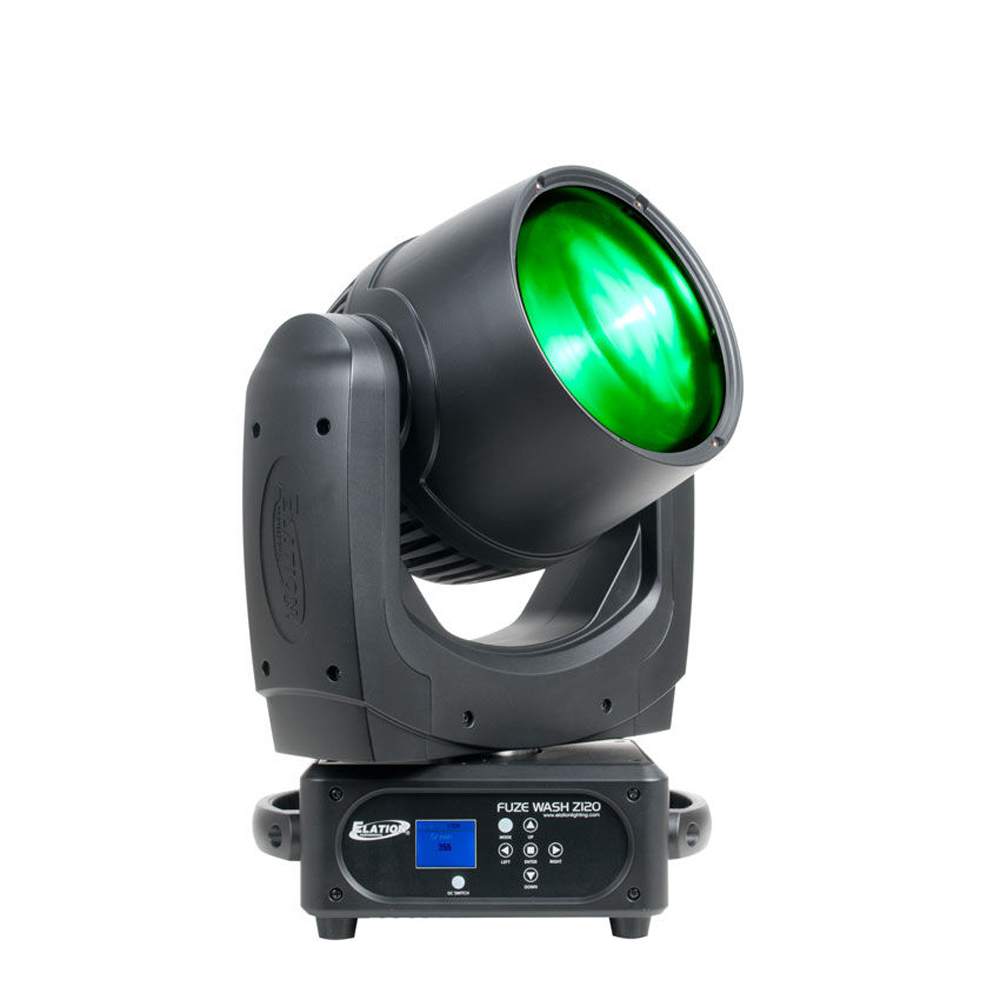

The FUZE WASH Z120™ is a single source par moving head luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, pan and tilt, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, DMX and power in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

特徴

120W RGBW COB LED Moving Head Wash Luminaire
RGBW Color Mixing
7° TO 55° Wide Motorized Zoom Range
Variable Dimming Curves
Multiple Unit Power Linking
RDM (Remote Device Management)
Flicker Free Operation for TV and FILM

仕様

SOURCE
120W RGBW COB LED
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
10,640 LUX 988 FC @9.8’ (3m) (7° Full ON)
692 LUX 64 FC @9.8’ (3m) (55° Full ON)

COLOR
RGBW

EFFECTS
RGBW Color Mixing
7° - 55° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
Pan Angle: 540/630
Tilt Angle: 250

CONTROL / CONNECTIONS
4 DMX Channel Modes (19 Total Channels)
7 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)

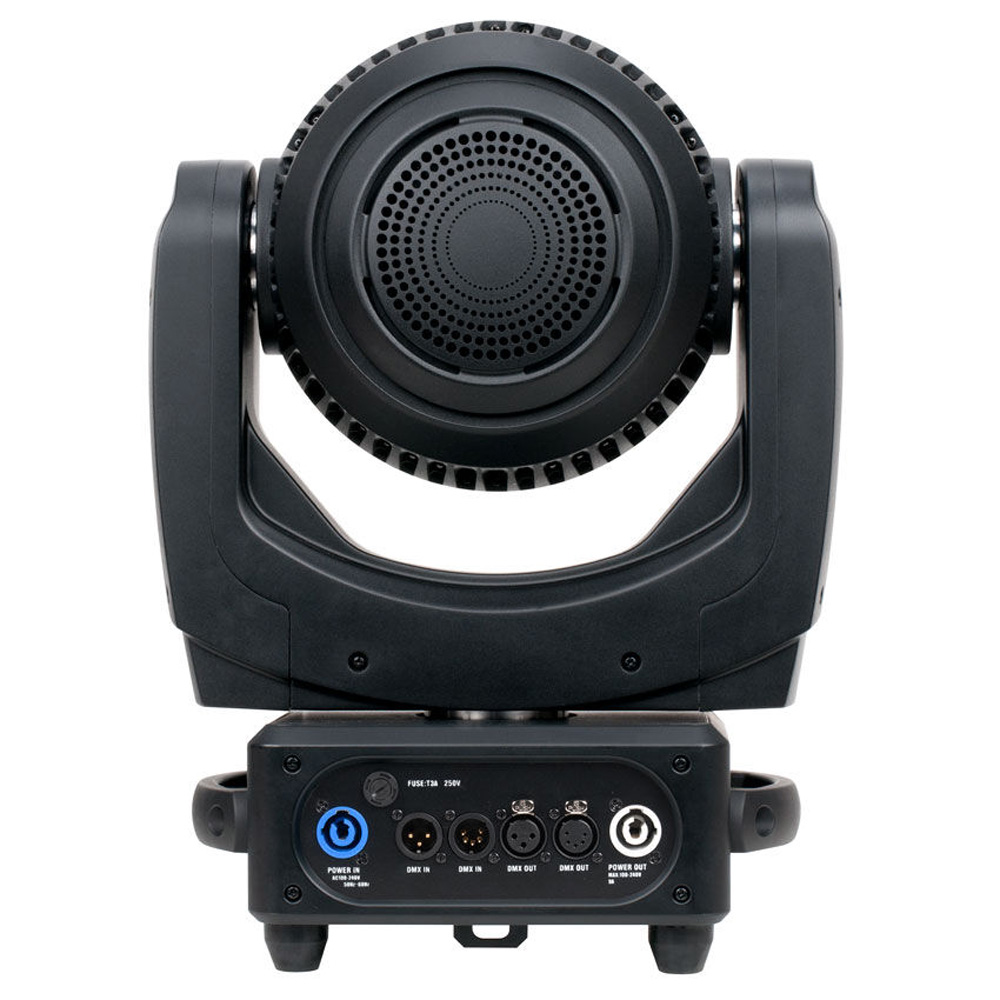

3pin/5pin DMX and Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 13.3" (338mm)
Width: 9.0" (229mm)
Vertical Height: 18.2" (466mm)
Weight: 22 lbs. (10 kg)

ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
157W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 535.37

APPROVALS / RATINGS
CE | cETLus | IP30

OPTIONAL ACCESSORIES:

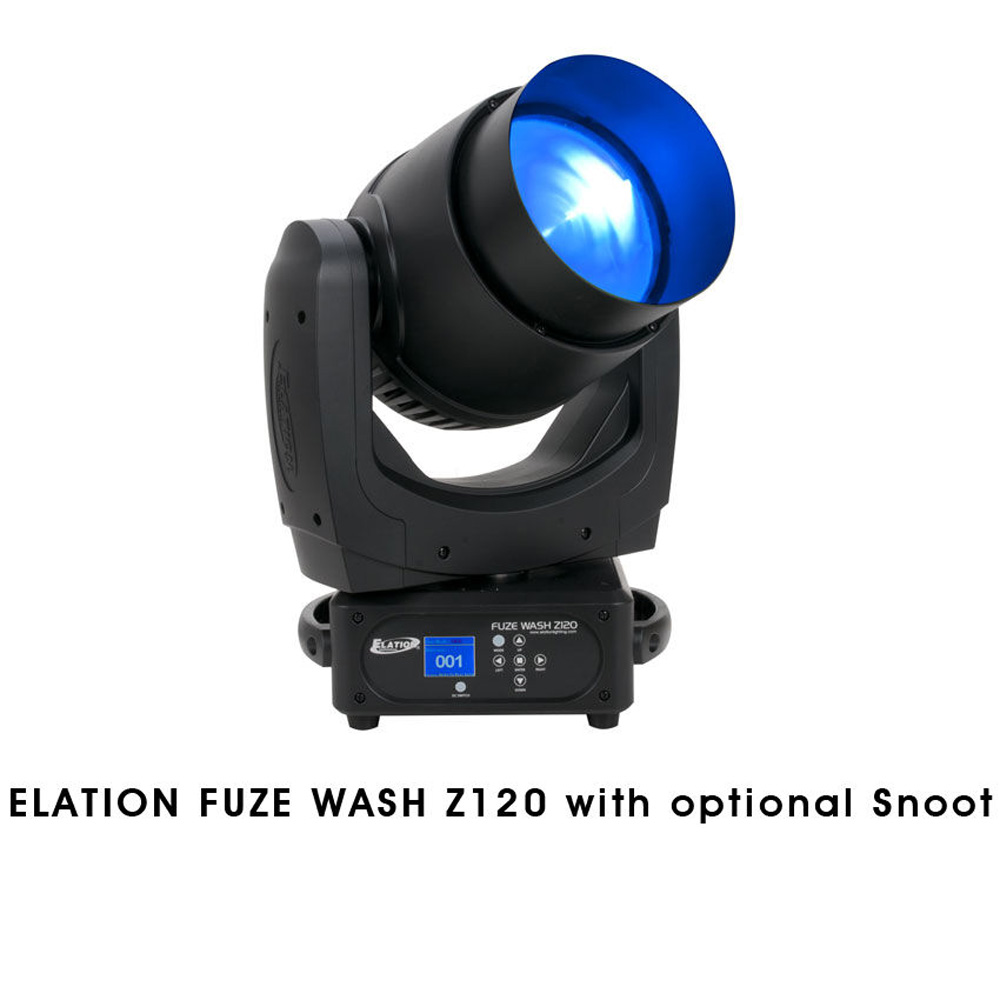

FW120SNOOT - Snoot

FIRMWARE UPDATES

Current Version: V1.18

Click HERE for software updates.
