Elation PROTEUS RADIUS（プロテウスラディアス）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

概要

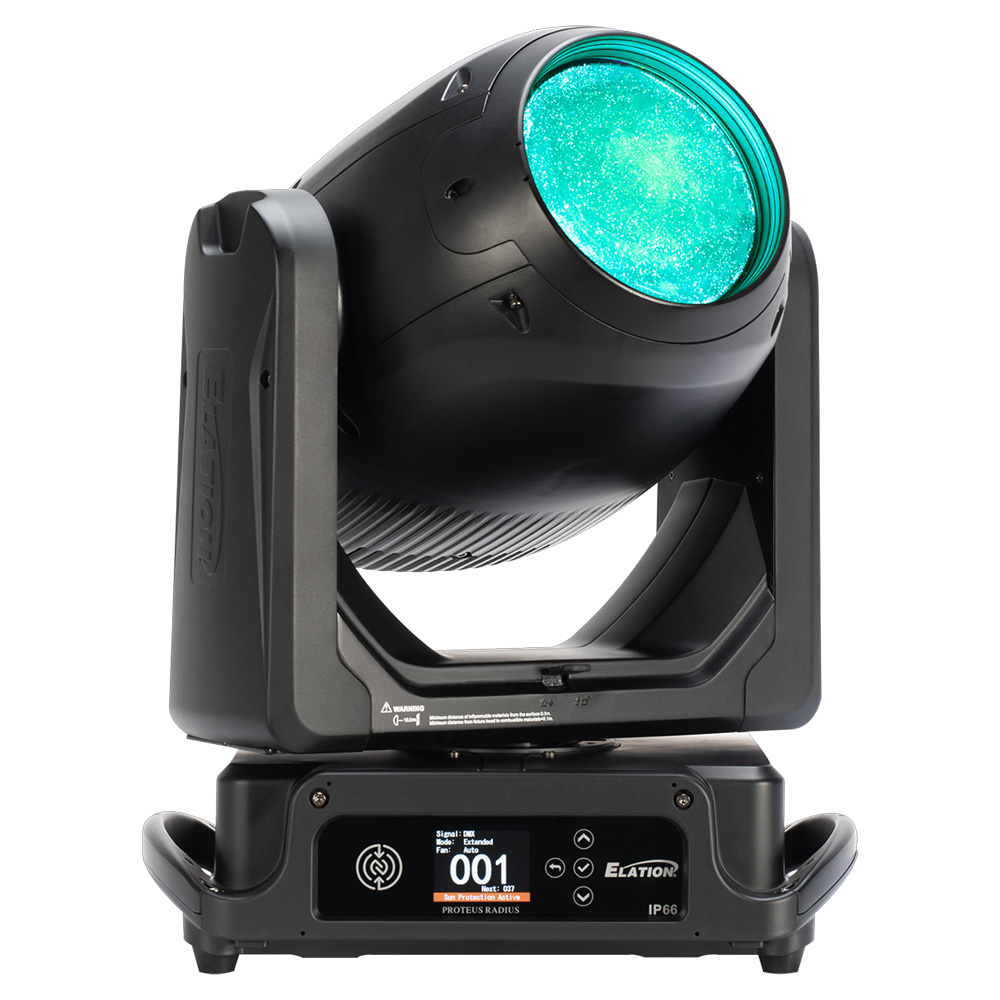

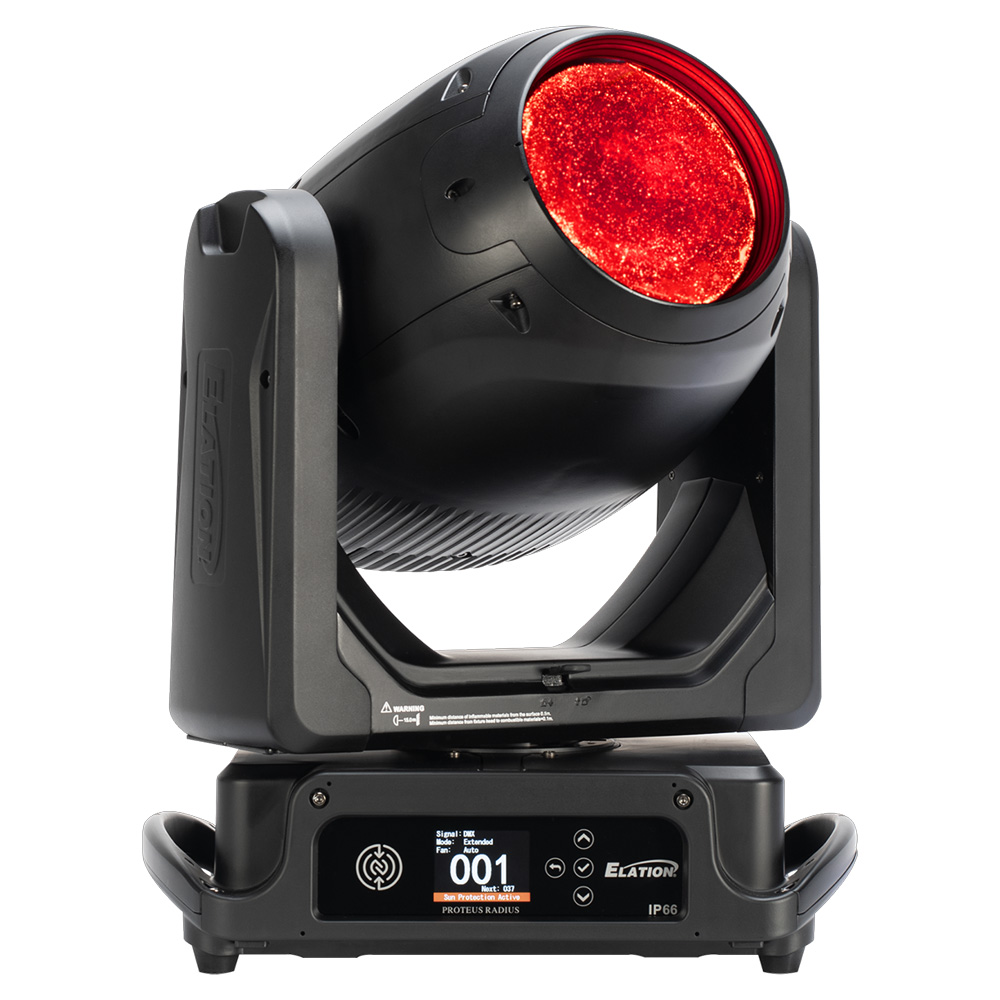

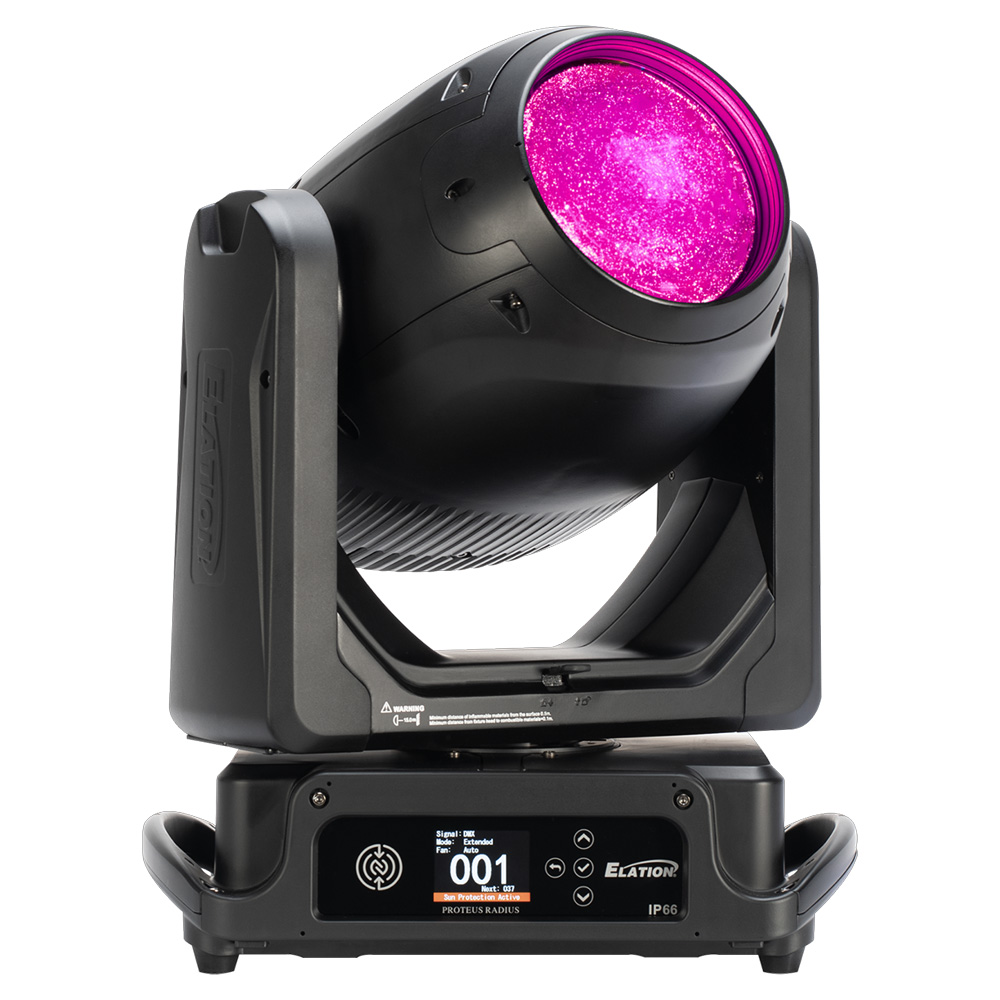

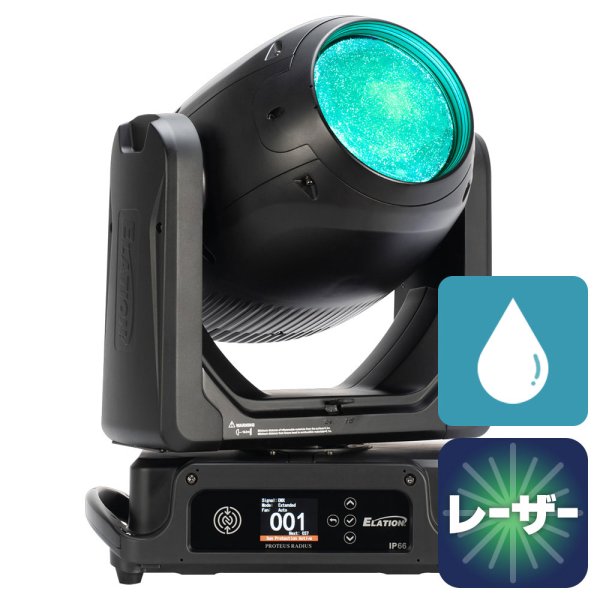

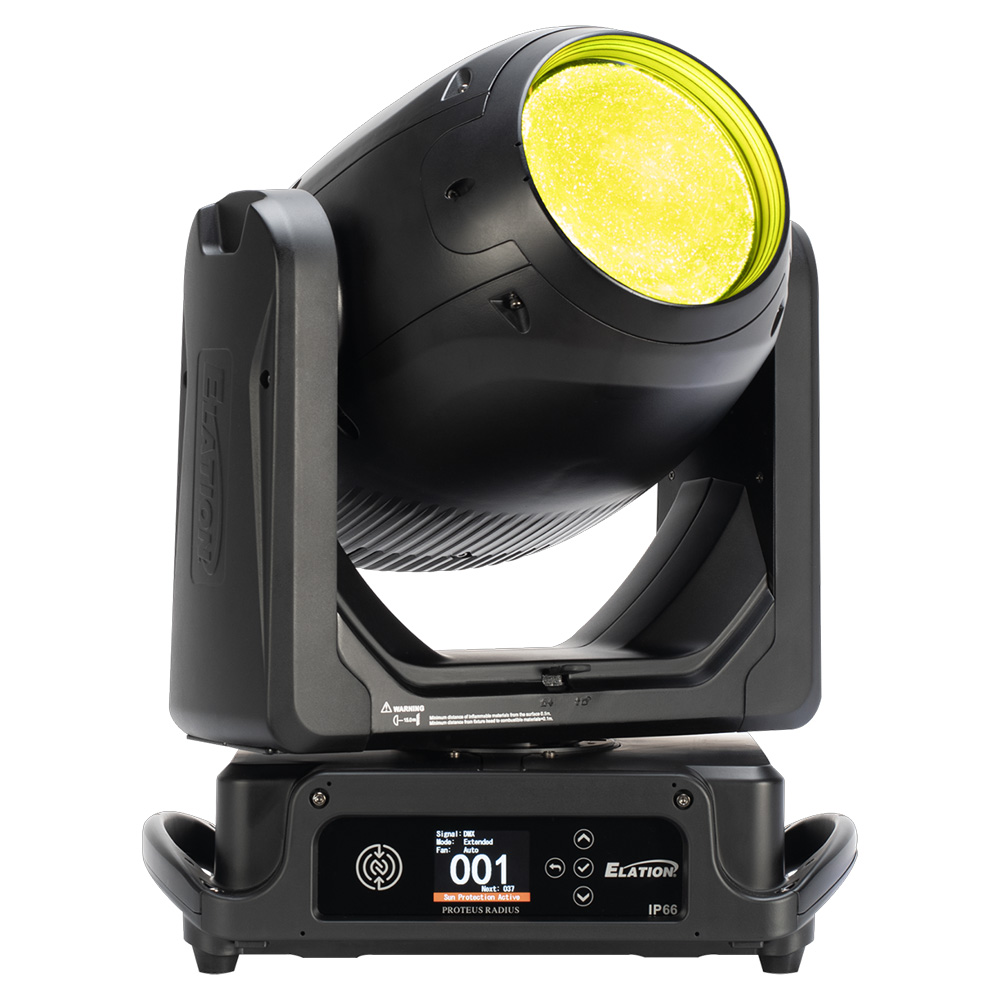

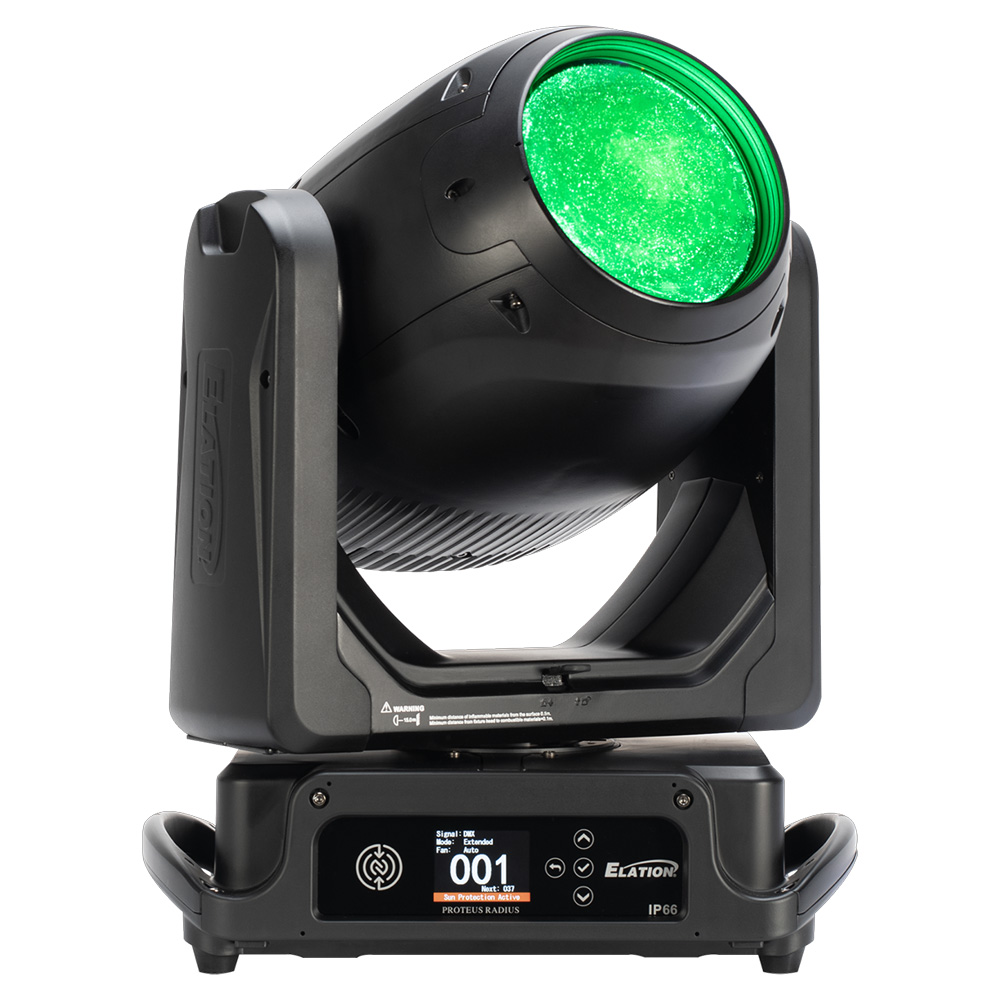

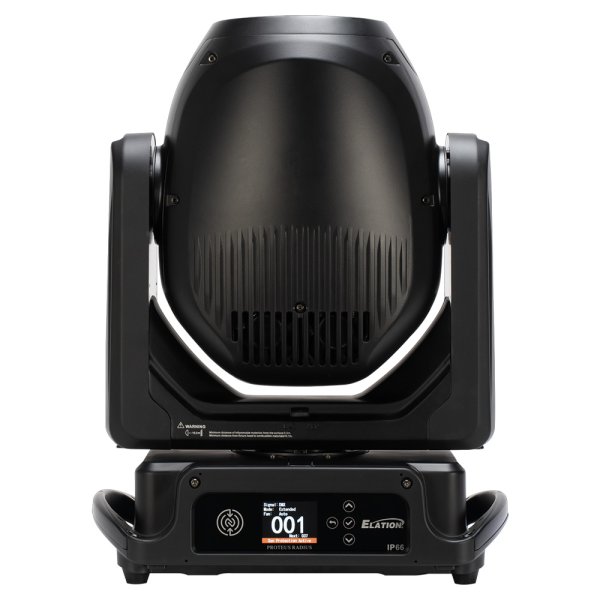

The PROTEUS RADIUS is an IP66-rated Laser Illuminated Lighting Instrument (LILI) that combines cutting-edge technology with a compact design. It uses a 100W light engine to project narrow, powerful beams that reach incredible distances with precision. Its standout feature is ultra-fast 360-degree continuous rotation on both axes, allowing for bold and dynamic beam animations. Add to that CMY color mixing, customizable gobos, prisms, and frost effects, and you have a versatile tool that empowers lighting designers to create stunning aerial visuals.
The PROTEUS RADIUS is available as a Class 1 Risk Group 2 Laser Product, meaning it requires no federal operator variance for use in the United States1. Whether for concerts, competitions, or high-profile events, the PROTEUS RADIUS is built to deliver when it matters most.

特徴

100W Laser Illuminated Light Engine
Compact and lightweight IP66 housing
Ultra Intense 0.9˚ Beam
Endless High-Speed 360 Pan and Tilt Movements
CMY Color Mixing CMY
FX Package with rotating, fixed gobo, four prisms, and dual frost
NFC Support
FIL (Foam In Lay) Polyurethane Foam Packaging Included

仕様

SOURCE

100W Laser Illuminated Light Engine

6000K, CRI 70

10,000 Hour Lamp Life

PHOTOMETRIC DATA

2700 Lumen Total Fixture Output

Beam Angle 0.9˚

EFFECTS

Dual Frost

4 Prisms on Dual Planes

CMY Color, Gobo, Prism Macros

Motorized Focus

Digital Shutter and Strobe

COLOR

Full CMY Color Mixing System

25 Position Color Wheel

GOBOS

2 Gobo Wheels

13 Interchangeable-Rotating / Indexing Metal Gobos

24 Static-Stamped Metal Gobos

CONTROL / CONNECTIONS

2 DMX Channel Modes

(4) Button Touch Panel

Full Color 180° Reversible LCD Menu Display

DMX, RDM, Art-Net and sACN Protocol Support

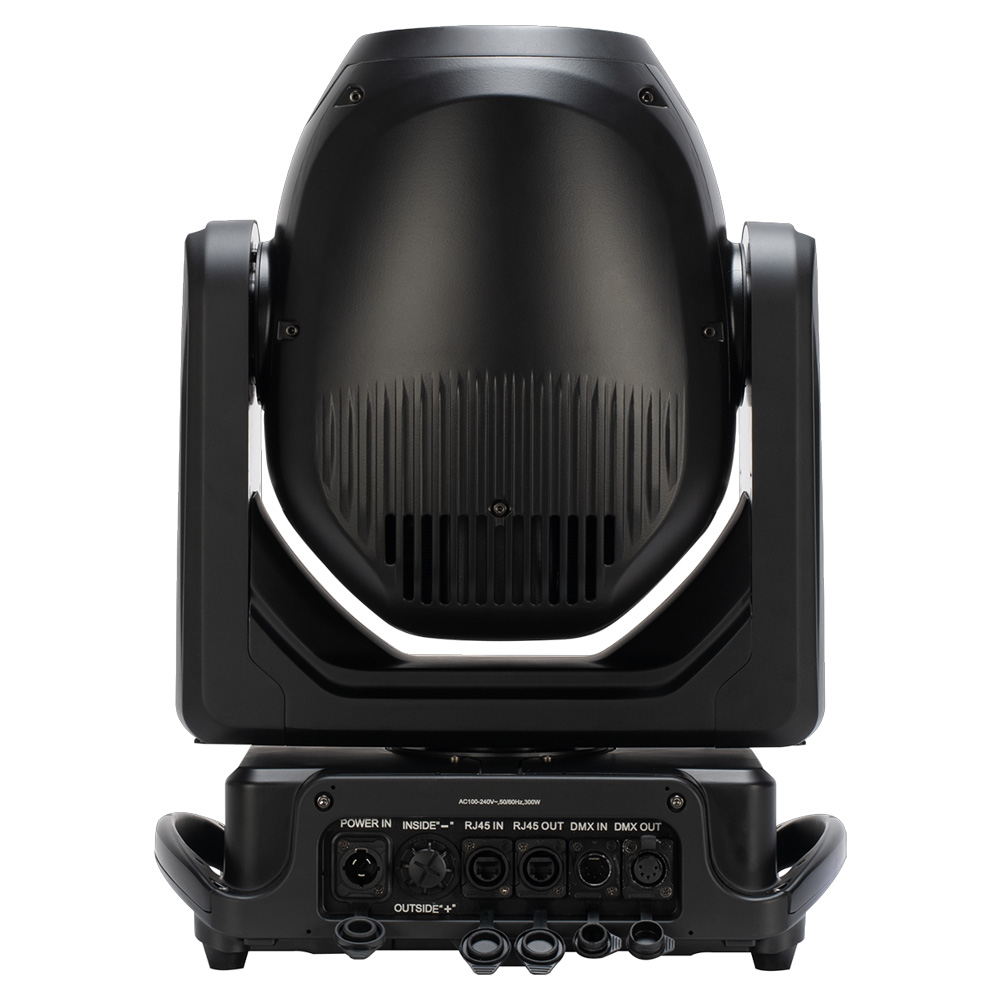

IP65 5pin DMX In/Out

IP65 RJ45 Ethernet In/Out

IP65 Locking Power In

SIZE / WEIGHT

Length: 10.6” (270mm)

Width: 15.5” (395mm)

Height: 20.3” (516mm)

Weight: 45.0 lbs. (20.4kg)

Center-to-Center: 18.0" (456mm)

ELECTRICAL / THERMAL

AC 100-240V 50/60Hz

300W Max Power Consumption

-4°F to 113°F (-20°C to 45°C)

APPROVALS / RATINGS

CE | cETLus | IP66 | FCC
