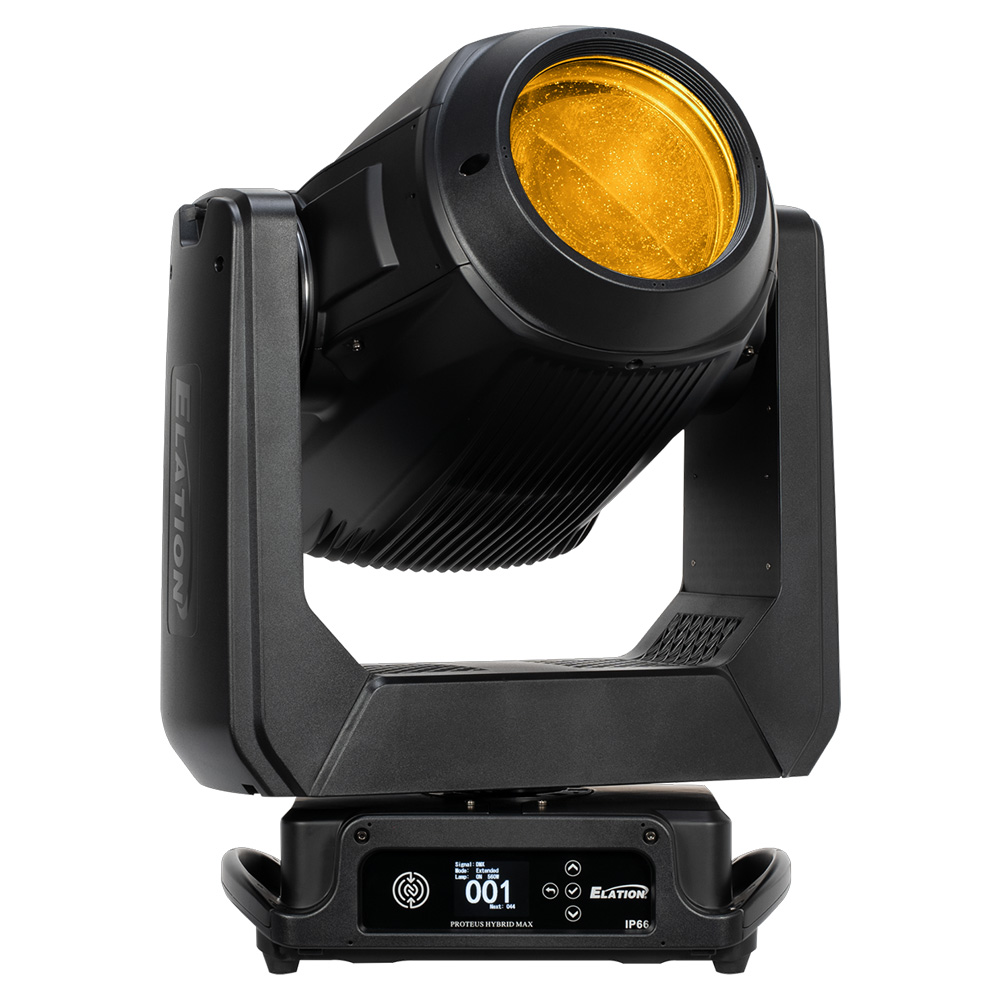

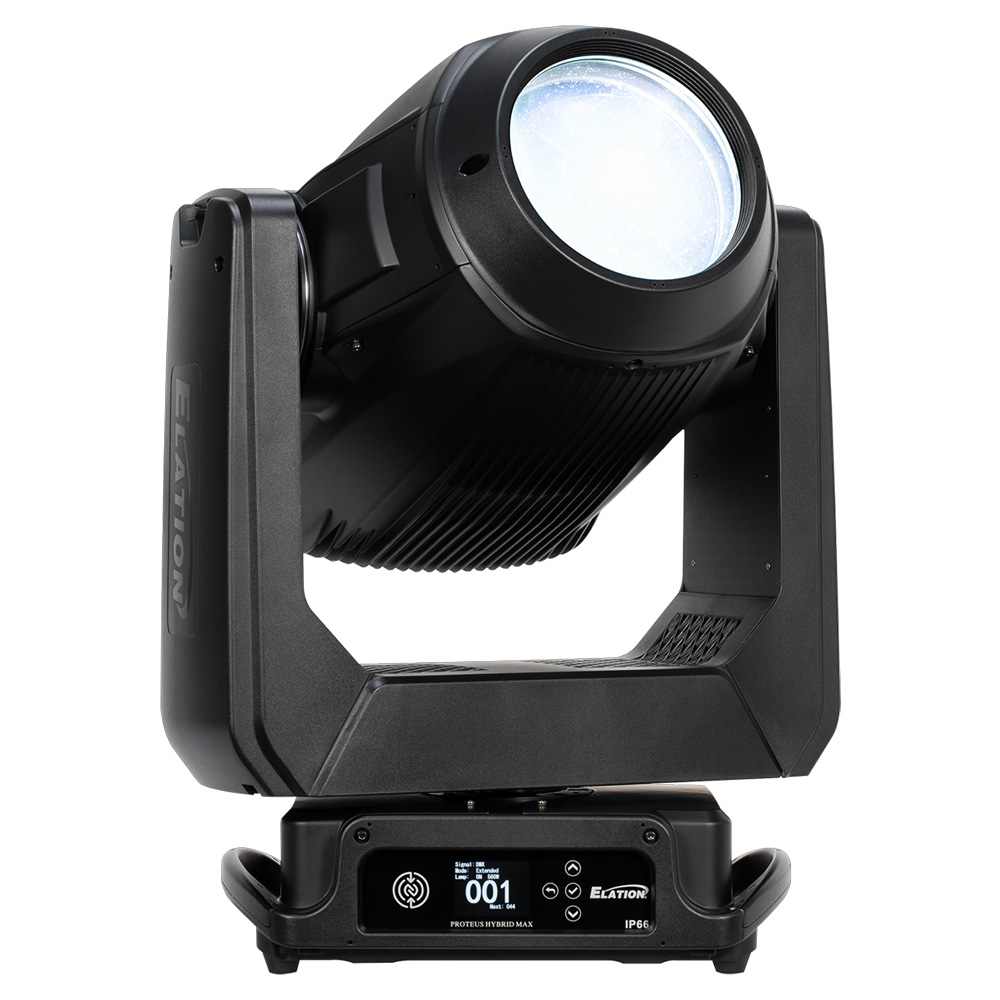

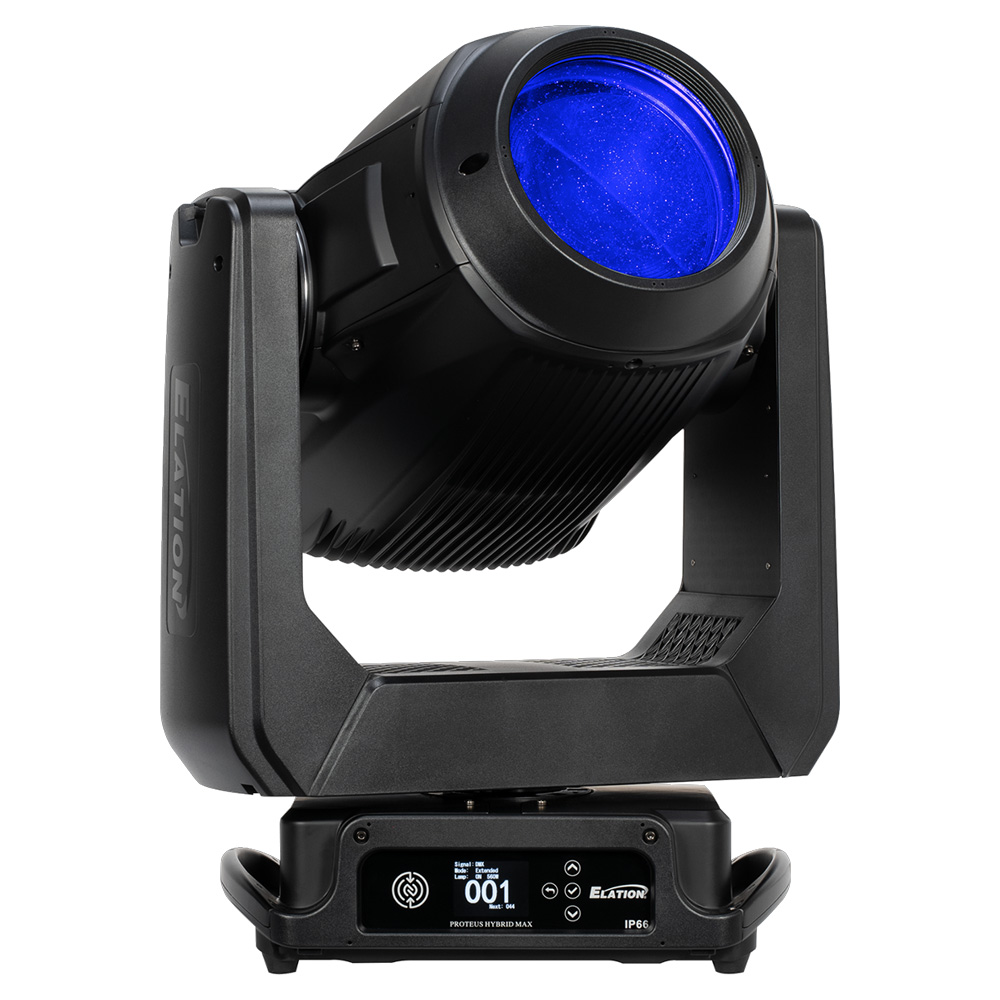

Elation PROTEUS HYBRID MAX（プロテウスハイブリッドマックス）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

概要

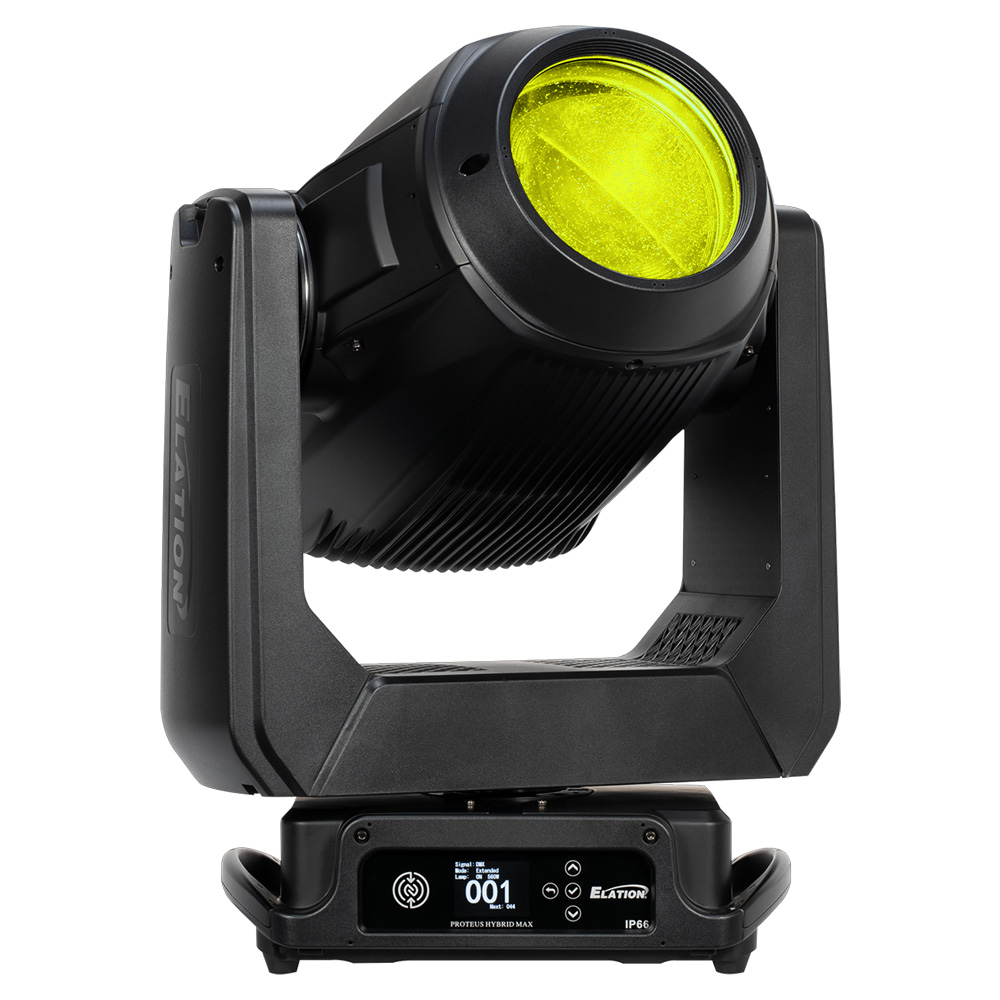

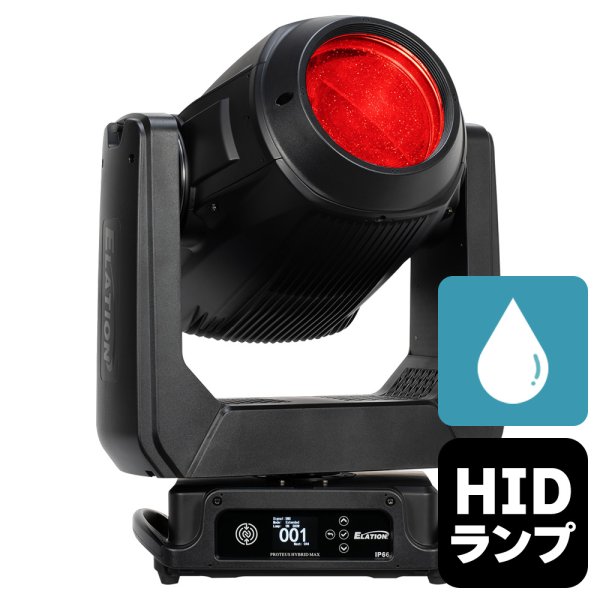

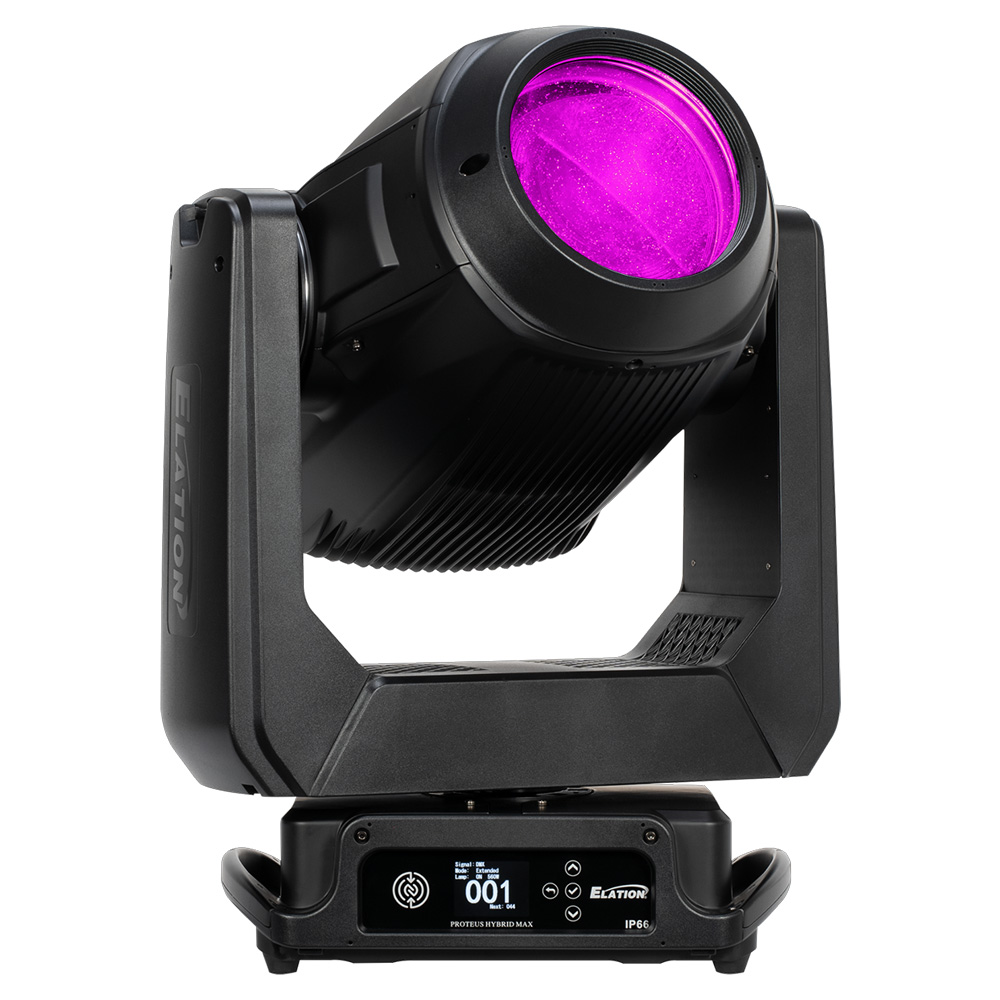

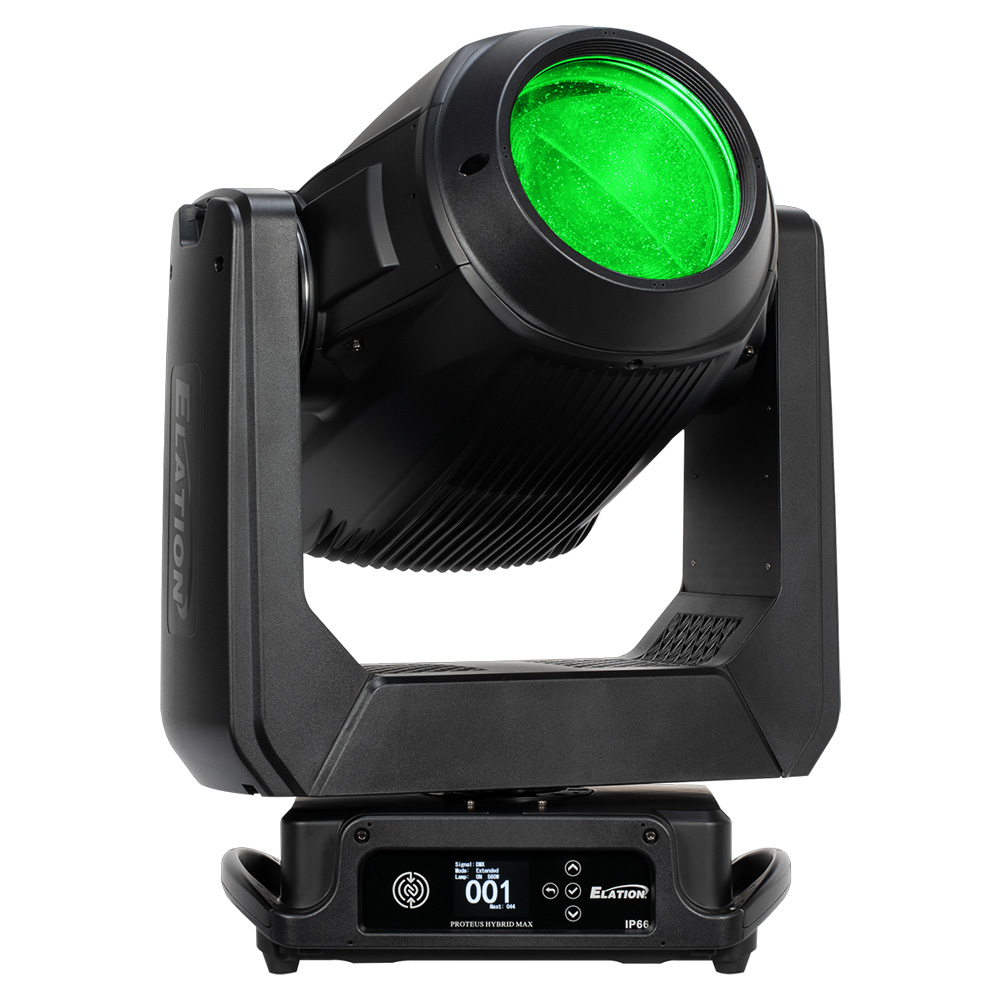

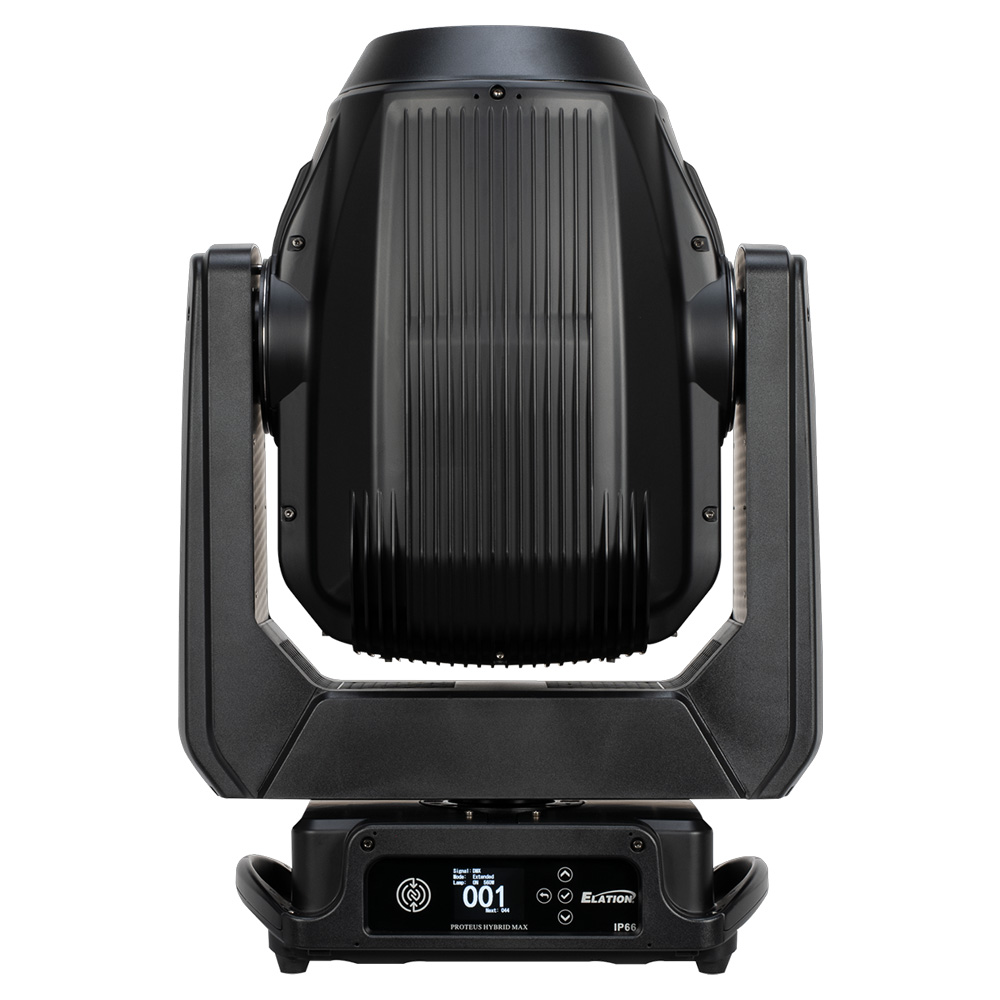

The PROTEUS HYBRID MAX™ combines high output and long lamp life in a feature packed compact IP66 Hybrid fixture. PROTEUS HYBRID MAX is the Extreme Output Hybrid featuring the innovative Philips MSD Platinum FLEX 500 lamp.

Rated at 550W and up to 4,000 hours smart lamp life the HYBRID MAX includes CMY and variable CTO plus a full complement of projection and effects options.
Four prisms on two planes, dual frosts plus dual gobo wheel and three tracks of animation patterns round out the comprehensive FX package in a compact and lightweight housing. For extra impact the fixture features a fast continuous pan rotation.
Delivering 22,000 lumens from its large 170mm front aperture, the PROTEUS HYBRID MAX has a crisp output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application, while providing an excellent return on investment.

The PROTEUS HYBRID MAX™ includes the innovative Sky Motion system to operate the fixture as an impactful searchlight effect without the need for a dedicated lighting controller. Multiple fixtures can be interconnected, and with the simple assignment of IDs the fixture provides immediate access to a variety of movement patterns that are easily adjustable in size, speed, and color directly from the display. Comparable in output to large format Xenon fixtures the PROTEUS HYBRID MAX™ operates at a fraction of the power, supports a wide range of 100-240V, has a much smaller footprint, lower weight and is fully IP66 rated. The Sky Motion system allows standalone operation for events and applications and is easy to set up and adjust directly from the display of the fixture even for "non-lighting" users and expands the usability of the fixture beyond traditional show lighting applications.

特徴

Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture
Flex Lamp Technology 550W plus Smart Hibernation with up to 4,000 Hour Lamp Life
Full CMY Color Mixing System, Variable CTO, Color Wheel
Creative FX Package: 8 Rotating and 16 Static Gobos, Dual and Single-Track Animation, Iris, 4x Prism on Dual Planes, 2x Frost
Ultra-Fast Zoom
360˚ Endless Pan Motion
IP66 rating protects from water and dirt
Sky Motion System for powerful searchlight and skytracker animations

仕様

SOURCE

Philips MSD Platinum 500 Flex 550W Lamp

Variable Lamp Power

Automated Lamp Hibernation with Instant Recovery

Up to 4,000 Hour Lamp Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA

22,000+ Lumen Total Fixture Output

Zoom Range 1.8˚ - 45˚

EFFECTS

Beam, Spot and Wash Modes

Motorized Zoom

Dual Frost Filter for Light Frost/ Full Wash

4 Prisms on Dual Planes

Iris

CMY Color, Gobo, Prism Macros

Motorized Focus with Auto-Focus Feature

High Speed Shutter and Strobe

Pan Angle: 540°/630°

Tilt Angle: 250°

COLOR

Full CMY Color Mixing System

Variable CTO

16 Position Color Wheel

GOBOS

2 Gobo Wheels

8 Interchangeable-Rotating / Indexing Glass Gobos

16 Static-Stamped Metal Gobos plus Animation Track

Dual Track Animation Wheel

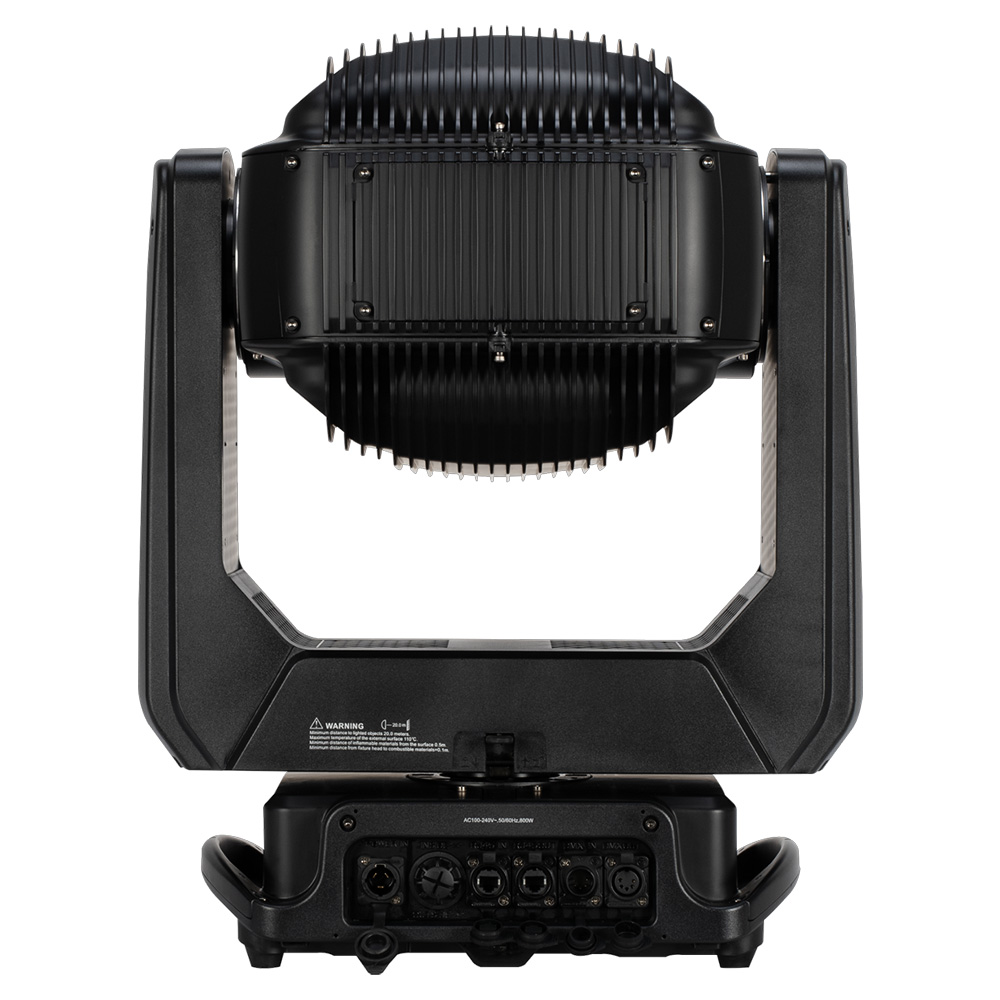

CONTROL / CONNECTIONS

2 DMX Channel Modes (32, 43)

(4) Button Touch Panel

Full Color 180° Reversible LCD Menu Display

DMX, RDM, Art-Net and sACN Protocol Support

IP66 5pin DMX In/Out

IP66 RJ45 Ethernet In/Out

IP66 Locking Power In

SIZE / WEIGHT

Length: 11.3” (287.5mm)

Width: 18.8” (476.8mm)

Height: 26.7” (677mm)

Weight: 78.3 lbs. (35.5 kg)

Center to Center Spacing: 21.3" (540.8)

ELECTRICAL / THERMAL

AC 100-240V 50/60Hz

800 W Max Power Consumption

-4° to 113°F (-20°C to 45°C)

APPROVALS / RATINGS

CE | cETLus | IP66

FIRMWARE UPDATES

Current Version: V1.3.6

Click HERE for software update

FIXTURE LIBRARIES

ONYX

GDTF
GRANDMA2
