Elation REBEL Profile（レベルプロファイル）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

概要

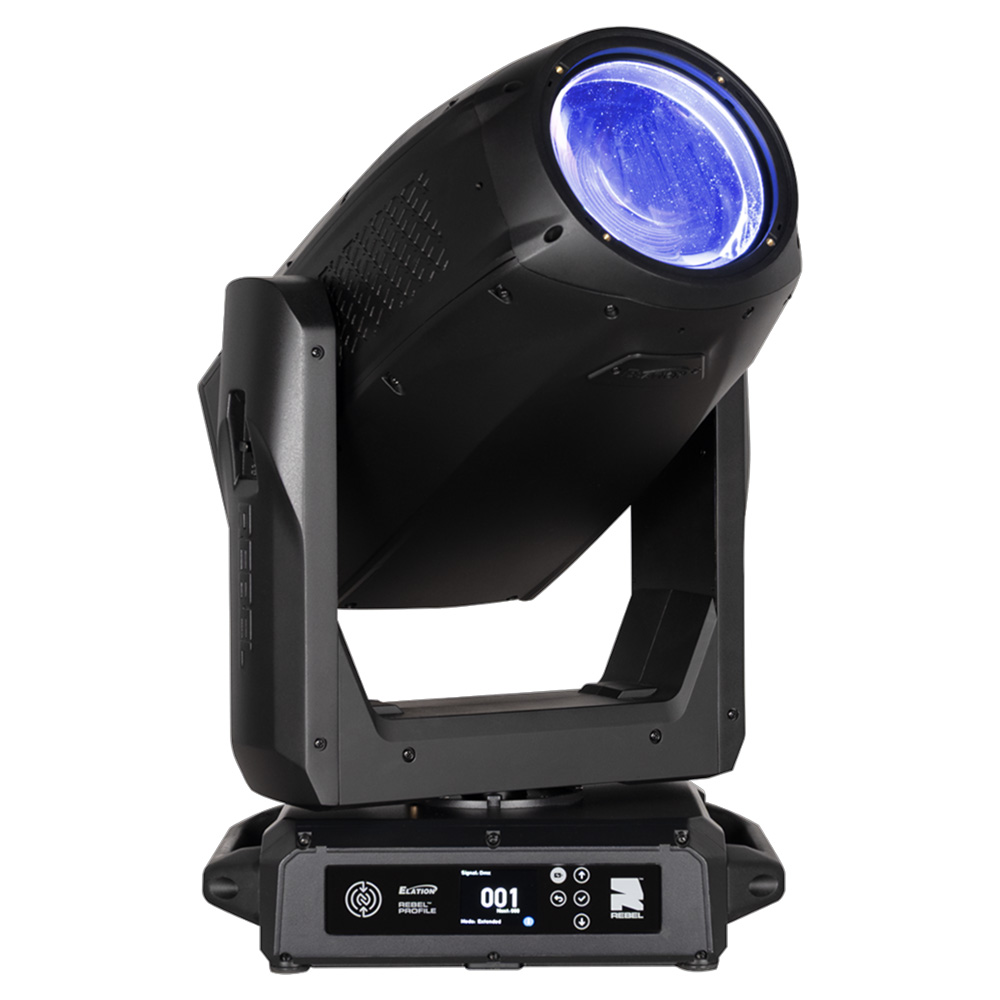

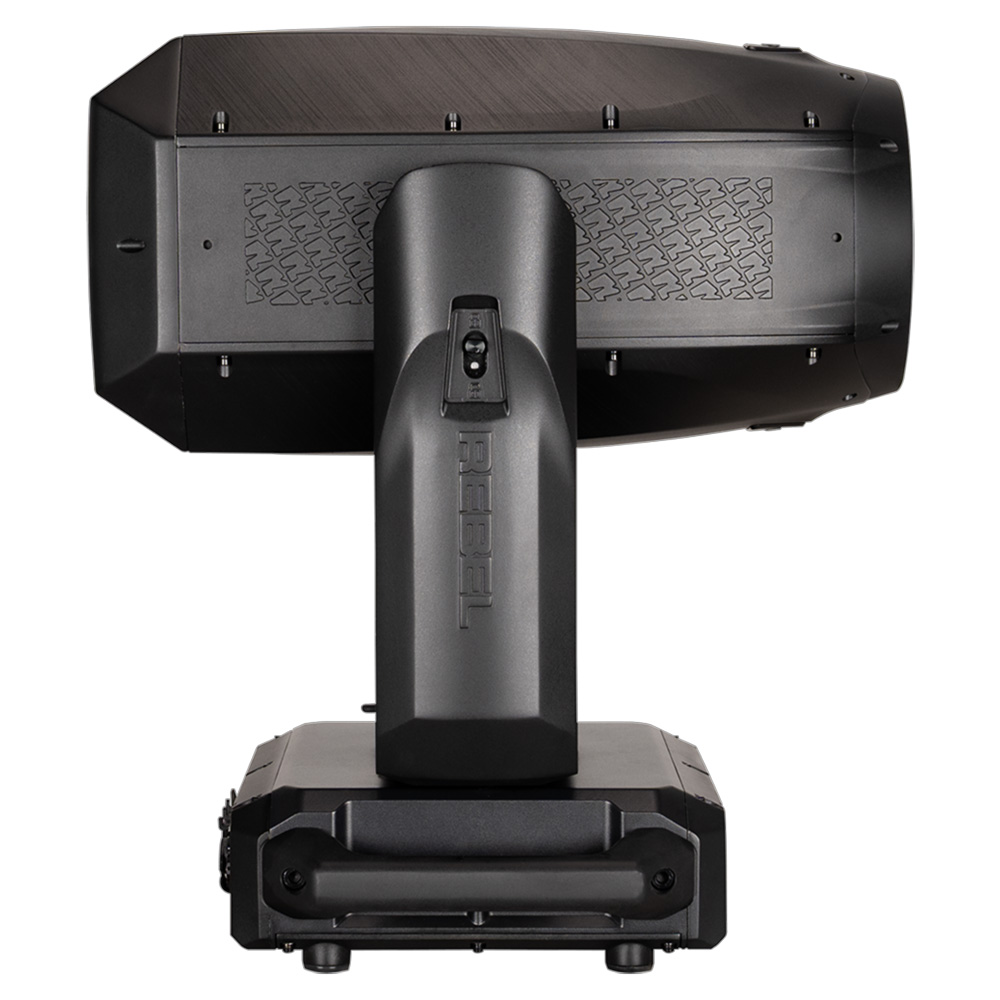

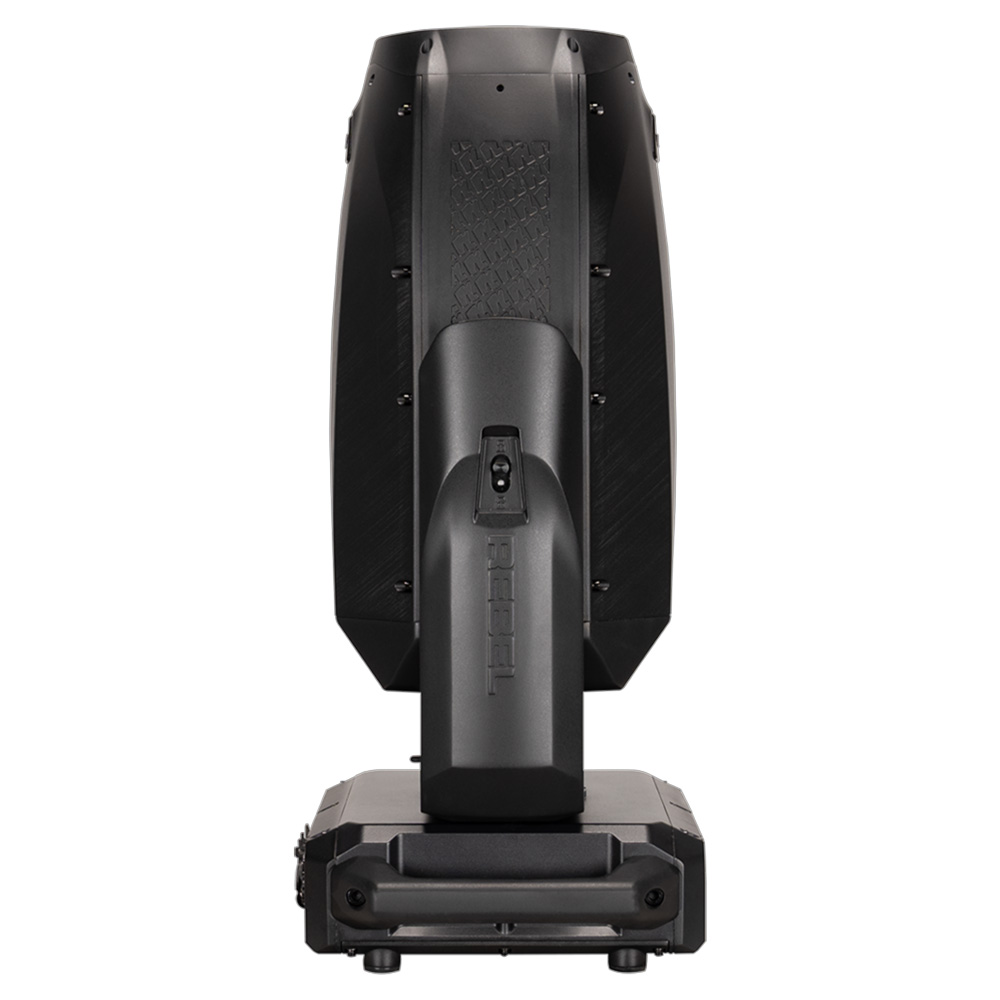

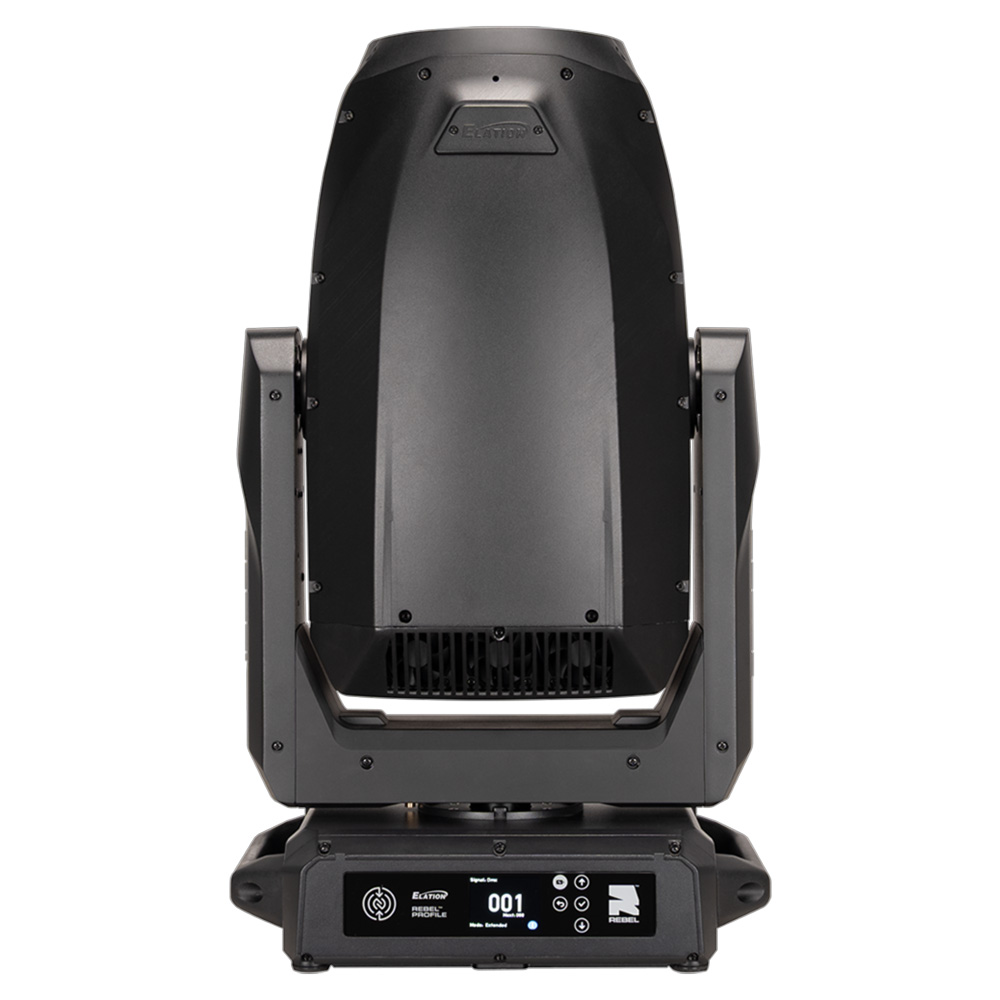

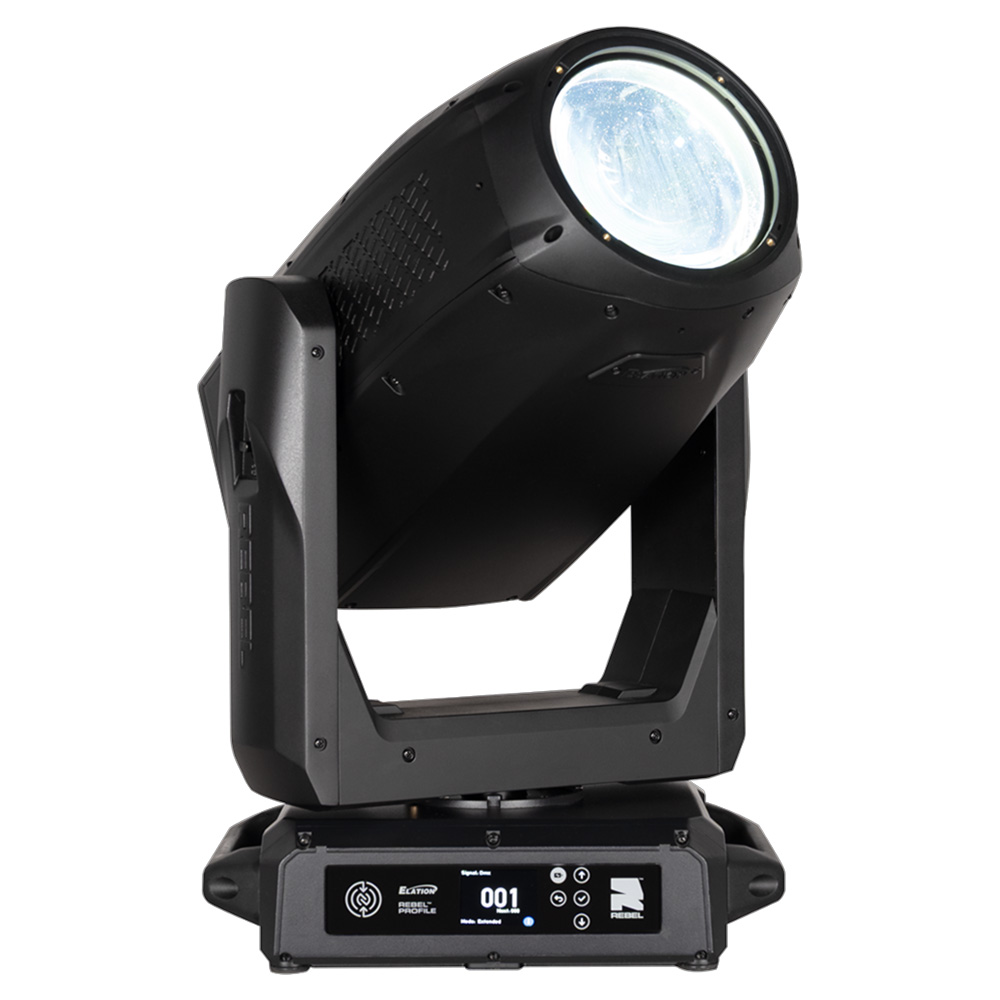

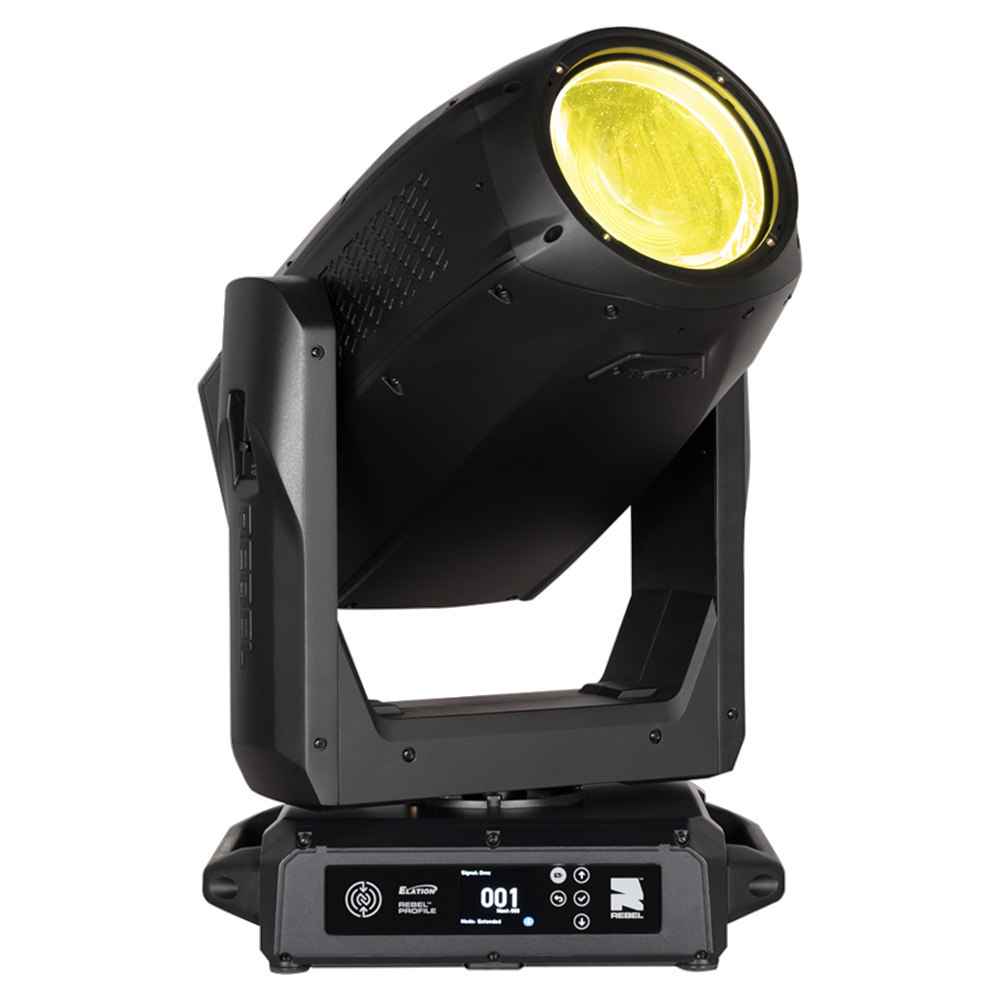

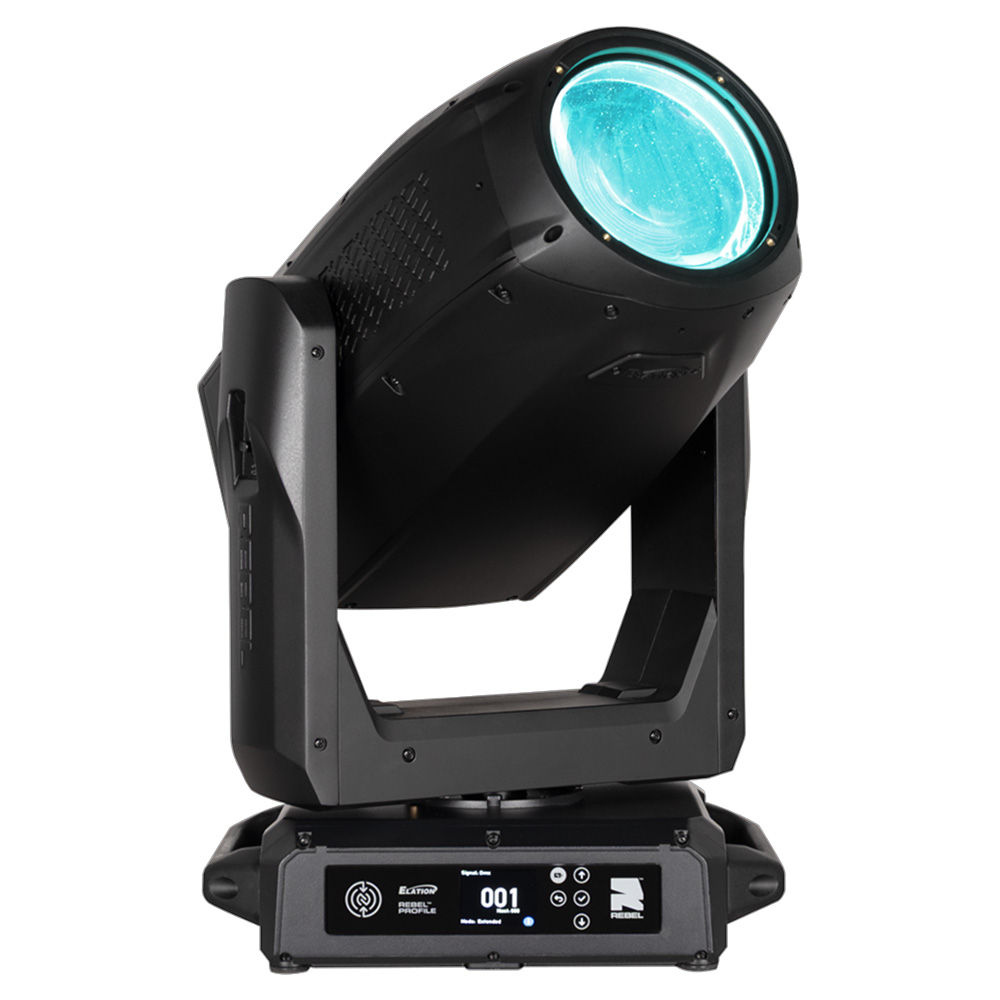

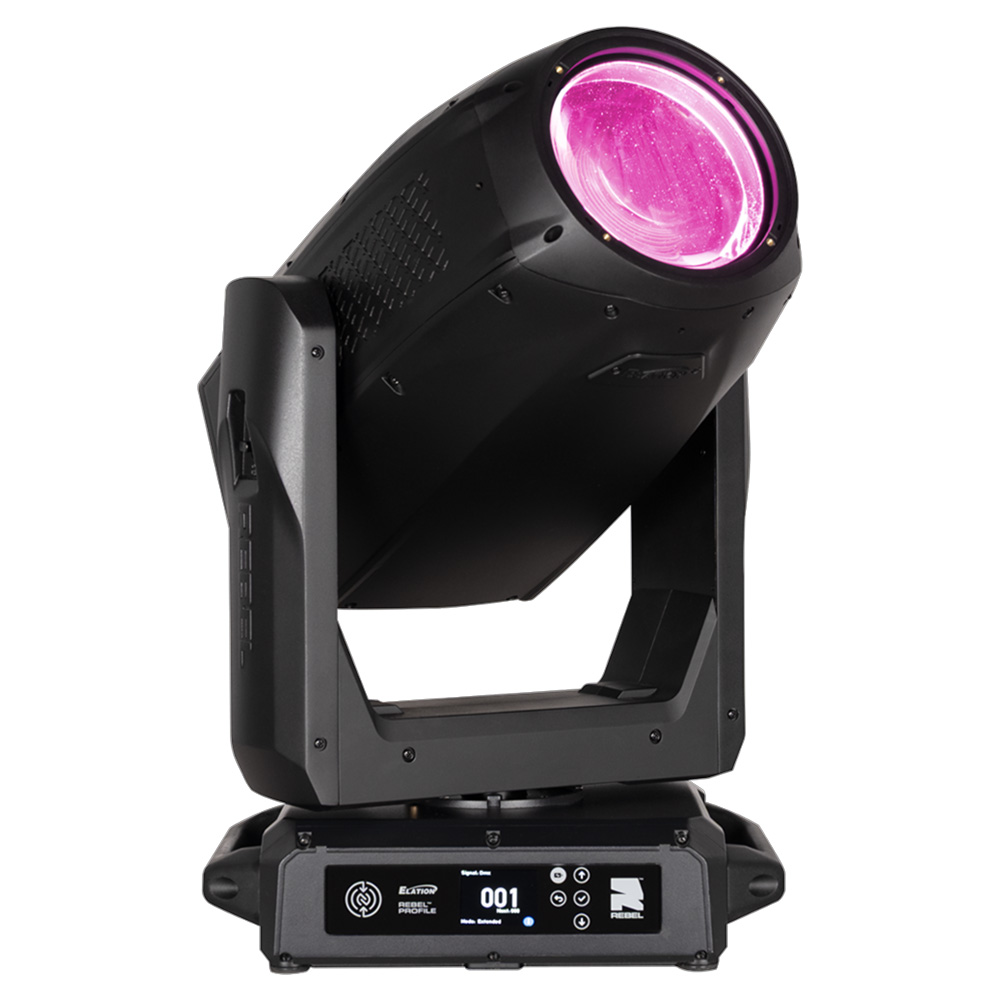

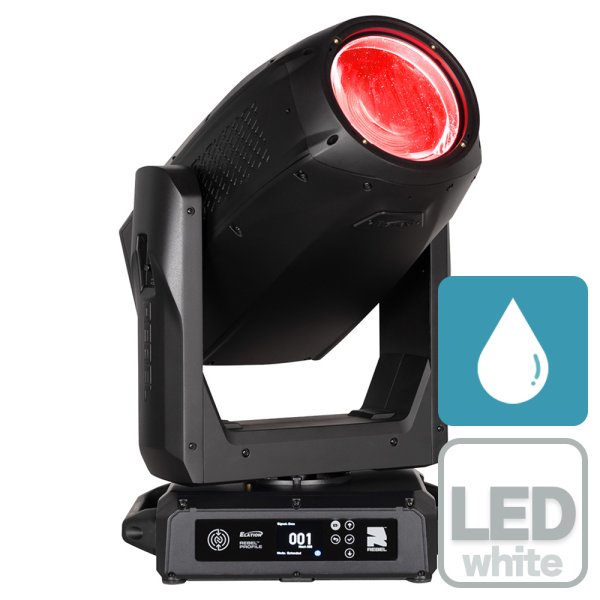

The REBEL Profile™ combines power and versatility in a compact IP65-rated design, perfect for indoor and outdoor applications. Its Peak Field 500W 6,500K LED engine produces a dazzling 22,000 lumens, delivering high-intensity beams, sharp projections, and dynamic mid-air effects.

A full-featured graphics suite includes 15 glass gobos, a complete animation wheel, dual prisms, dual frost, and a high-speed iris.
The indexable framing system ensures precise control with blackout shutter cuts, while a zoom range of 3.5° to 51° enhances its flexibility.

特徴

IP65 for temporary outdoor applications

Peak field 500W 6,500K White LED Engine

Up to 22000 Total Lumens Fixture Output

CMY Color Mixing and Variable CTO

7-Position Color Wheel with dual High CRI Filters

Comprehensive Visual FX System featuring Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost

Indexable Full Blackout Framing System

Wide Zoom Range from 3.5° to 51°

仕様

SOURCE

500W 6,500K Bright White Peak Field LED Engine

20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

22000 Total Lumen Fixture Output

CRI 70+ (80 or 90 with HCRI Filter)

2:1Hotspot Ratio

Zoom Range 3.5° - 51°

Beam Angle

Field Angle

EFFECTS

Motorized Zoom

4 Rotating Full Blackout Framing Blades

+/-60° Framing Module Index

Full 360° Bi-Directional Animation Wheel

4-Facet Round and 6 Facet Linear Rotating Prisms

2 Variable Frost Filters (Light and Wash)

Motorized Iris with Variable Pulse Effects

Variable 16-bit Dimming Curves

High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate

Pan Angle: 540°

Tilt Angle: 270°

Continuous 360° Pan Rotation

COLOR

CMY Color Mixing

Linear CTO Color Correction (2400K)

7 Dichroic Colors, including CRI 80, CRI 90 and UV

GOBOS

2 Gobo Wheels

7 Rotating Glass Gobos

8 Static Glass Gobos

CONTROL / CONNECTIONS

2 DMX Channel Modes

DMX, RDM, Art-NET, sACN Protocol Support

(5) Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

IP65 Locking 5pin XLR Connector In/Out

IP65 Locking RJ45 Ethernet Connector In/Out

IP65 Locking Power Connector In

SIZE / WEIGHT

Length: 15.65 in (398mm)

Width: 11.06 in (281mm)

Height: 26.2 in (666mm)

Center-to-Center Spacing in (mm)

Weight: 66 lbs. (29.9 kg)

ELECTRICAL

AC 100-240V 50/60Hz

Max Power Consumption 1026W

-4° to 113°F (-20°C to 45°C)

3509 BTU/hr (+/- 10%)

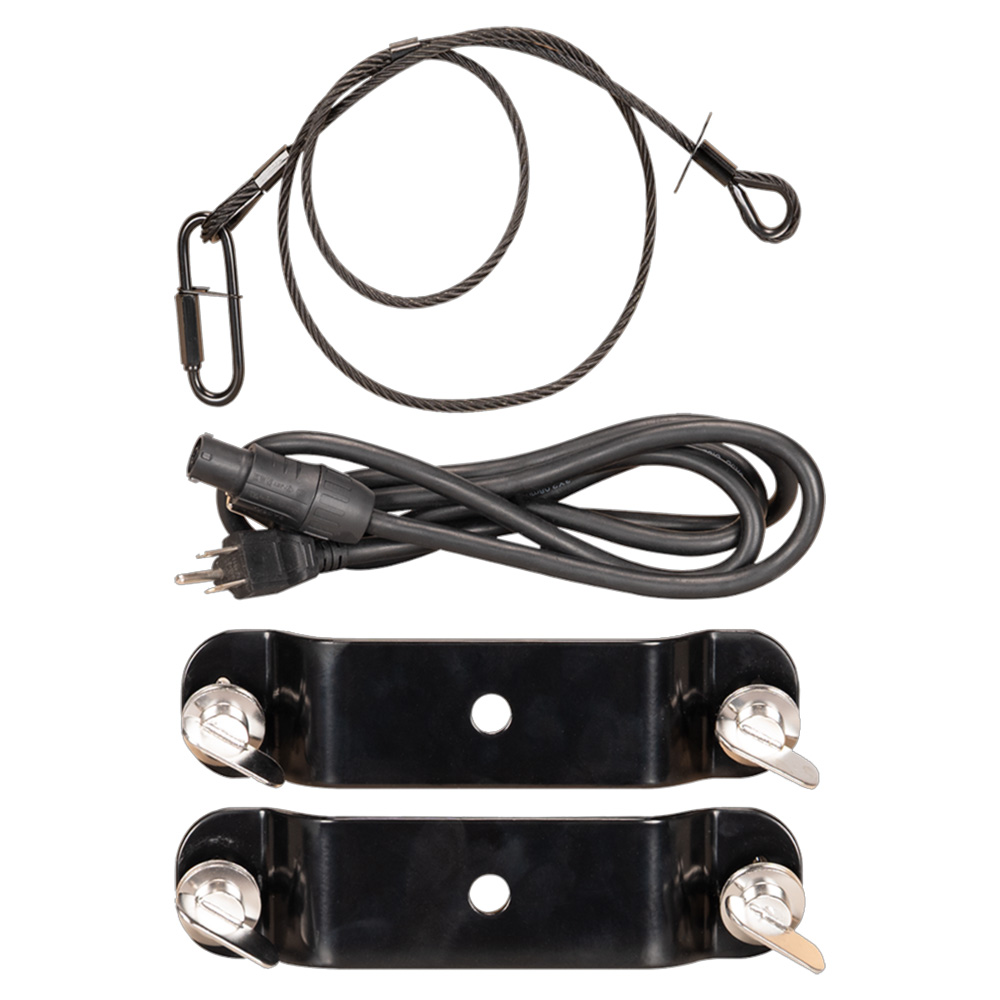

INCLUDED ITEMS

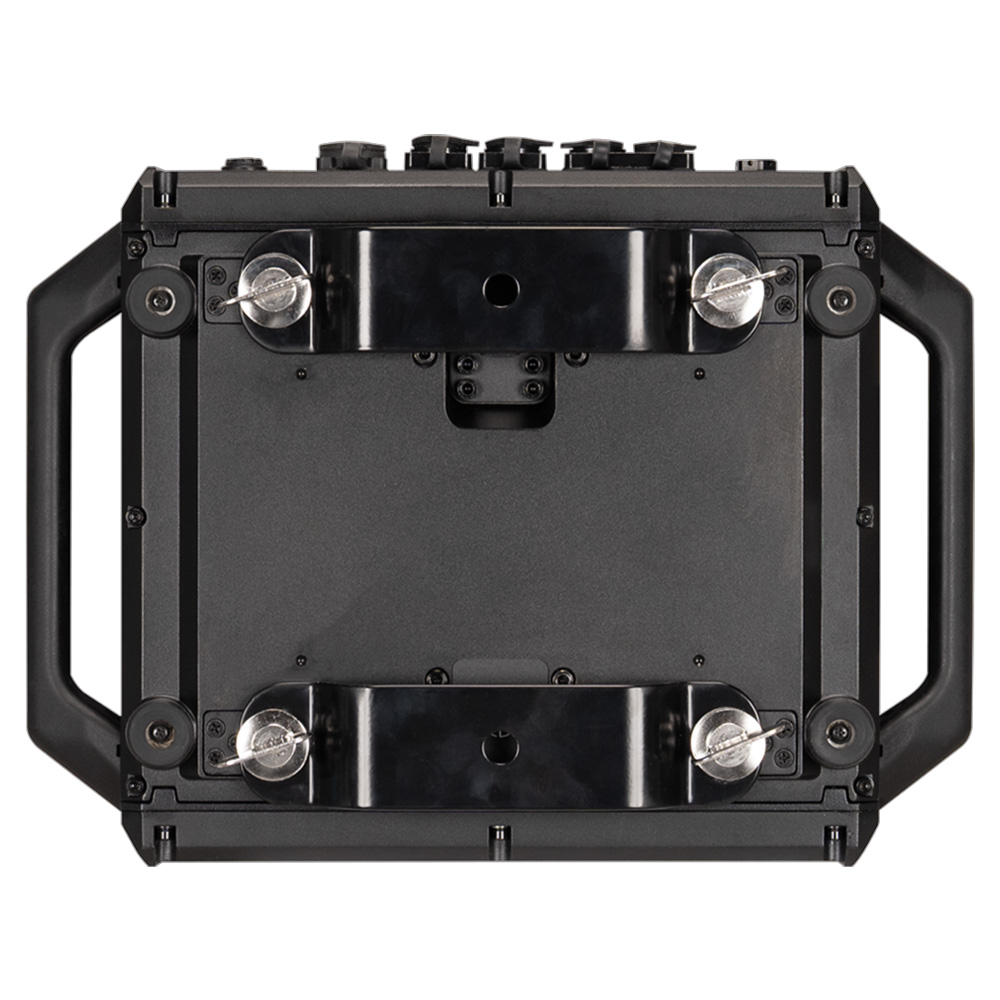

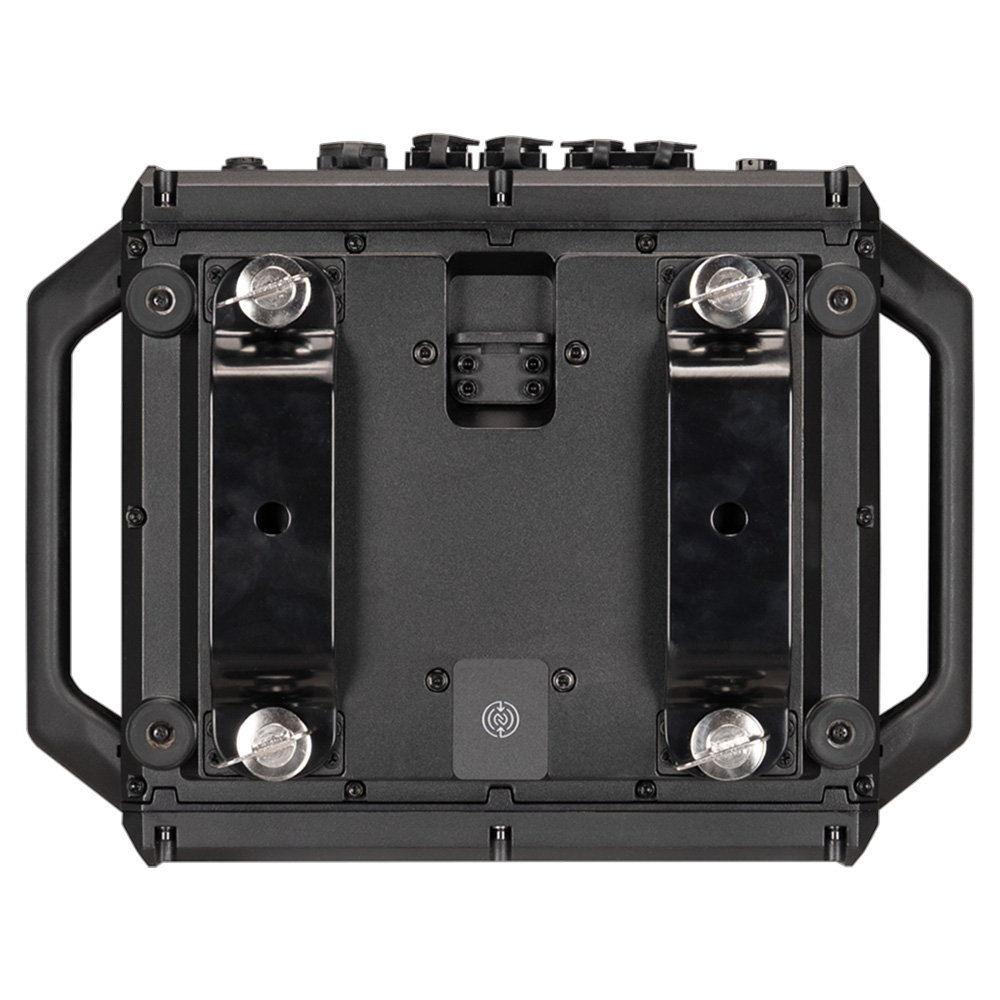

Omega Brackets (x2)

Safety Cable

IP65 Rated Locking Power Cable

APPROVALS / RATINGS

CE | cETLus | FCC | UKCA | IP65
