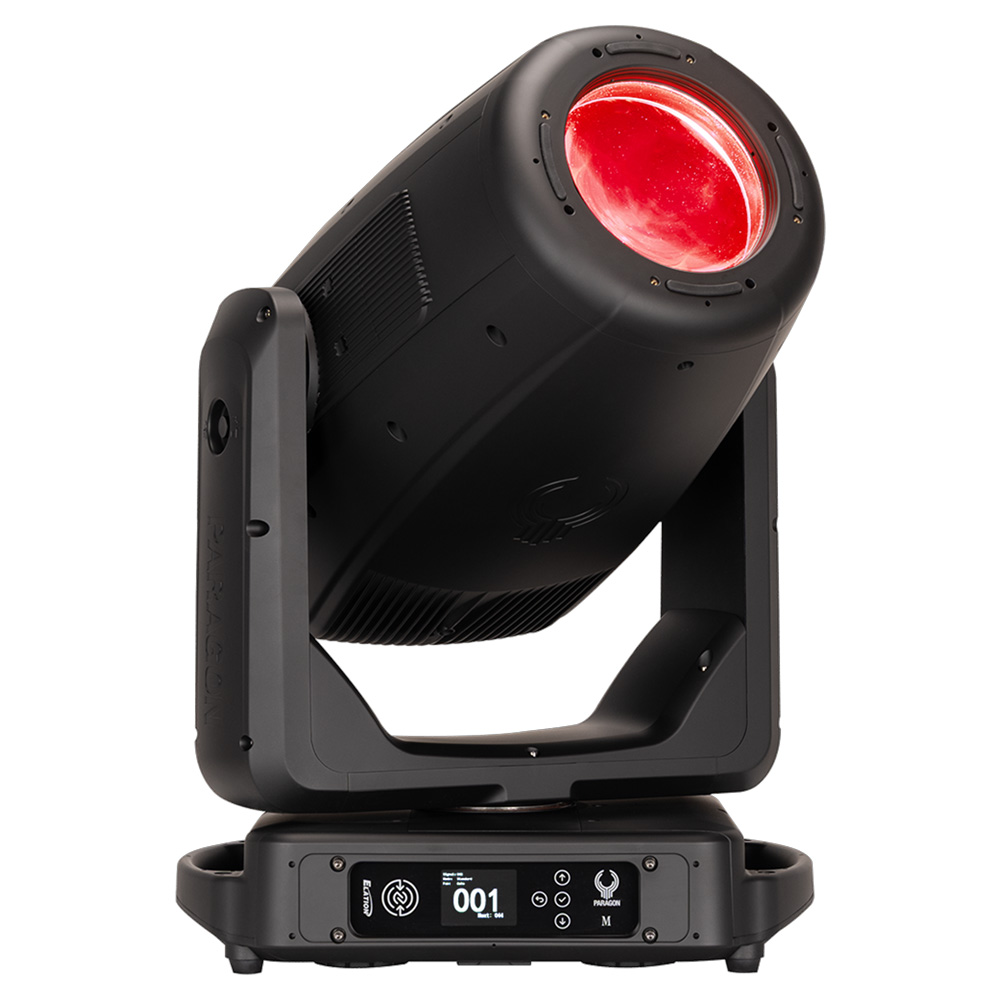

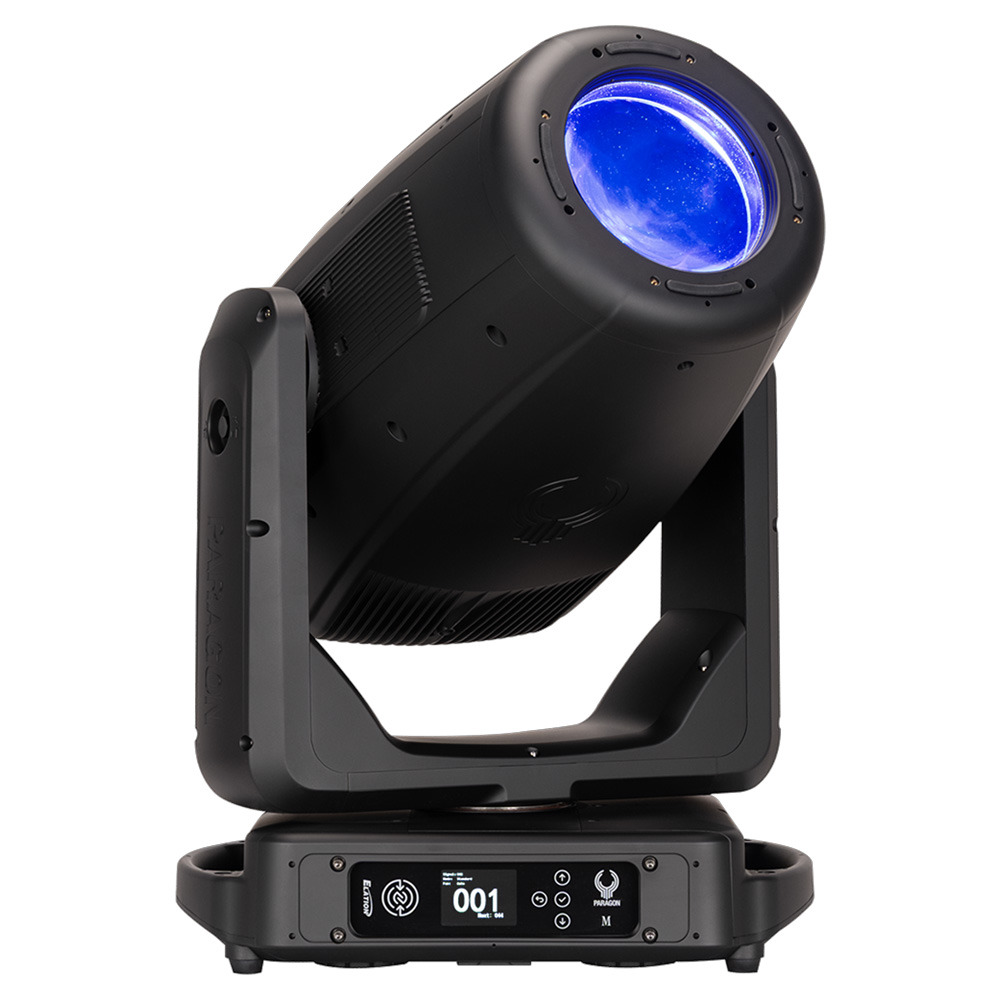

Elation PARAGON M（パラゴン M）

概要

The PARAGON M™ is a powerful IP54-rated LED profile fixture with outstanding projection and beam qualities in a compact and lightweight form.



Powered by its custom-designed Variable CRI LED engine, the PARAGON M provides over 37000 lumens (at CRI 80), making it ideal for applications requiring superior output, bright and powerful beams, quiet operation, stunningly precise gobos, colors, and framing cuts.



The PARAGON M harnesses Elation’s TruTone variable CRI technology to empower designers to fine-tune any application's light output and color accuracy. From CRI 70 to CRI 93, its true variable color fidelity enriches mixed tones with infinite adjustments to the underlying white spectrum. Alongside these innovations, PARAGON M features Elation’s fastest and quietest CMY color mixing arrays for flawless performance.



Equipped with a robust FX package, the PARAGON M includes two wheels of seven rotating glass gobos, a complete animation wheel, overlapping dual prisms, dual frost options, and a high-speed iris. The animation wheel’s interchangeable design supports custom patterns or an optional seven-position gobo disc. The PARAGON M also utilizes a zoom range of 4.5° to 52° , a 240° indexable framing system, 45° blade angles that deliver precise beam shaping, and full-blackout shutter cuts that ensure it makes a bold visual statement in any setting.

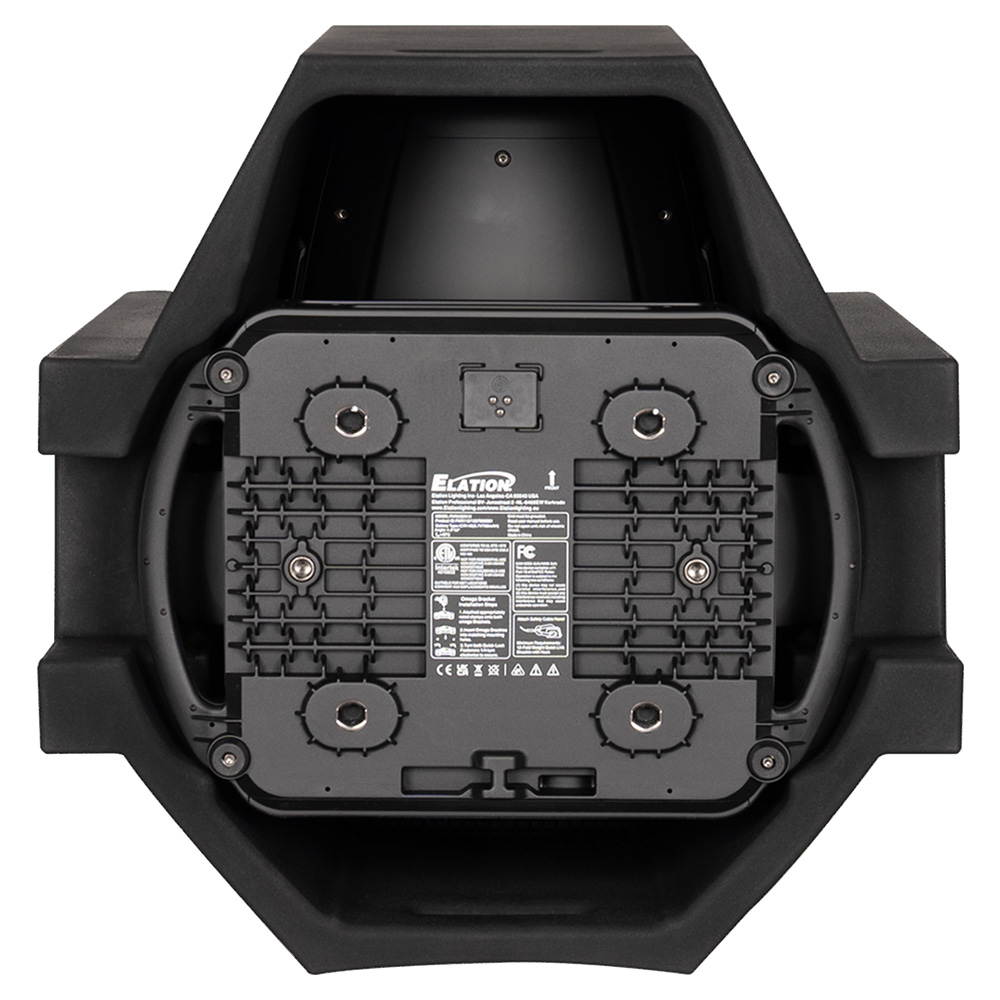

The PARAGON M ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert that easily fits into a custom flight case (not included), providing enhanced impact protection during transport.

特徴

IP54 rated for indoor and temporary outdoor use

All weather protection through innovative chassis, sealing and cooling construction

Impact resistant lightweight polycarbonate chassis

High Efficiency 6,500K Variable CRI White LED Engine

TruTone remote color fidelity adjustment up to CRI 93

37000 Total Lumen Fixture Output at CRI 80

Flat Field Engine for precise projection

Ultra-fast CMY Array and Variable Linear CTO

6-Position Color Wheel with UV-Filter, Quad Color

Complete FX System featuring Dual Rotating Gobo Wheels, Animation, Iris, Dual Prism, Dual Frost

Interchangeable Animation Disc (optional)

Indexable 240° Full Blackout Framing System

Wide Zoom Range from 4.5° to 52°

Interchangeable Fresnel Wash and PC Beam Lens (optional)

FIL (Foam In Lay) Polyurethane Foam Packaging Included

仕様

SOURCE

High Efficiency 900W 6,500K Variable CRI White LED Engine

30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



PHOTOMETRIC DATA

37200 Total Lumen Fixture Output @ CRI 80

TruTone variable CRI up to CRI 93

Front Lens 6.3" (160mm)



Profile Lens (standard)

Zoom Range 4.5° - 52°
Beam Angle 4° - 48.6°
Field Angle 4.4° - 52°
Cutoff Angle 4.5° - 54.2°

PC Lens (optional)

Zoom Range 6° - 50°
Beam Angle 3.7° - 44.5°
Field Angle 5.8° - 50.2°
Cutoff Angle 6.7° - 52.1°

Fresnel Lens (optional)

Zoom Range 9° - 55°
Beam Angle 4.5° - 46.8°
Field Angle 8.9° - 54°
Cutoff Angle 13.4° - 60.4°


EFFECTS

Motorized Zoom

4 Full Blackout Framing Blades, +/-45° Index

+/-120° Framing Index

Full 360° Bi-Directional Animation Wheel

4-Facet Round and Linear Rotating Prisms

2 Variable Frost Filters (Light and Wash)

Motorized Iris with Variable Pulse Effects

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate

Pan Angle: 540°

Tilt Angle: 260°




COLOR

CMY Color Mixing

Linear CTO Color Correction 6500K - 2600K

6 Dichroic Colors including UV-Filter, Quad Color

TruTone variable CRI 73-93



GOBOS

2x 7 Rotating / Indexing Interchangeable Glass Gobos



CONTROL / CONNECTIONS

2 DMX Channel Modes (43/65ch)

16-bit Pan, Tilt and Dimming Control

5 Fan modes for ultra quiet operation

DMX, RDM, Art-NET, sACN Protocol Support

(4) Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

NFC on bottom and front of fixture base

Hibernation Mode (Power Save)

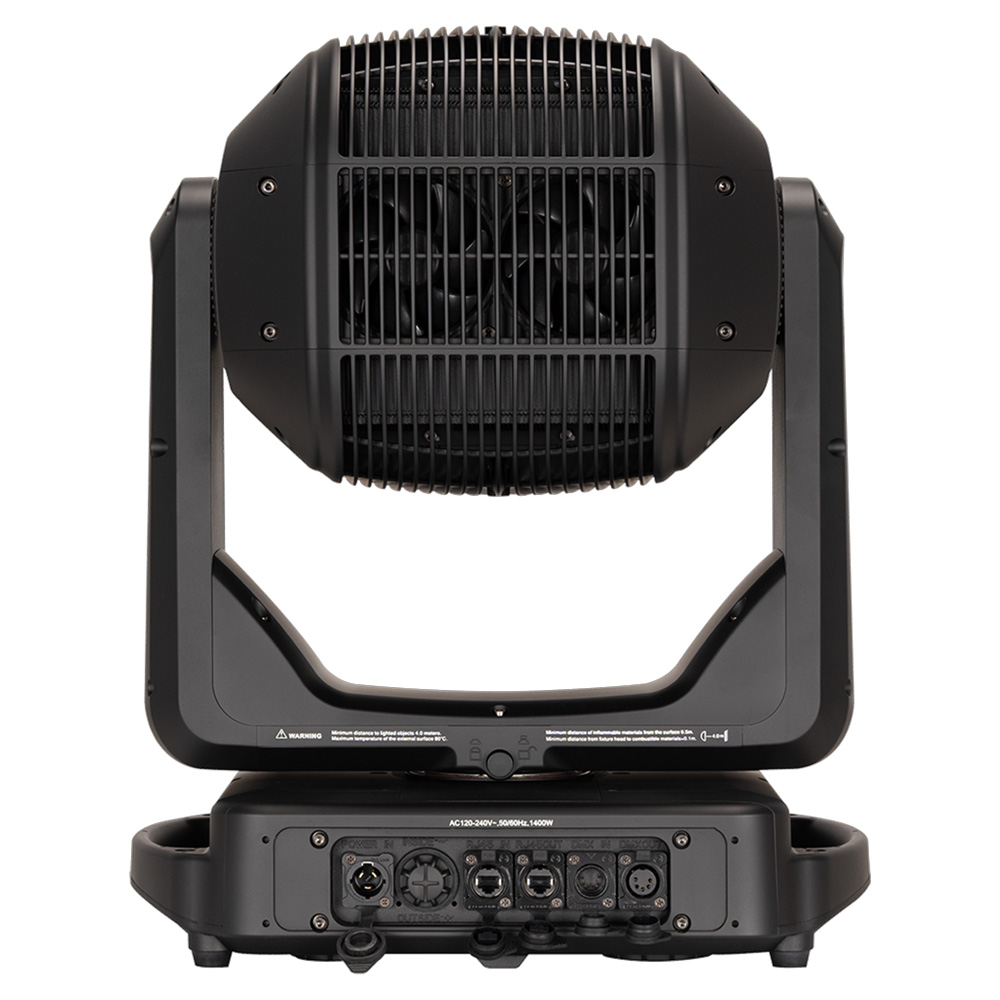

IP65 Locking 5pin XLR In/Out

IP65 Locking RJ45 Ethernet In/Out

IP65 Locking Power In





SIZE / WEIGHT

Length: 17.5 in (444mm)

Width: 12.4 in (315mm)

Height: 26.6 in (680 mm)

Center-to-Center Distance: 25.1 in (638mm)

Weight: 70.5 lbs. (32 kg)



MOUNTING

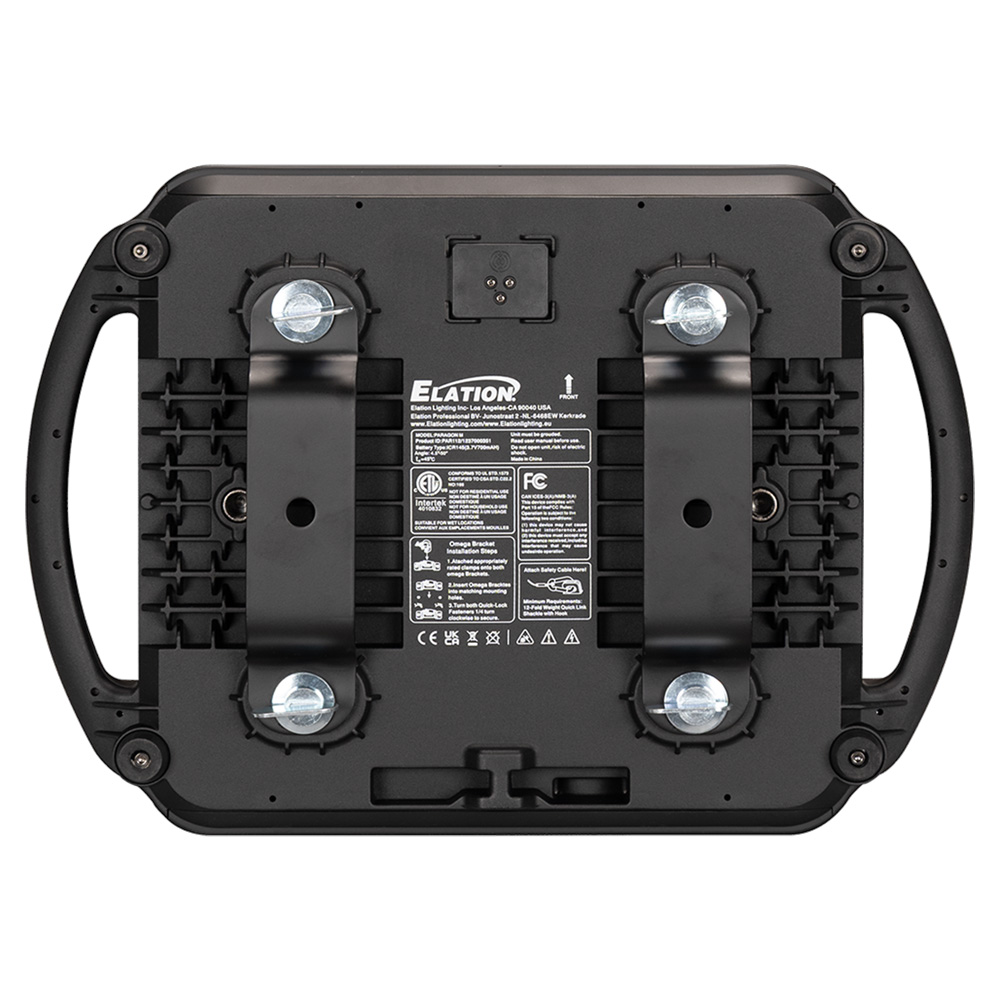

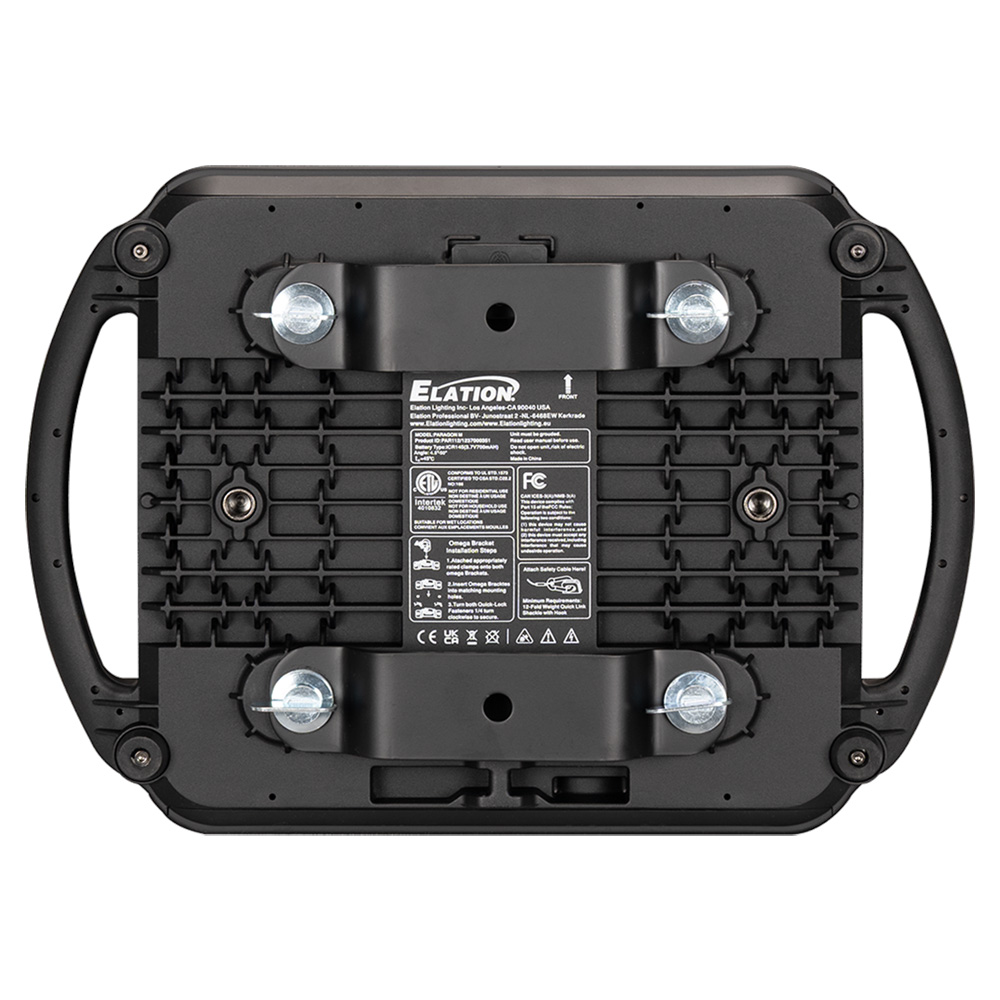

2x 180mm Omega Bracket

2x M12 Screw Hole

Fixture can be mounted in any orientation



ELECTRICAL

AC 100-240V 50/60Hz

Max Power Consumption 1400W

-4°F to 113°F (-20°C to 45°C)

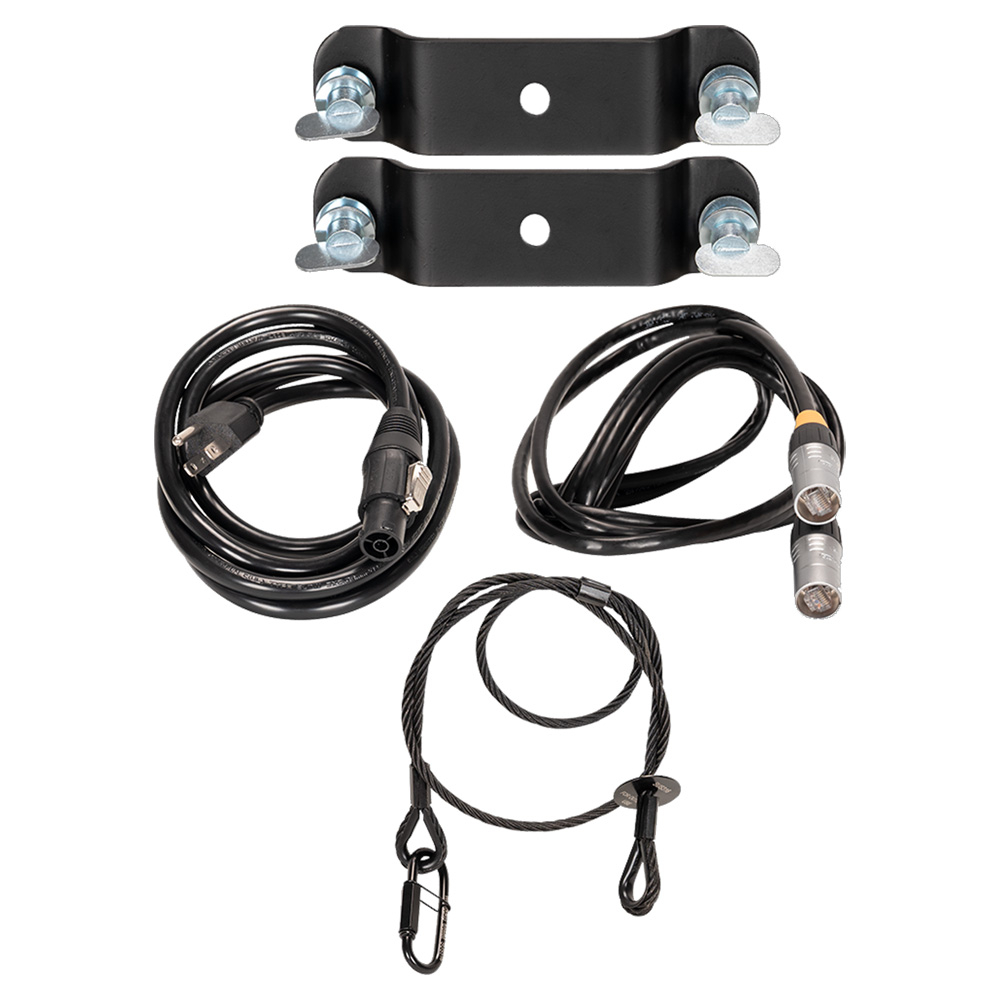

INCLUDED ITEMS

Omega Brackets (x2)

IP65 Rated Locking Power Cable

Stainless Steel Safety Wire

Foam Inlay



FIRMWARE UPDATES

Current Version: V1.2.2

Click HERE for software updates



APPROVALS / RATINGS

CE | cETLus | FCC | UKCA | IP54
