Elation PROTEUS LUCIUS OPS（プロテウス ルシウス OPS）

概要

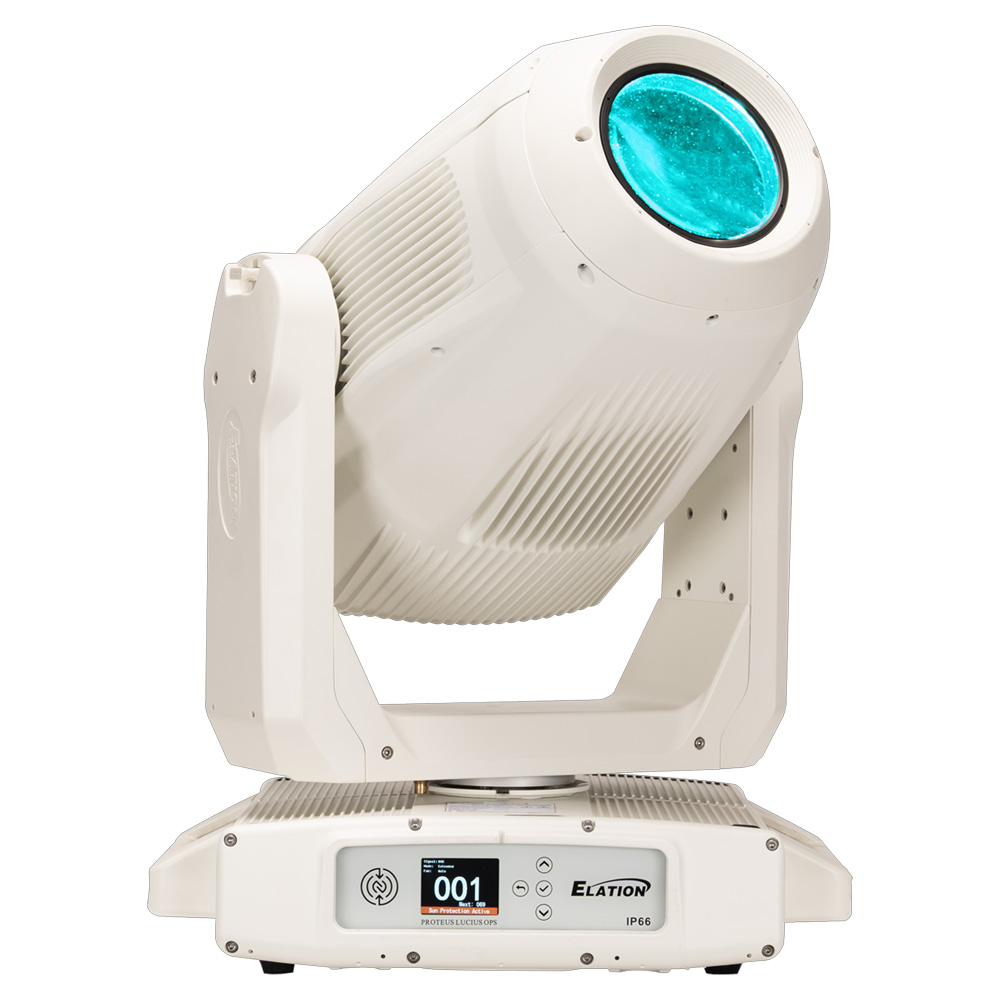

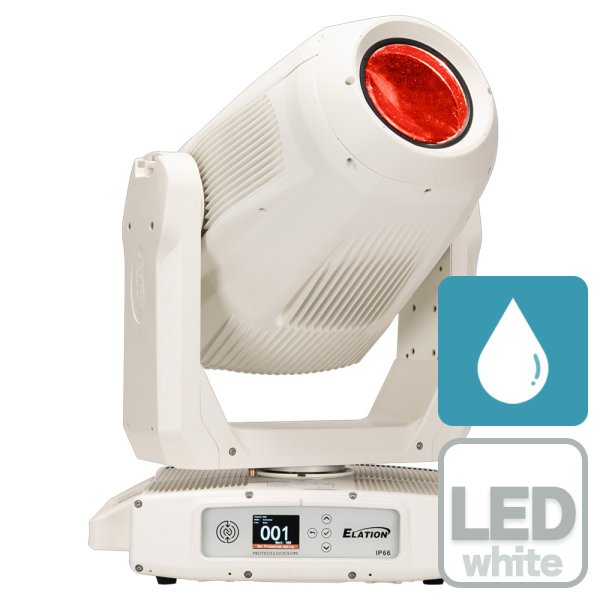

The PROTEUS LUCIUS OPS™ is a powerful yet compact IP66-rated LED profile fixture offering outstanding projection and beam qualities in any environment.



Providing up to 33,500 lumens output from its custom-designed Peak Field 580W 6,500K LED engine, the PROTEUS LUCIUS OPS is the ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors. PROTEUS LUCIUS provides the designer a comprehensive FX package with 13 rotating and 7 fixed glass gobos, full animation wheel, overlapping dual prisms, dual frost and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control.



With a fast zoom range from 5.5° to 50° out of an impressively compact fixture design, the PROTEUS LUCIUS OPS has the power to cut through and make a statement on any stage.



ELATION OPS fixtures are optimized for permanent exterior installations. Utilizing CX Extreme Marine Grade Coatings, cabling and Stainless-Steel fasteners they are rugged, reliable and designed to withstand the elements.

特徴

Features
IP66 Outdoor Rated

High Efficiency 580W 6,500K White LED Engine

Up to 33,500 Total Lumen Fixture Output

Peak Field engine for powerful projection at long distances

CMY Color Mixing and Variable CTO

5-Position Color Wheel with High CRI Filter

Complete FX System featuring Dual Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost

Indexable Full Blackout Framing System

Wide Zoom Range from 5.5° to 50°

ELATION OPS - Designed for permanent outdoor installations

CX Extreme Marine Grade Coating

仕様

Specifications
SOURCE

580W 6,500K Bright White Peak Field LED Engine

30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



PHOTOMETRIC DATA

33,500 Total Lumen Fixture Output

CRI 71+ (85+ with HCRI Filter)

2.5:1 Hotspot Ratio

Zoom Range 5.5° - 50°

Beam Angle 6° - 36.7°
Field Angle 7.6° - 51.3°



EFFECTS

Motorized Zoom

4 Rotating Full Blackout Framing Blades

+/-45° Framing Indexing

Full 360° Bi-Directional Animation Wheel

4-Facet and Linear Rotating Prisms

2 Variable Frost Filters (Light and Wash)

Internal Color, Framing, Prism, and Frost Macros

Motorized Iris with Variable Pulse Effects

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate

Pan Angle: 540°/630°

Tilt Angle: 250°



COLOR

CMY Color Mixing

Linear CTO Color Correction

5 Dichroic Colors including High CRI Filter



GOBOS

3 Gobo Wheels

6 Rotating Gobo (Wheel #1)

7 Rotating Gobos (Wheel #2)

7 Static Gobos (Wheel #3)



CONTROL / CONNECTIONS

2 DMX Channel Modes (43/68 Ch.)

DMX and RDM Protocol Support

(6) Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

NFC Support

10' (3m) DMX In/Out combo cable

10' (3m) Power cable



SIZE / WEIGHT

Length: 18.41 in (468mm)

Width: 14.6 in (370mm)

Height: 26.8in (682mm)

Center-to-Center Spacing 24.6in (626mm)

Weight: 89.9 lbs. (40.8 kg)



Exterior Finish

RAL9016 (custom colors available on request)

CX Extreme Marine Grade Coating

Stainless Steel 316 Fasteners



ELECTRICAL

AC 100-240V 50/60Hz

Max Power Consumption 1000W

-4° to 122°F (-20°C to 50°C)

BTU/hr (+/- 10%) 3239.5



INCLUDED ITEMS

Omega Brackets (x2)

Safety Cable



APPROVALS / RATINGS

CE | cETLus | FCC | IP66
