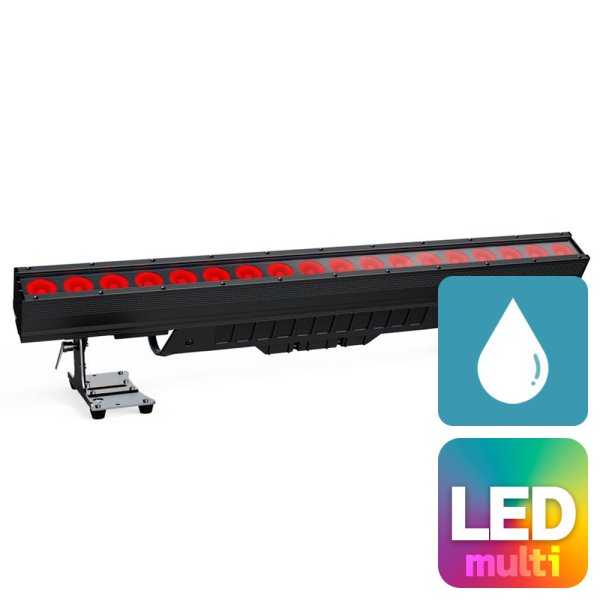

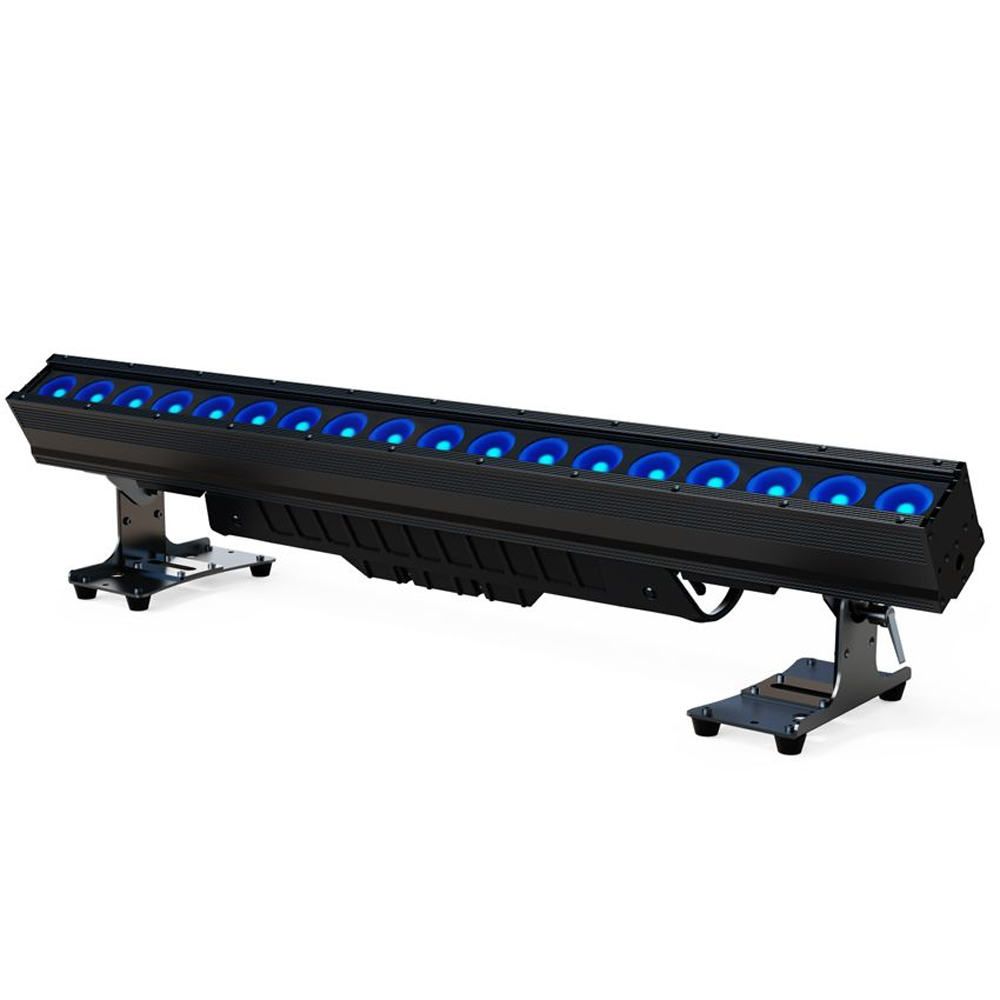

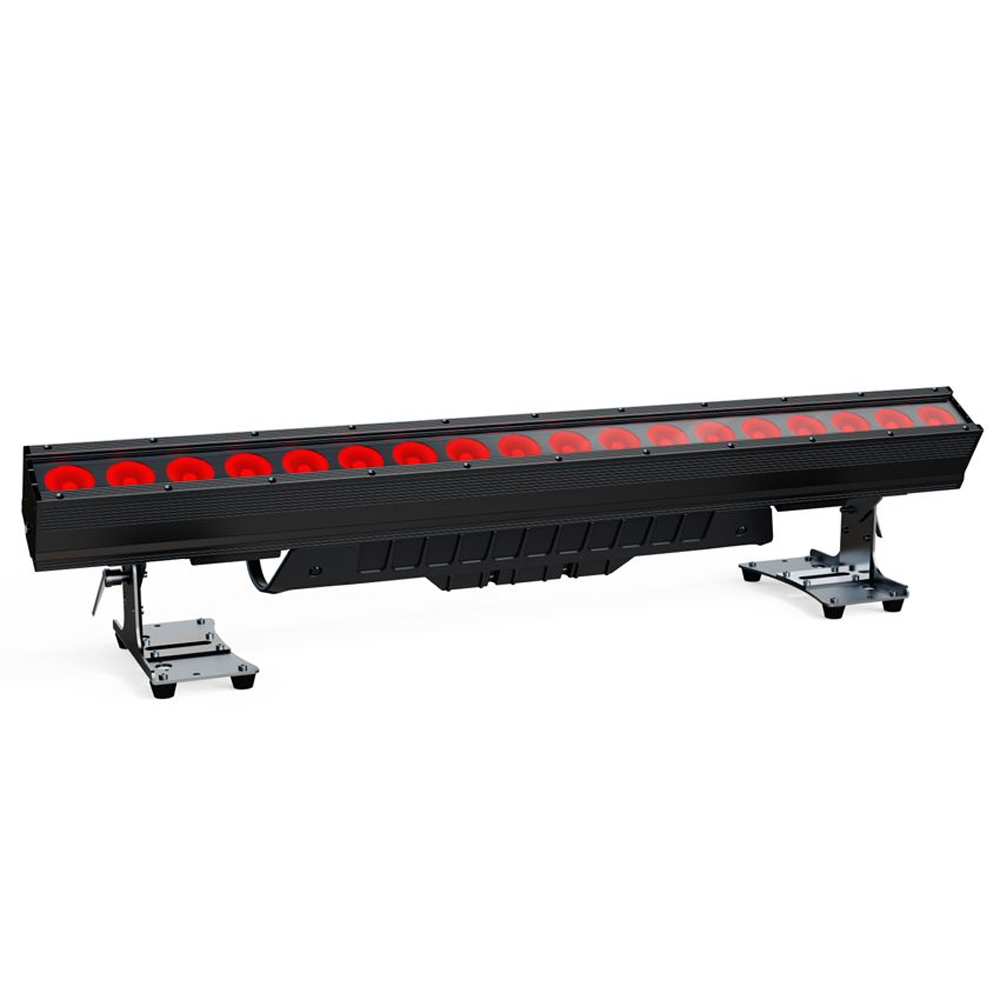

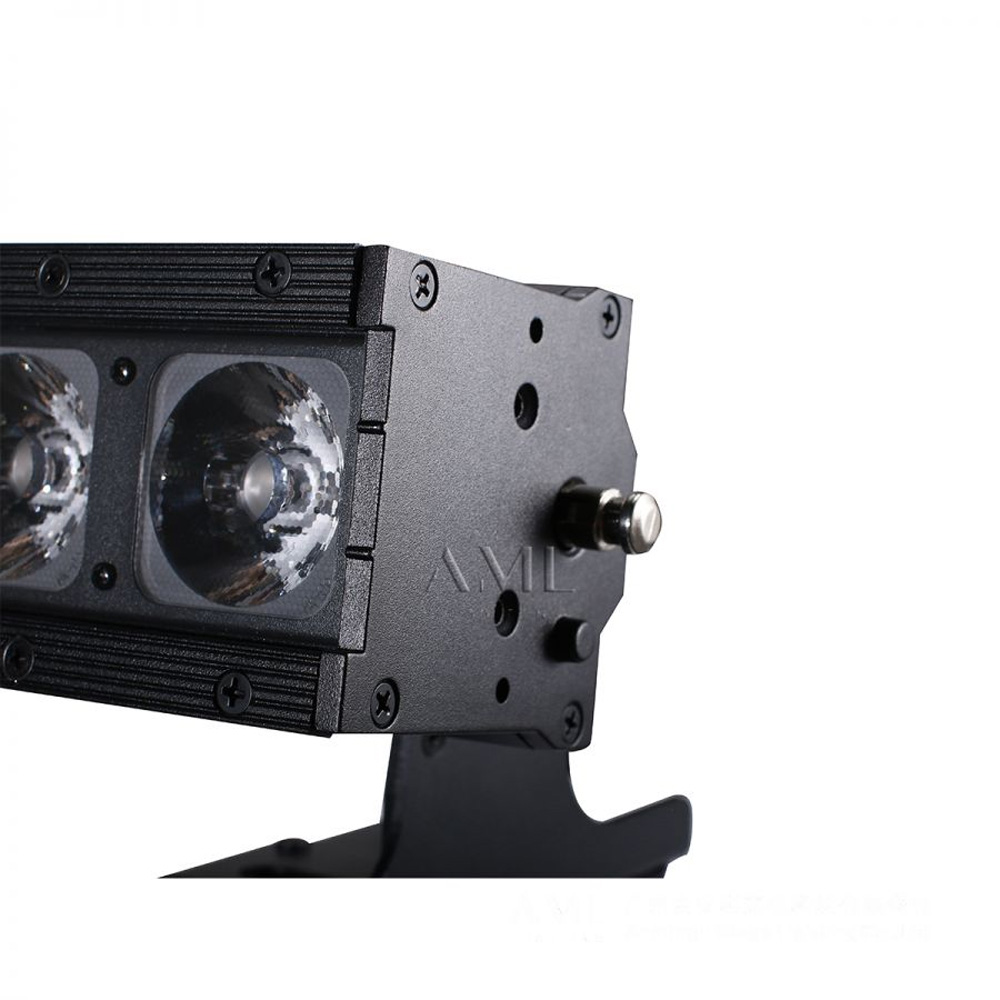

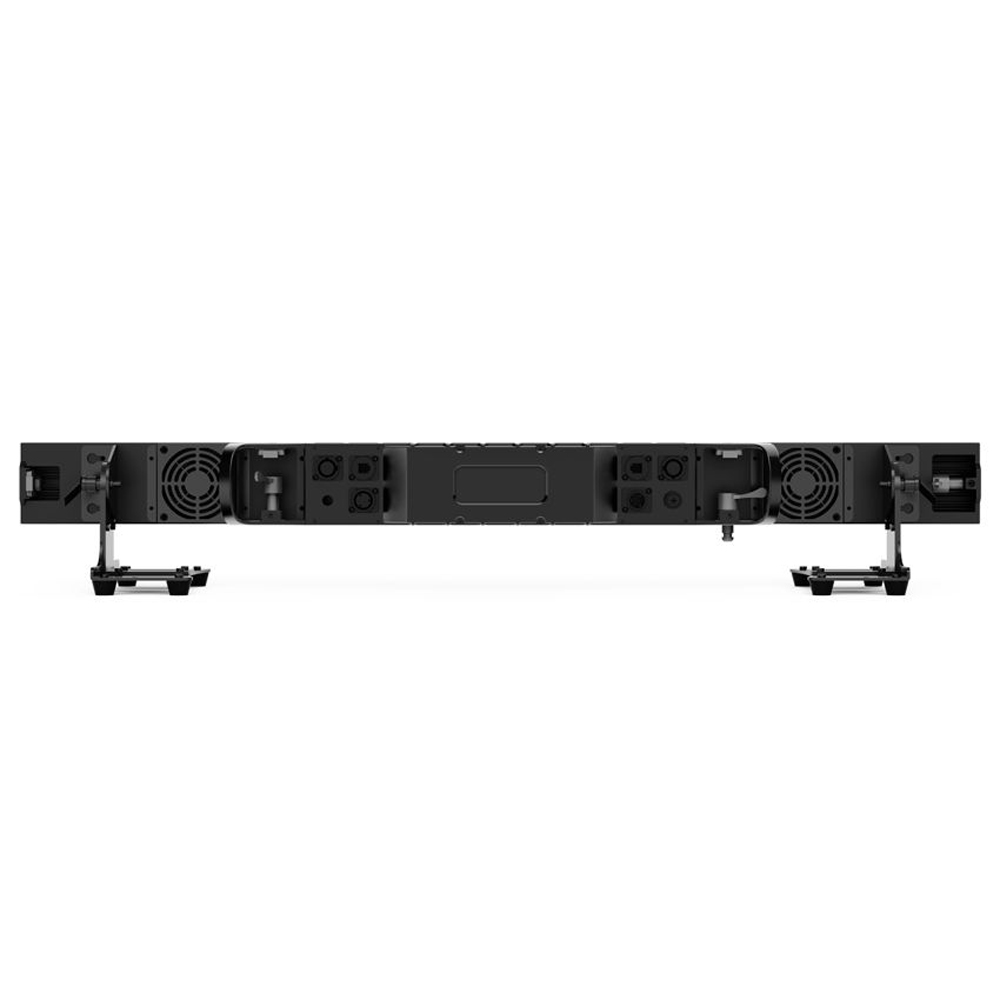

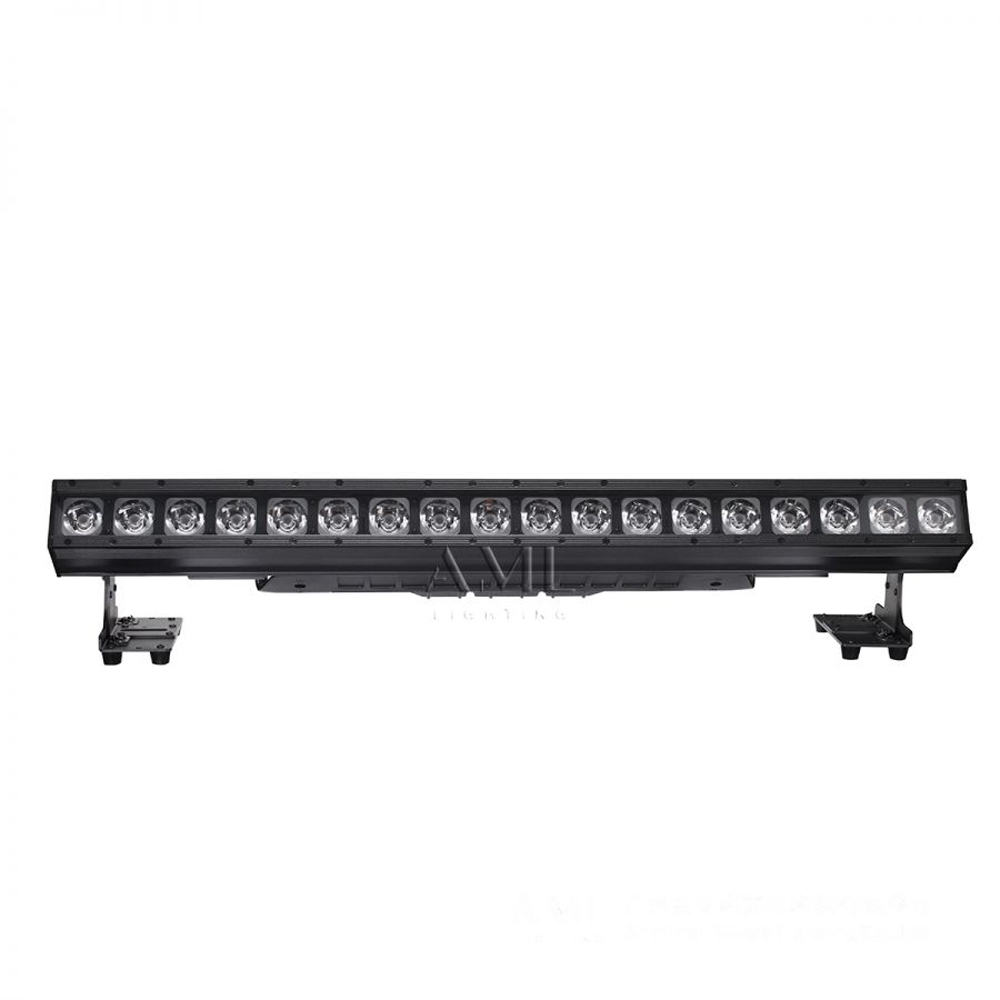

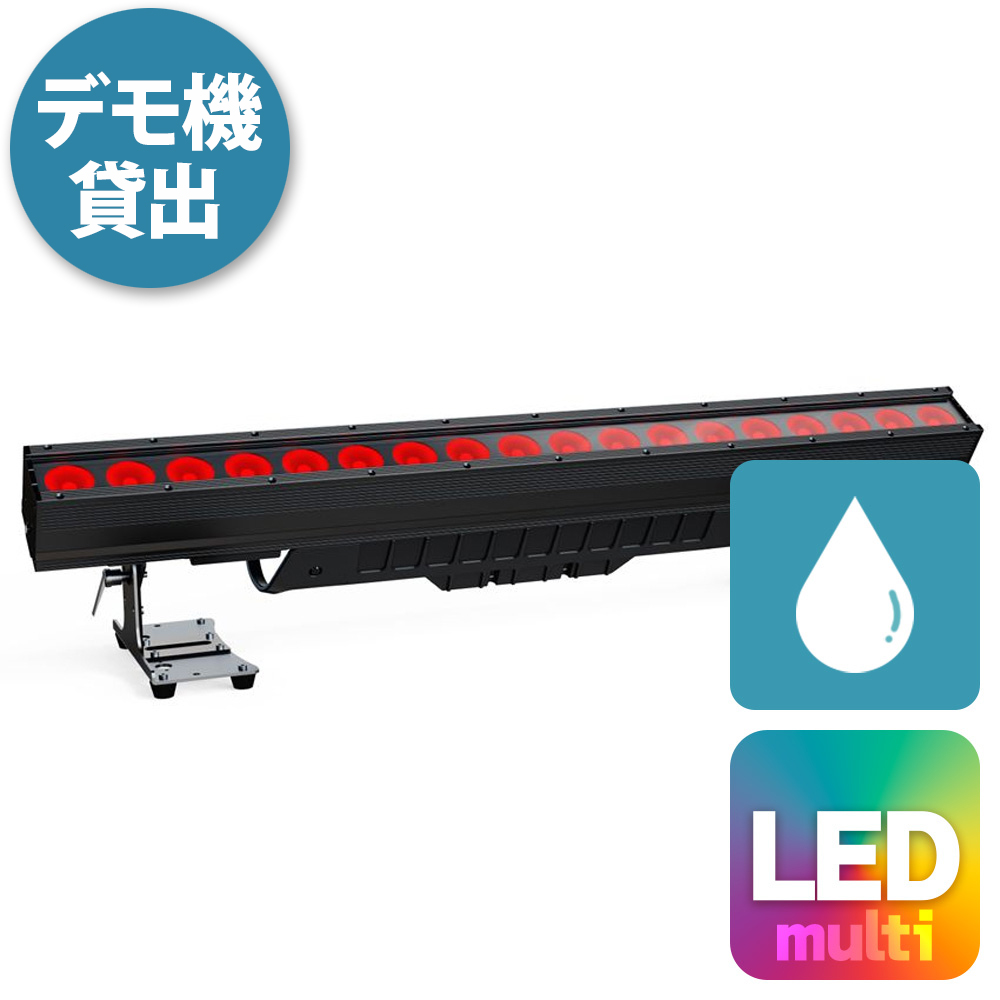

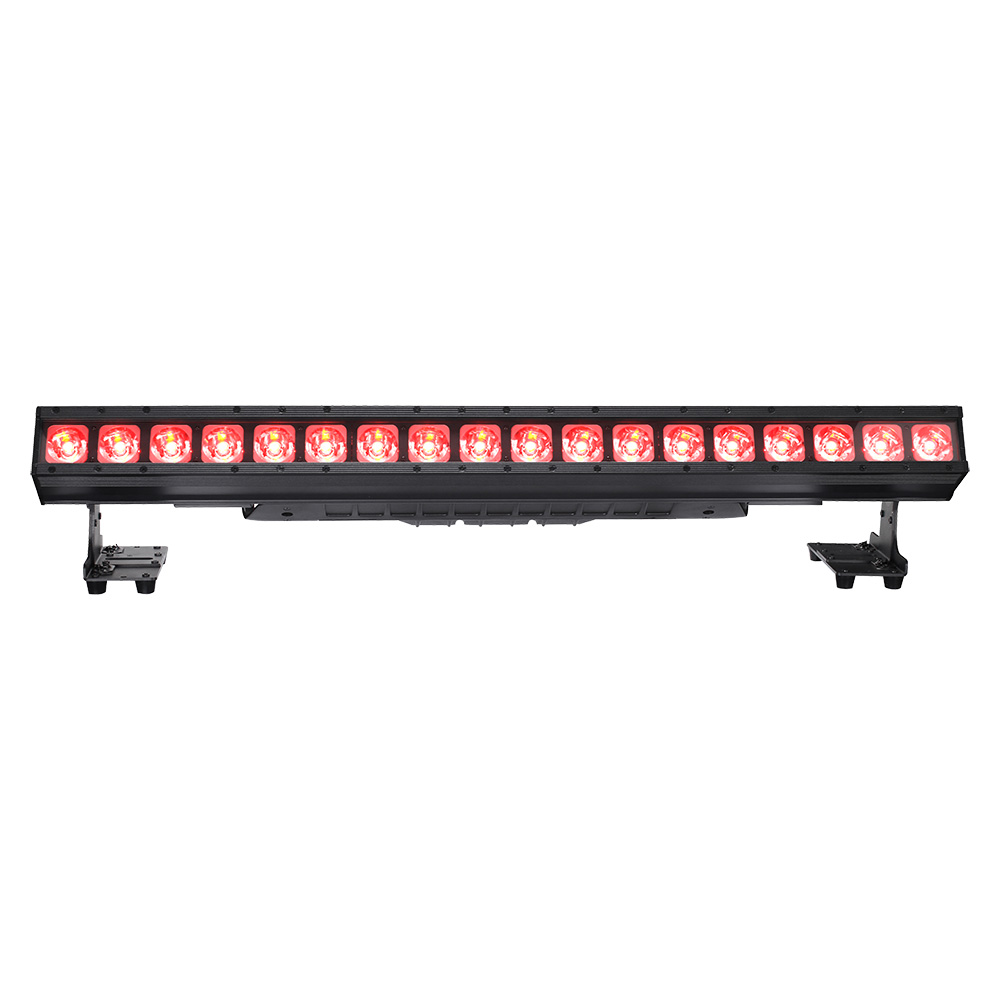

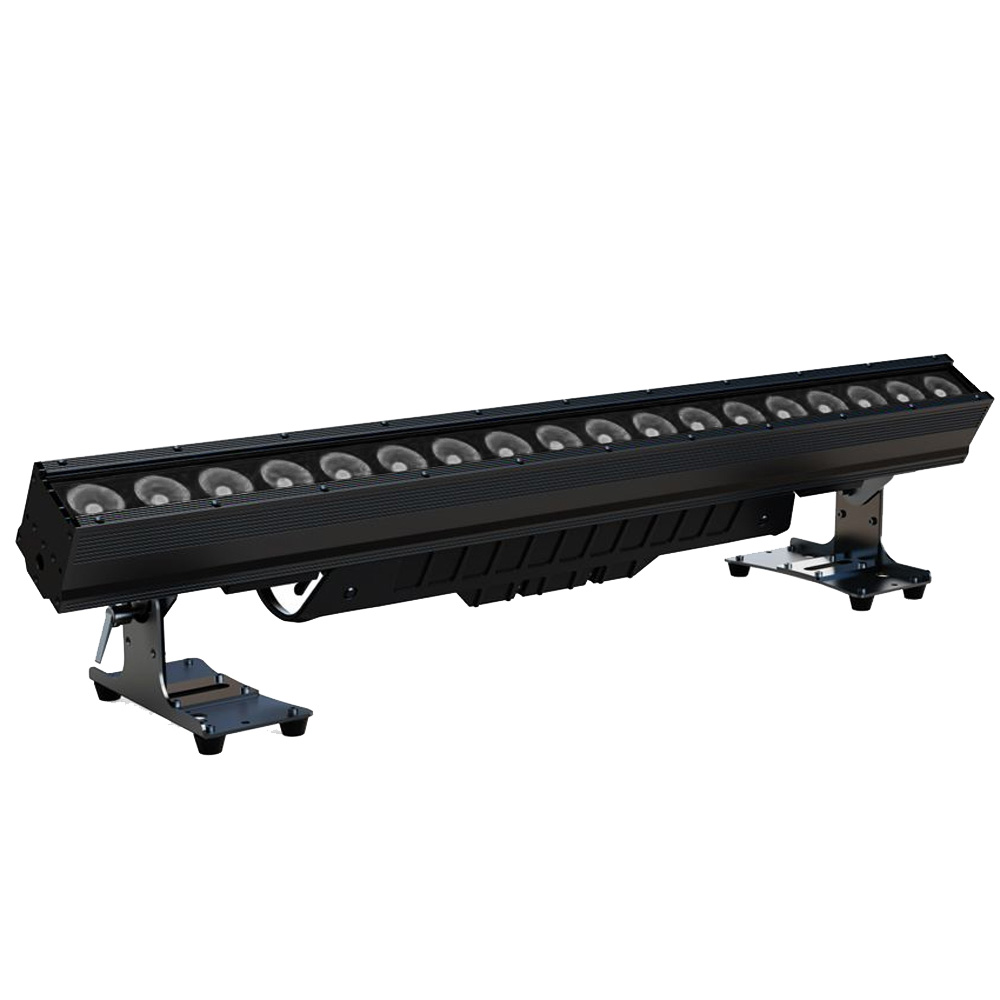

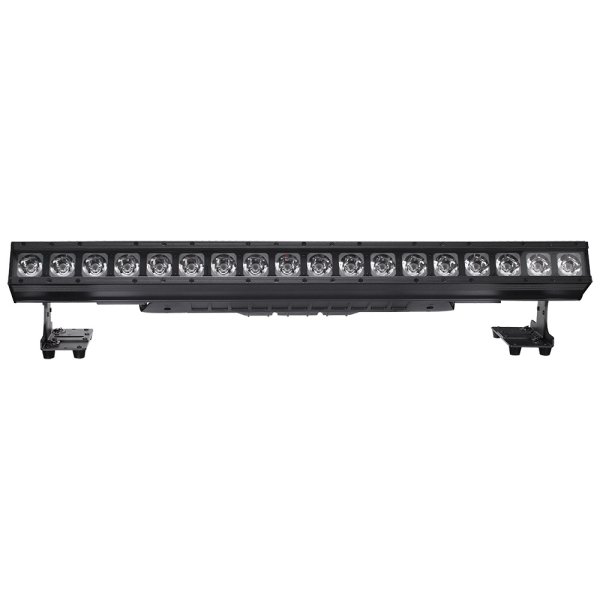

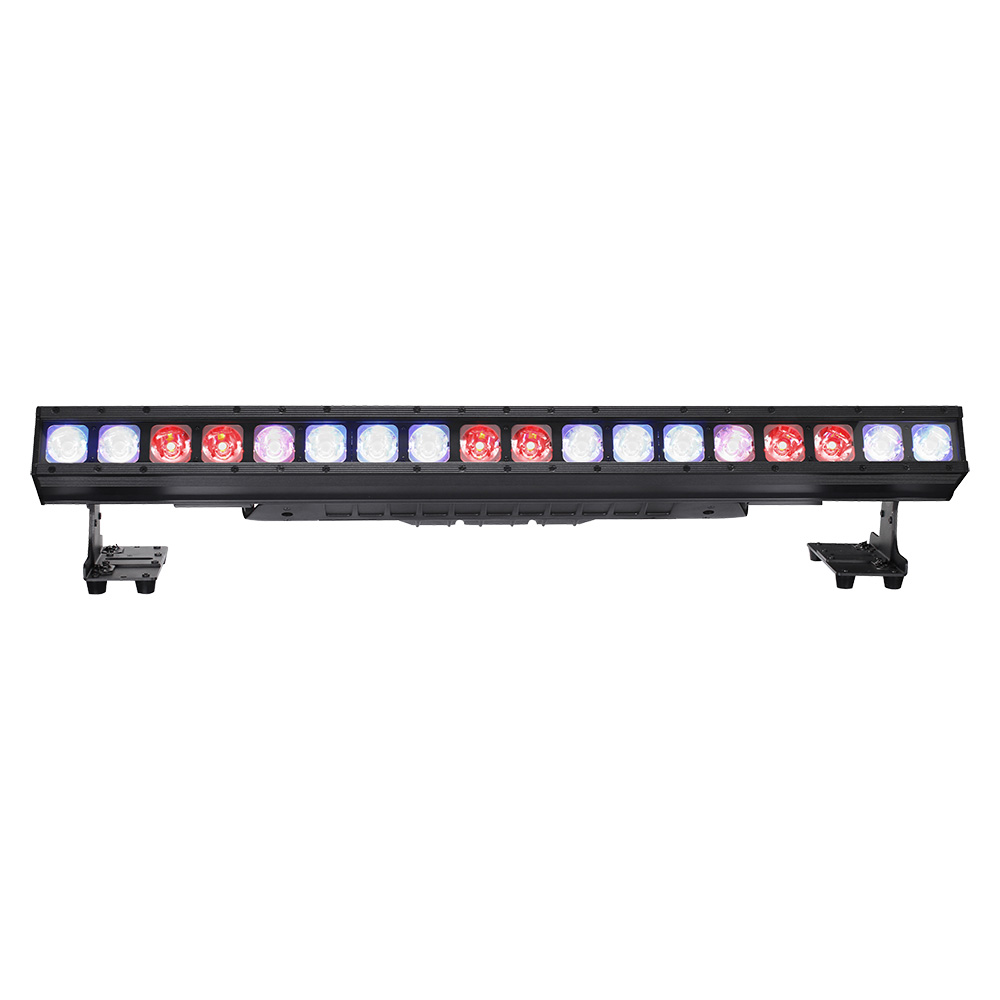

AML Lighting LED Pixel-Mapping Wash Bar IP（LED ピクセルマッピング ウォッシュバー IP） [AL-1825WIP]

仕様

◆CONSTRUCTION / PHYSICAL

Dimensions: 1000*85*210MM

Weight； 10.5KG

Exterior Color: Black

Housing Material: Magnesium-aluminum die-casting + aluminum profile



◆DYNAMIC EFFECTS

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0-25Hz

Standalone: Yes

Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes:4 kinds

White Balance: Yes



◆CONNECTIONS

Power Connection: Seetronic Powercon IP65

Power Input/Output: Seetronic Powercon IP65



◆CONTROL

Control Protocol: DMX/ArtNet/sACN/RDM

DMX Channels: 10/15CH

Build-in Effects: Yes

Software Update: Via RJ45 Cables



◆ELECTRICAL

Power Supplier:24V+12V at 10000W with FPS

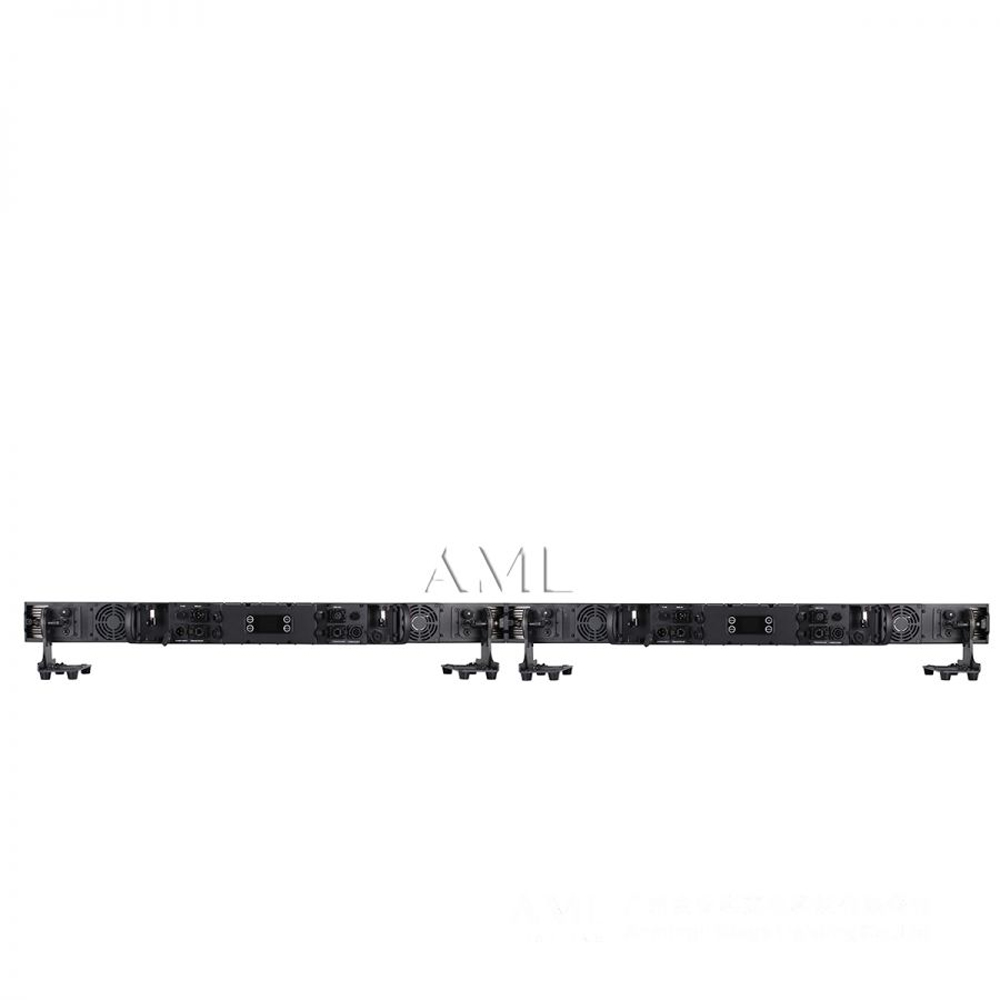

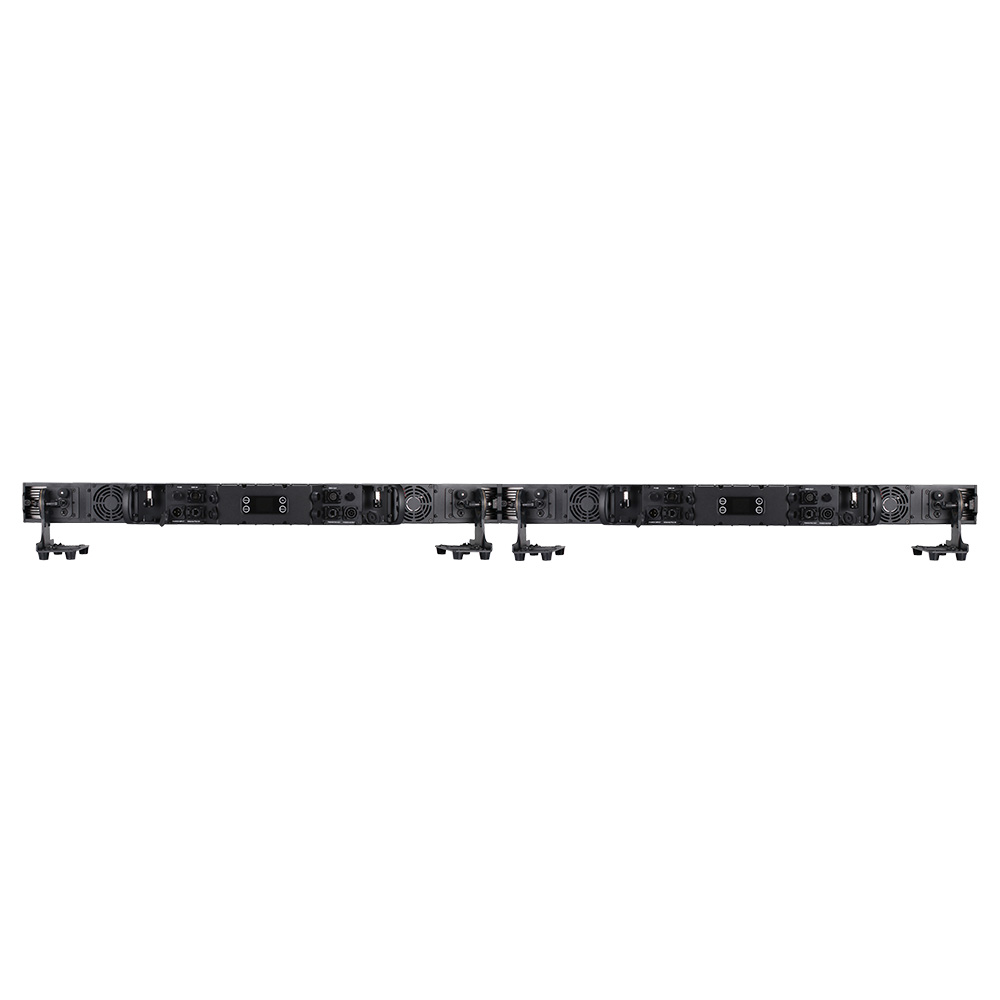

Power Linking: 3units @ 100V;5 units @ 120V; 7 units @ 208V; 9 units @ 230V; 10 units @ 240V



◆OPTIC

Light Source: 18pcs*25W RGBL 4IN1 colors. Color Temperature: 2700-8000K

Installed Optices: 6°(can be changed)

■メーカーサイト
https://cn.anmingli.com/en/productinfo/id/905
