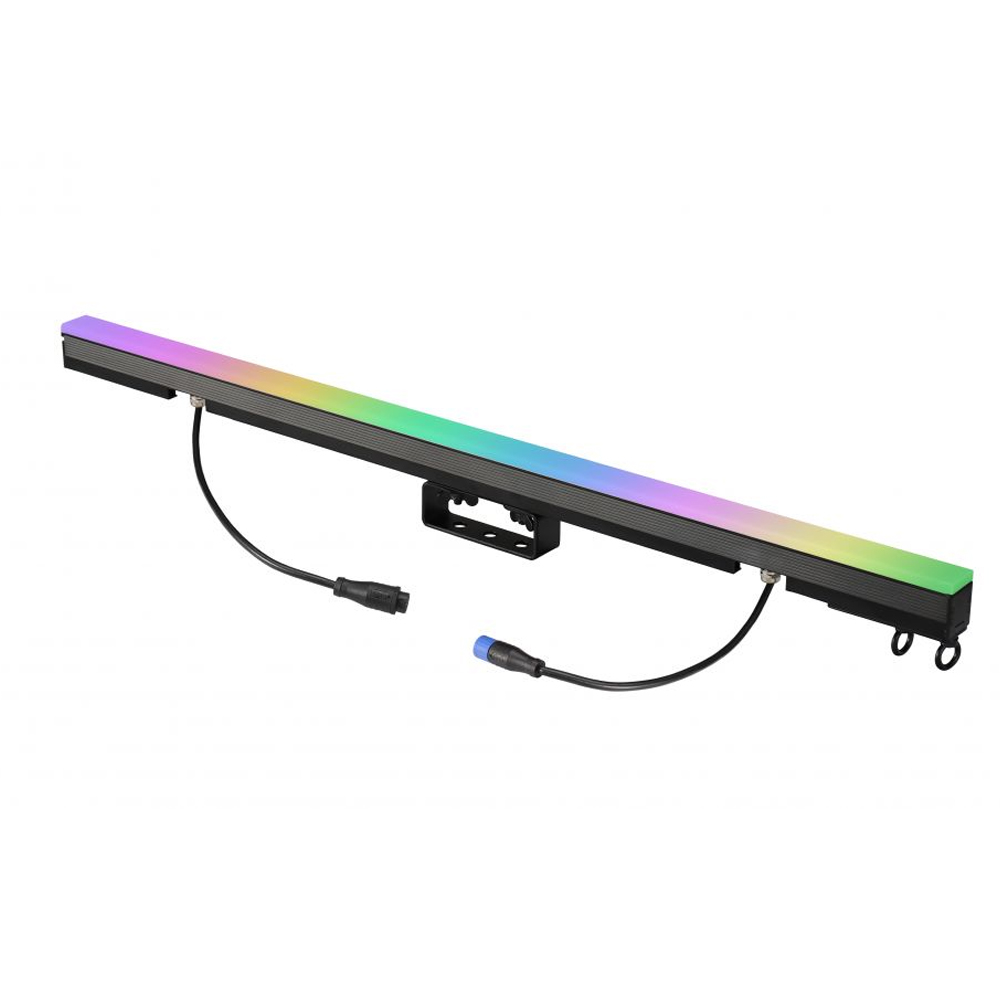

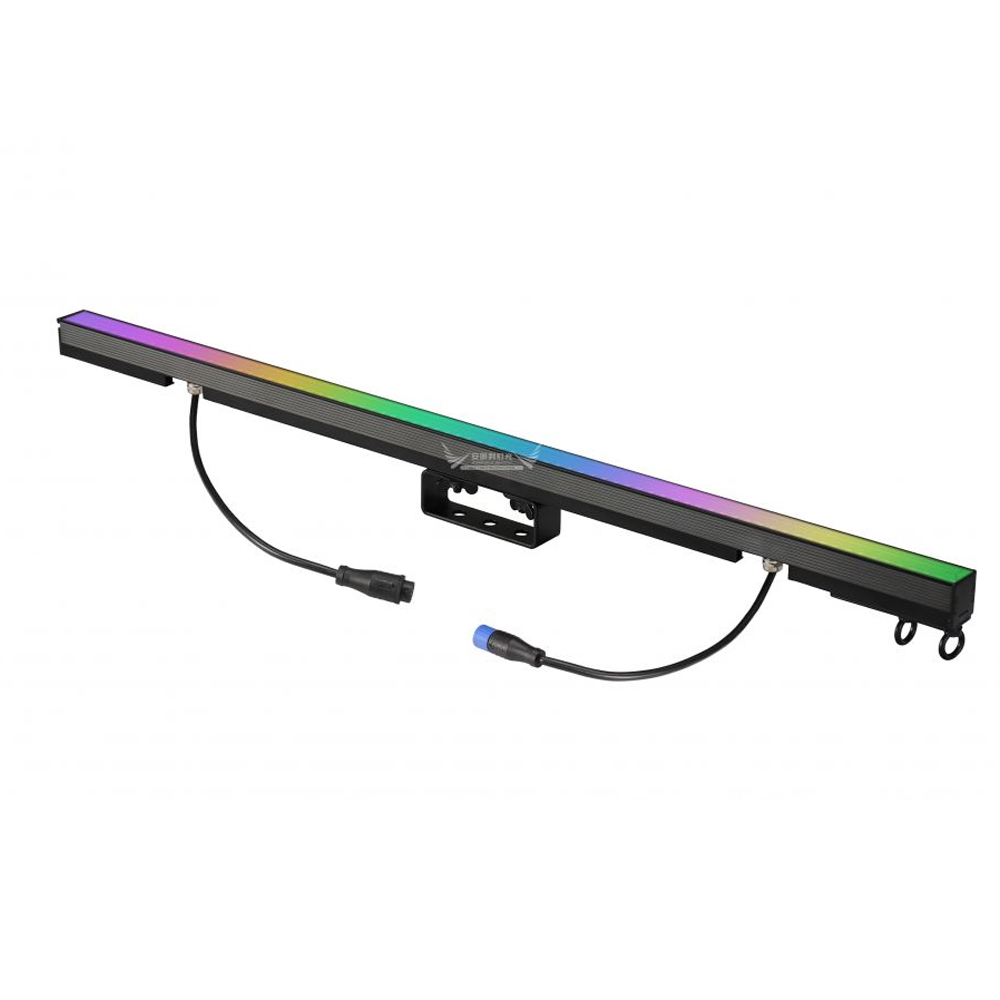

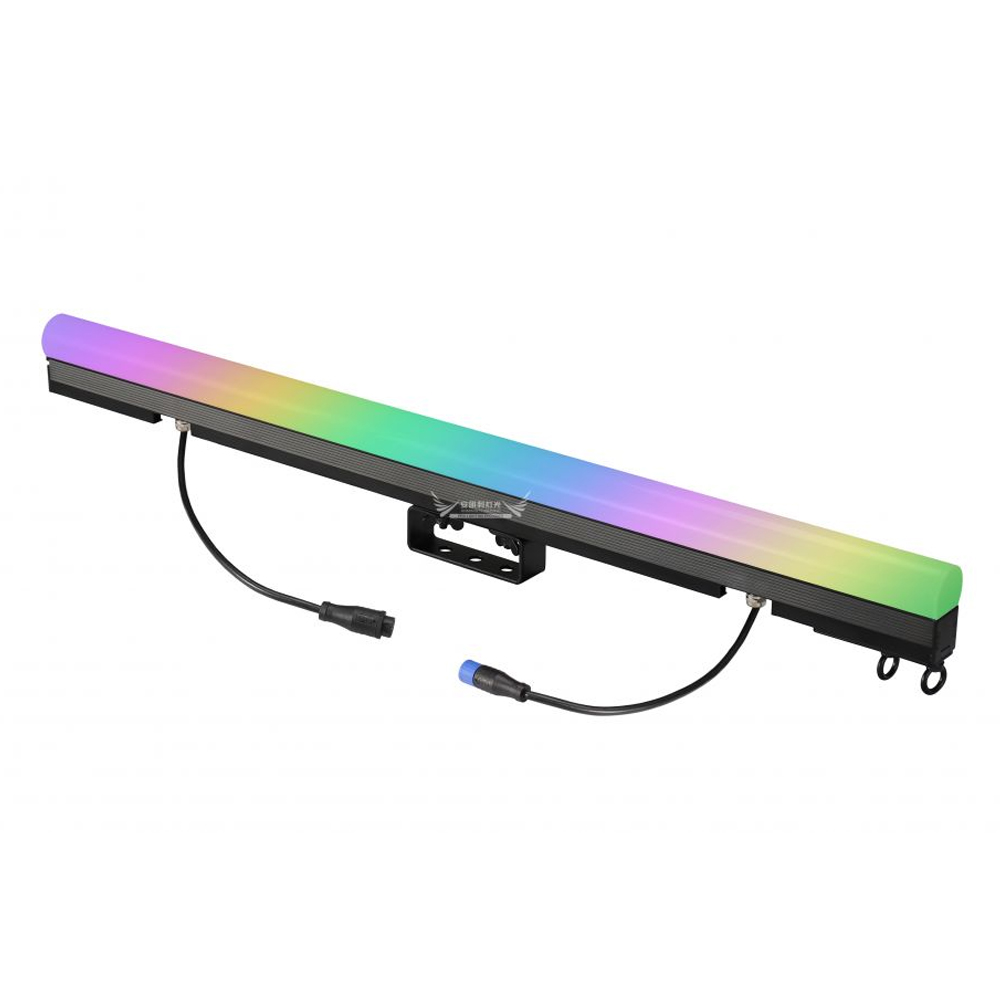

AML Lighting Pixel Strip 80(ピクセルストリップ 80) [AL-DC180]
商品詳細
仕様
Led pixel mapping strip 1x80:◆Light Source:80Pcs SMD5050 RGB LEDs
◆Control Mode:DMX, Art-Net, RDM
◆Pixel: 1LED/2LEDs/4LEDs as 1Pixel
◆Power Consumption:25W( All on)
◆Size:1000x35x100mm(with handle)
◆Weight: 2KG
◆Each Strip is equipped with two 500MM 2+3pin cable (2+3pin for both power&data to the product)
Led pixel mapping strip 1x80 Drive 4.0:
◆InPut Power:AC90V-260V
◆Output power:36V
◆Power Consumption:36V 2200W(MeanWell PSU)
◆Max connection of Units:32PCS of AL-DC180
◆Size:2U Design
◆Weight:5.5KG
◆IP Rating:IP20
◆Signal Input Connection:2xDMX 3/5 pin In/Out ports
+2xEthernet ports
◆Signal Output Connection (Ethernet): Ethernet
ports
◆Control Protocol: Art-Net, Kling-Net, DMX, Sound, Auto, Preset Programs
■メーカーサイト
https://cn.anmingli.com/en/productinfo/id/866
