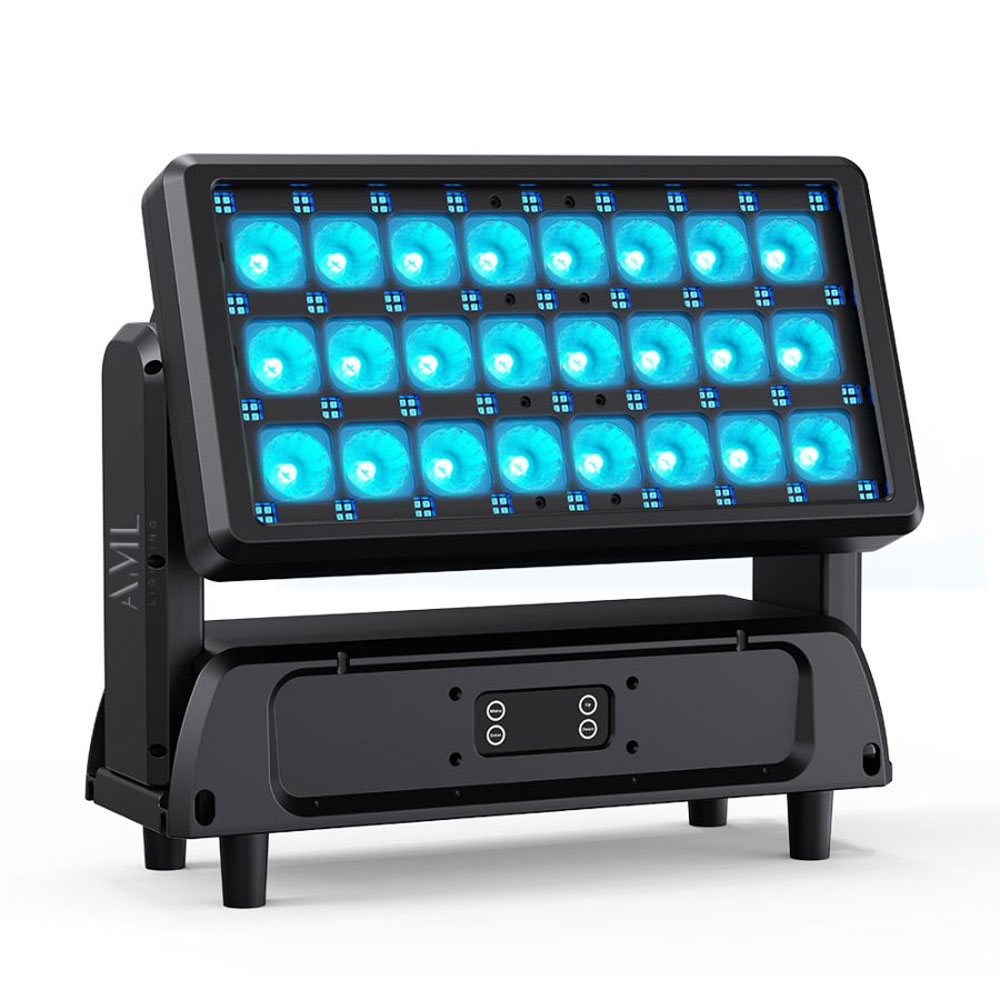

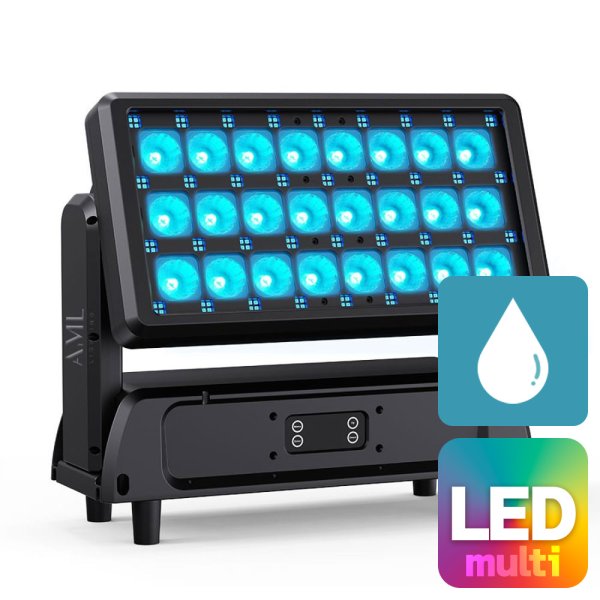

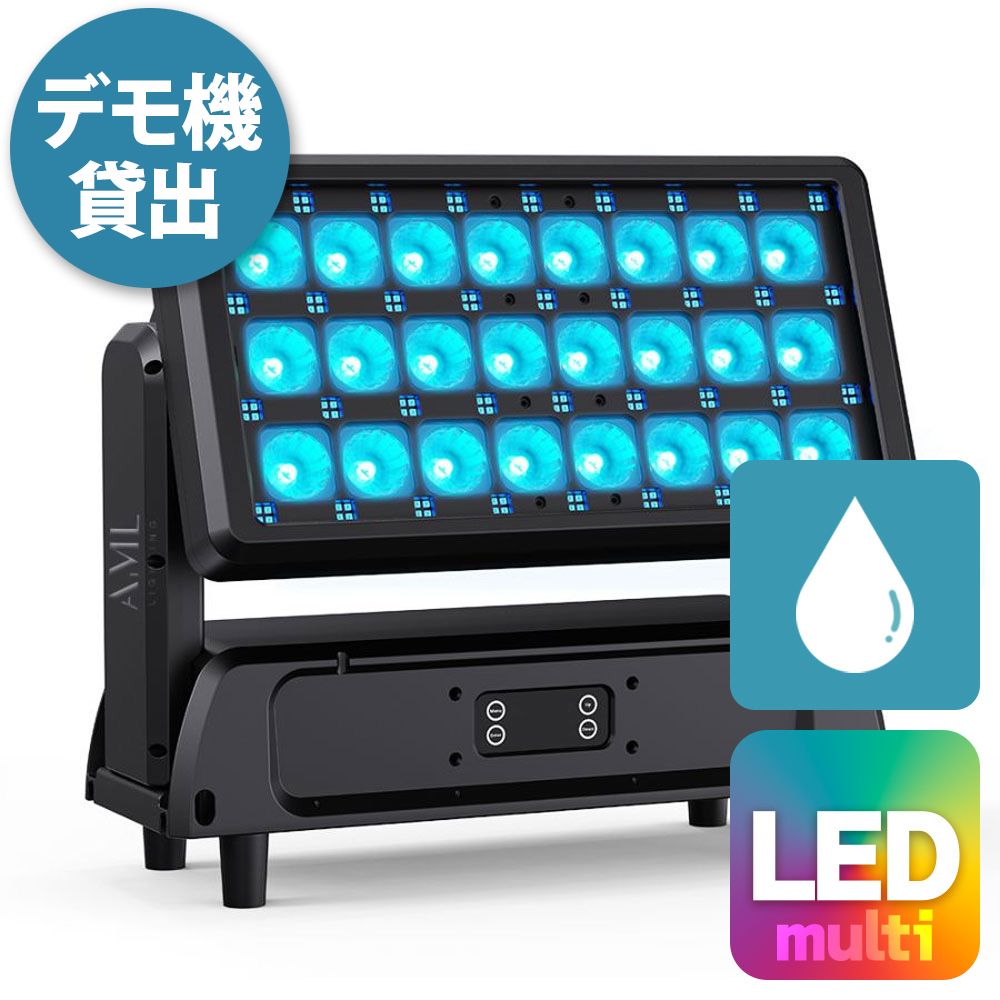

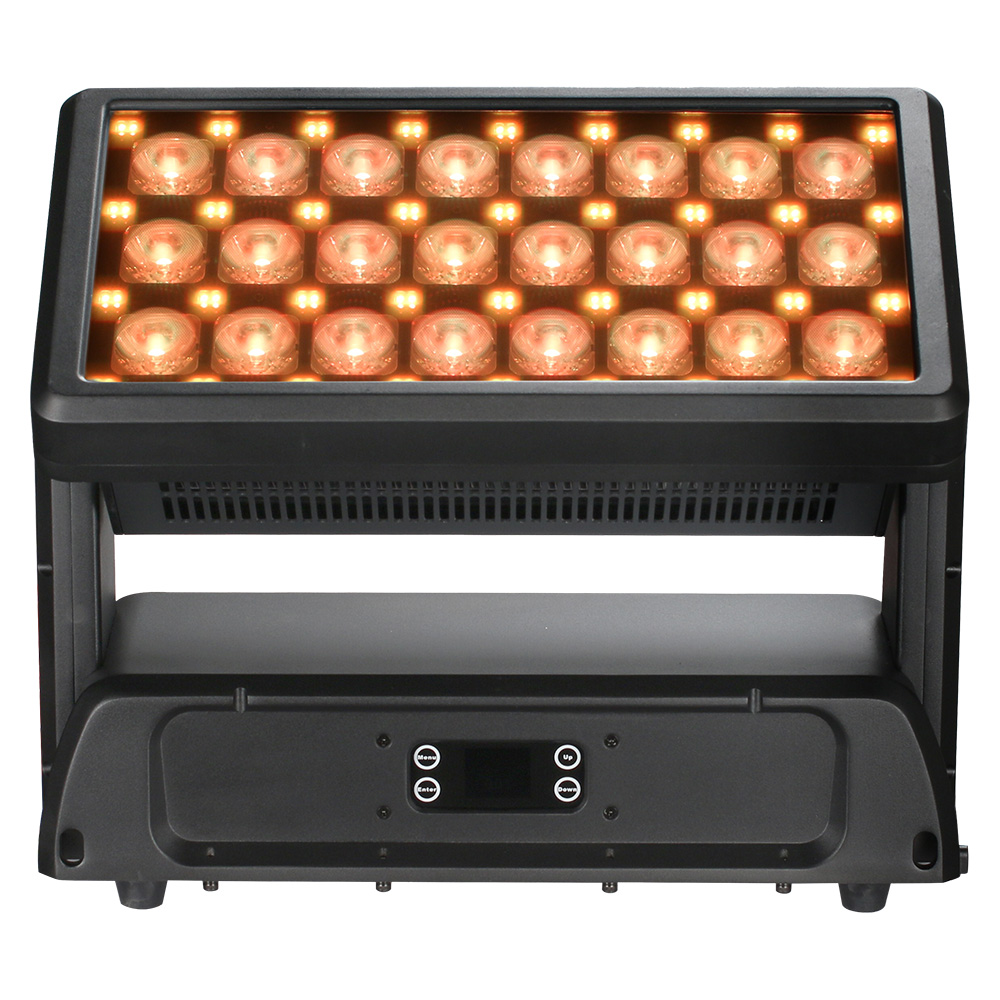

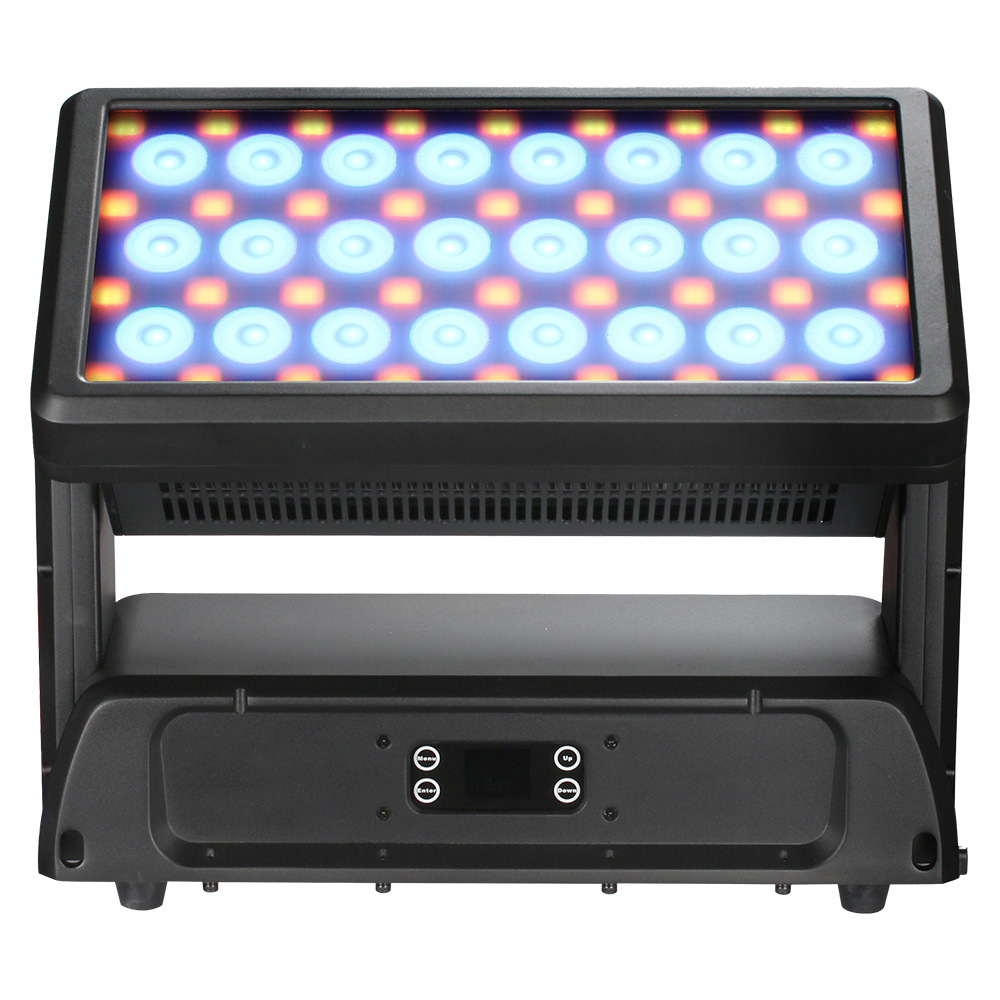

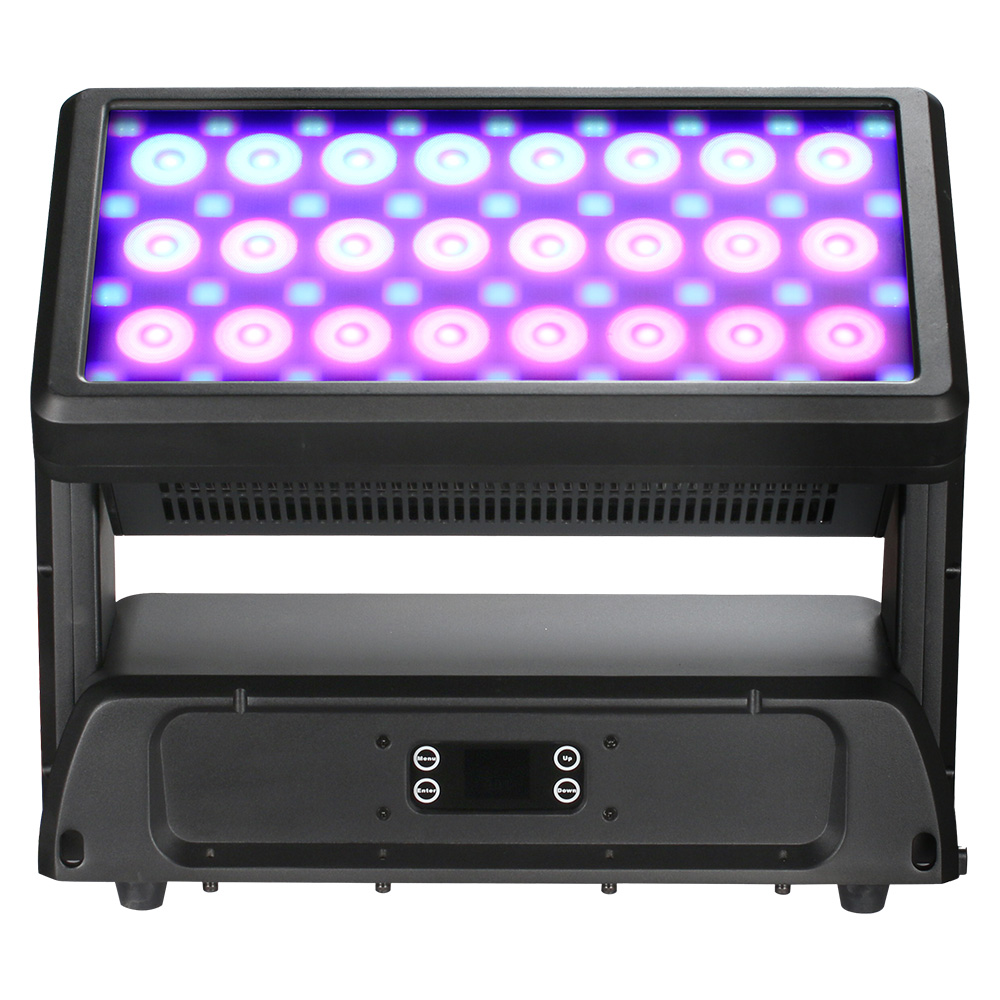

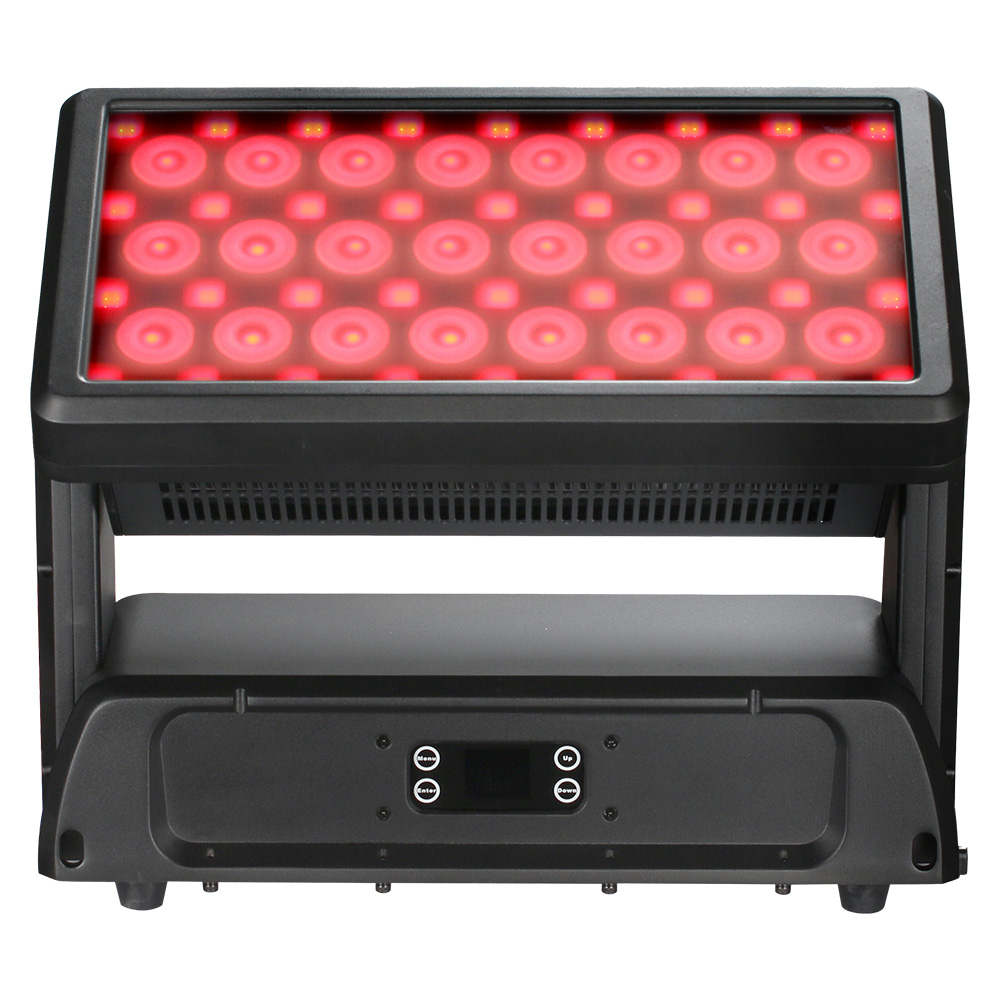

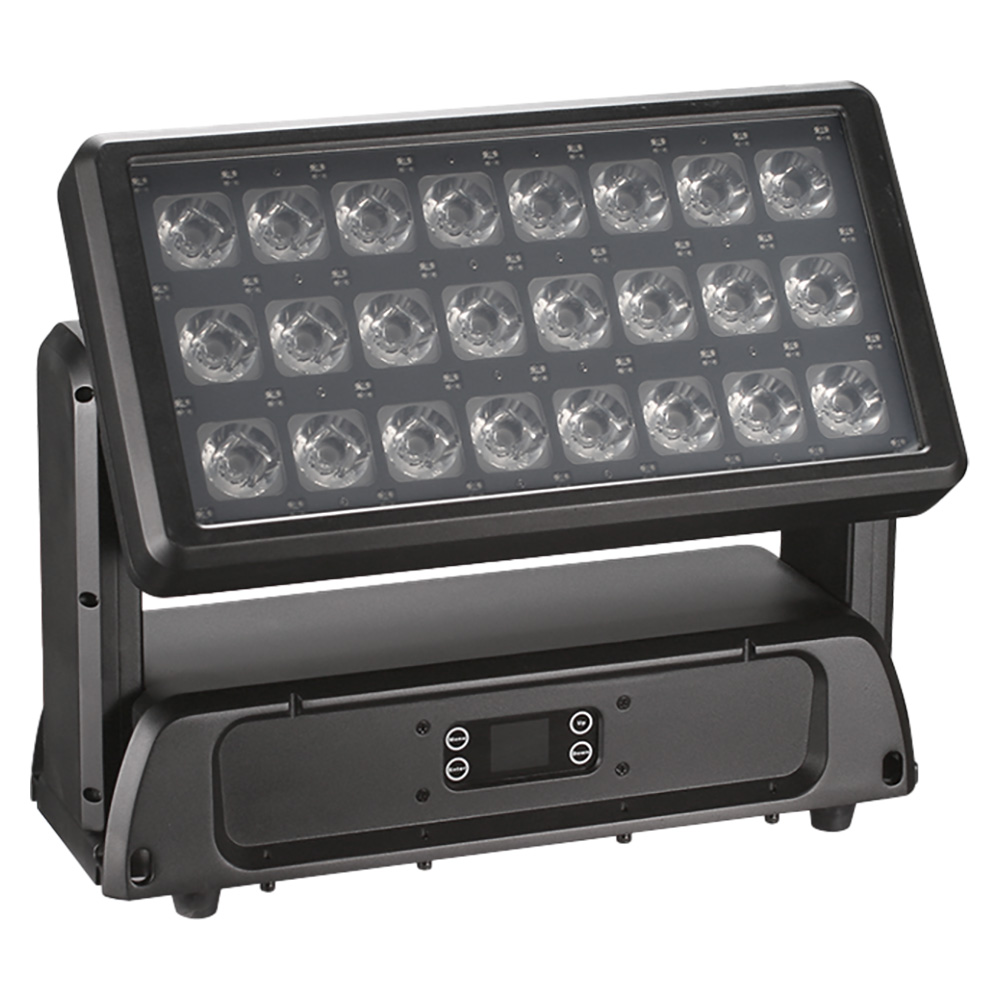

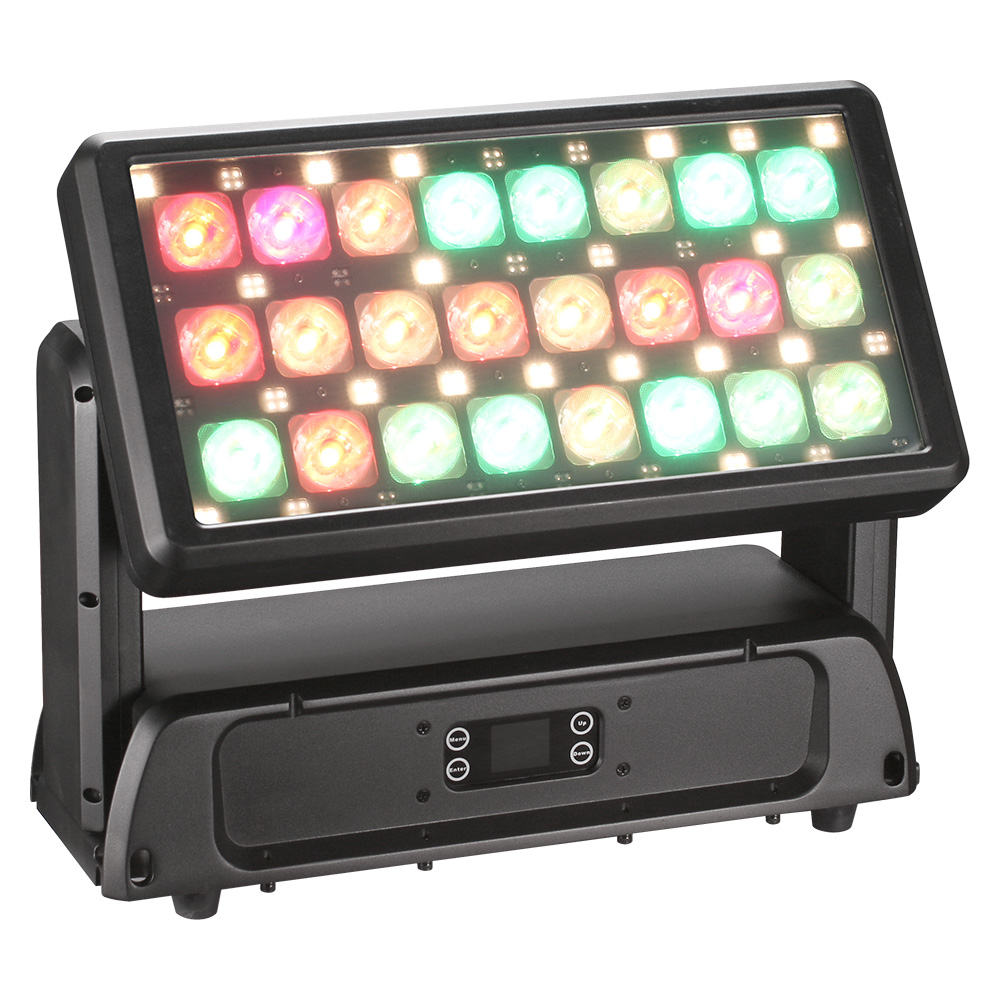

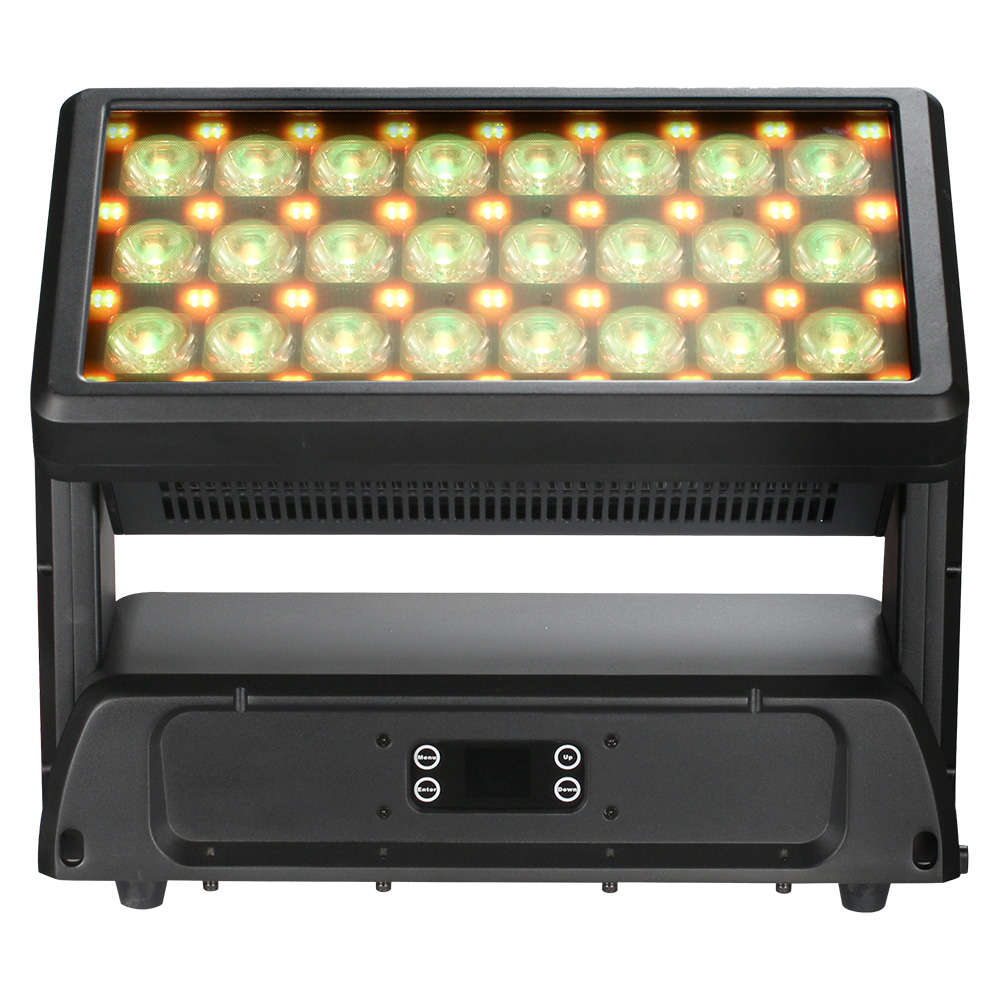

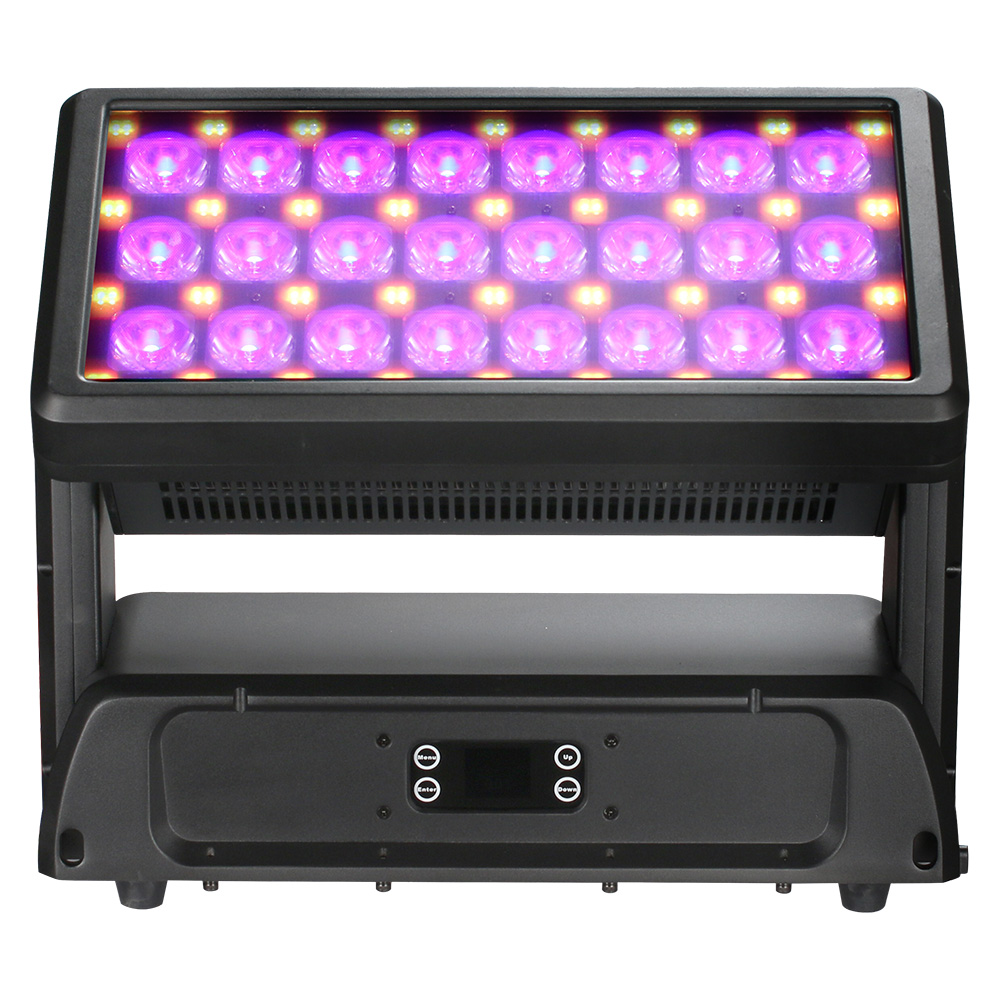

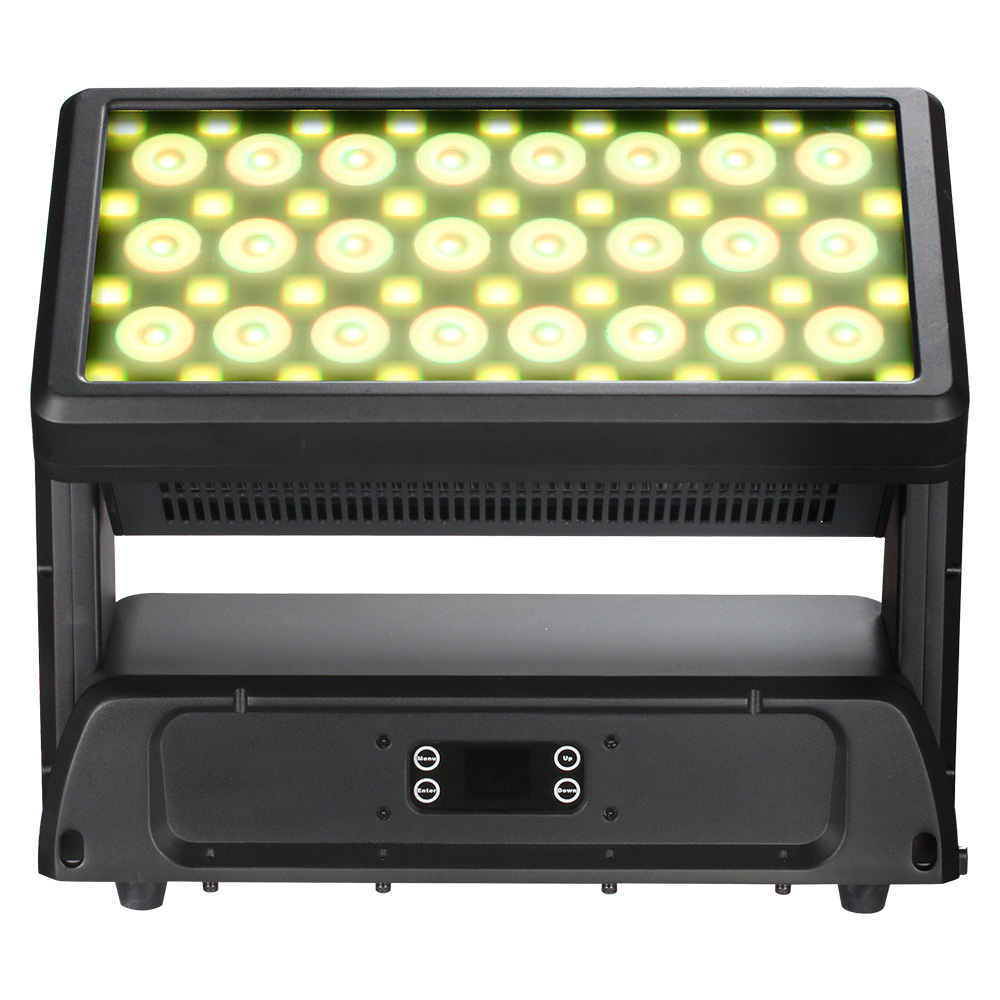

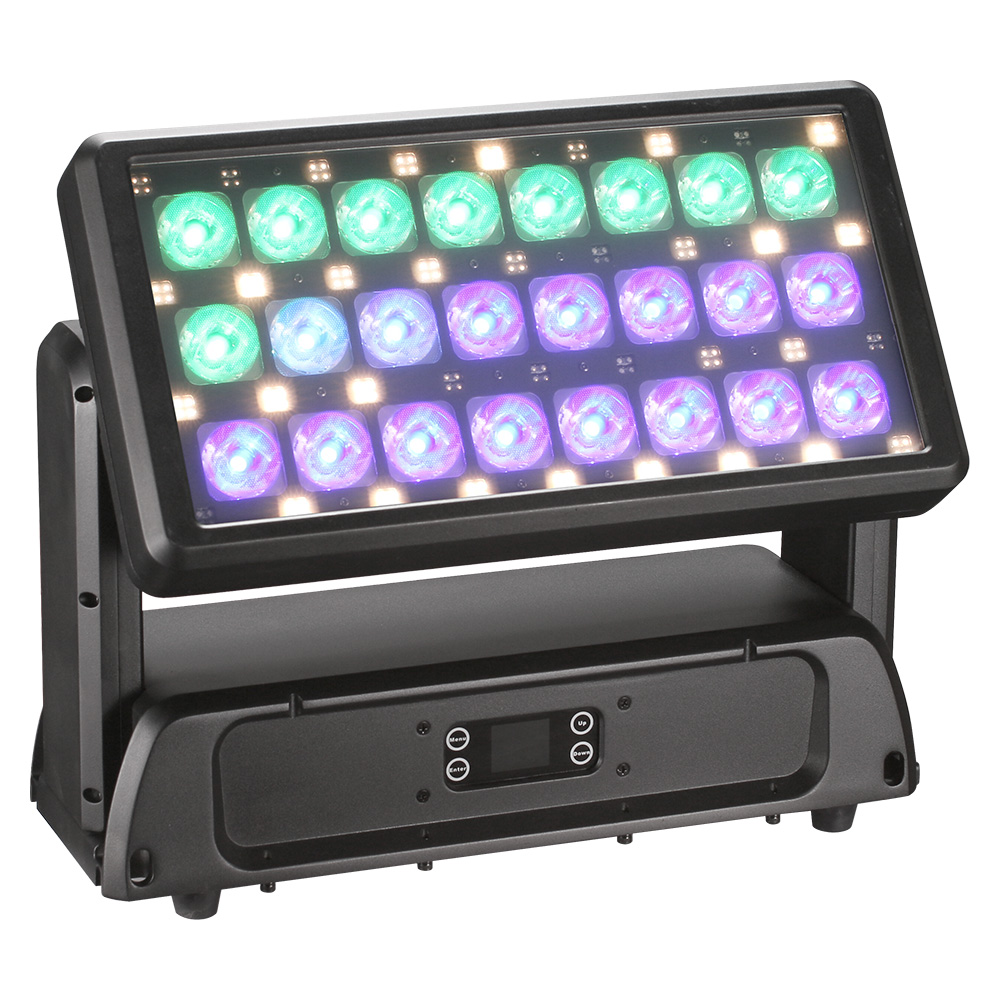

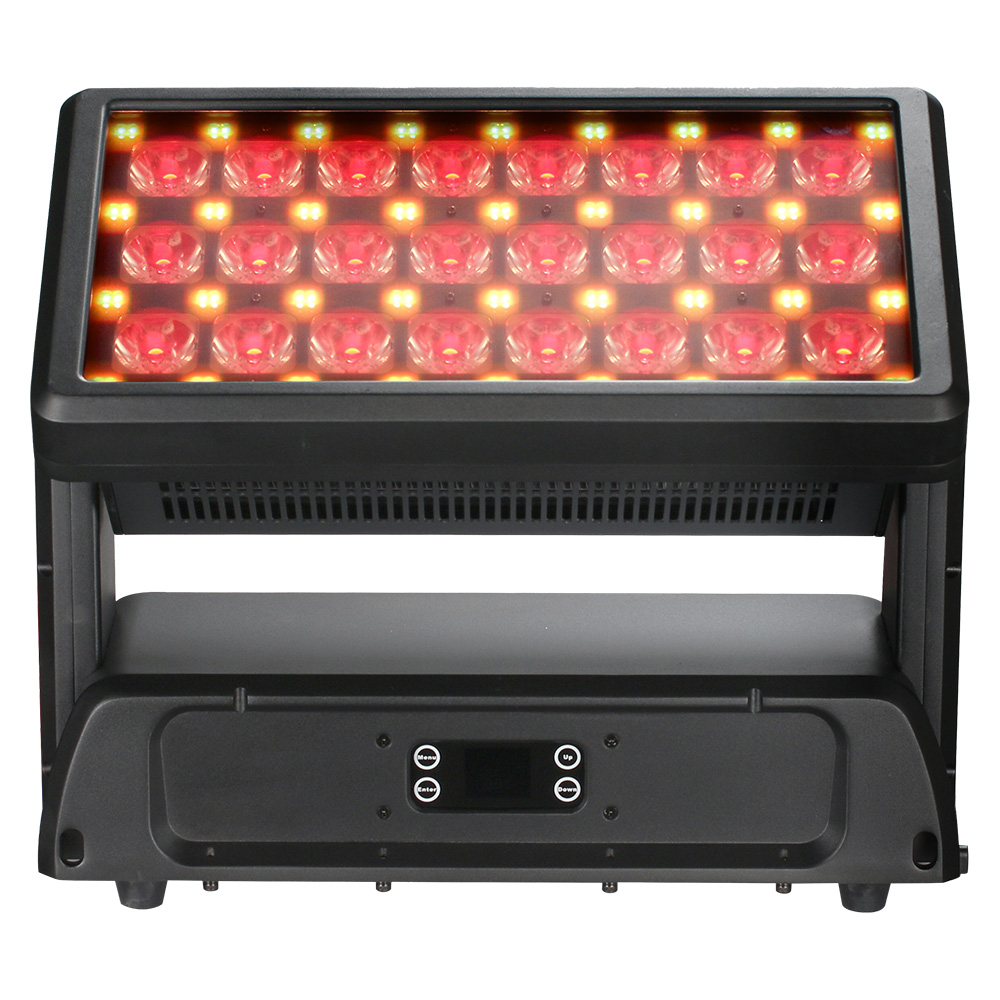

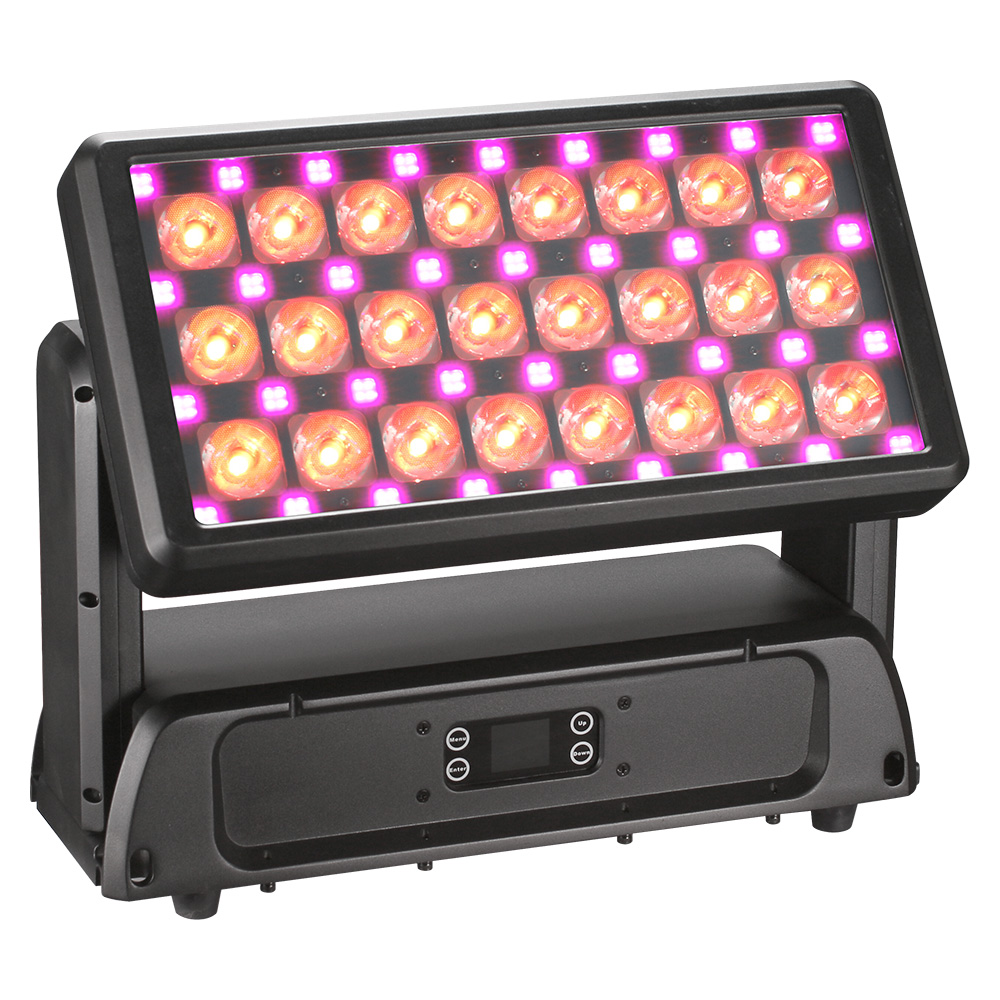

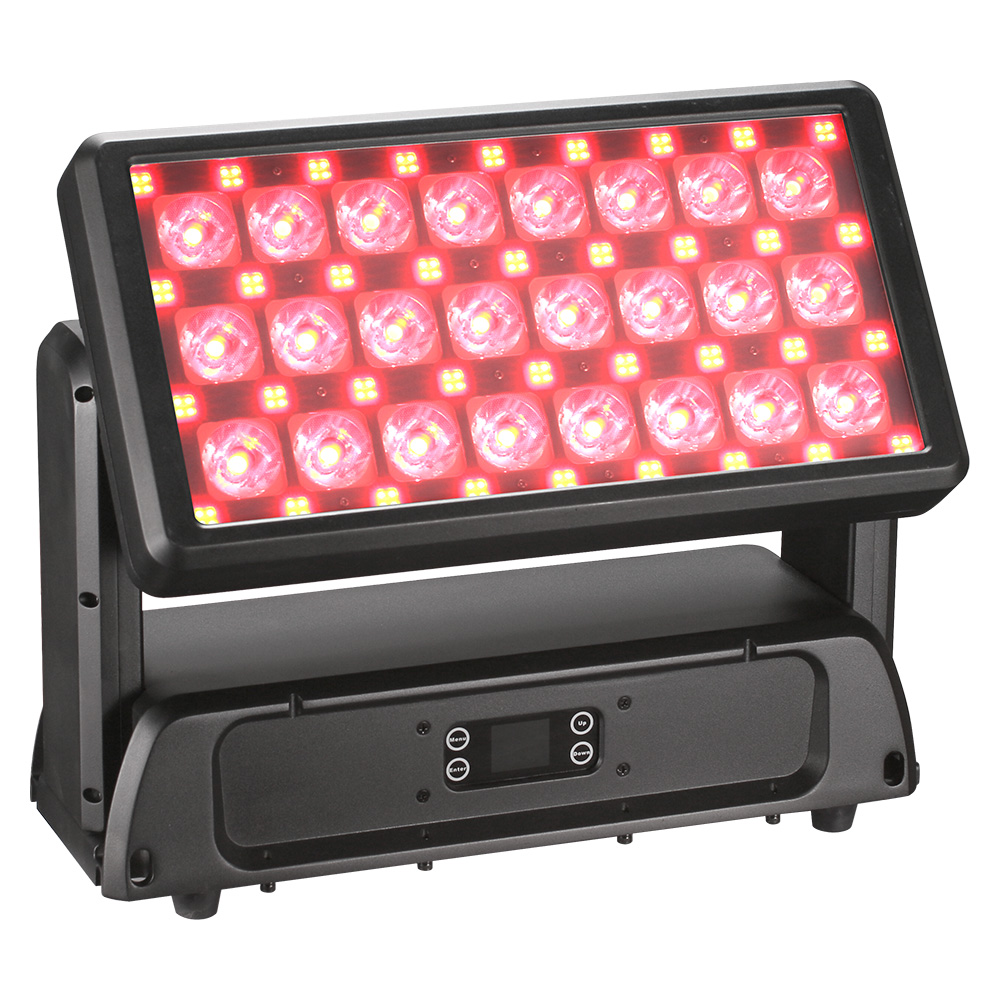

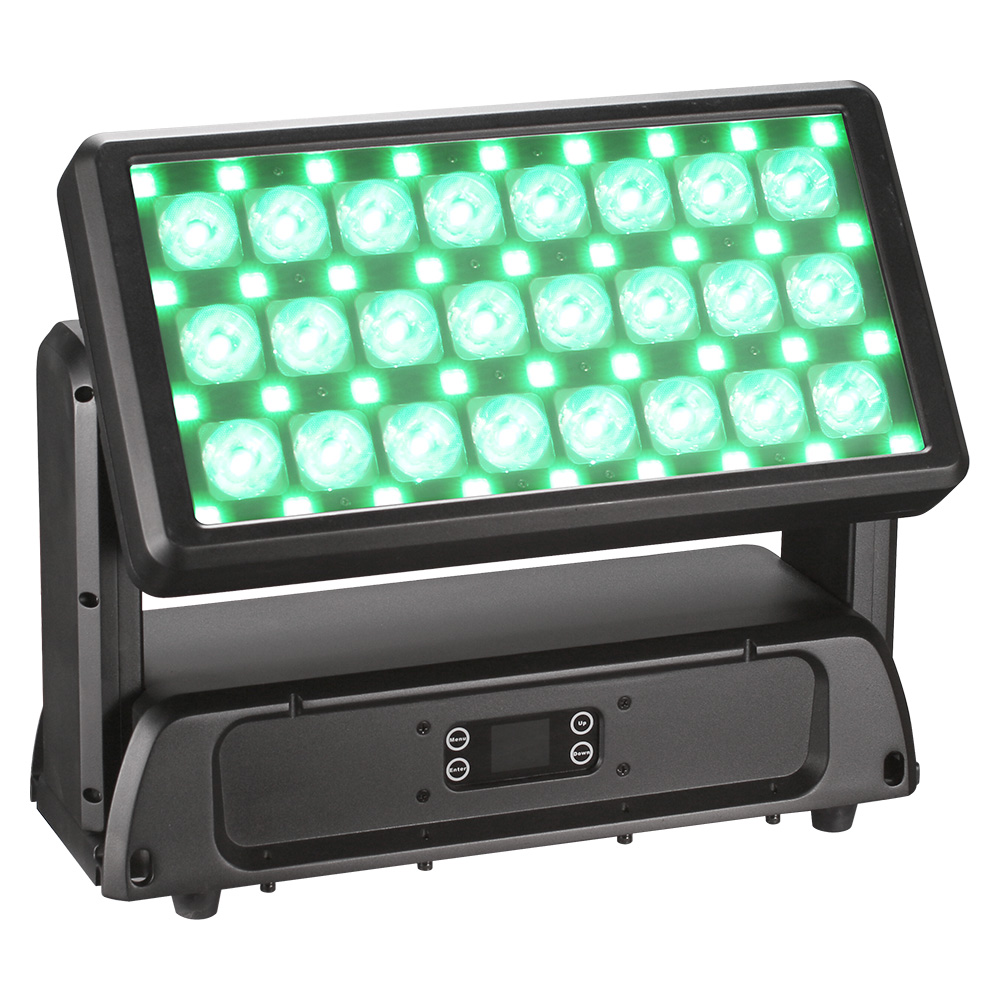

AML Lighting Vibrant 800W IP PIXEL MAPPING WASH（ヴィブラン 800W IP ピクセルマッピングウォッシュ） [AL-Q4IP]

仕様

◆OPTIC:

LED Source: 24*25W RGBL LEDs + 36*1.2W RGBA Aura LEDs(4 LEDs as one pixel)

Lens Angle:6°

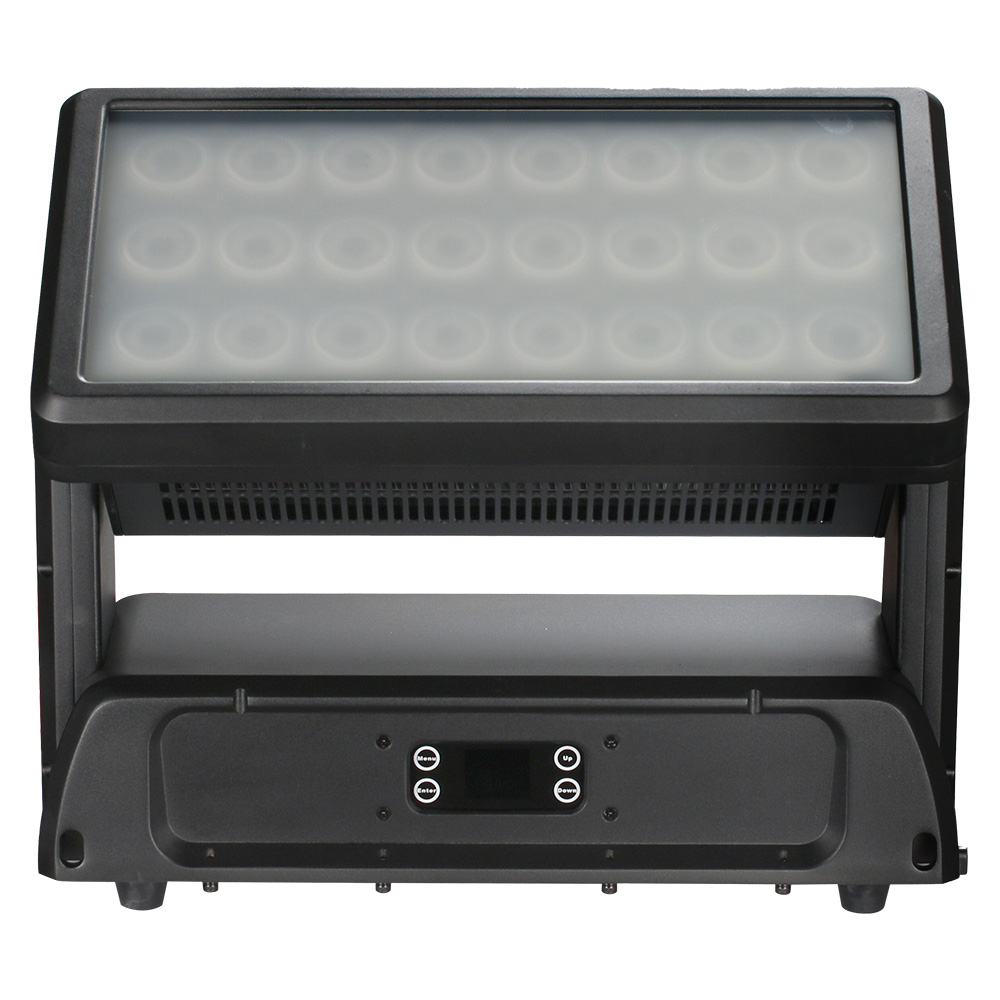

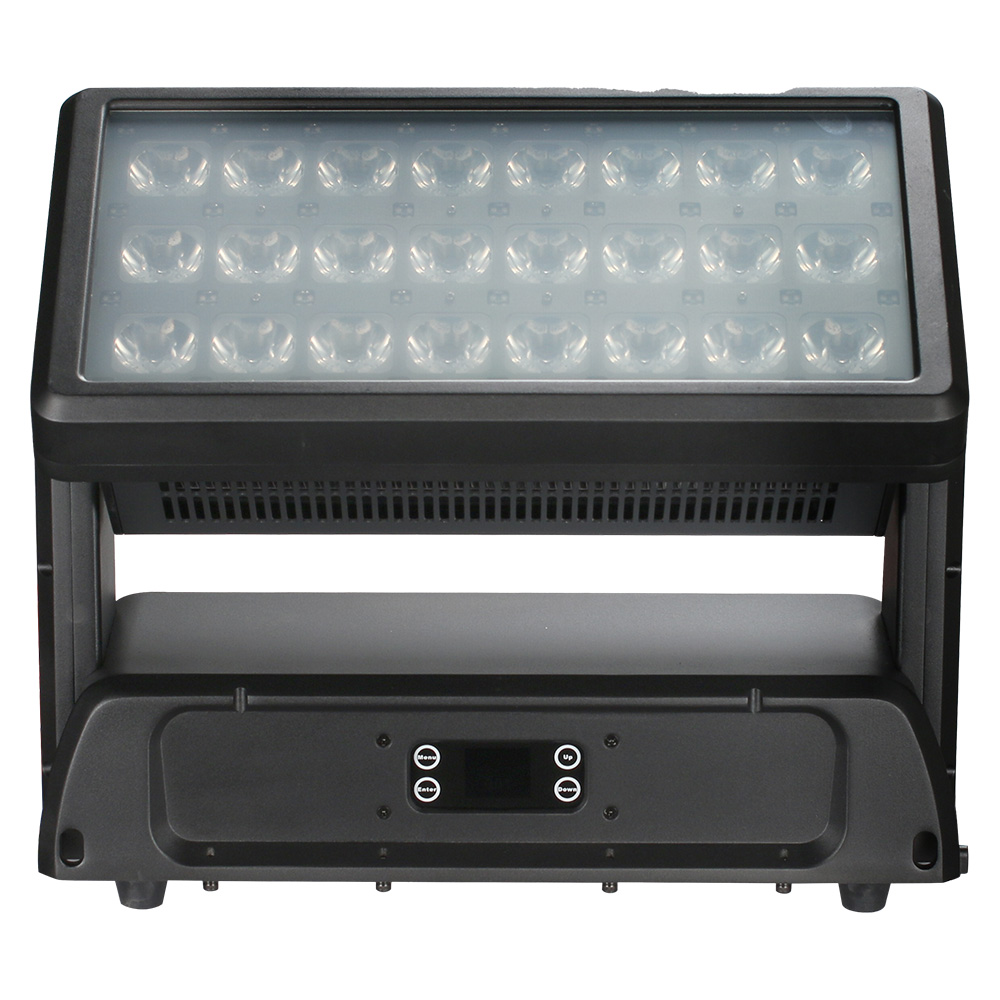

Smart Glass Angle: 22°



◆Movement

Position Feedback: yes

Tilt (Degrees): 180°



◆Control

Channel Mode:14/25/45/85/253CH

Display: Full Color 180° Reversible LCD Menu Display

Protocol: DMX, RDM, ArtNet, sACN

Cooling: Temperature controlled, Overheating protection



◆Effects

Dimmer: 0-100% electronic 16 - bit Dimming

Internal Effects: Preset CTO / LED Macro Effects

Electronic atomization

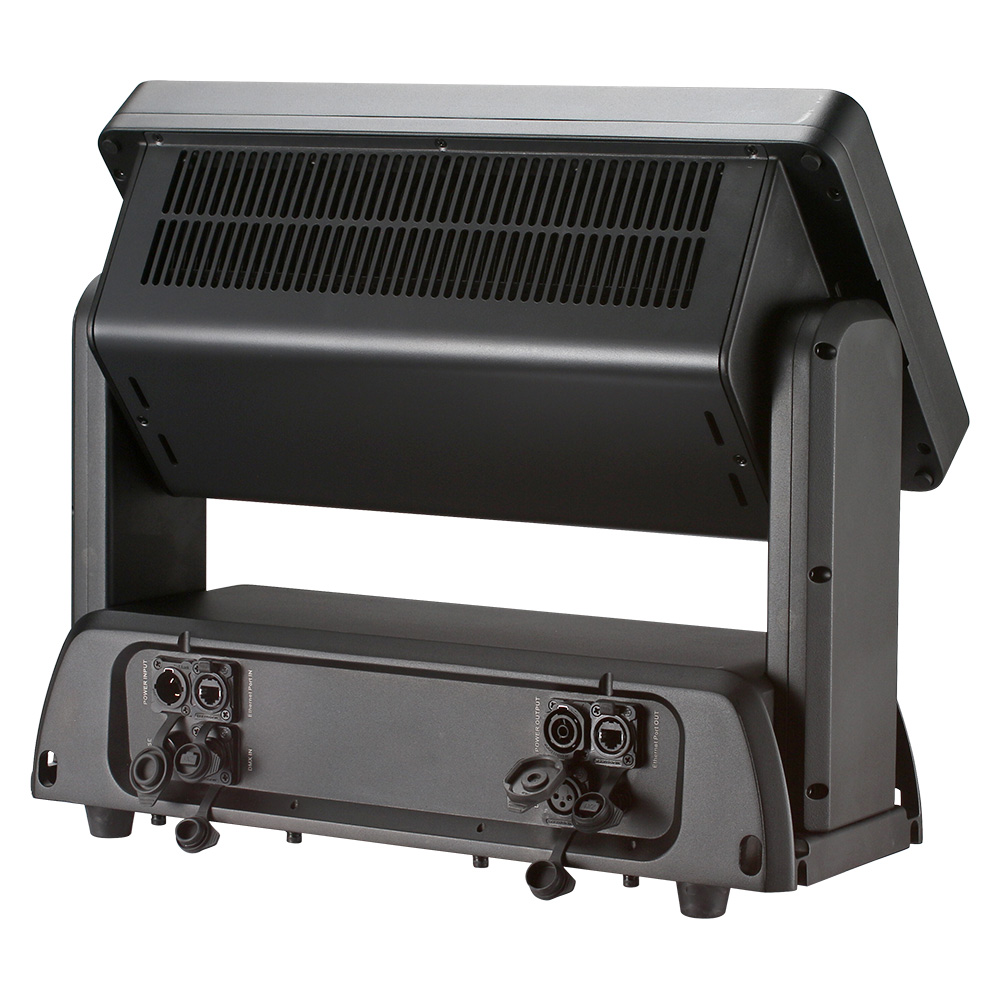

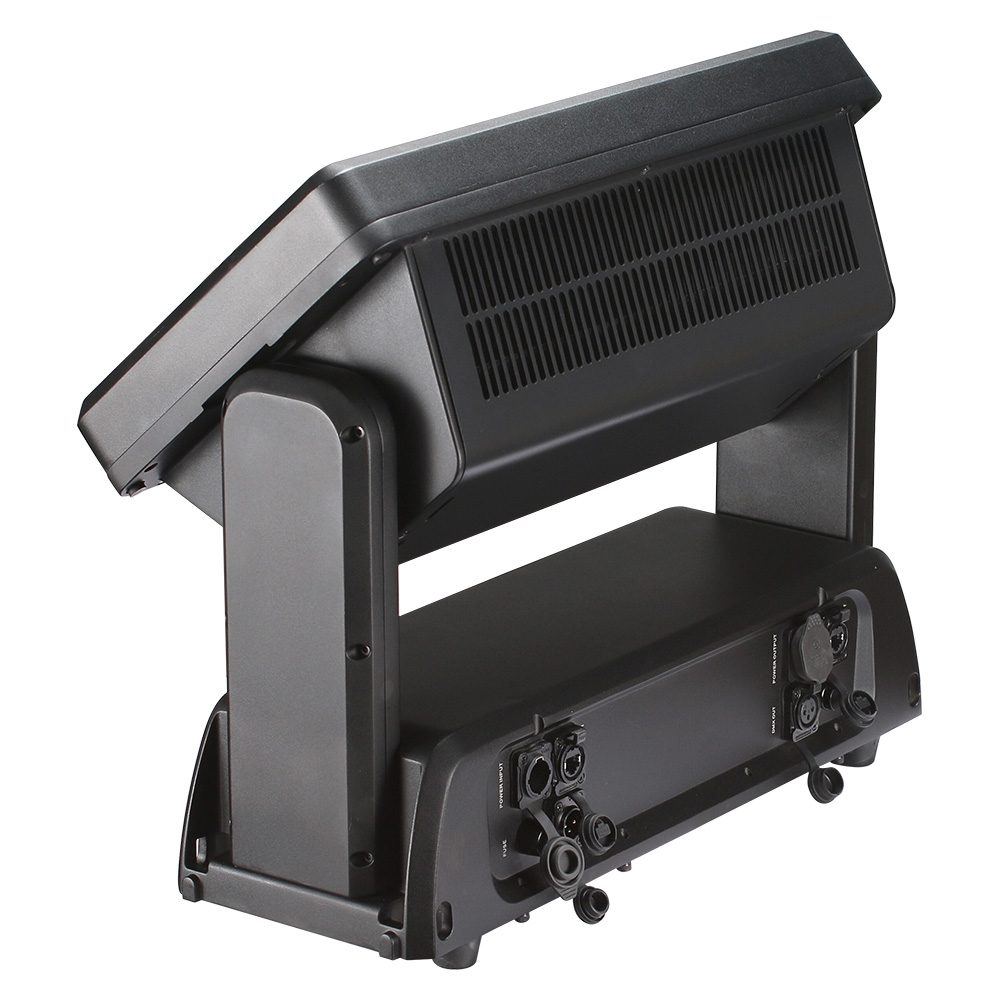

◆Connectors

Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out

Power Input: Seetronic powerCON TRUE1 In/Out



◆Operating Condtion

Mains: 100-240V AC / 50-60Hz

Consumption: 800W

Ambient: -30°C ~ 45°C



◆Physical

Dimensions: 493 x 175 x 400mm

Weight: 18kg

Cooling Noiseless fan for forced air



◆IP Rated

IP65
