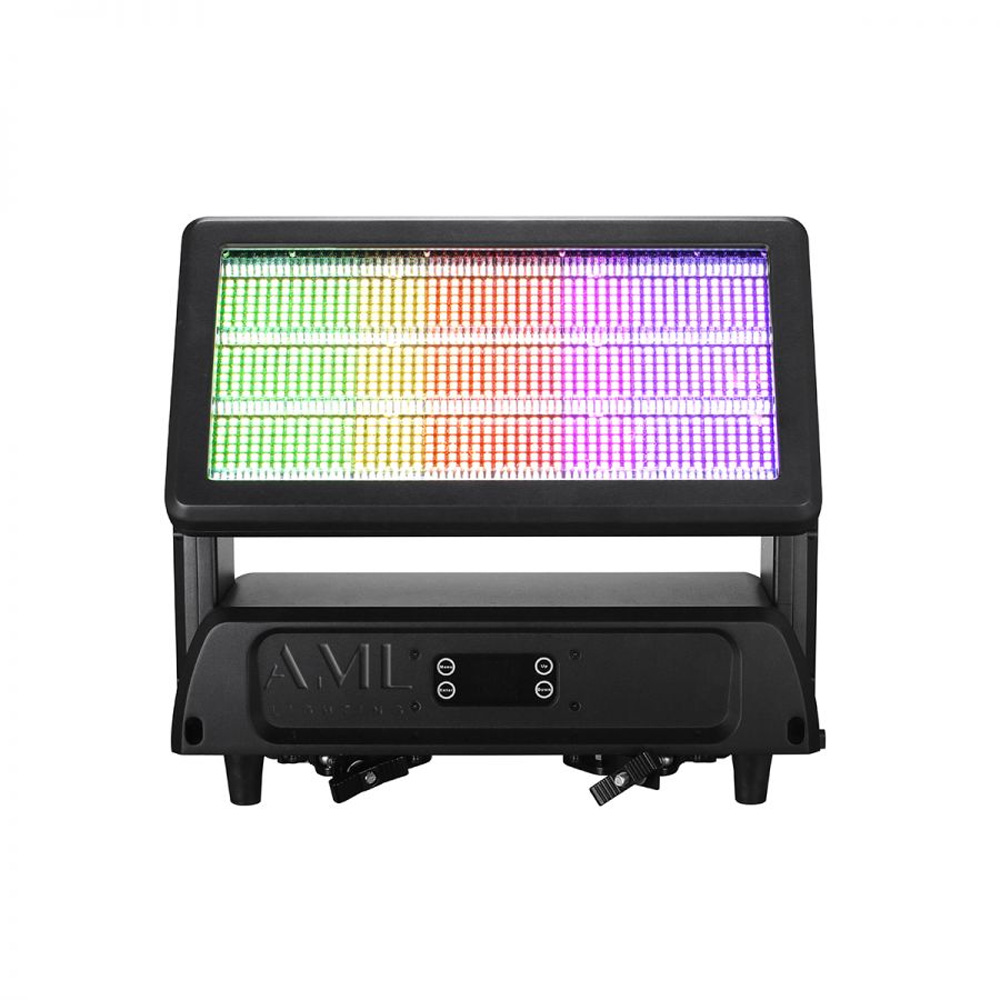

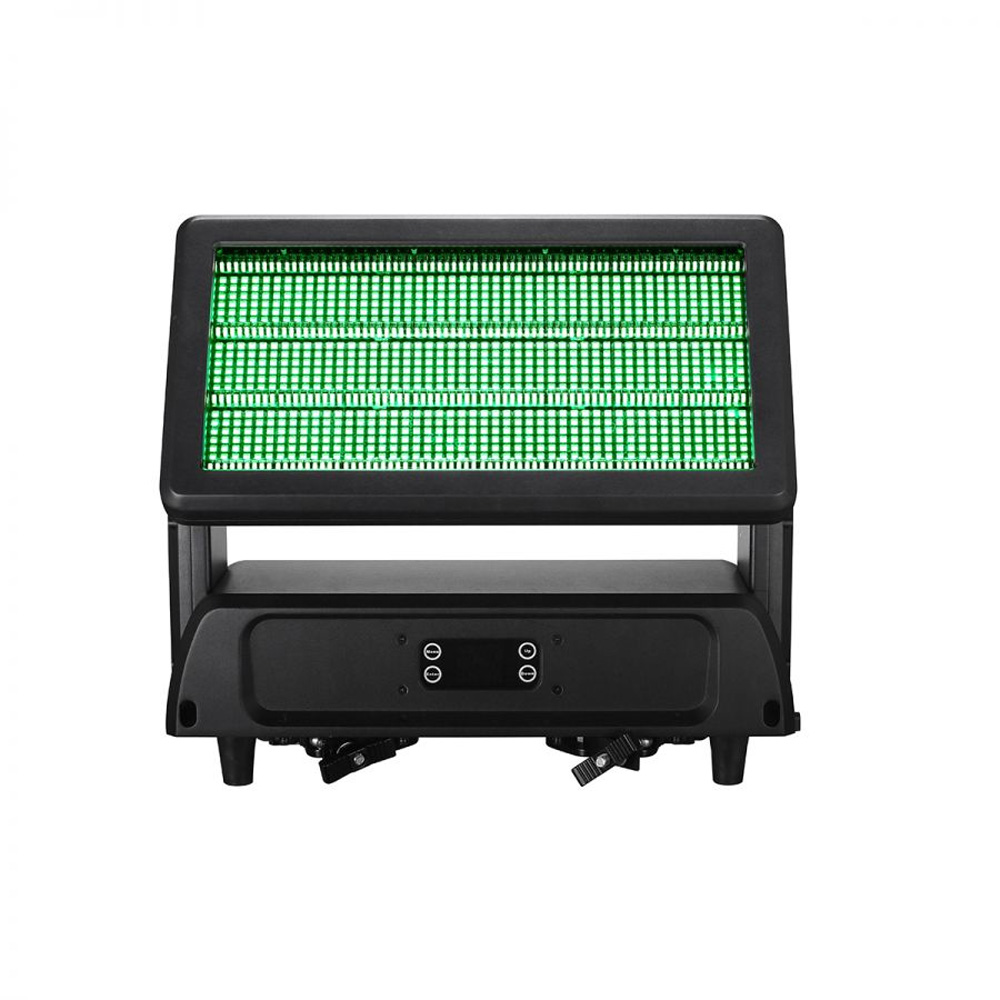

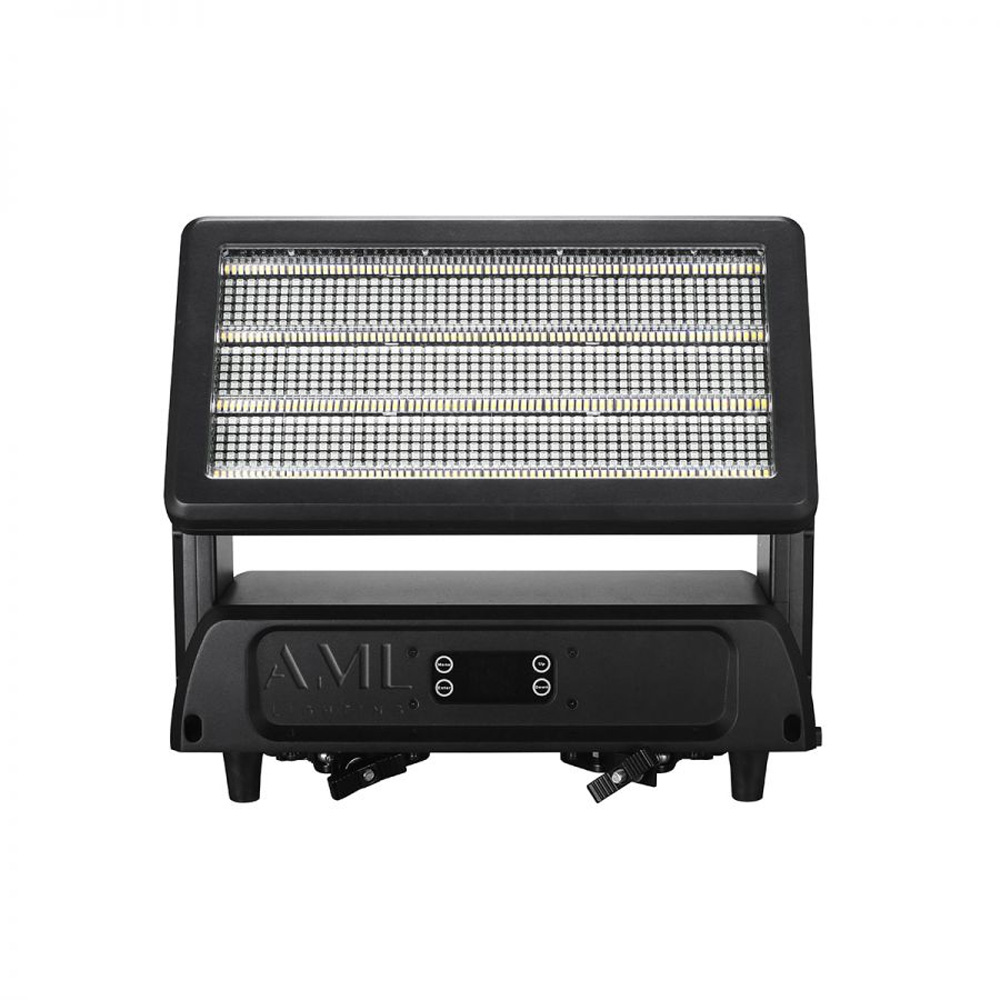

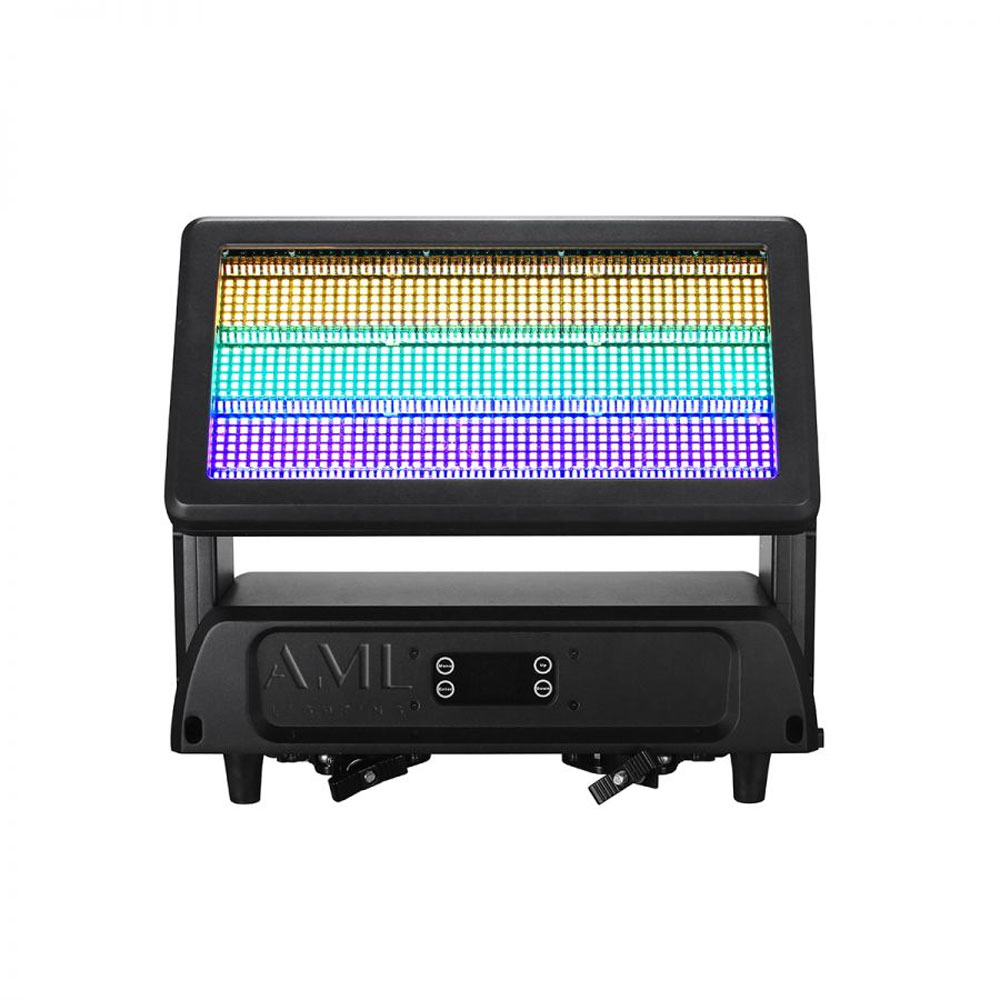

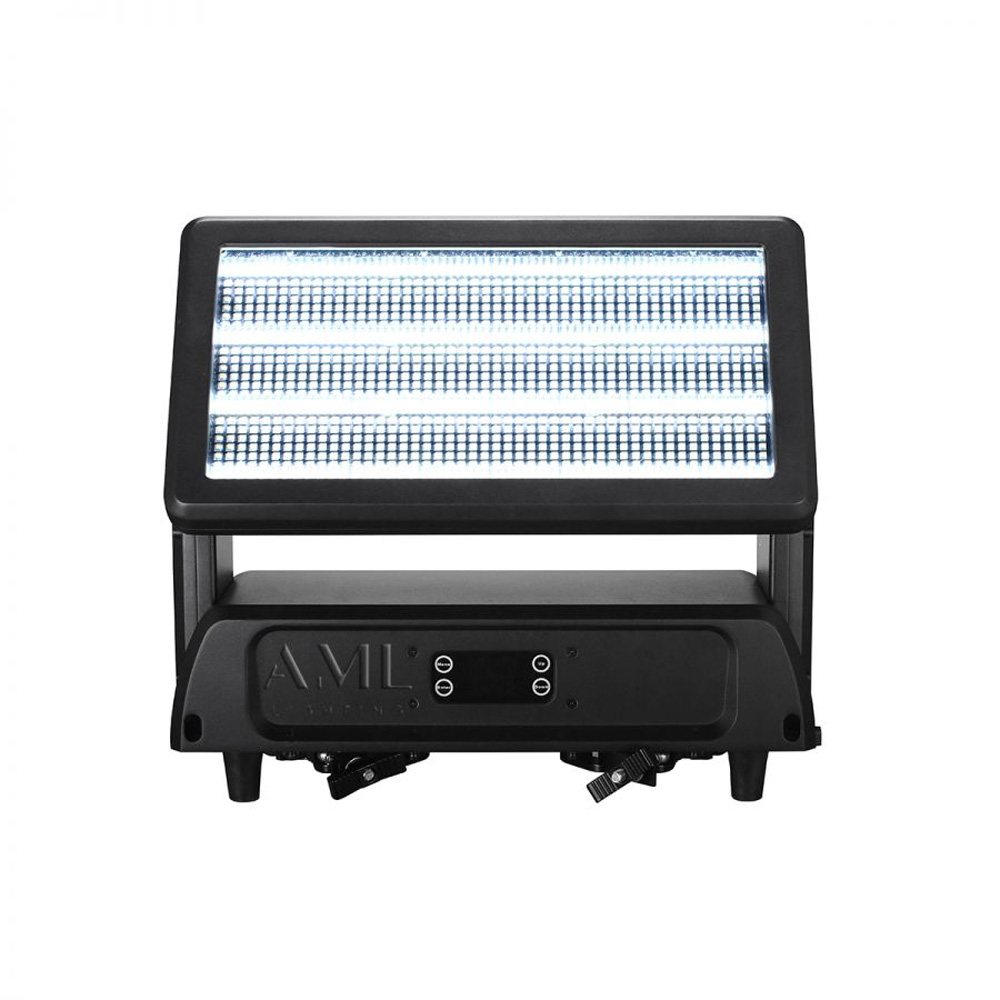

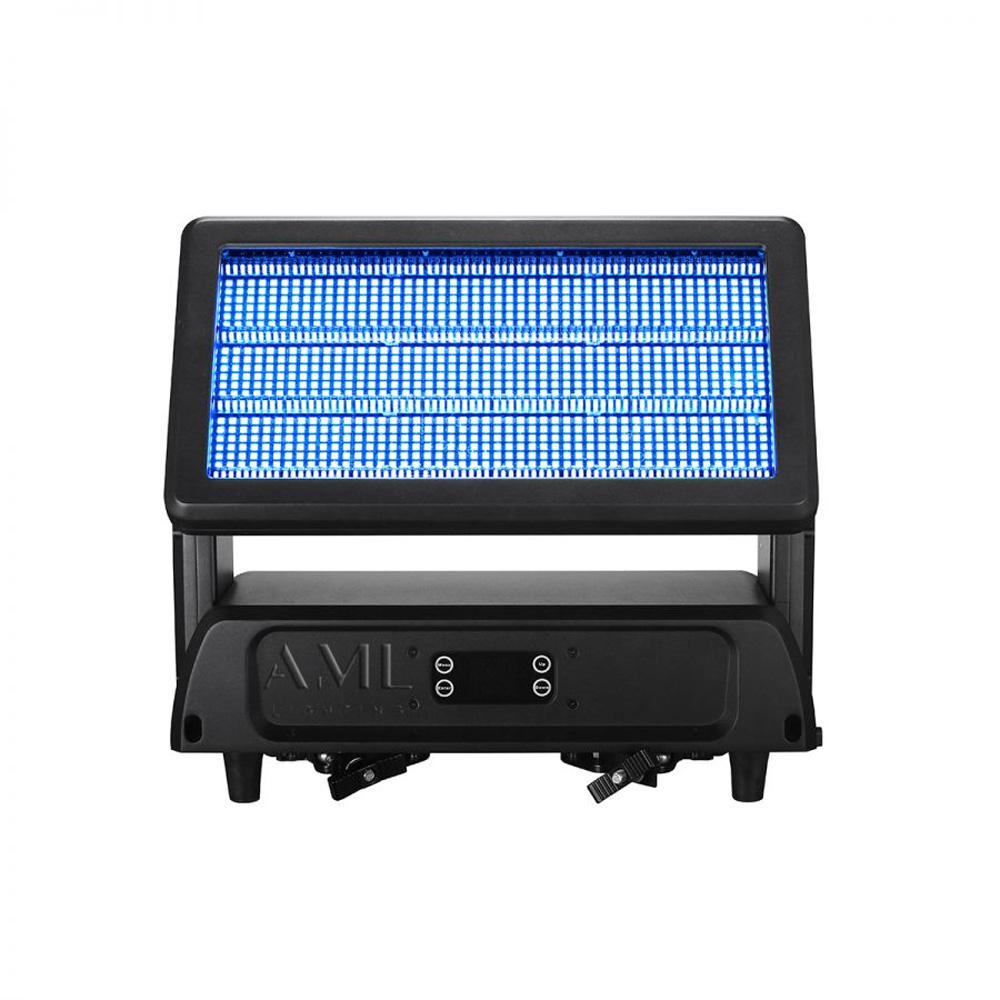

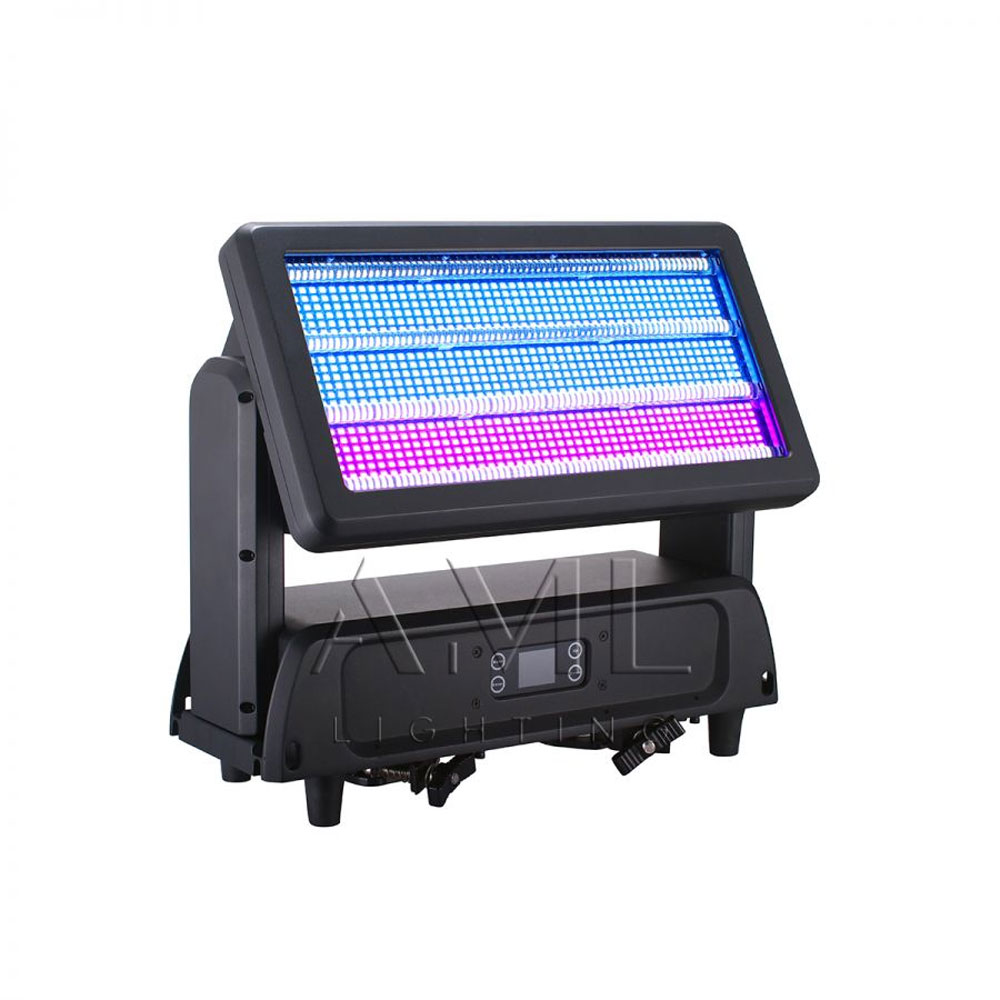

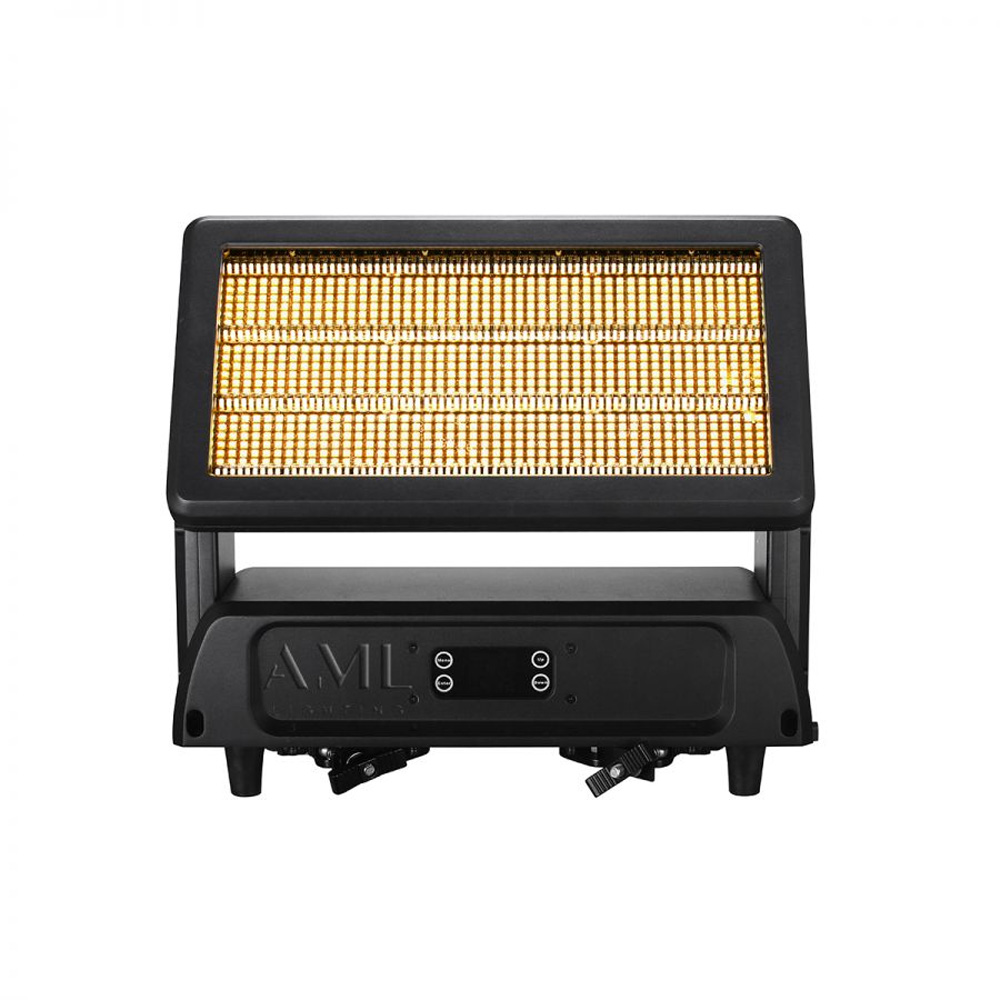

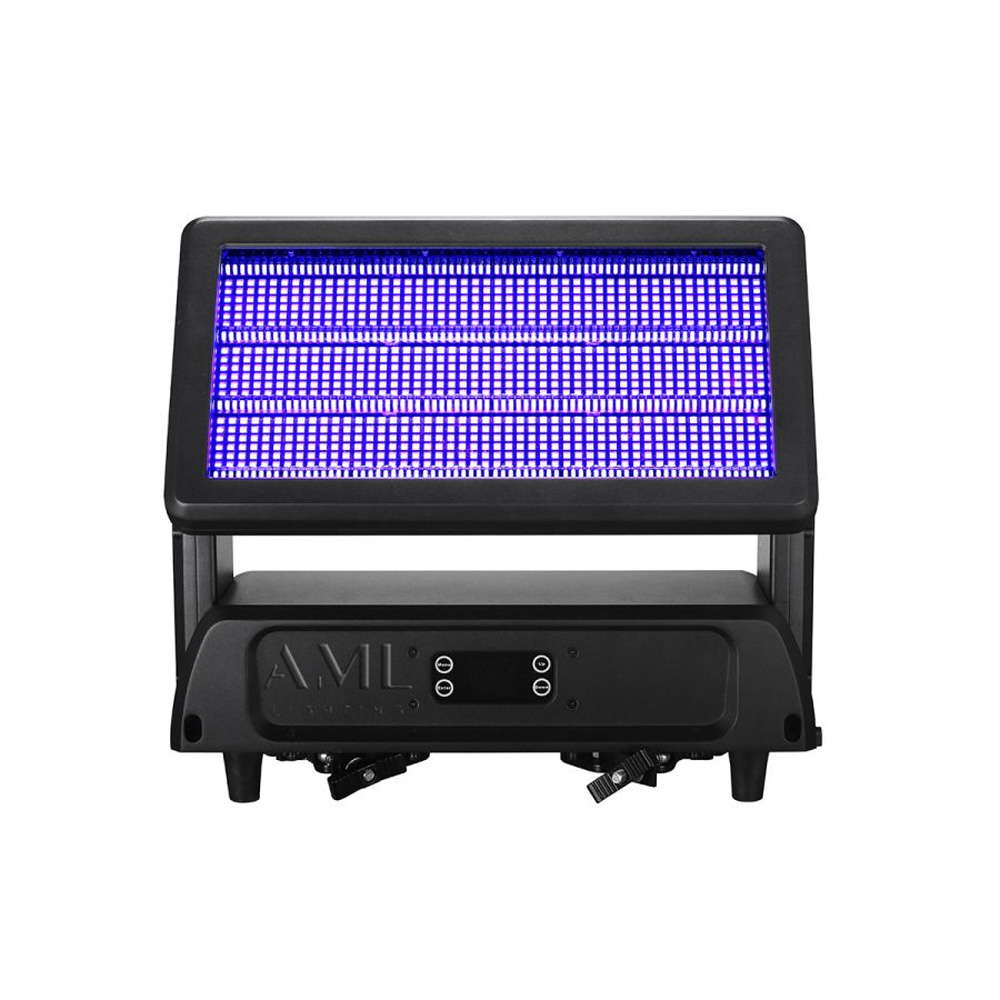

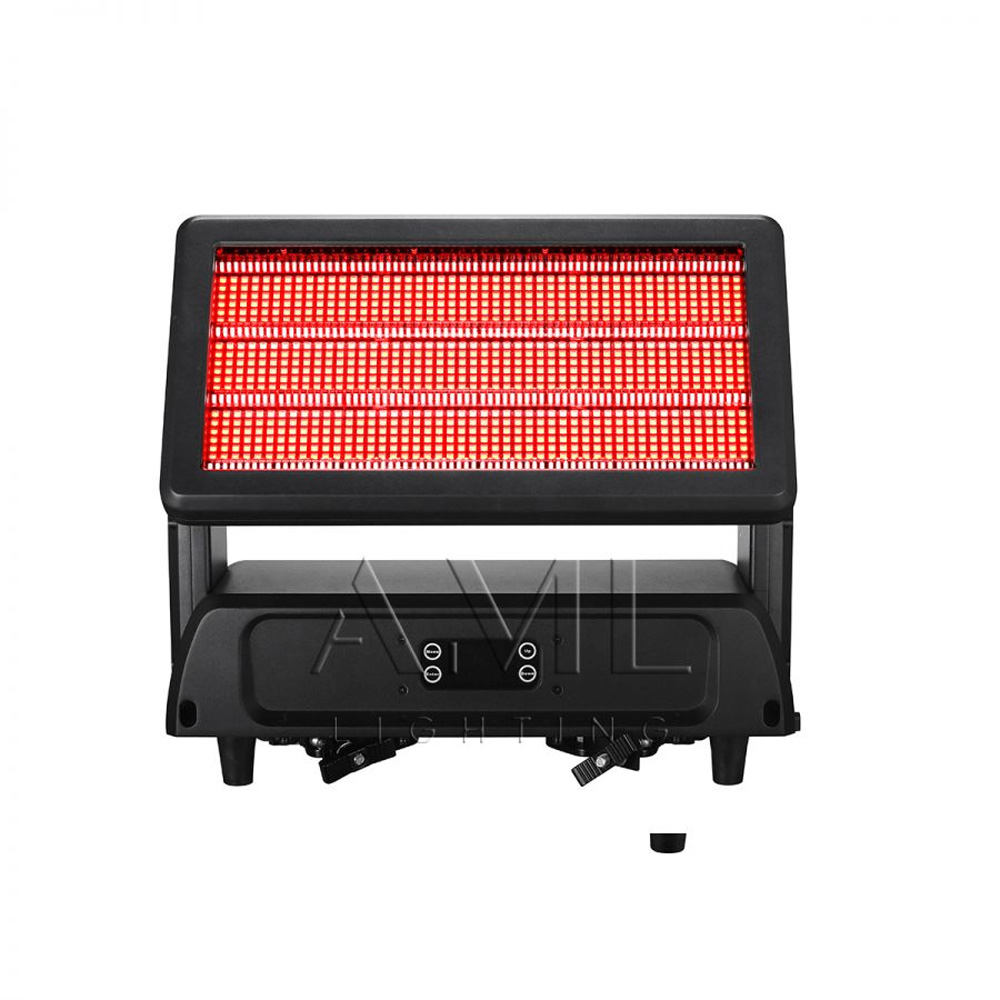

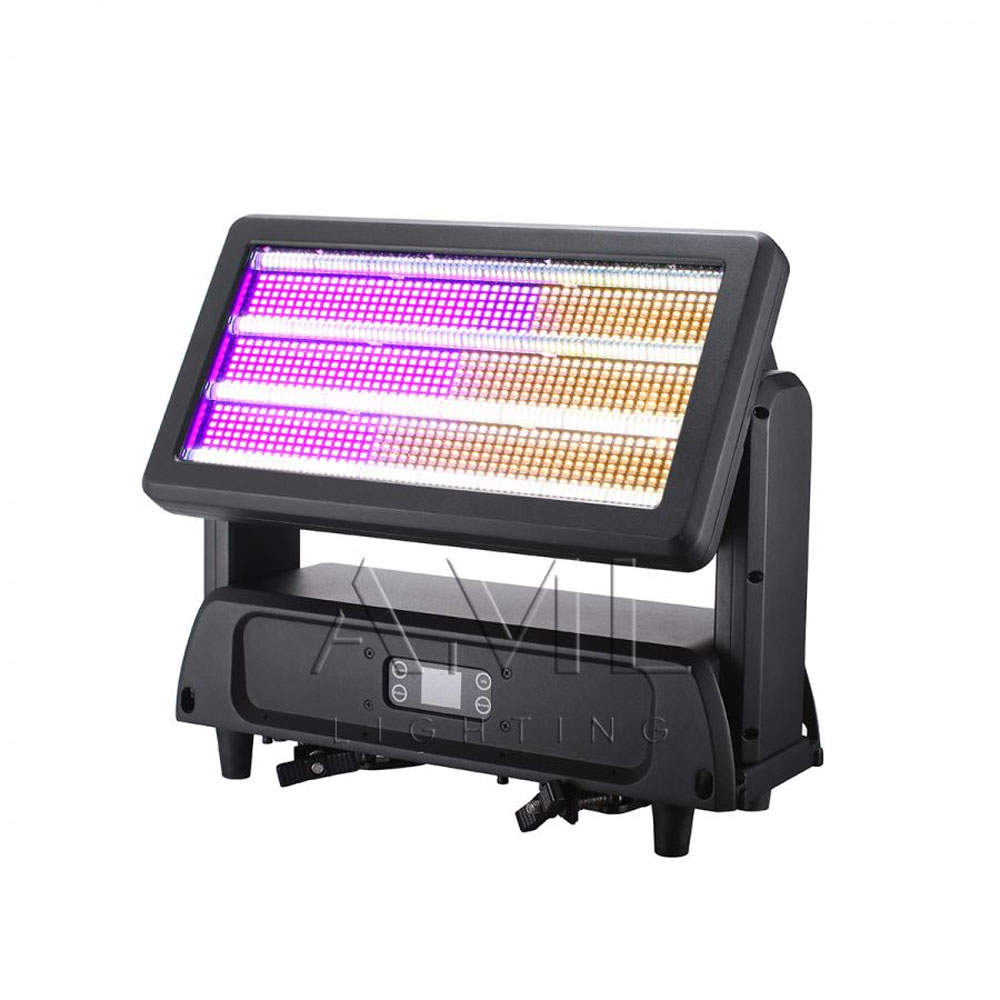

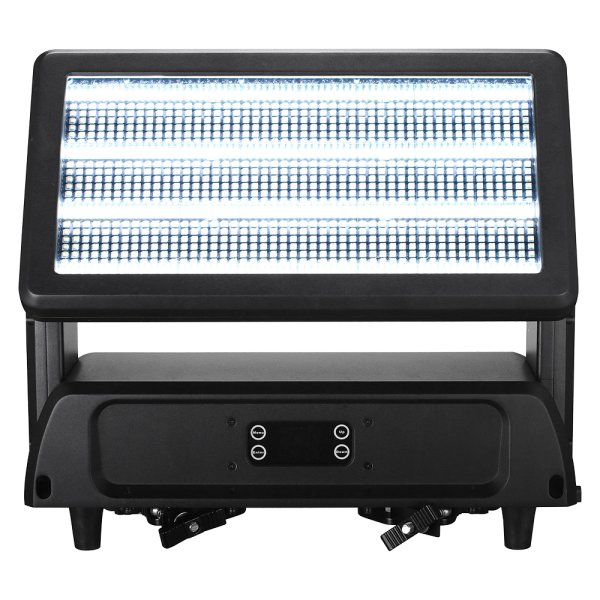

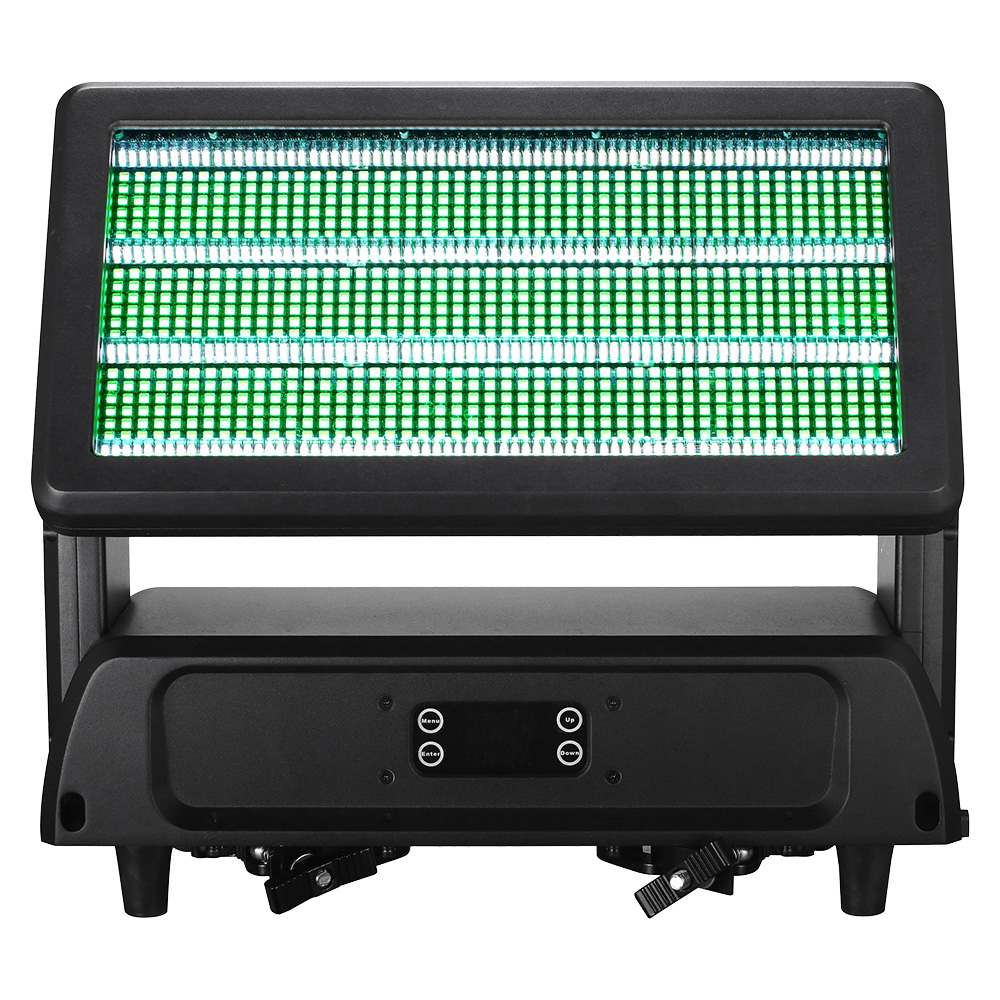

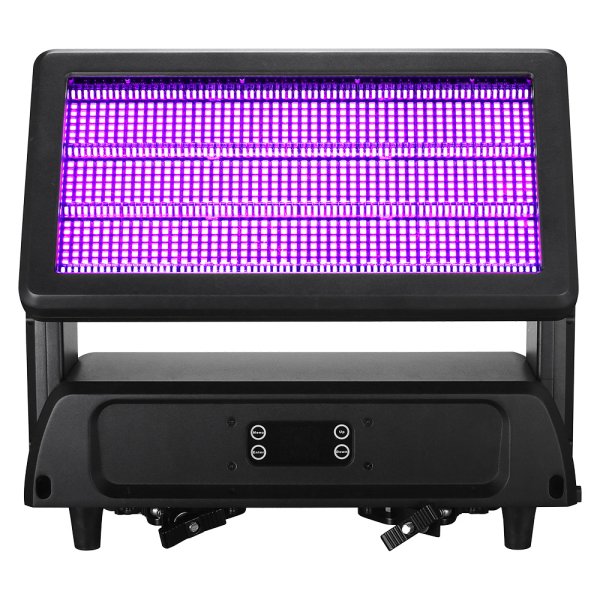

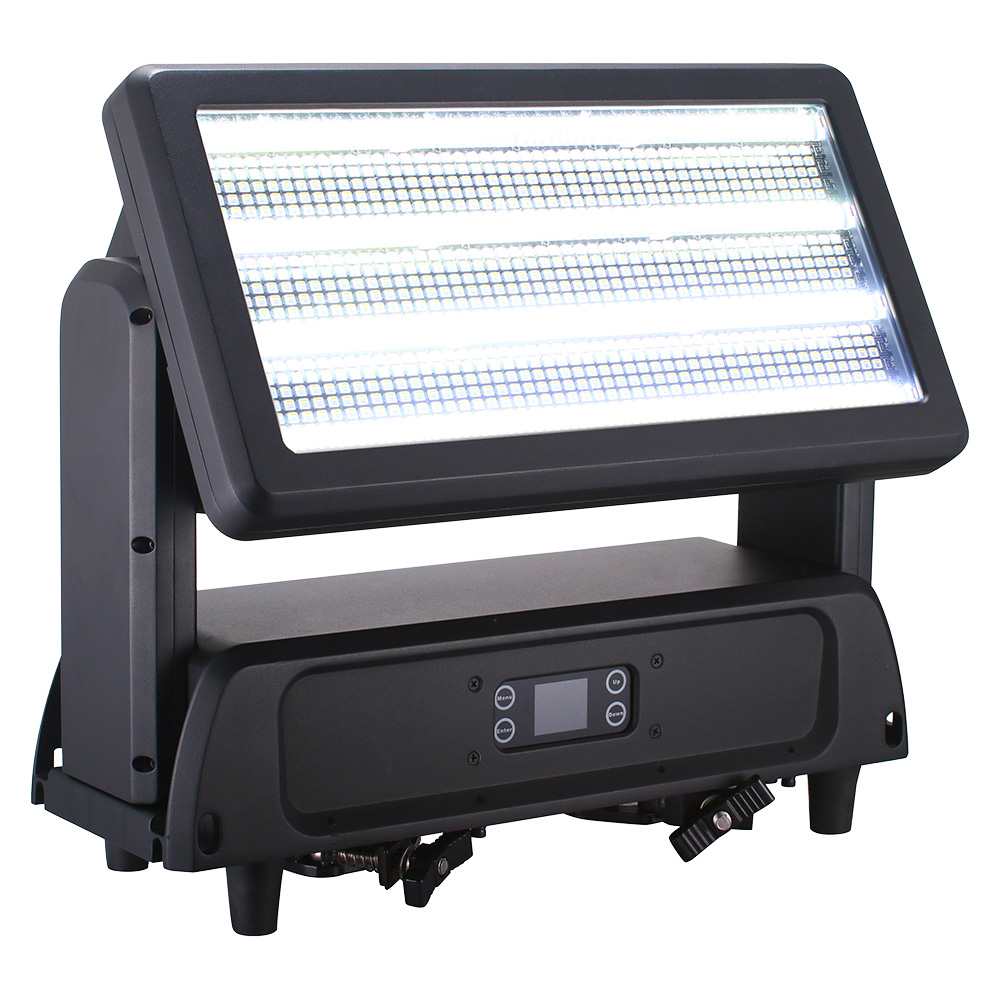

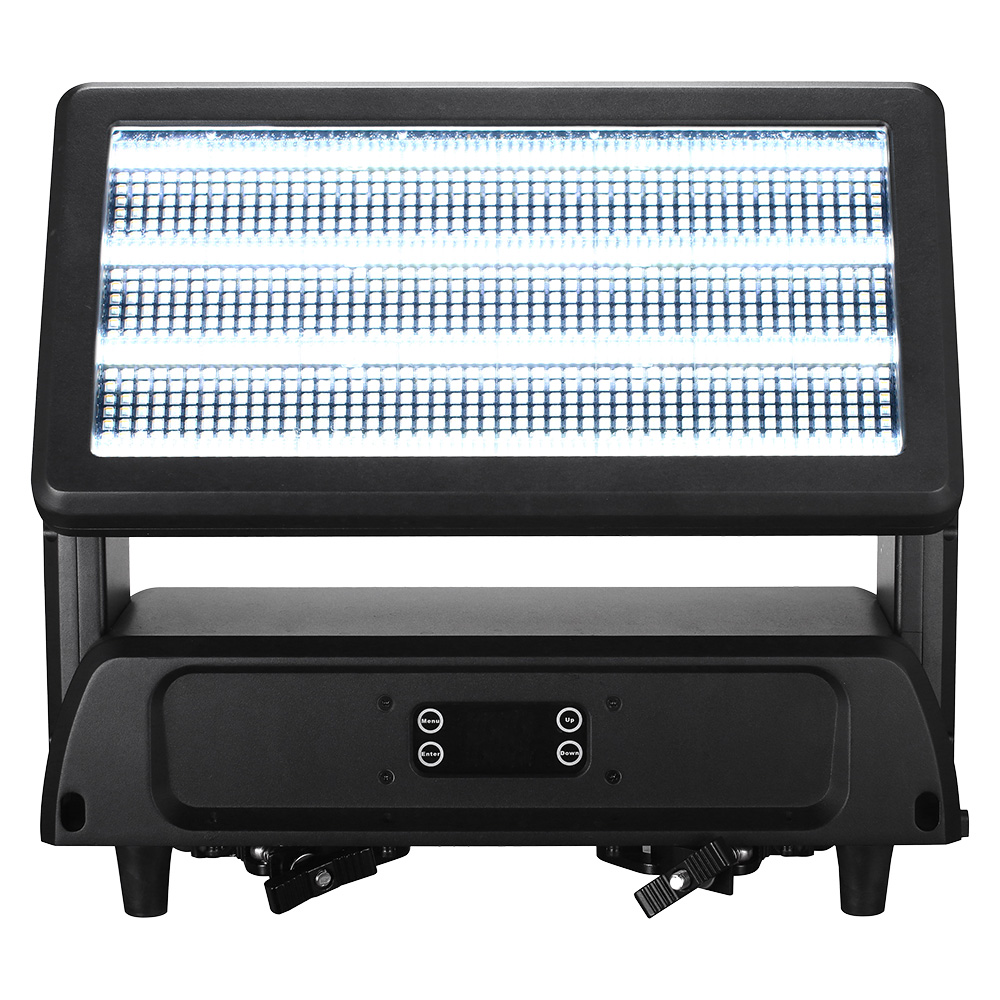

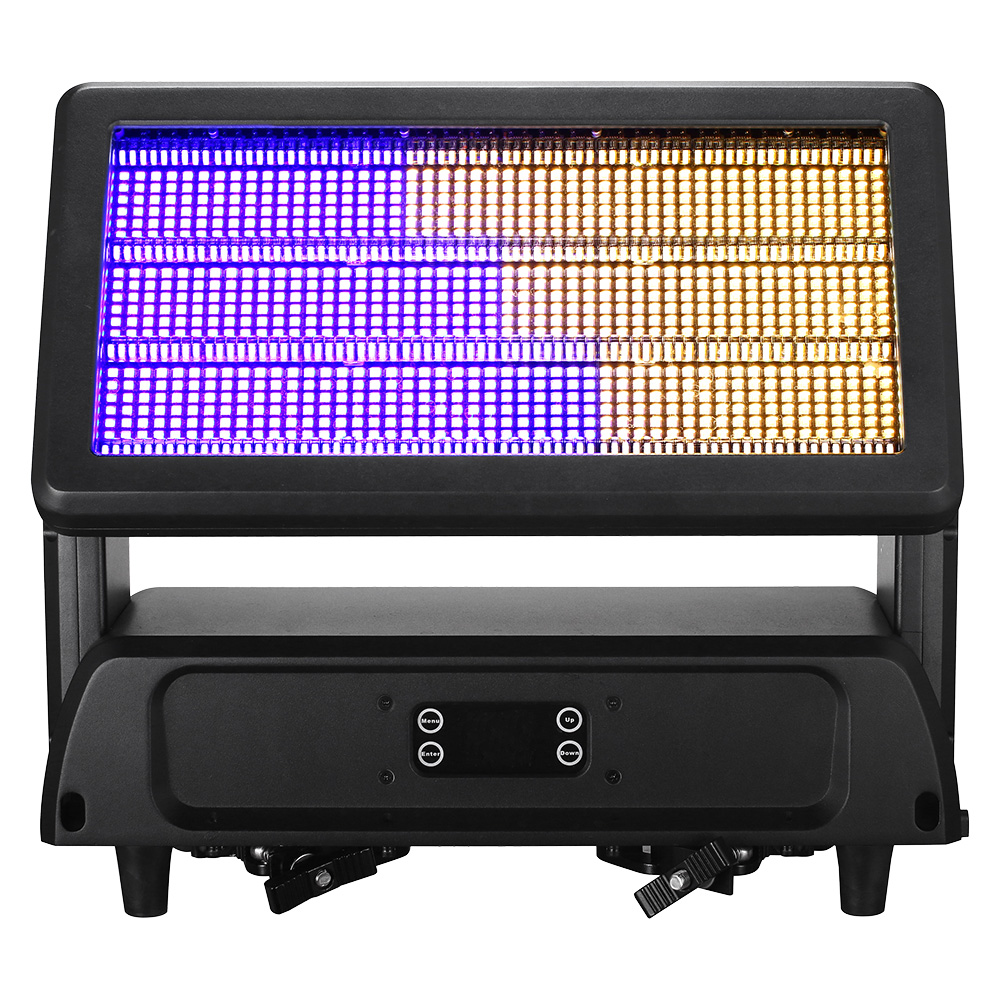

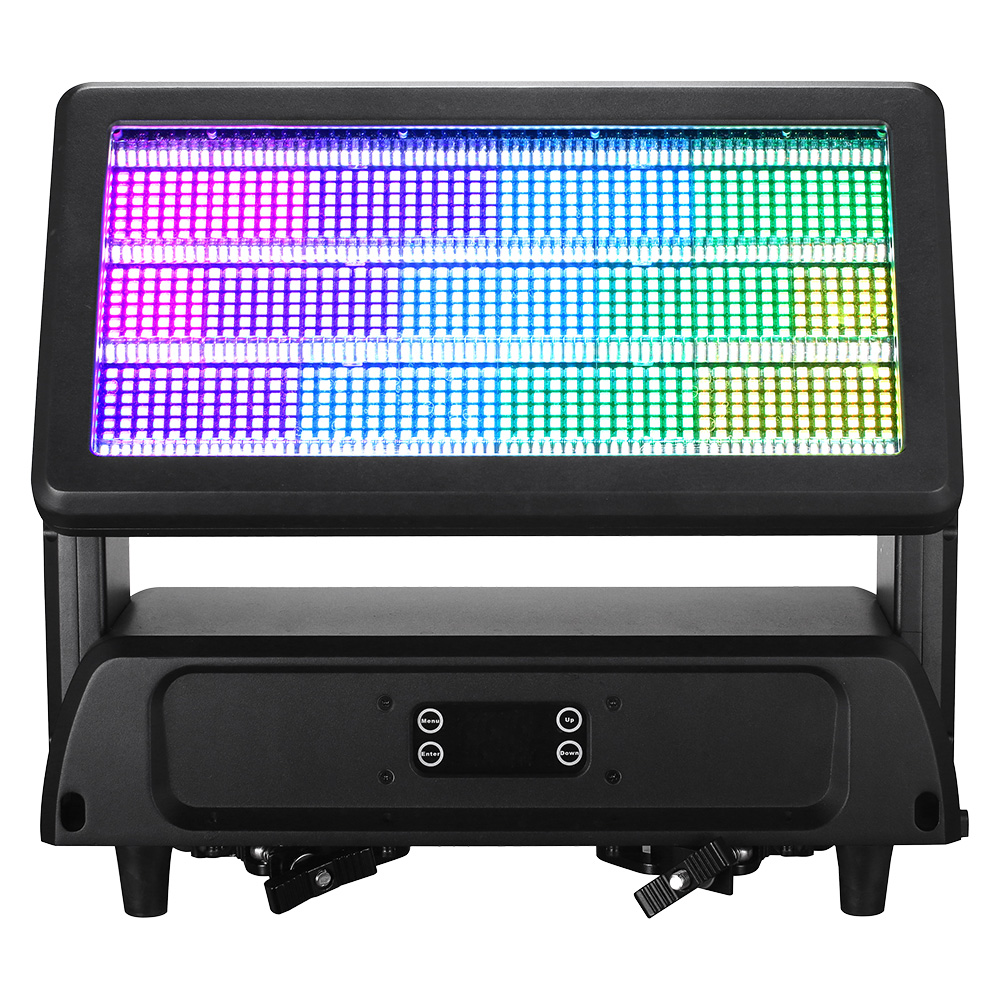

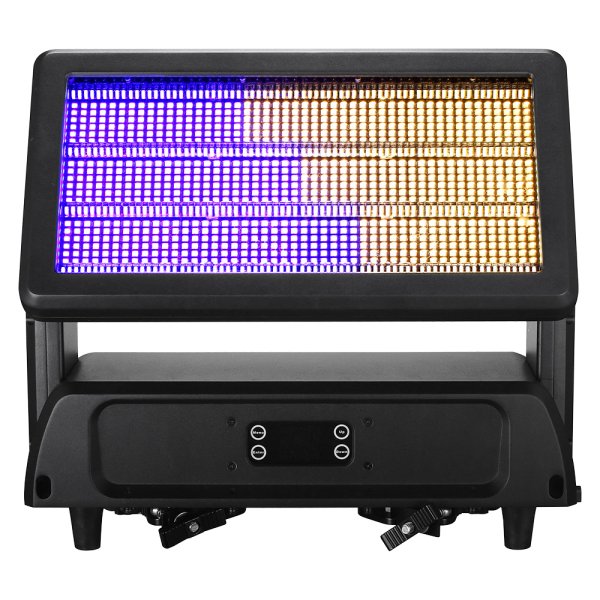

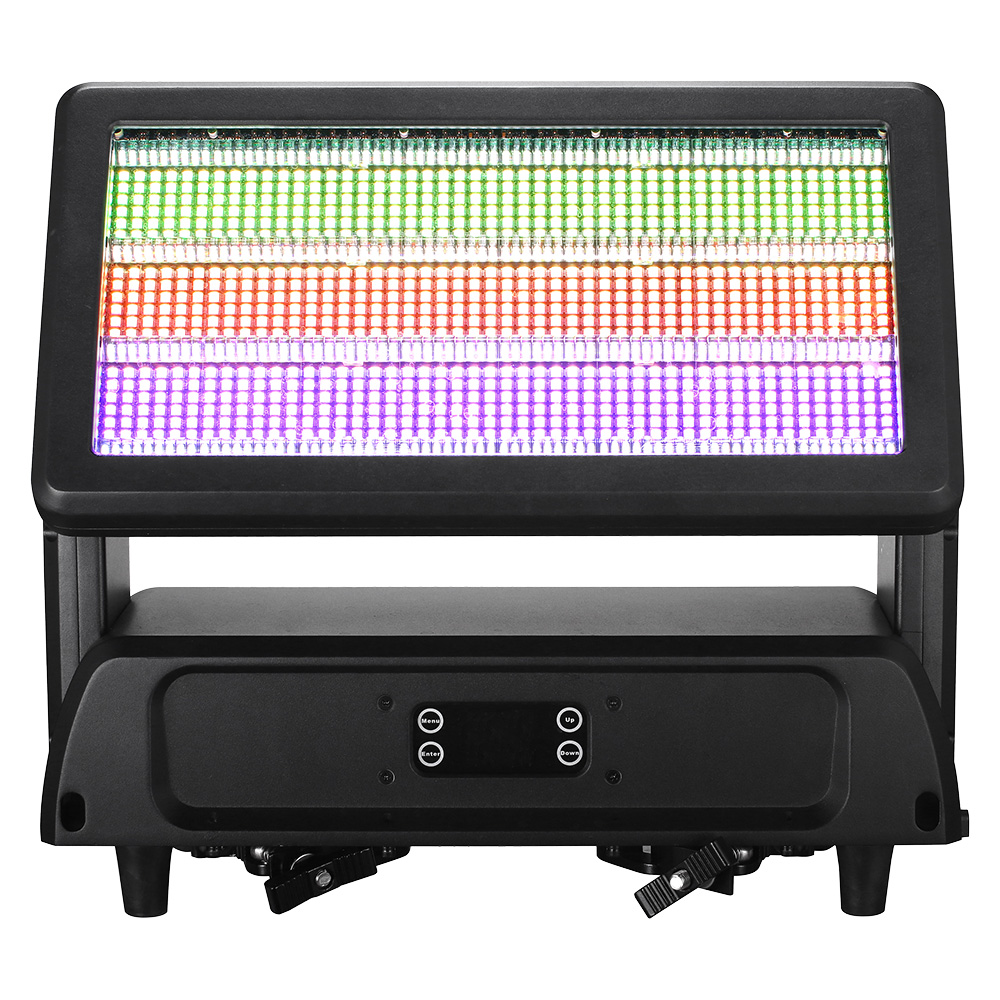

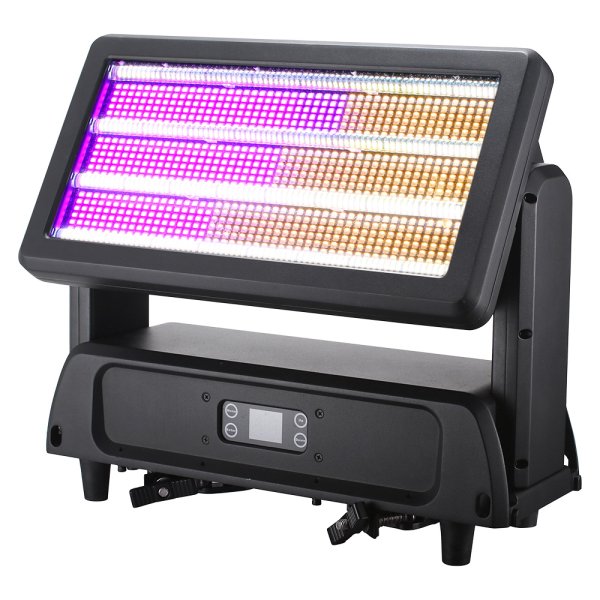

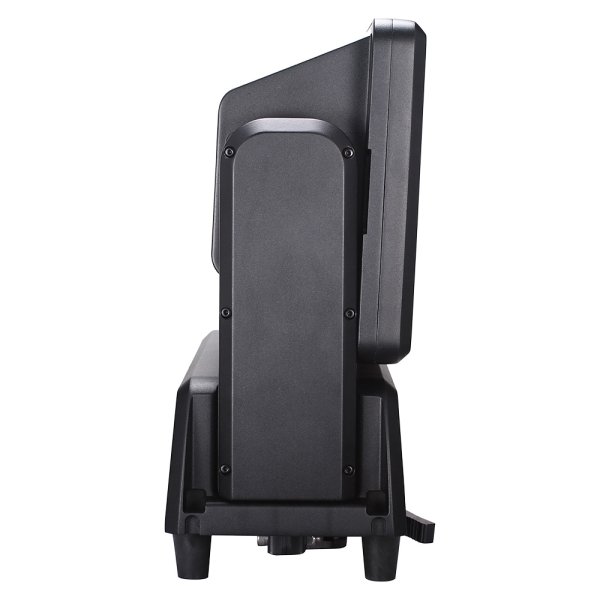

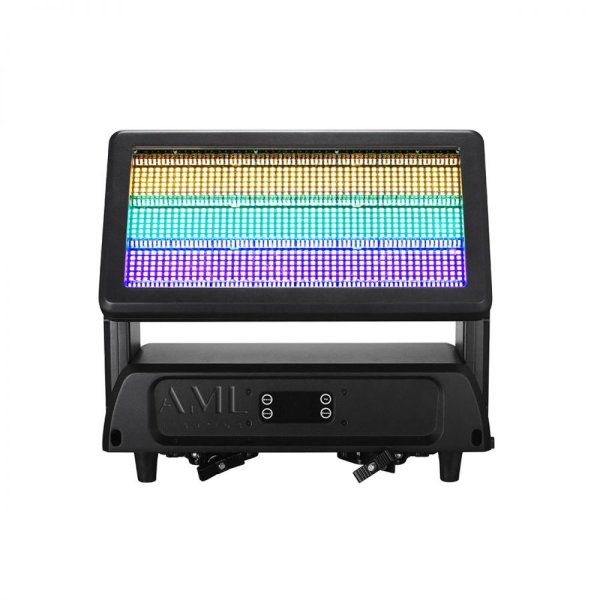

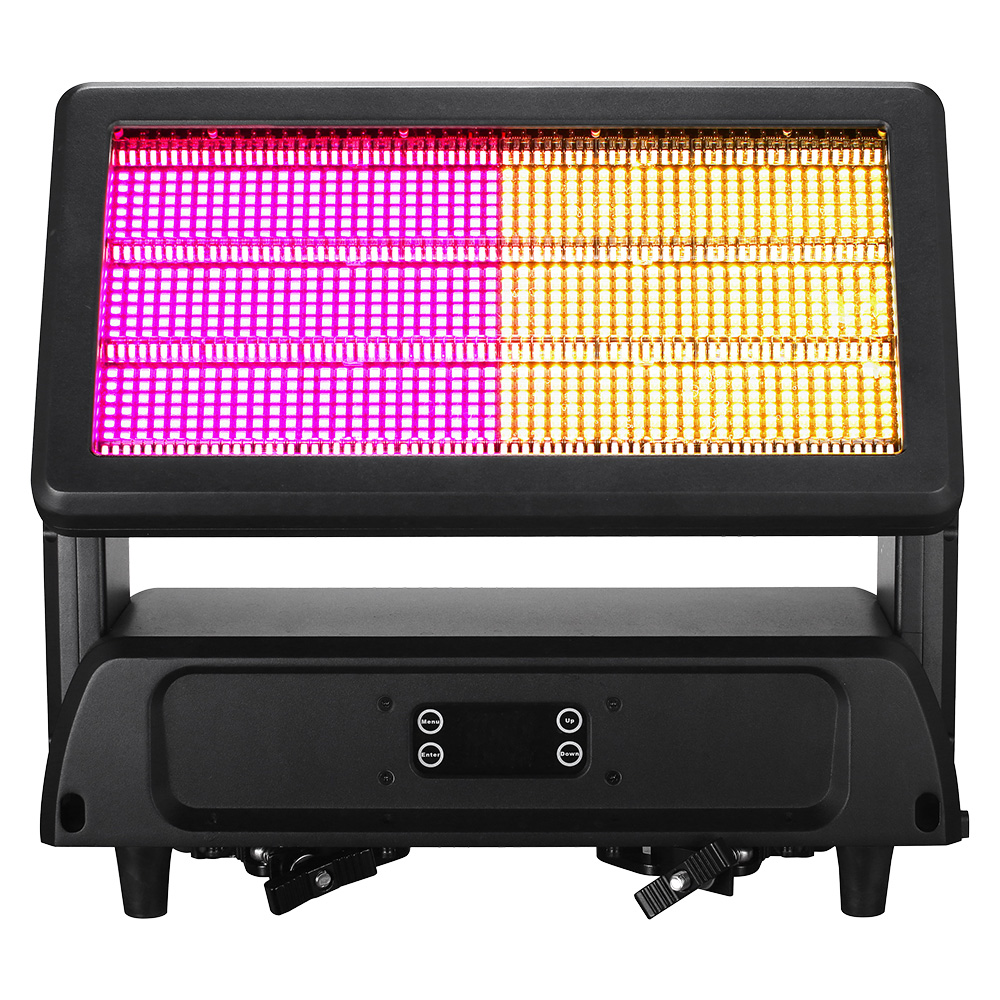

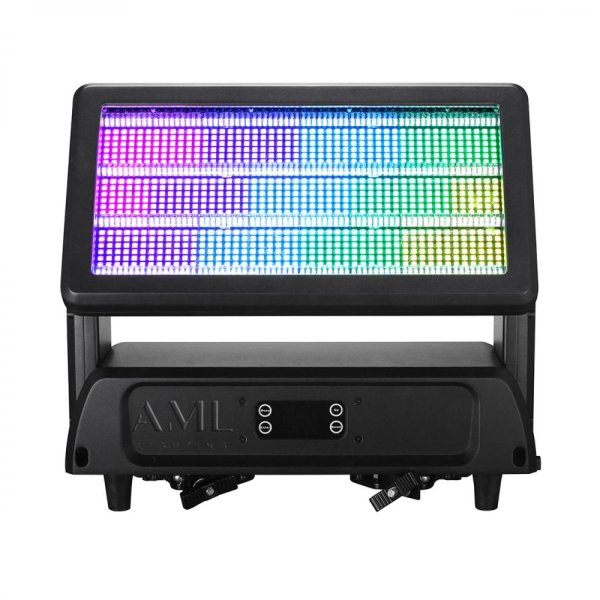

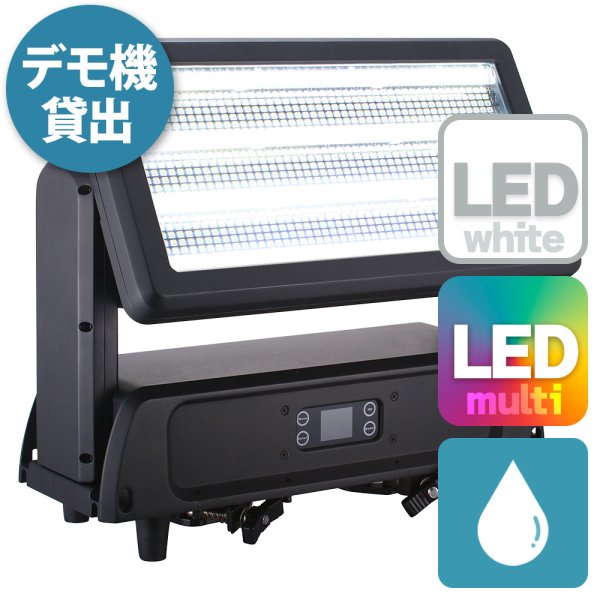

AML Lighting Dazzle Strobe IP（ダズール ストロボ IP） [AL-Q3IP]

仕様

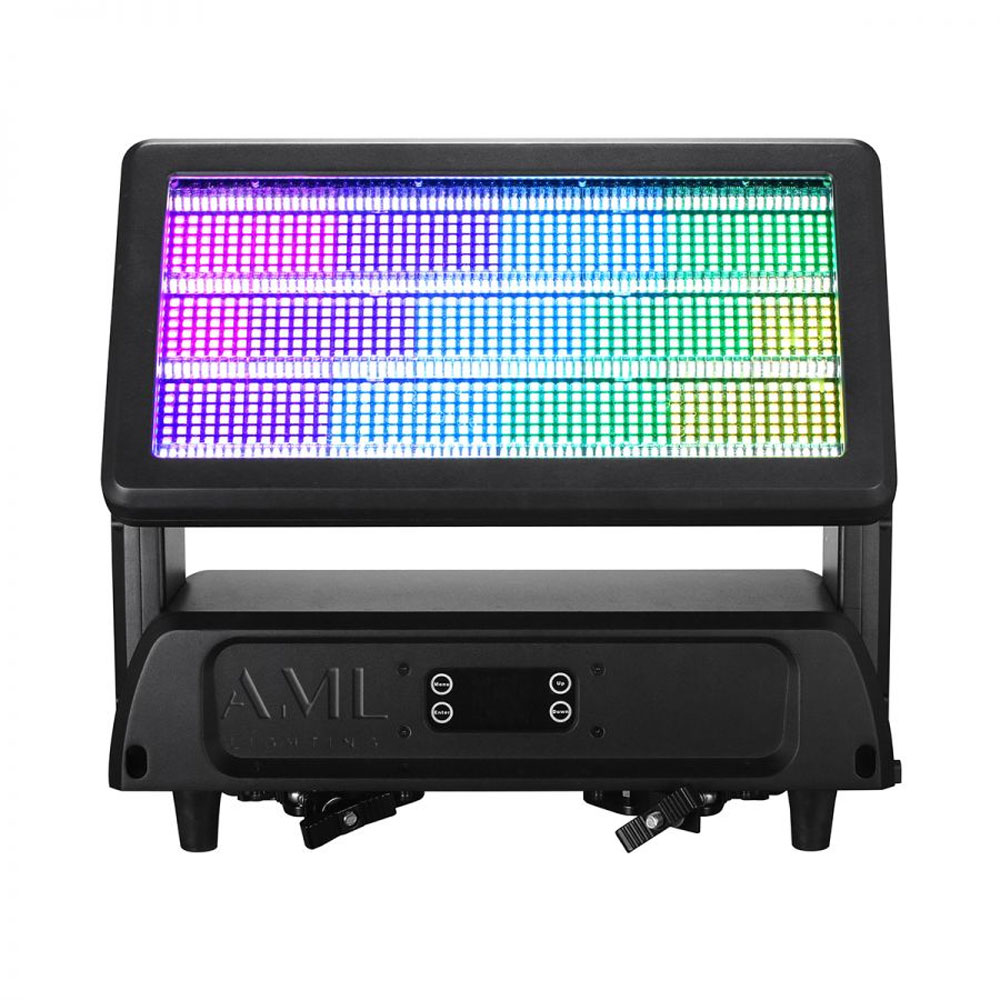

◆Light Source:

Strobe Panel LEDs: 1W RGBW 4in1 LEDs 864pcs , LED Segments: 24 (3 x 8)

Strobe Tube LEDs: 1.6W CW LEDs 576pcs , LED Segments: 96 (24 x 4)



◆Movement

Position Feedback: yes

Tilt (Degrees): 180°



◆Control

18/33/56/76/112/114/138/208/92 DMX Channel Modes

Display: Full Color 180° Reversible LCD Menu Display

Protocol: DMX, RDM, ArtNet, sACN

Cooling: Temperature controlled, Overheating protection



◆Effects

Dimmer: 0-100% electronic 16 - bit Dimming

Internal Effects: Preset CTO / LED Macro Effects

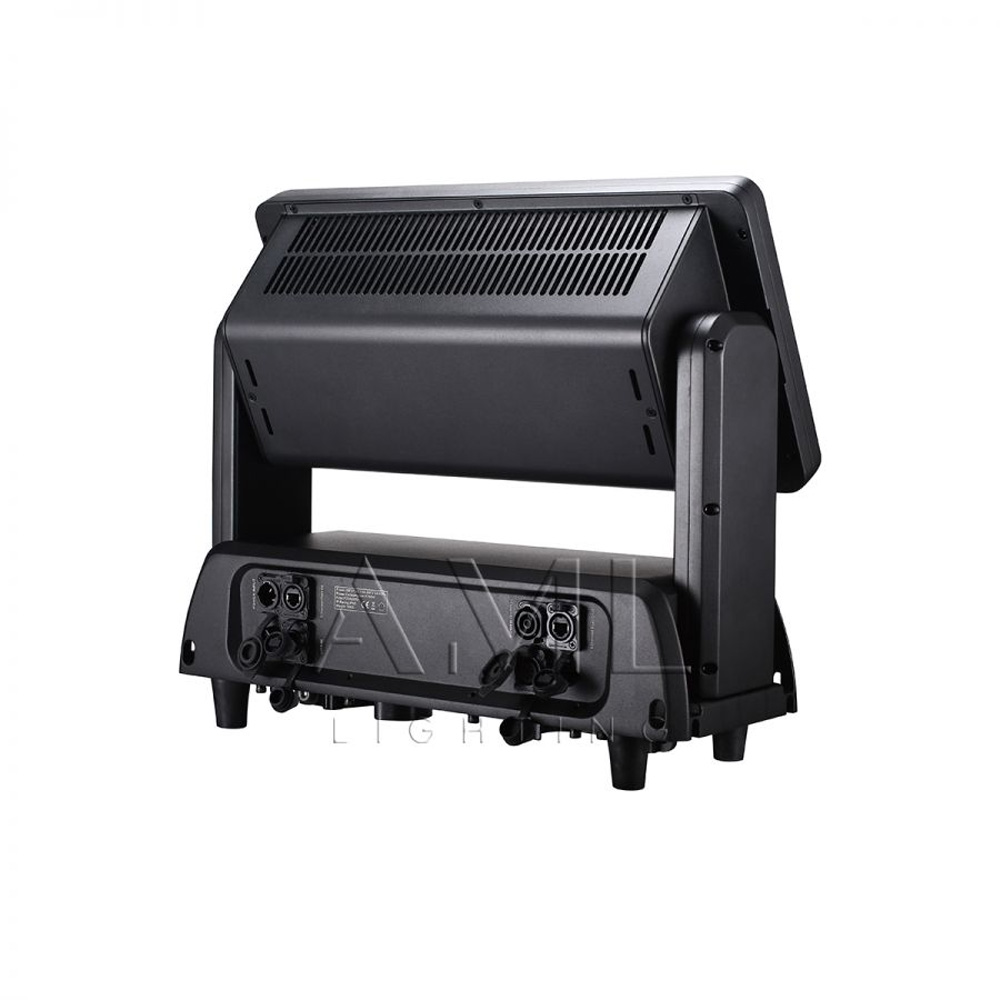

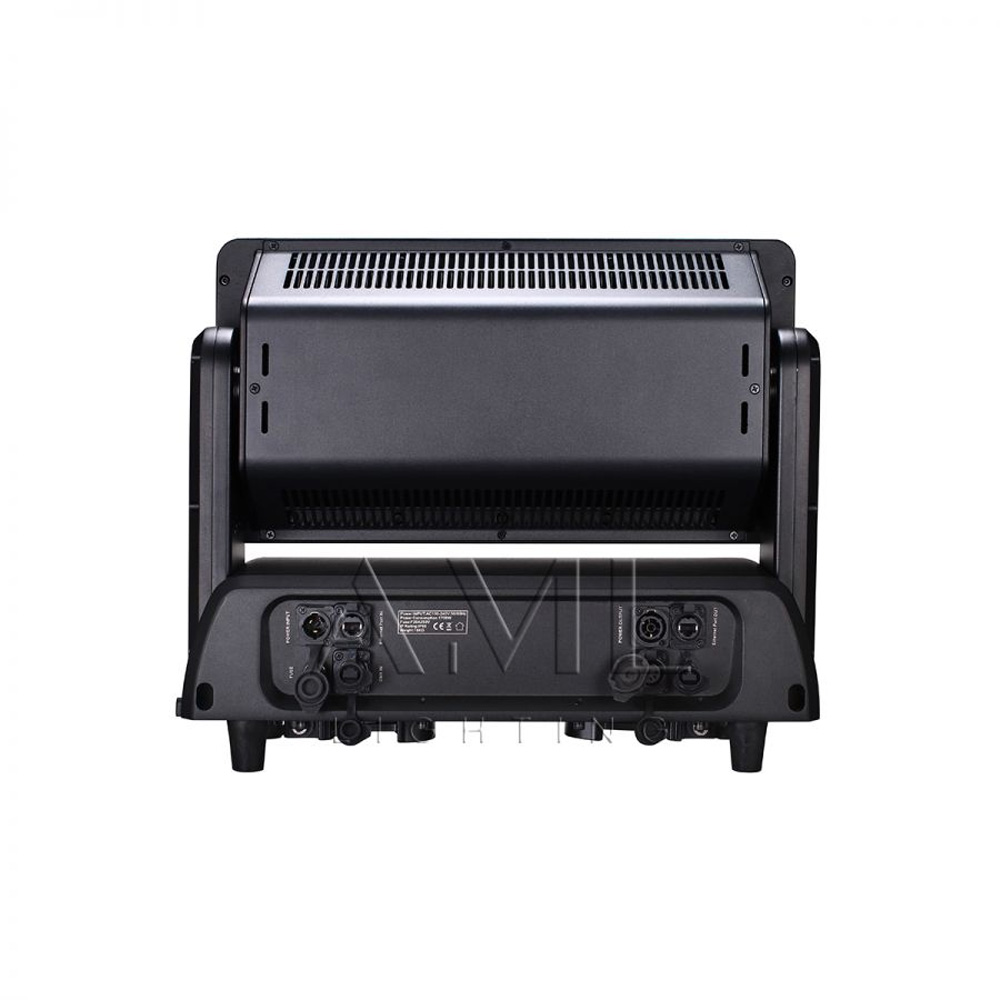

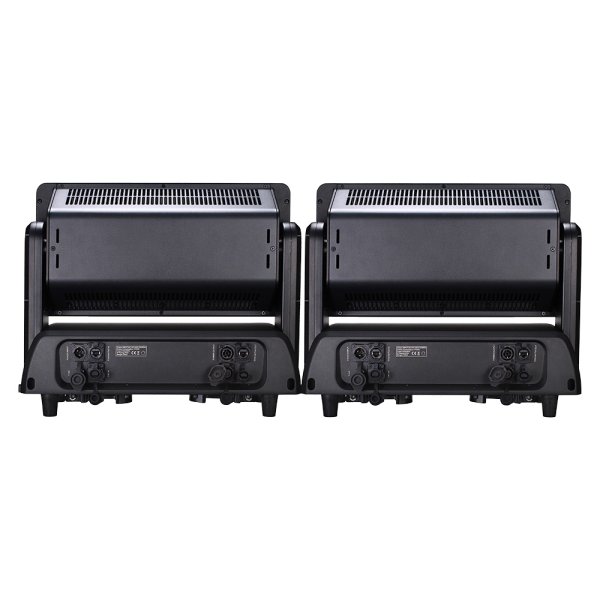

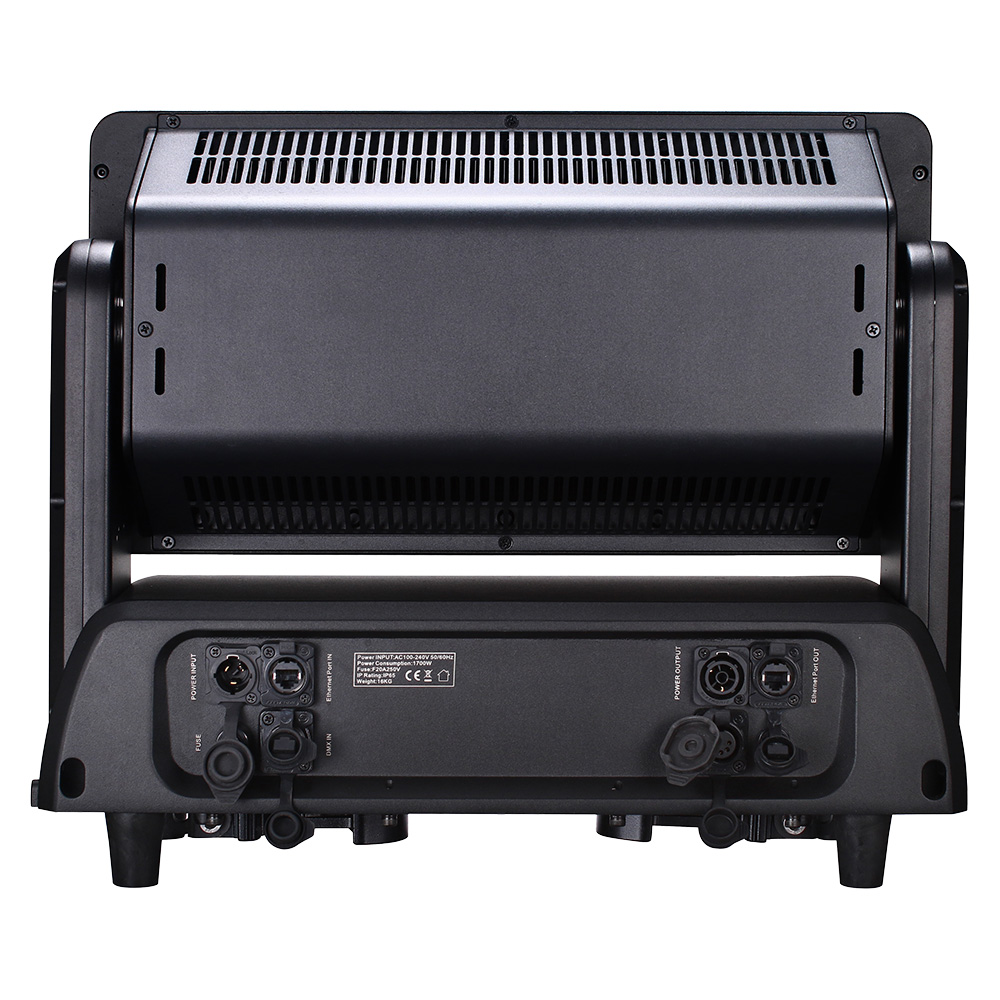

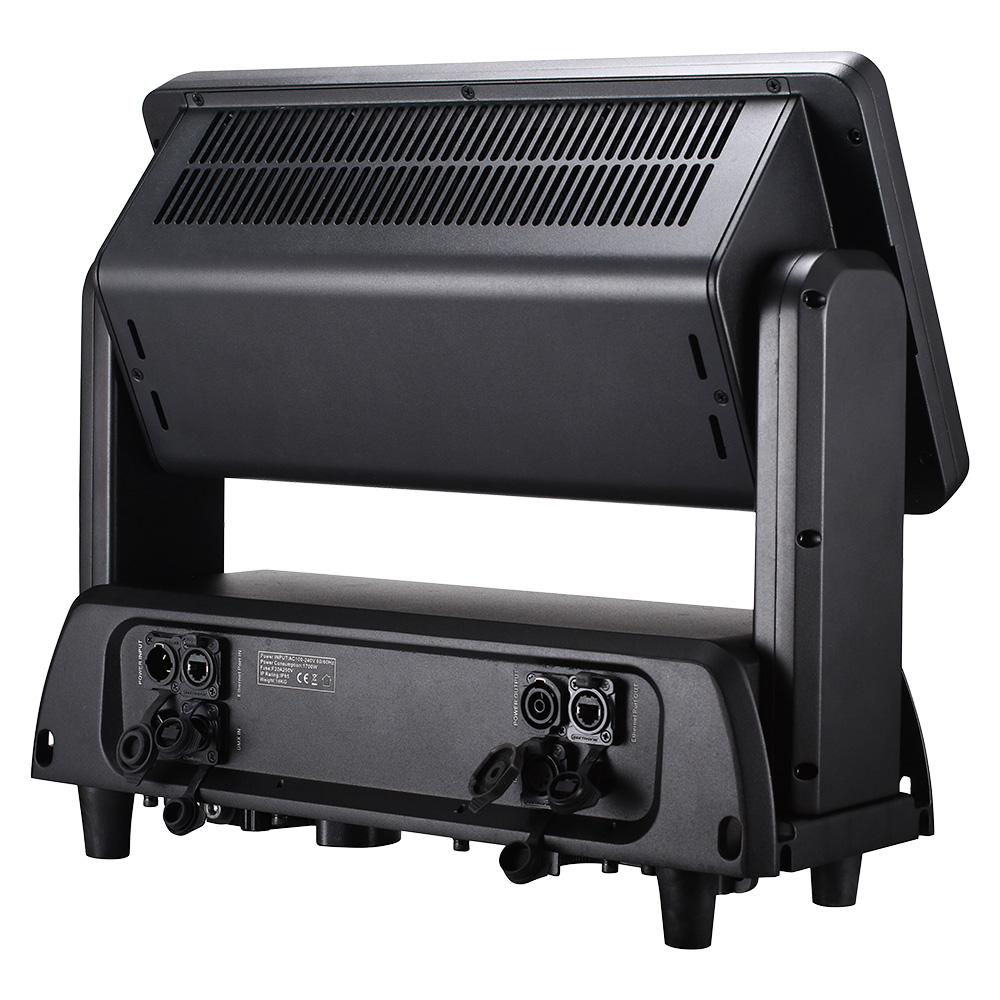

◆Connectors

Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out

Power Input: Seetronic powerCON TRUE1 In/Out



◆Operating Condtion

Mains: 100-240V AC / 50-60Hz

Consumption: 1200W/230V(Dynamic) 1800W/230V(Peak value @ strobe）

Ambient: -30°C ~ 45°C



◆Physical

Dimensions: 493 x 175 x 400mm

Weight: 14kg

Cooling Noiseless fan for forced air



◆IP Rated

IP65
