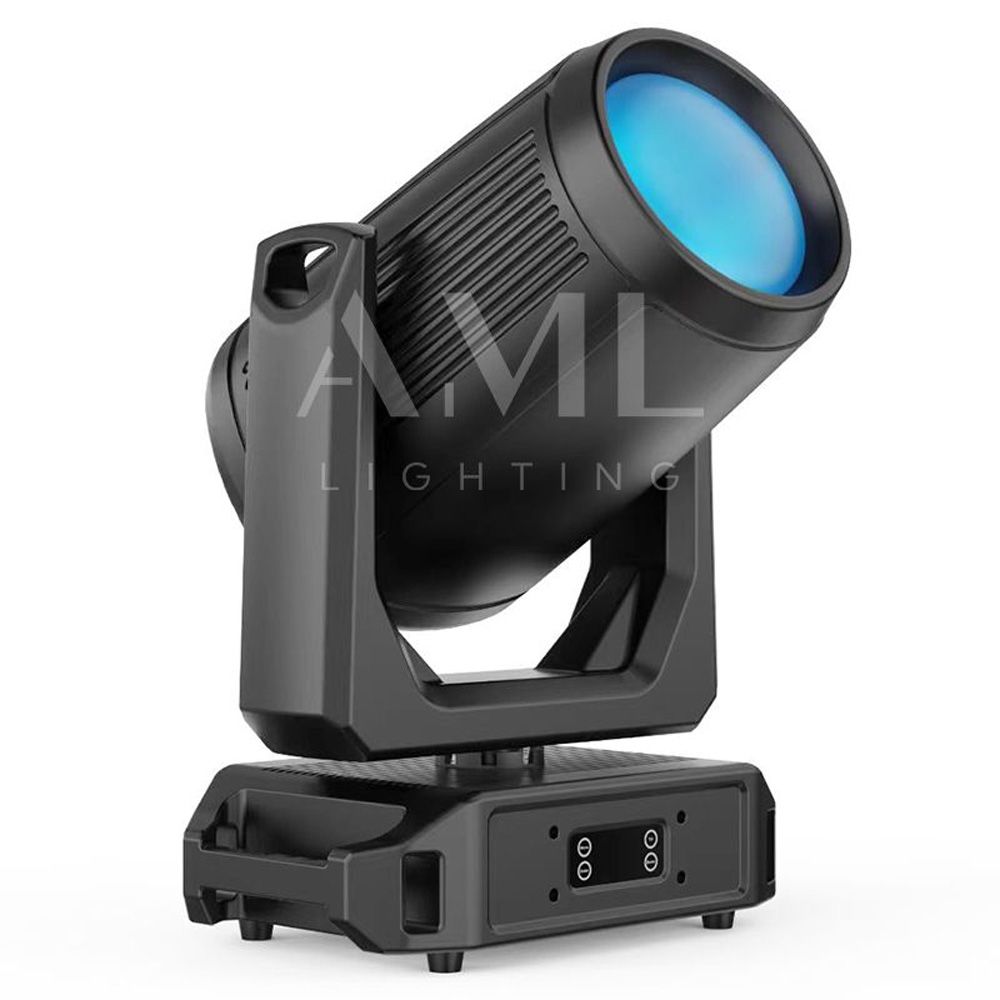

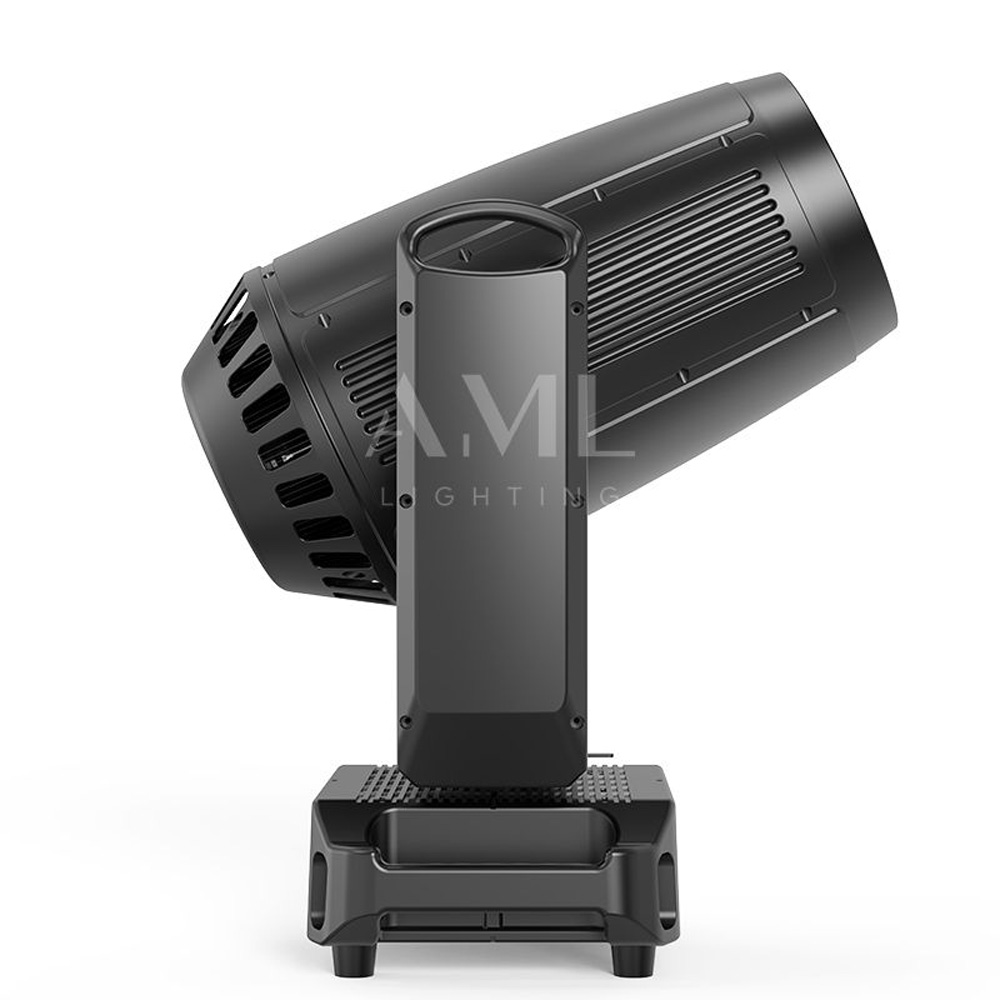

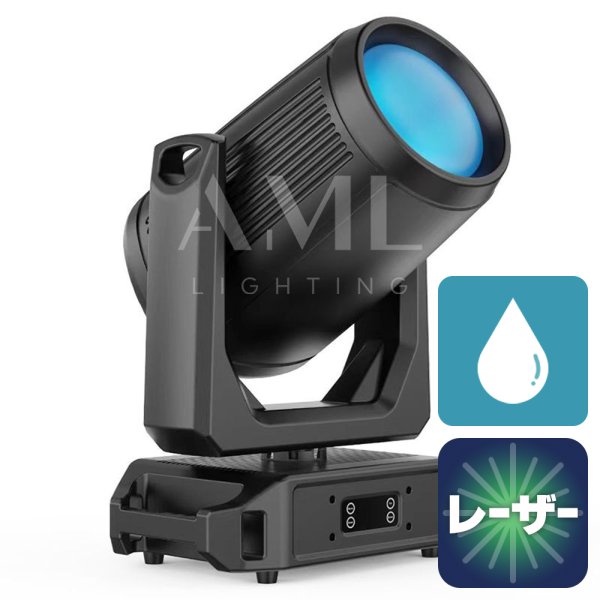

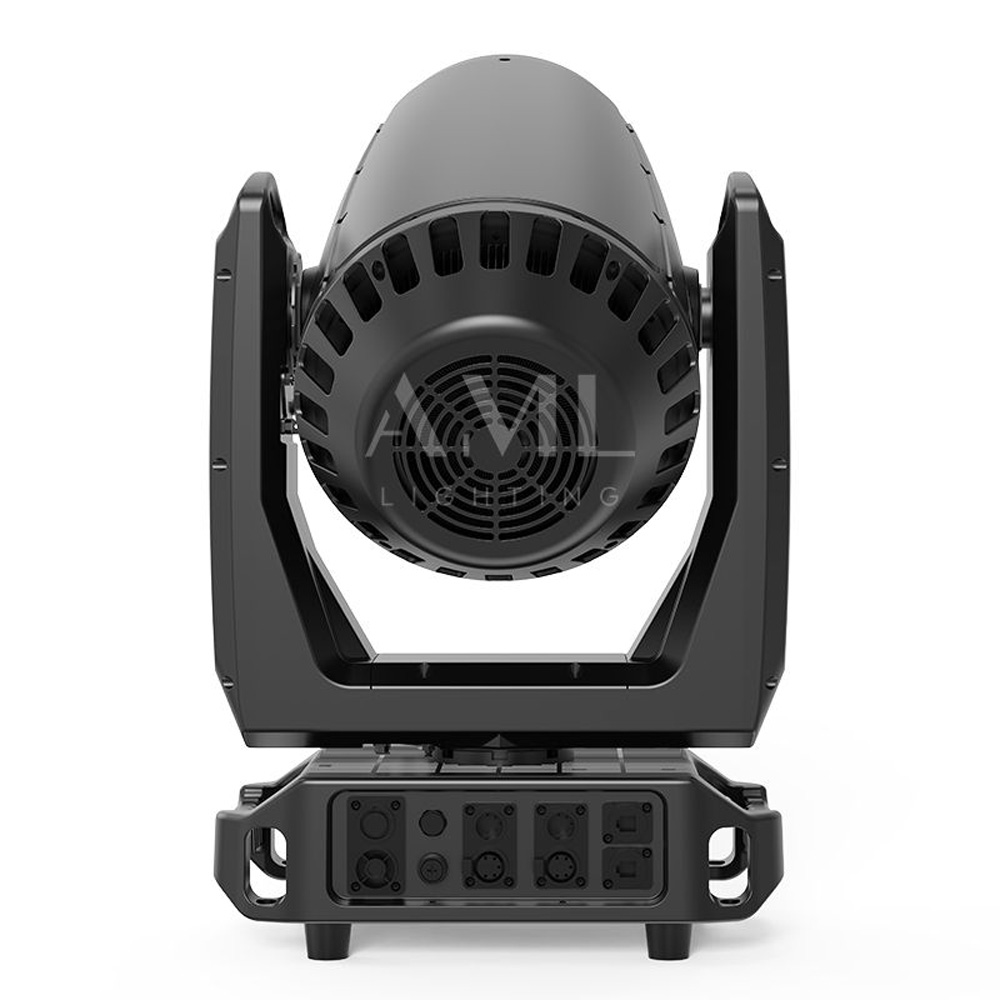

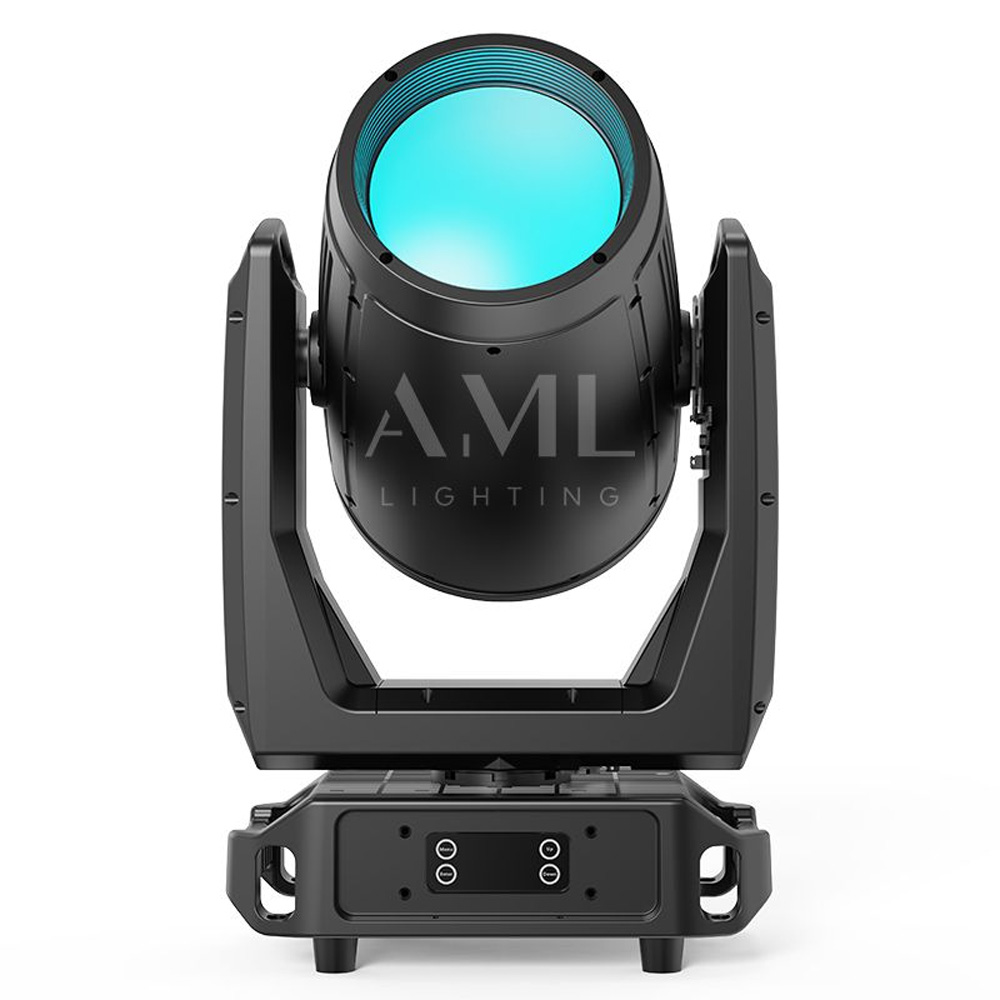

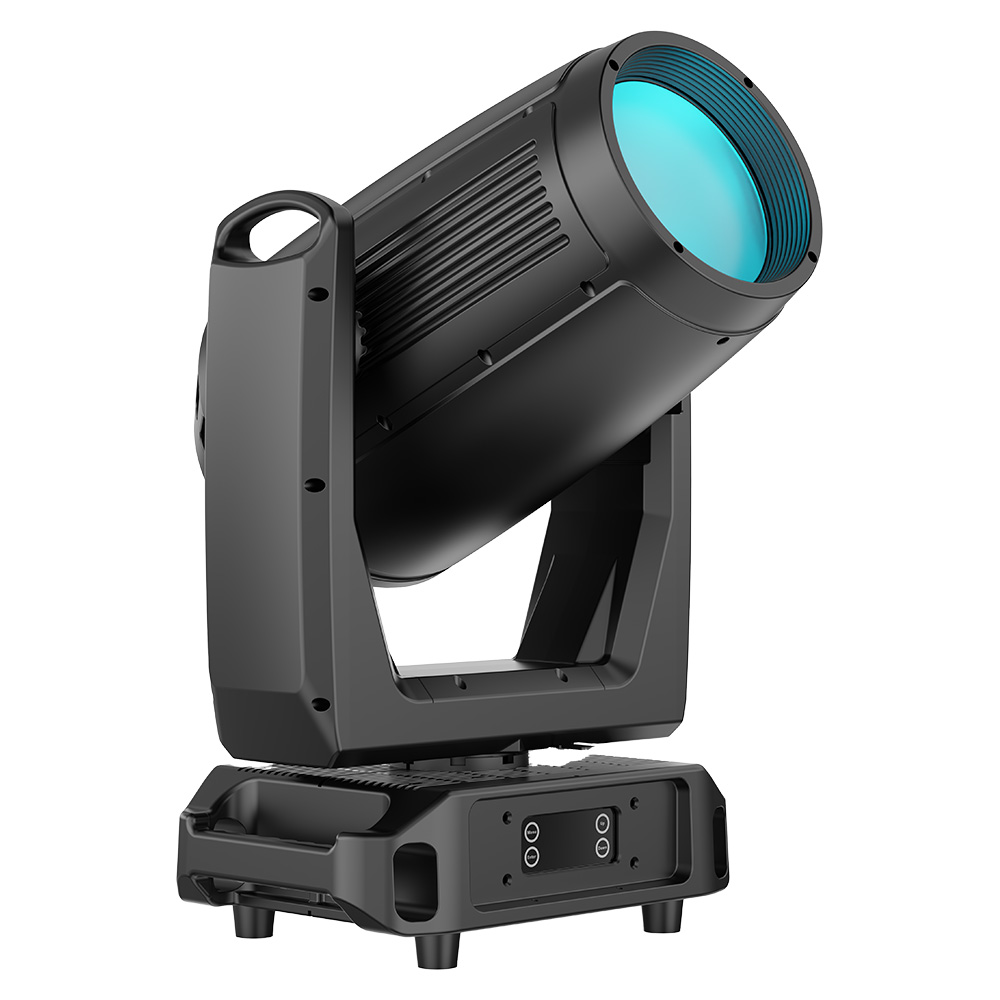

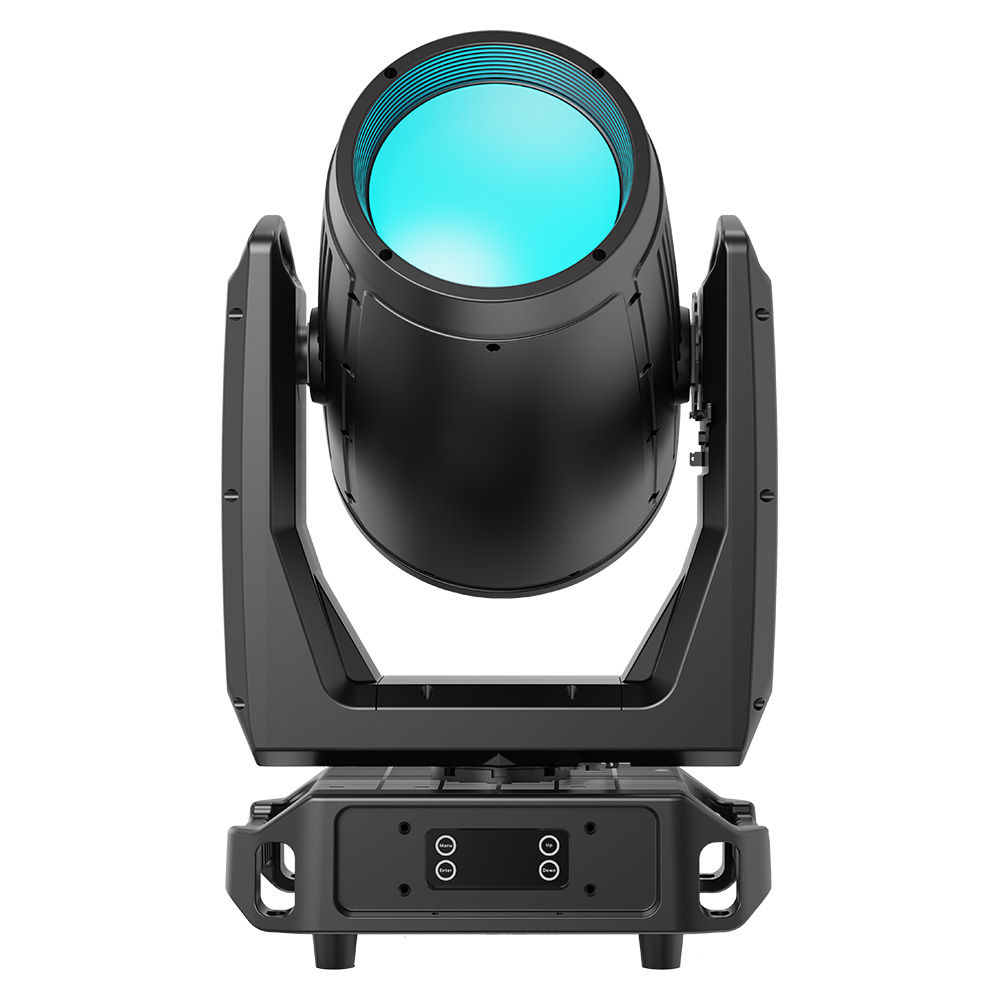

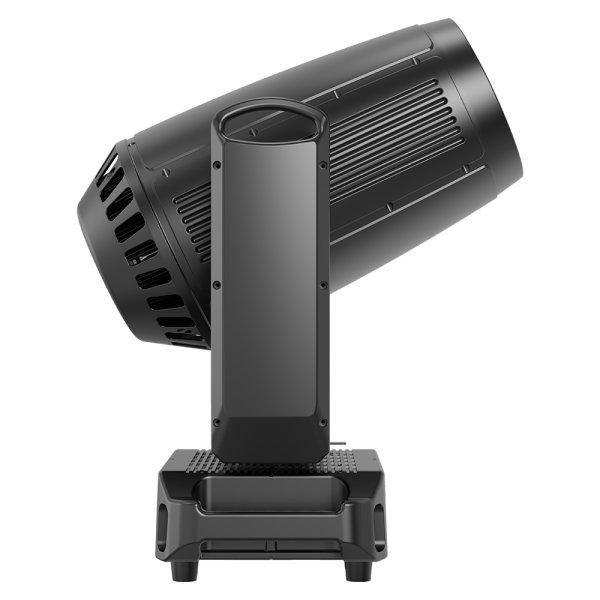

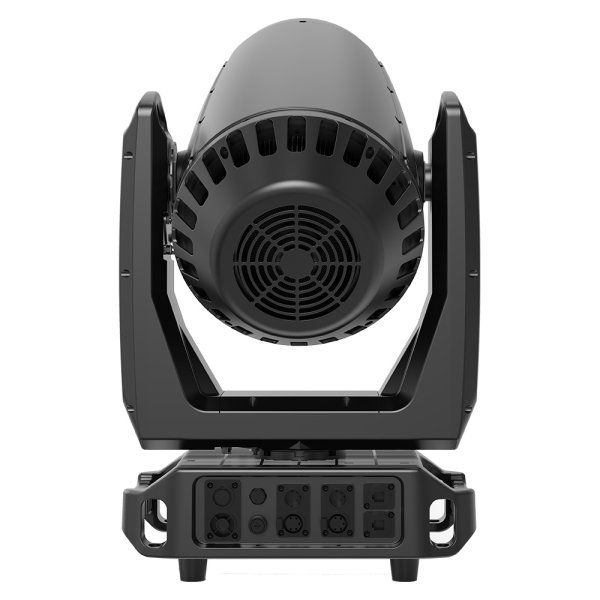

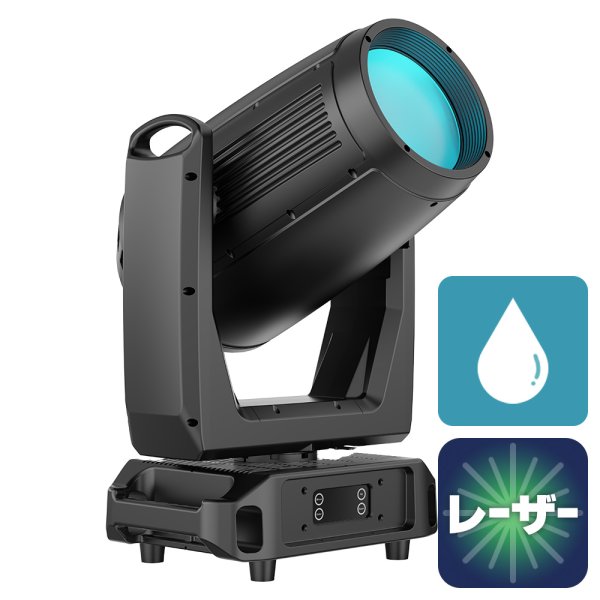

AML Lighting Laser Beam RGB IP65（レーザービーム RGB IP65） [AL-MHL60IP]

概要

True Color

True Color Display: 16.77 million true colors, precise color control with adjustable color temperature.

High Penetration and Brightness: Strong light penetration, long-range projection, and high brightness.

Malleability: Excellent adaptability in shaping and manipulating light.

Compatibility

Strong Compatibility: Features a smart operating system that is fully compatible with mainstream market control systems.

Stability

High Stability: Utilizes patented cooling technology combined with electronic temperature control to ensure longevity and stability. Boasts an extended lifespan of over 30,000 hours with minimal light decay over time.

Energy Efficiency

Eco-friendly: High photoelectric conversion efficiency, with 1 watt converting to 300 lumens. The optical design enhances light guide efficiency while minimizing energy consumption.

Maintenance

Easy Maintenance: Core components are modularized for easy replacement.

仕様

◆Luminous Flux Typical Value*(lm): ≥10000

◆Red Laser Wavelength Typical Value (nm): 638

◆Green Laser Wavelength Typical Value (nm): 520

◆Blue Laser Wavelength Typical Value (nm): 450

◆Initial Beam Diameter (mm): 80~120

◆Divergence Angle: 0.35°

◆Power of RGB Laser Source (W): 60W

◆System Power Consumption: 500W

◆Light Source Lifespan: ≥20000H

◆Beam Angle: Vertical 0-270°, Horizontal 0-540°

◆Control Precision: 16 bits

◆Control Protocol: DMX, Art-Net, RDM, sACN

◆Estimated Weight: 18KG

◆Operating Temperature: -20°C to 45°C
