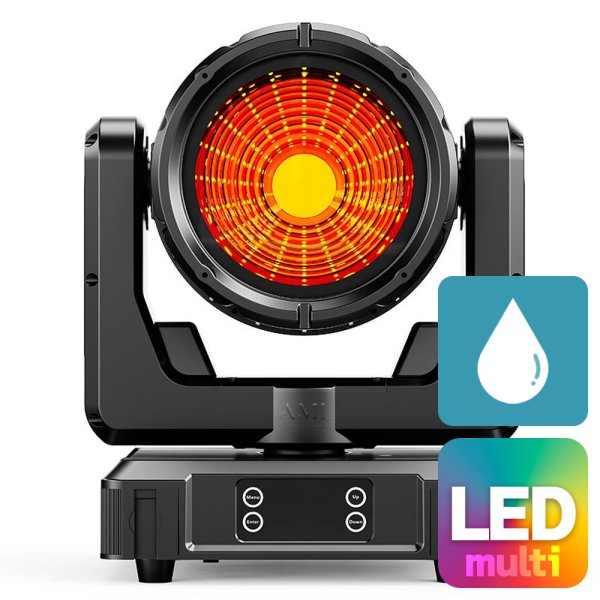

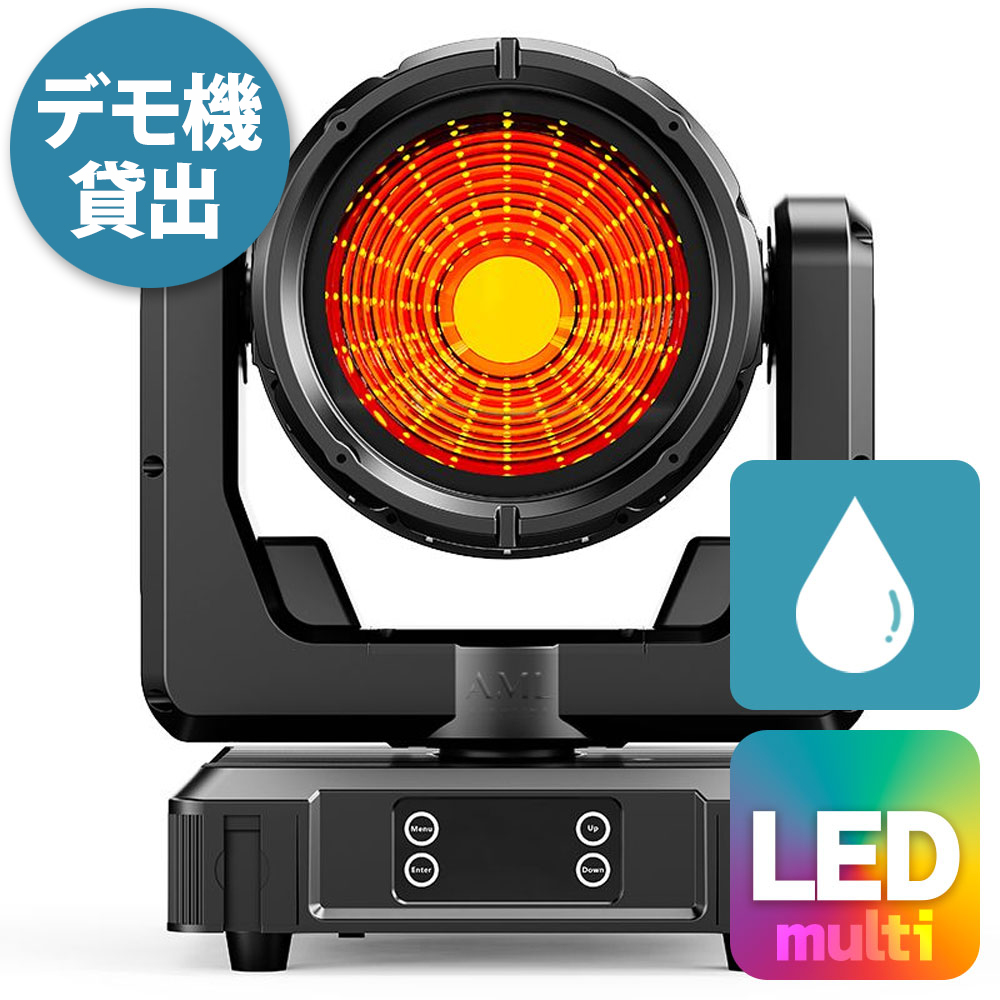

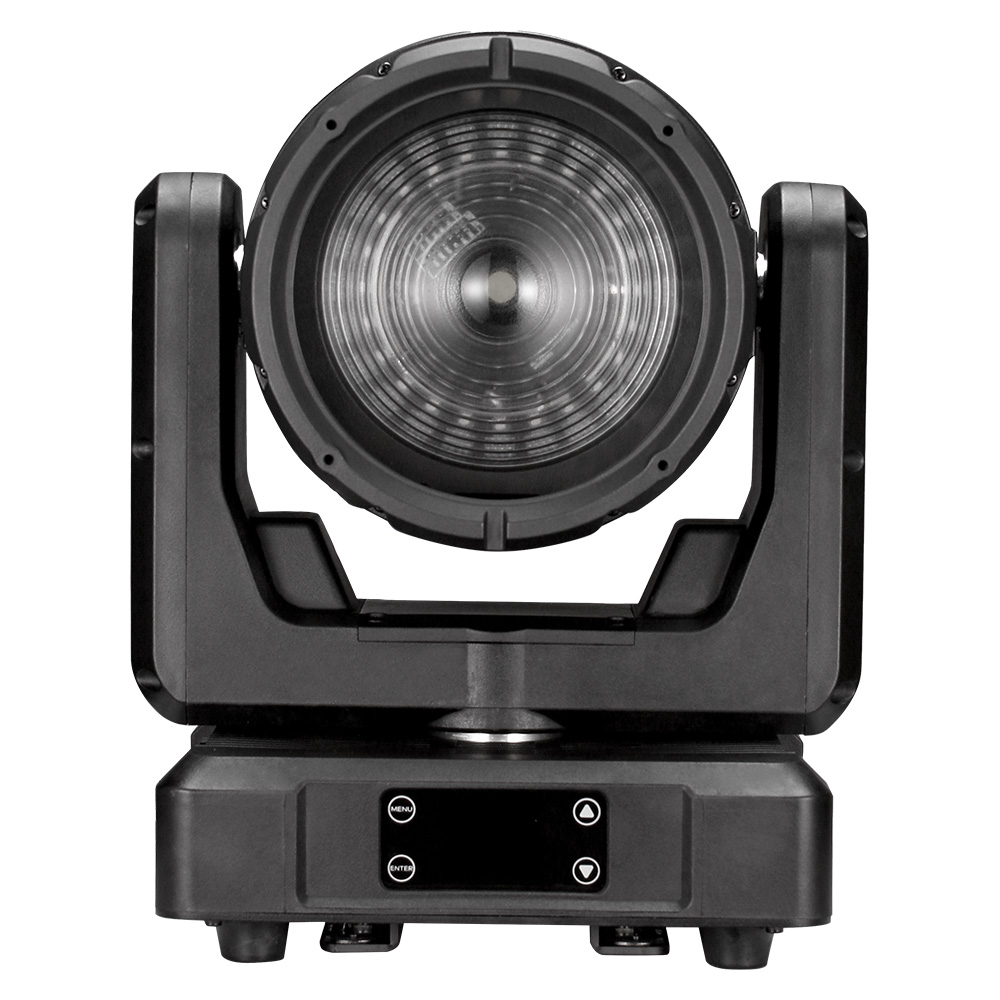

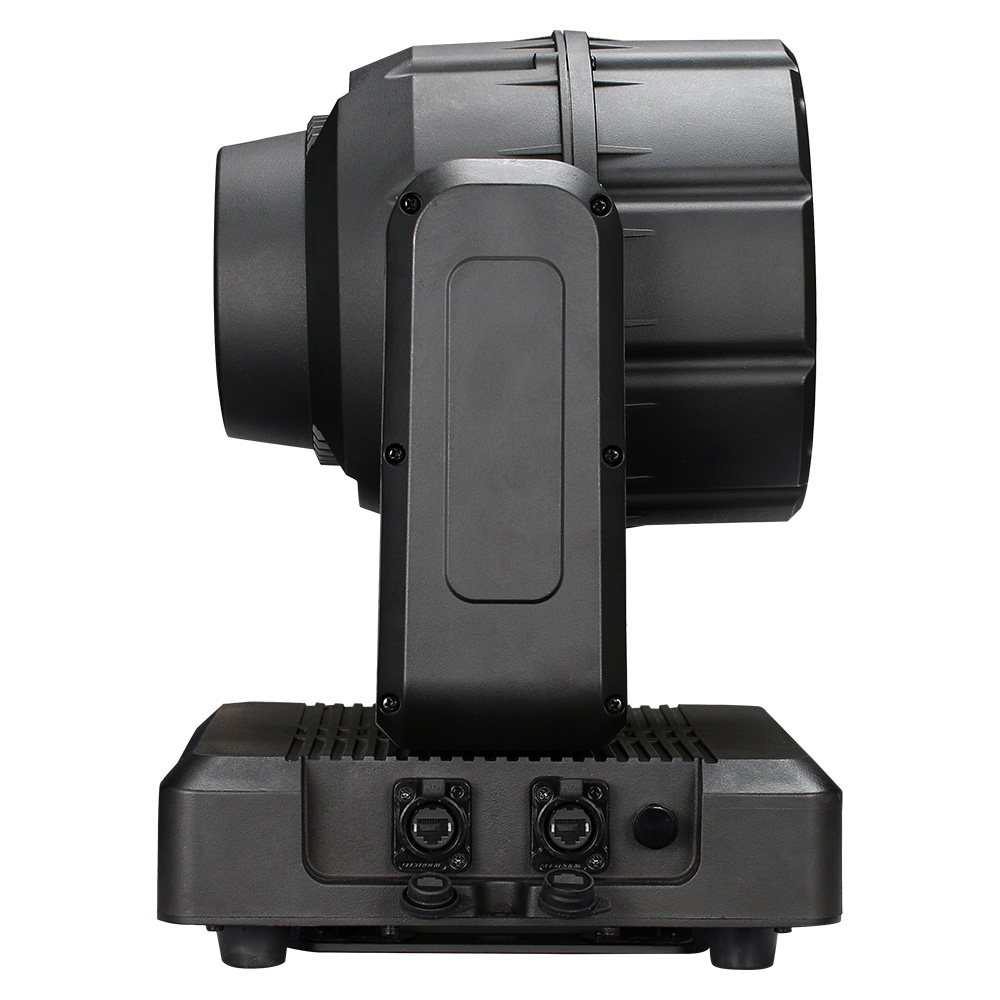

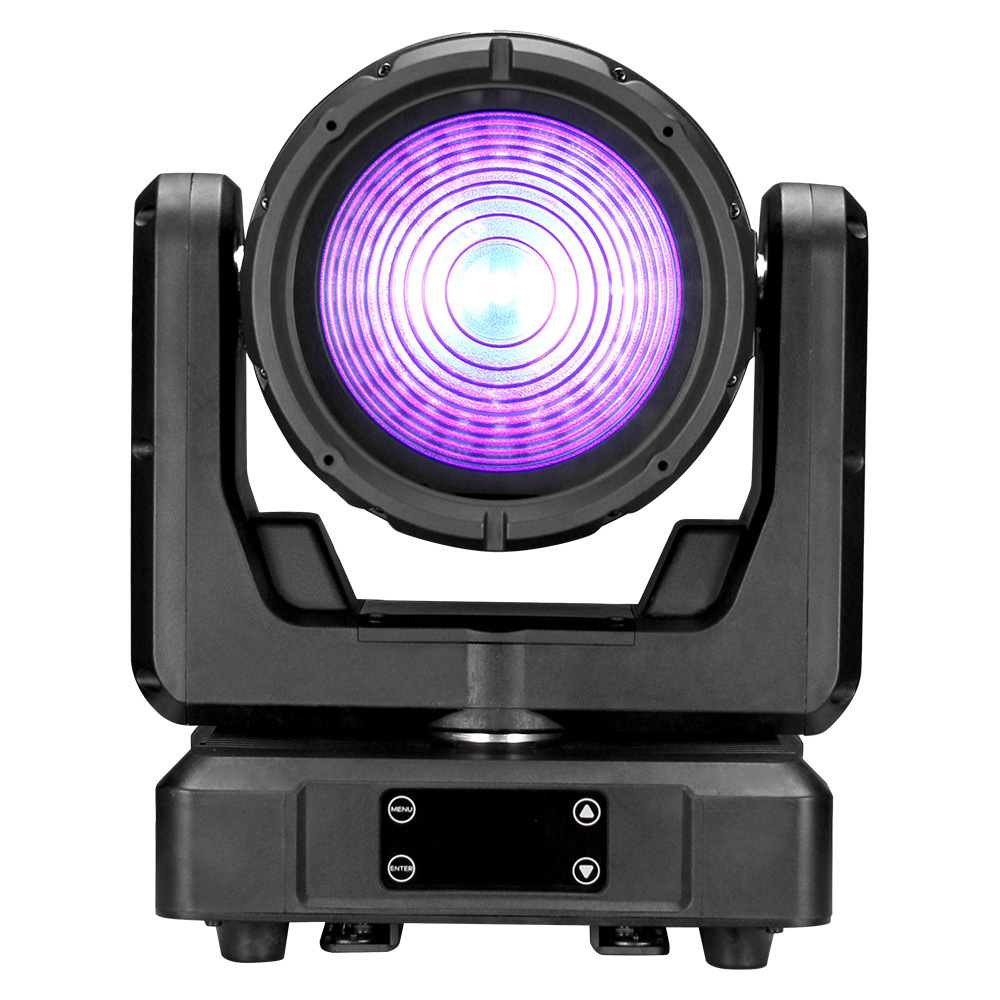

AML Lighting Vortex 120W IP（ヴォルテックス 120W IP） [AL-MH120IP]

特徴

Light Source & Performance:
Main LED: Equipped with a powerful 120W RGBL LED, delivering an impressive 2500 lumens and an intensity of 375,000 cd in its narrow beam setup.

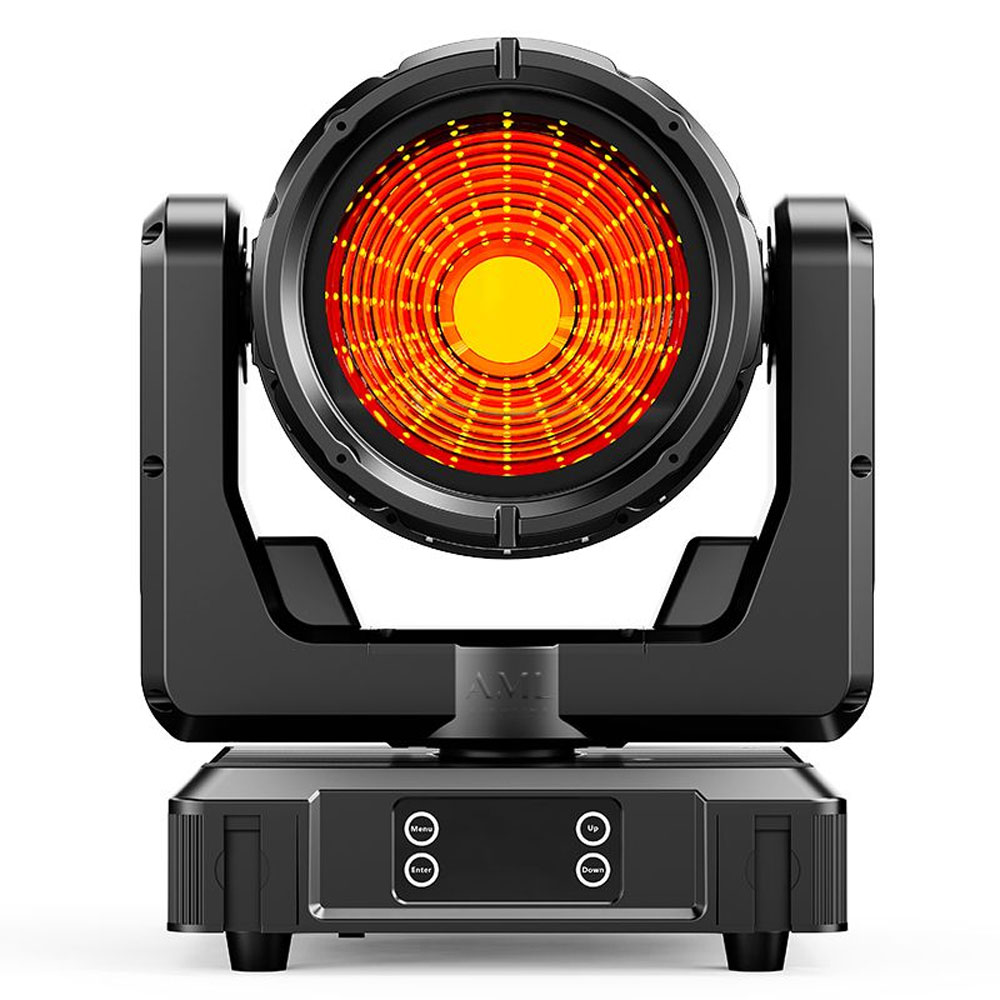

Aura LED: Enhances effects with 48x1W RGBWW LEDs for versatile and dynamic lighting scenarios.
Flicker-Free: Designed for broadcast and high-speed camera environments with adjustable LED driver frequency.
Electrical Specifications:
Input Voltage: Wide range from 100-240Vac, accommodating global use with 50/60Hz.

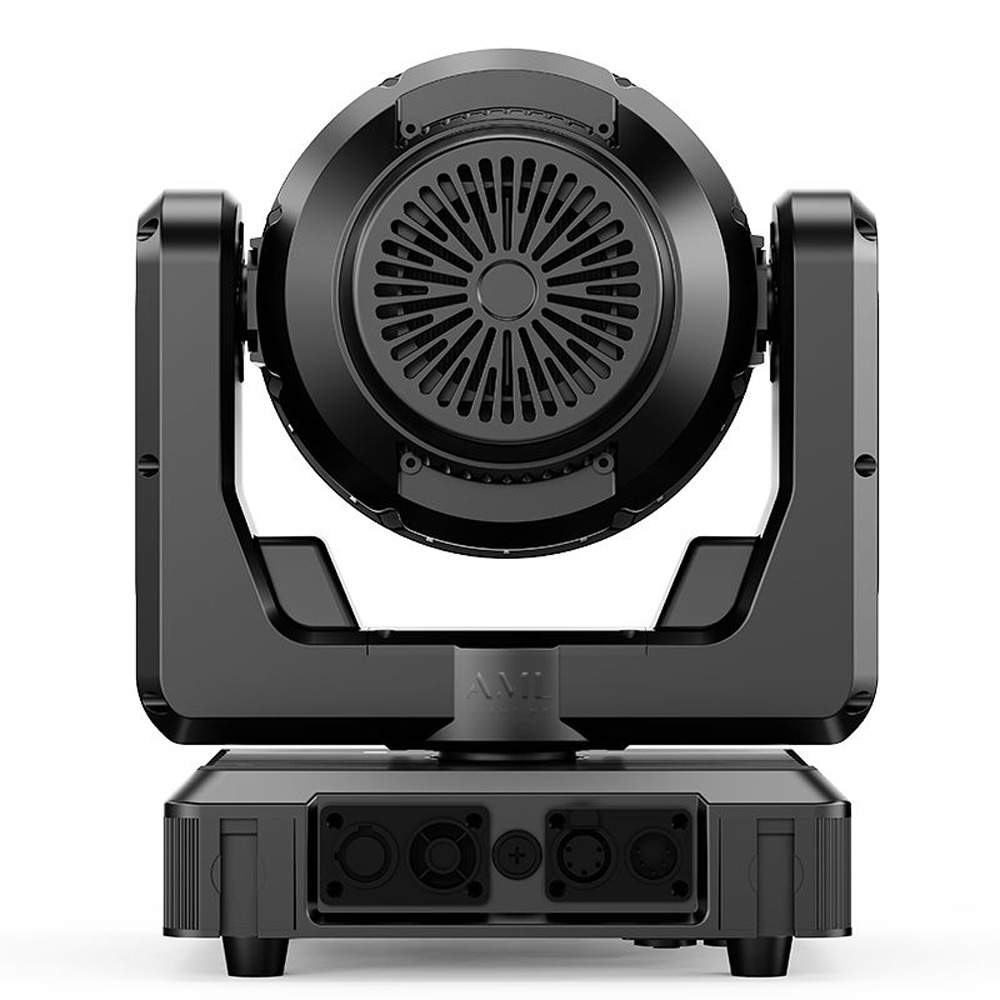

Connectors: Features waterproof power connectors and both 3-pin or 5-pin waterproof XLR for data input/output, ensuring reliability in outdoor or demanding conditions.
Innovative Features:
Splicable Design: Lights can be connected without additional accessories, simplifying installations and reducing costs.
Optics:

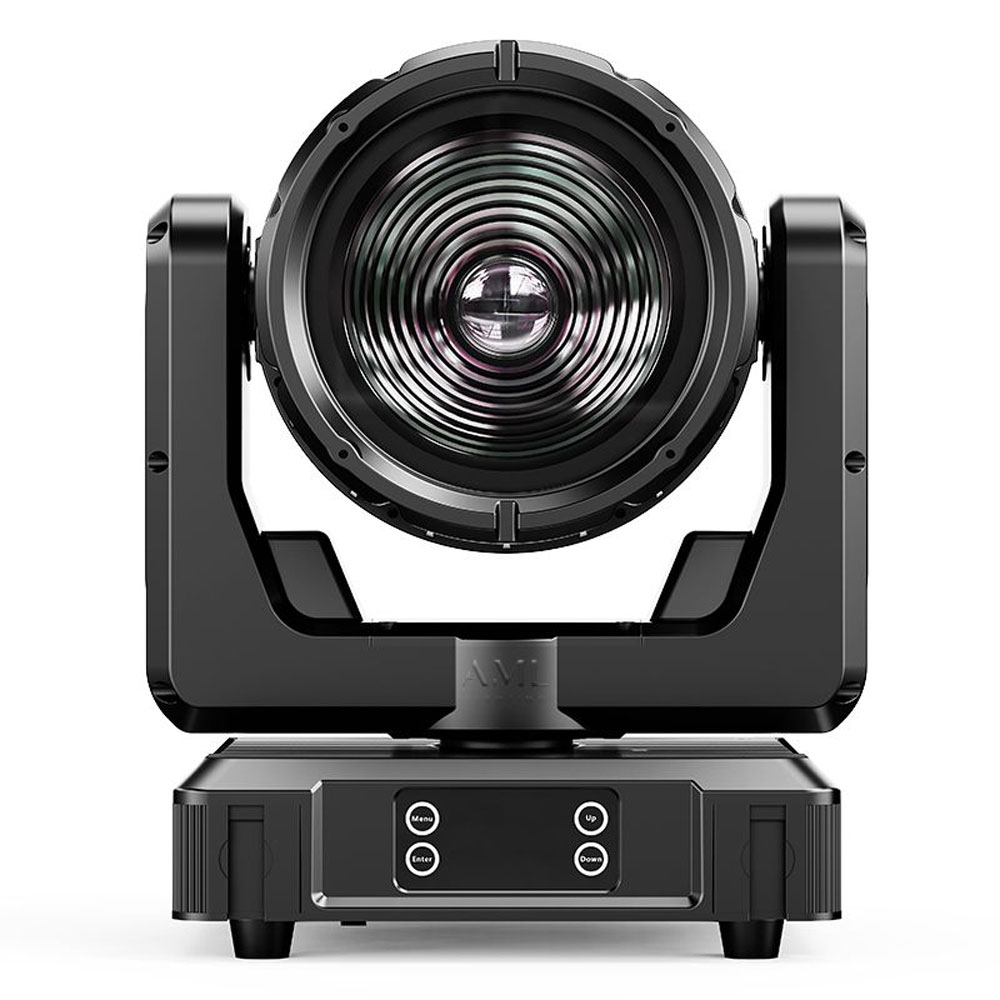

Lens: A large 140mm Fresnel lens ensures high-quality light distribution.
Zoom Range: Offers a versatile beam angle from 3.8 to 38 degrees, providing everything from sharp spotlights to wide, soft washes.
Color Consistency: Maintains minimal color temperature shift across the beam, ensuring uniform lighting quality.
Color Capabilities:

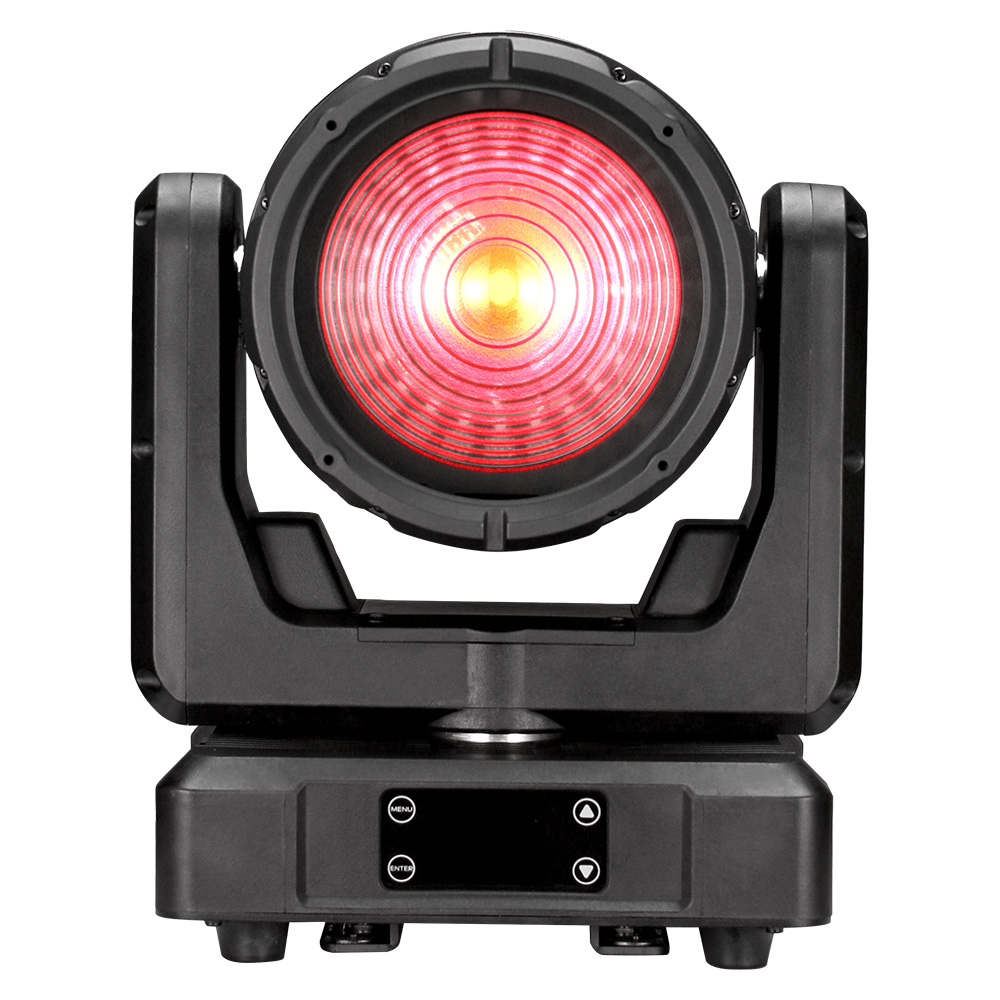

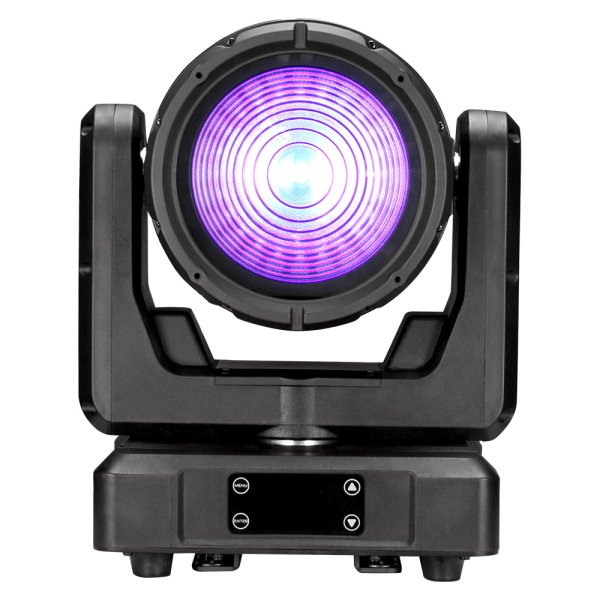

RGBL Color Mixing: Achieve vibrant, saturated colors as well as soft pastels and pure whites.
Temperature Control: Calibrated from 2,000K to 12,850K, with additional green-magenta shift for precise tint control.
Tungsten Emulation: For those needing that classic tungsten look, this feature replicates traditional lighting effects.
Build Quality:

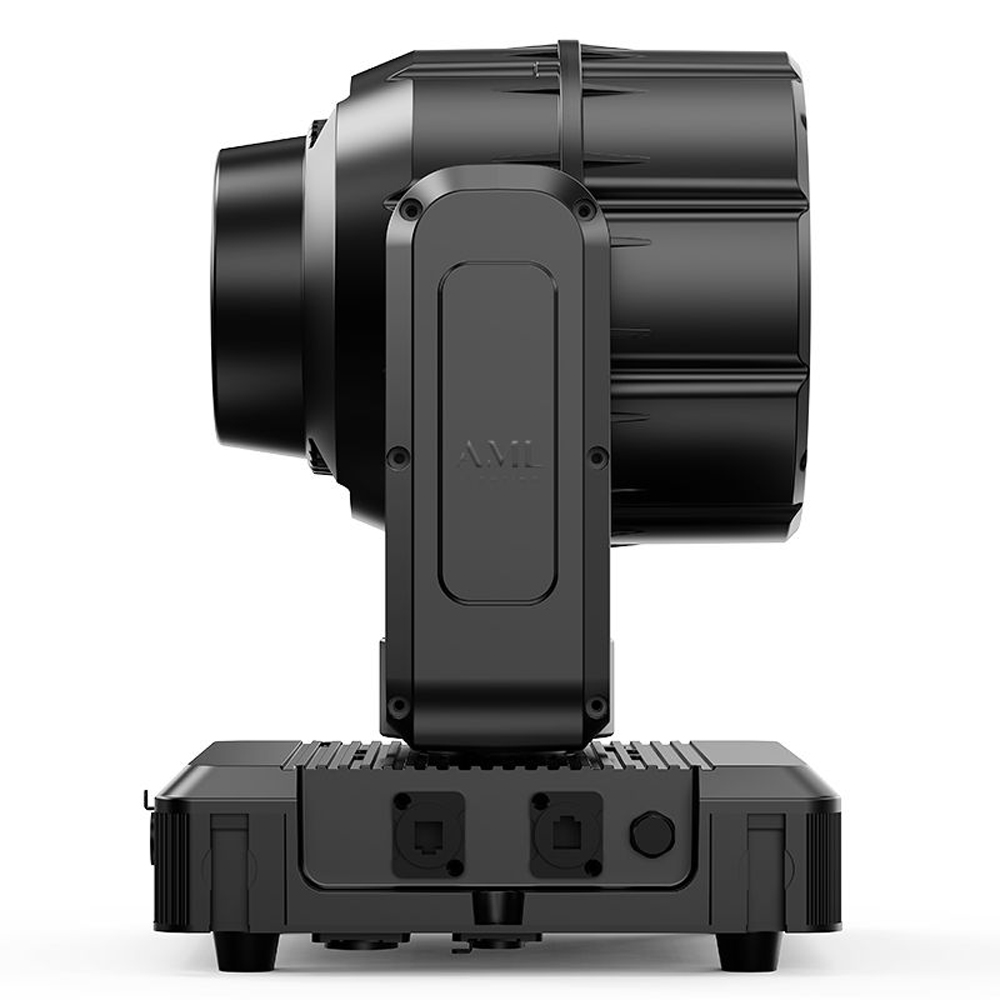

Weight & Dimensions: Lightweight at only 7 kg with compact dimensions of 282 x 250 x 364.8 mm, making it ideal for both permanent and temporary setups.
IP Rating: IP65 rated for dust and water resistance, perfect for outdoor or tough indoor environments.
Control Options:
DMX & Network Control: Supports traditional DMX control with optional Art-Net and sACN for advanced setups.
Why Choose the AL-MH120IP Vortex?
Whether you're lighting up a concert stage, a film set, or creating spectacular outdoor installations, the AL-MH120IP Vortex provides unmatched versatility, quality, and durability. Its robust construction combined with sophisticated color and light control makes it an essential tool for lighting professionals looking to push the boundaries of what's possible in lighting design.

仕様

LIGHT SOURCE

Main LED:120W RGBL

Lumen Output:2500lm

Intensity:375,000 cdinnarrow beam

Aura LED:48*1W RGBCW

Flicker-Free operation

LED Driver frequency adjustable for demanding applications


COLOR PALETTE

RGBL color mixing with very bright and vibrant

saturated colors,as well as soft pastels and

white tones

Calibrated and Extended Color Modes

Calibrated Color

Temperature Control:2,000‒12,850K

Calibrated Green Magenta Shift(Tint)


OPTICS

140 mm Fresnel lens

3.8 to 38 degrees zoom

Defined narrow beam

Soft edge wide wash

Minimal color temperature

Minimal stray light

shift from center to edge

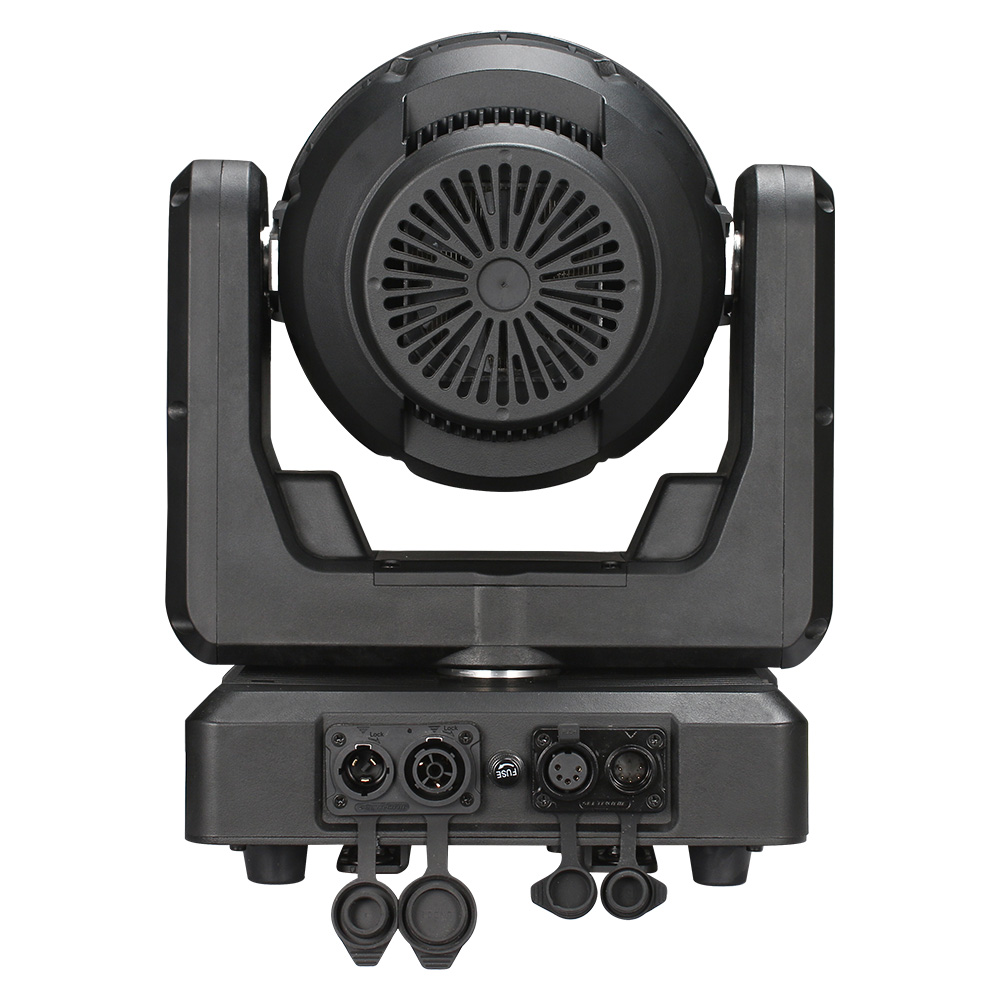

ELECTRICAL AND CONNECTORS

Input Voltage Range:100-240V;50/60Hz

Power In/Out:Waterproof power connector in/out

Data In/Out:3-pin or 5-pin waterproof XLR


CONTROL

Control Mode:20CH/38CH/222CH

DMX,M/S(Art-Net,sACN optional)


CONSTRUCTION

Dimensions:282x250x364.8MM

Weight:7 kg


IP RATED:

IP65
