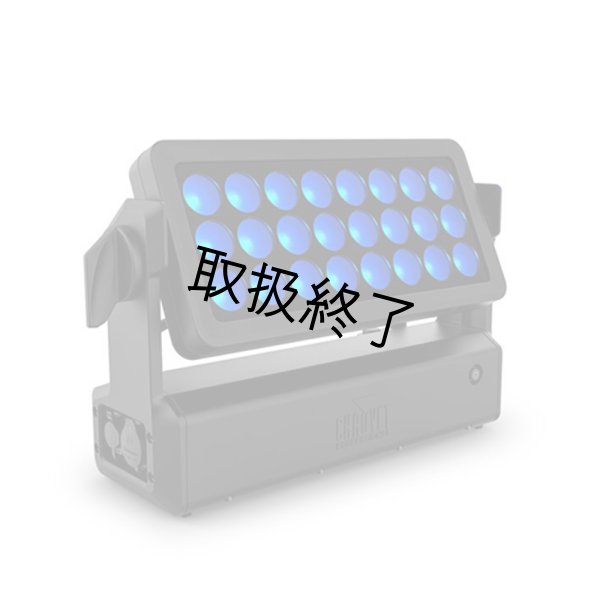

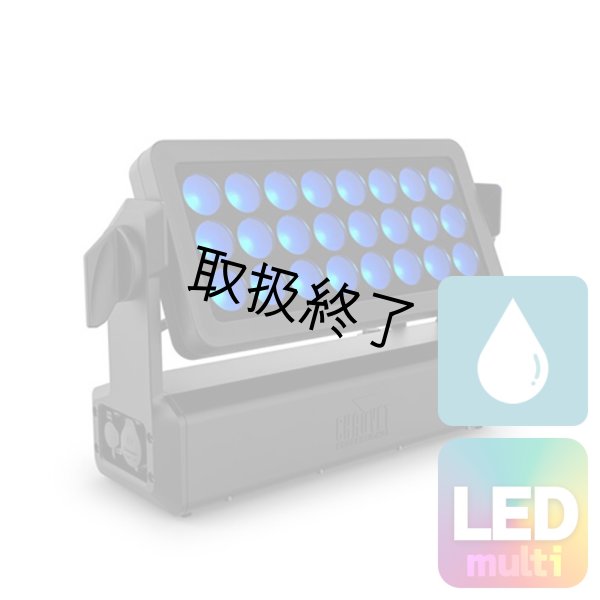

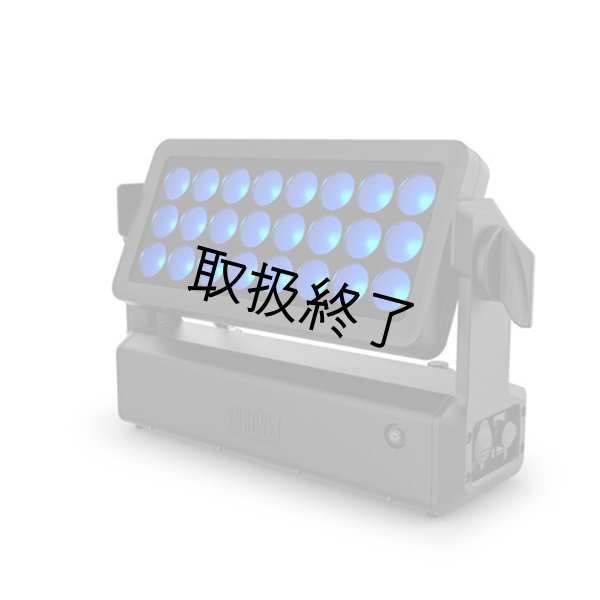

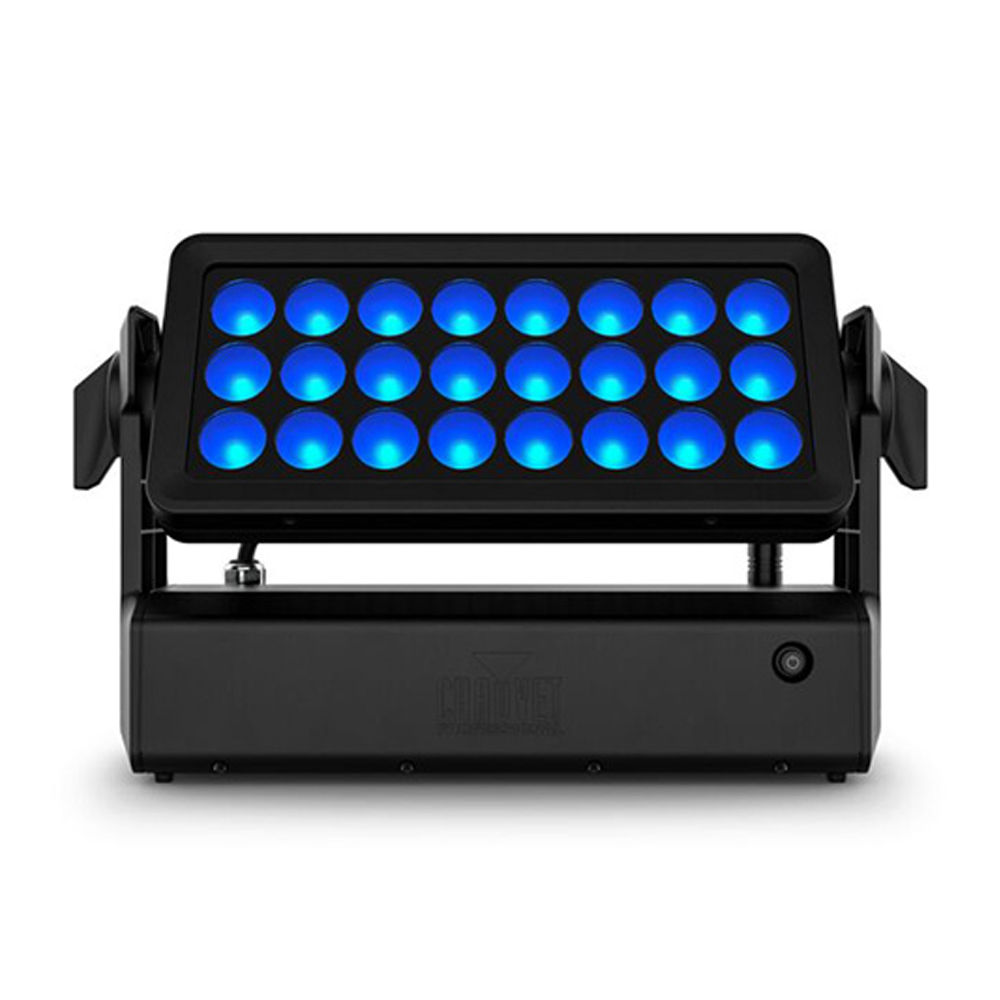

Chauvet Professional WELL Panel（ウェル パネル）

概要

WELL PANEL is a completely wireless, IP65-rated, battery-powered wash light with 24 quad-color LEDs. The robust unit delivers bright, fully saturate tones and pastel colors, casting it as the right tool for onstage productions or highlighting scenic and architectural pieces. Adjustable beam angles and the included magnetic diffuser adds even wider coverage. This truly versatile fixture is capable of selectable dimming, red shift emulation, and PWM settings. Control your way via W-DMX, DMX.

特徴

A completely wireless, IP65 rated, battery powered fixture with 24 quad color (red, green, blue and warm white) LEDs that is controlled by W-DMX, DMX or control panel

High CRI value of 90+ across different color temperatures of white

Selectable Red Shift emulation over DMX and from the fixture display

Selectable PWM settings

Selectable dimming speed and curves

Built in color temperature presets and

RDM control over DMX for fixture setup and reporting

Line voltage input allows fixture to operate while being charged

Built in power loss detection when operating under line voltage

Wireless operation with WDMX or as well as wired DMX operation

Magnetic diffuser filter included for wider light coverage

Omega bracket included for easy hanging options

User selectable hours of operation (3, 5, 8, 12) at full output with a recharge time of 4 hours

Built in automated programs recallable by W-DMX, DMX or manually.

170-degree rotation of the panel from the base for easy direction of light

IP65 rating for temporary outdoor usage

Accessory filter pack with 10 x 60 and 40R60 sold separately

仕様

Optical
Light Source: 24 LEDs (24 red, 24 green, 24 blue, 24 warm white) 1 to 3 W, (500 mA), 50,000 hours life expectancy.Lumens: 5117 w/filter, 5773 w/o filterInstalled Optics: 15°Beam Angle (w/o filter): 14°Beam Angle (w/filter): 32.3°Field Angle (w/o filter): 25.8°Field Angle (w/filter): 54.4°Illuminance (w/o filter): 2830 lux @ 5 mIlluminance (w/ filter): 550 lux @ 5 m
Dynamic Effects
Tilt: 170°Tilt Ranges: 0° to 170° tiltColor Macros: 20 color macrosDimmer: ElectronicShutter/Strobe: ElectronicStrobe Rate: 0 to 30 HzStandalone Color Mixing: YesColor Temperature Presets: YesBuilt in red shift: yesDim Curves: 4Dim Modes: 4Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 17.17 x 5.31 x 10.24 in (436 x 135 x 260 mm)Weight (single unit): 22.6 lb (10.3 kg)Exterior Color: BlackHousing Material: Aluminum die-cast
Connections
Power Connection: Seetronic PowerKon IP 65Power Input/output: Seetronic PowerKon IP 65Data input/output: 5-pin XLRCable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, W-DMXDMX Channels: 4, 8, 12, 13 or 21Modes/Personalities: 5 personalities (4Ch, 8Ch, 12Ch, 13Ch, 21Ch)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 9 units @ 120 V; 17 units @ 208 V; 18 units @ 230 VPower and Current (single unit charging): 147 W, 1.229 A @ 120 V, 60 HzPower and Current (single unit charging): 146 W, 0.700 A @ 208 V, 60 HzPower and Current (single unit charging): 146 W, 0.634 A @ 230 V, 50 Hz
Battery
Battery type: Lithium IonRechargeable: YesBattery Charge Time: 4 hoursBattery Life: selectable: 3, 5, 8, 12 hrs
Certifications / Qualifications
CE, FCC, UKCAIP Rating: IP65, temporary outdoor/wet use with pressure equalizing M12 GORE valveTemperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
WELL PANELMagnetic filterOmega bracketQRG
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCNSafety Cable: SC-08Accessory filter pack with 10 x 60 and 40R60 sold separately (Well Panel Filter Pack)

■メーカーサイト
https://www.chauvetprofessional.com/products/well-panel/
